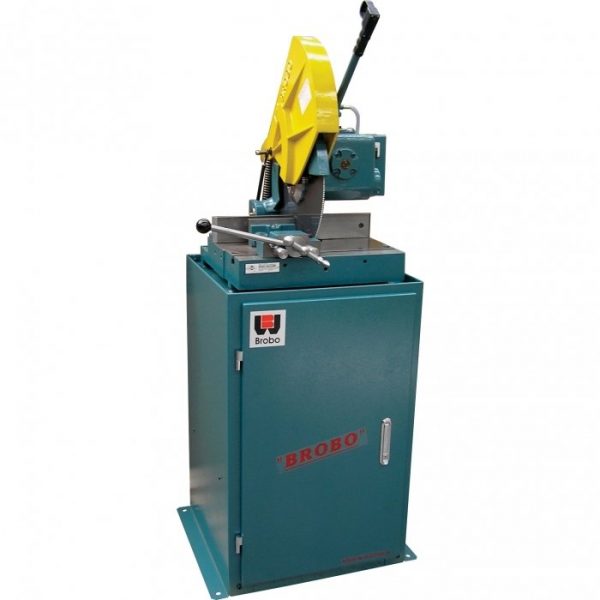

Brobo S350D Ferrous Metal Cutting Cold Saw With Stand

Was $ 6,990 Excl. GST $ 7,689 Incl. GST Now Only $6,430.80 Excl. GST $7,073.88 Incl. GST

1000 in stock

Brobo 350D Cold saw With Stand is engineered for heavy duty applications, Its superior performance and reliability ensures for a burr-free, milled finish on every cut.

Product ID: BROBO-S350D-WS Categories: , , , , Tag: Brand:

Save as PDF

Was $ 6,990 Excl. GST $ 7,689 Incl. GST Now Only $6,430.80 Excl. GST $7,073.88 Incl. GST

Description

Check our Brobo Coldsaw Video for Bench Mount and Cabinet Stand Models



Electrical Supply / Blade Speed Options:
  • Single Phase 240vac Single Speed (42 RPM) for stainless / mild steel applications
  • Single Phase 240vac Variable Speed (20-100RPM) for Stainless / mild steel / aluminium applications
  • Three Phase 415vac Low-Medium Speed (21-42 RPM) for stainless / galvanised steel applications
  • Three Phase 415vac Medium-High Speed (42-85 RPM) for mild steel / aluminium & non-ferrous applications
Features:
  • Australian made machine
  • Industrial cold cutting saw that is capable of a burr-free milled finish
  • Mitre locking device stops at 45° left, straight 90°, and 45° right, extremely accurate mitre cutting
  • Fully integrated coolant system provided on all machines
  • Heavy gearbox drive designed and built to last
  • Spindle and drive unit immersed in an oil solution and enclosed within gearbox housing for smooth performance and reduced machine wear.
  • Every unit is provided with a high-speed steel blade for general purpose cutting of ferrous solid and tube profiles
  • Saws supplied with facilities for bench mounting onto workbench, or complete with an integrated stand
  • Includes a blade and stand
Cutting Head Action Manual
Operation Type Swivel – Dual Mitre
(mm)Round Capacity @ 90º / 45º 115 / 110
(mm)Square Capacity @ 90º / 45º 100 / 100
(mm)Rectangle Capacity @ 90º / 45º (WxH) 135 x 85 / 95 x 85
(mm)Blade Size (Ø X Bore) 350 x 40
Vice Clamping Fixture Manual
Coolant System Yes
(mm)Table Working Height (with Stand) 968
(rpm)Blade Speed 21 / 42
(kW / hp)Motor Power 1.5 / 2
(V / amp)Voltage / Amperage 415
(kg)Nett Weight 220



Include:
  • Coolant Pump
  • Blade
  • Stand
Cutting Specifications:
Cutting Range S315D S350D S400B VS350D VS400D
Brobo Round Cutting Range 90° 95 115 130 115 130
45° 95 110 120 110 120
Brobo Square Cutting Range 90° 85 x 85 100 x 100 110 x 110 100 x 100 110 x 110
45° 80 x 80 85 x 85 95 x 95 85 x 85 95 x 95
Brobo Rectangular Cutting Range 90° 80 x 100 85 x 135 100 x 135 85 x 135 100 x 135
45° 80 x 80 85 x 95 100 x 95 85 x 95 100 x 95
Brobo Round Square Cutting Range 90° 50 60 60 60 60
