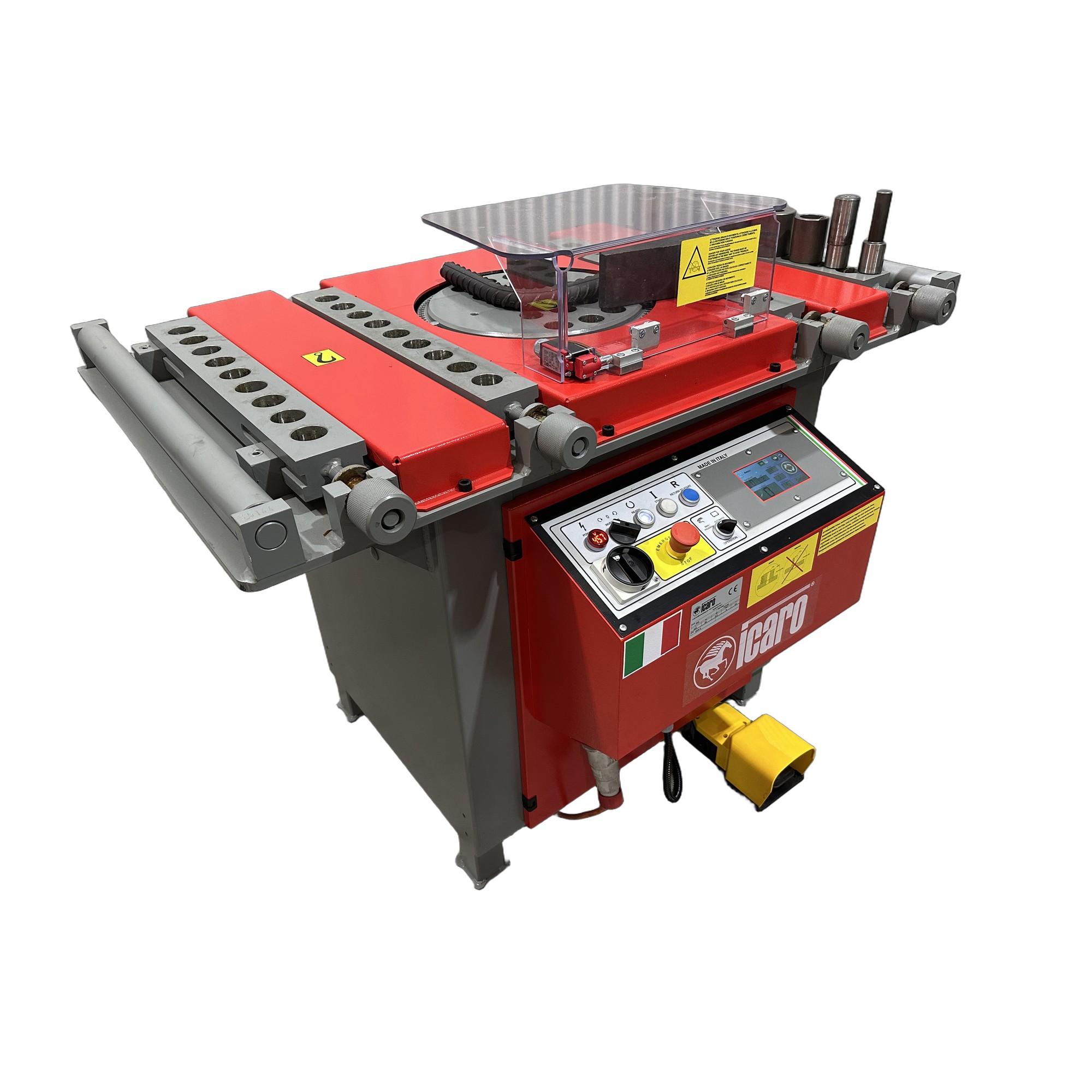

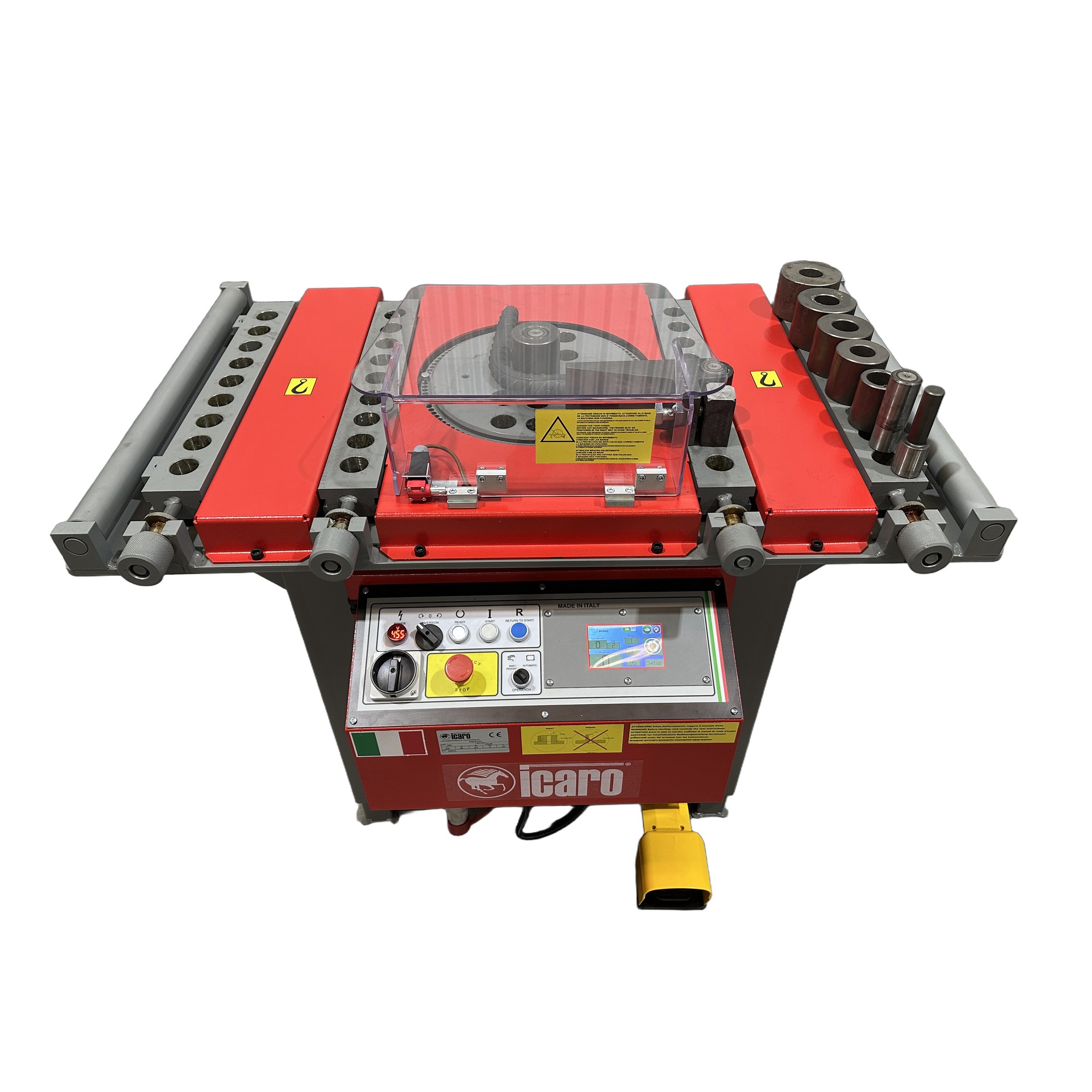

ICARO P55 Rebar Bender With 4 Long Saddles & Digital Angular Controller

$18,255.00 Excl. GST $20,080.50 Incl. GST

10 in stock

The ICARO P55 Rebar Bender presents is a practical investment for your workshop. Our selection of Rebar Benders are all manufactured with the premium European electronics and hardware that ensuring exceptional longevity and performance results even on the most demanding projects.

$18,255.00 Excl. GST $20,080.50 Incl. GST

Optional Add-on:

 Shipping Fee

Description

The ICARO P55 Rebar Bender presents is a practical investment for your workshop. Our selection of Rebar Benders are all manufactured with the premium European electronics and hardware that ensuring exceptional longevity and performance results even on the most demanding projects.

Includes: ICARO NC Digital Programmable Angle Controller is an optional accessory that you can purchase for your Icaro rebar machine.

ICARO P55 Rebar Bender Features

  • Manufactured in Italy using local European components
  • Bidirectional bending table for efficient bending in both directions.
  • User friendly design, fast and easy operation and control
  • Proprietary special purpose grease filled gearbox with laminated helical gearing
  • Multiple controller options available
  • All machines are bluetooth ready: allowing production diagnostics and equipment monitoring using the optional antenna module.
  • Compact design for workshops and onsite use
  • Safety guarded with interlock systems
  • Abides by CE standard European laws and global regulations ISO9001/2008
  • Replacement bending bushes and spare parts available in stock

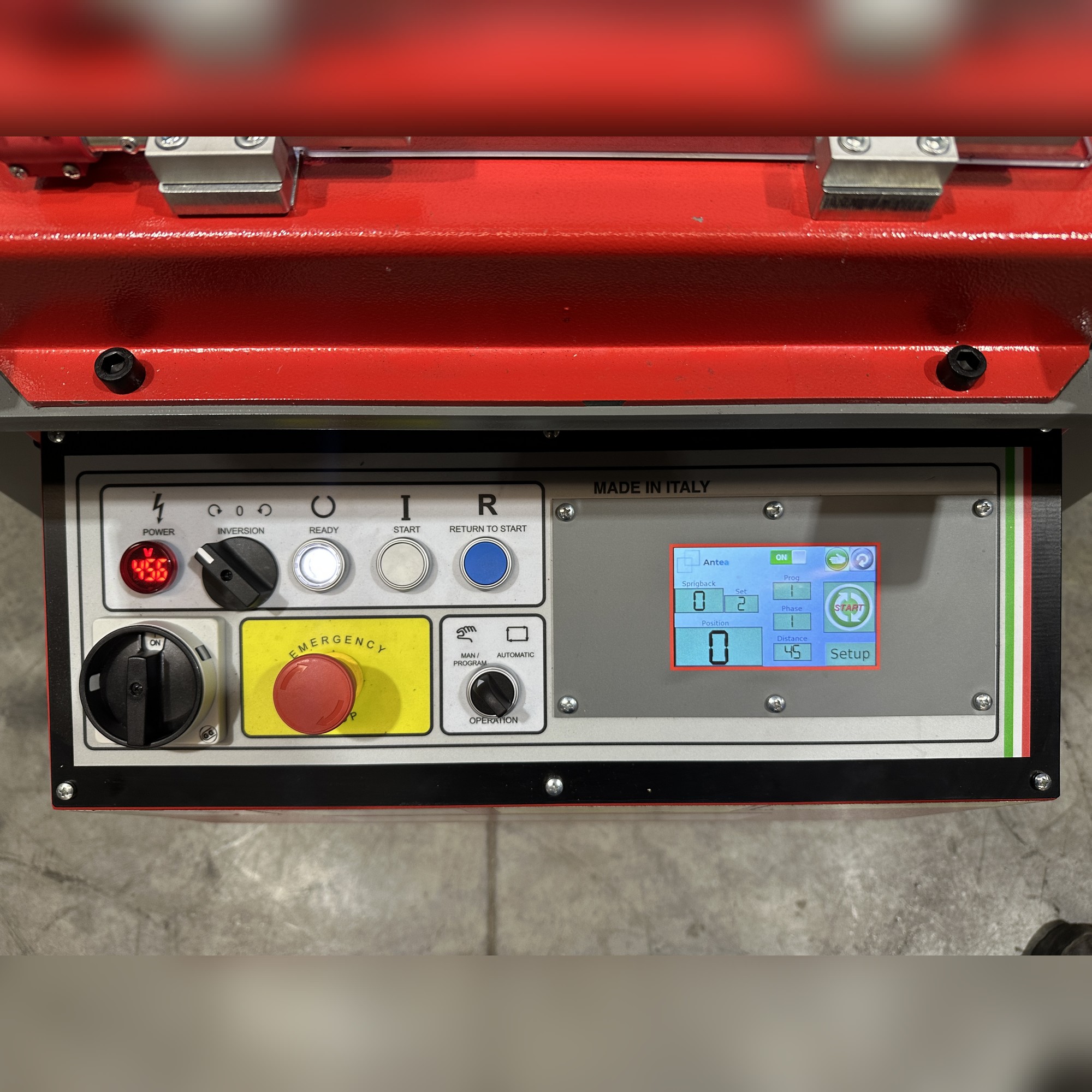

Digital Angle Controller

The ICARO Digital Angle Controller is an optional accessory that features the following capabilities:
– Ability to change bending angles quickly from the operator’s keypad.
– Ability Input multiple bending angles steps
– Easily Adjust rebar bending angle correction as required i.e + 5 Degree’s
– Control rotary table bending direction Left or Right rotation
– Set part quantity using the incremental batch counter



See ICARO P55 Rebar Bender In Action



Common Australian Bar Grades

  • Grade 250 – 250MPA = 25.5 Kg/mm2
  • Grade 300 – 300MPA = 30.6 Kg/mm2
  • Grade 500 – 500MPA = 51.0 Kg/mm2
ModelMotor Drive
kw
Bending CapacityWeight
kg
Machine Dimensions
cm
Grade 500 – 500MPA = 51.0Kg/mm2
Bars per Bend
1 x Ø2 x Ø3 x Ø
P261.8524161235068 X 61 X 83
P322.226201635076 X 70 X 83
P36332241836586 X 90 X 85
P423362822500100 X 90 X 89
P463423030520100 X 90 X 89
P524443426590110 X 91 X 89
P555.5463628620110 X 100 X 89
P625.55440301000150 X 100 X 100
P707.57042351200160 X 115 X 90



All the tests were carried out using iron bars coming from all over the world. The iron bars we used all followed these standards: DIN488, BS4449/2005, BS4449/97, ASTM/A706/A706M-00, ASTM (A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness.

Technical Specification

Net Weight Kg

620

Measurements cm L x W x H

110 x 100 x 89

Motor (50 Hz) KW/HP

5, 5/7, 5

Motor (60 Hz) KW/HP

6, 6/9

Table RPM (50hz)

5

Gearbox Grease KG

13

Working Table Diameter Disc ϴ

400

General Equipment

Standard

Optional

Foot pedal control

5 Step bending angle controller

Bluetooth ready module

5 Step Digital Angle programmable controller

2 x Bending angle setting pins

Bluetooth antenna module

6 x Bending bushes & Pins

Single phase supply 240vac Inverter

Squaring arm & stop

Extender Arm for large radius bending

C.E Safety guard & limit switch

Stirrup Bending Attachment with length stop

Digital display voltage Indicator (60V-500V)

Spiralling  forming attachment

4 x Cabinet castor wheels

Linear length stop

Tool kit with hex keys



Standard Equipment



Standard Equipment Pins & Bushes
Standard Equipment Pins & Bushes
Cabinet Base Wheel Set
Cabinet Base Wheel Set
Foot Pedal Control
Foot Pedal Control



BlueTooth ready module
BlueTooth ready module
Supply voltage indicator (60V-500V)
Supply voltage indicator (60V-500V)
C.E Front Protection
C.E Front Protection



Optional Equipment



Spiralling forming attachment
Spiralling forming attachment
Choice of optional controllers
Linear Length Stop
Linear Length Stop



Bluetooth Antenna Module
Bluetooth Antenna Module
Stirrup bending attachment
Stirrup bending attachment
Extender Arm for large radius bending
Extender Arm for large radius bending



Https Www.capitalmachinery.com .au Media Icaro Machinery Rebar Bender Rebar Bender For Sale 16



ALL ICARO BENDERS ARE DELIVERED BLUETOOTH-READY: simply purchase an antenna, which is extremely easy to install, and download a free software designed for both Apple and Android.

Icaro Smart Phone Fault Monitoring
BlueTooth ready module
Icaro Smart Phone Fault Monitoring



Each bender is fitted with our extremely innovative technology for Bluetooth diagnostics, that will let you check the conditions of your machine at every moment.



Additional information

Additional information

Weight800 kg
