Reflex 50SC Rebar Cutting Machine

   Reflex 50SC Rebar Cutting Machine Operation Manual

Introducing the Reflex 50SC Rebar Cutting Machine, the ultimate precision and power solution for the construction and metalworking industry. With expert craftsmanship and cutting-edge design, this equipment is specifically tailored to meet your rebar cutting, rebar cutter, and bar cutting needs.

Engineered with durable gears, shafts, and connecting rods made from premium alloy, the Reflex 50SC Rebar Cutting Machine boasts a robust construction with a 15mm thick, armour-like case that ensures integrity even under heavy loads. Our commitment to excellence is reflected in the rigorous heat treatments, including quenching and high-frequency processes, that critical components undergo, resulting in an extended working life.

Setting new standards, the connecting rod of the Reflex 50SC Rebar Cutting Machine is crafted from Tin-Bronze, offering exceptional hardness exactly where it matters. This ensures precise rebar cuts while protecting the crankshaft. The machine’s Thick Blades (4 edges), suitable for all steel bar profiles, provide durable edges and adaptability. Choose between a square or moon-shaped blade, with the option of a press-spring for your specific rebar cutting requirements.

This cutting machine is powered by a CE Certified dustproof motor with an aluminium shell, ensuring safety and efficiency. It is compliant with CE Certification standards (2006/42/EC – 2006/95/EC).

Experience the Reflex 50SC Rebar Cutting Machine, the epitome of precision and power for the construction and metalworking industry. Upgrade your operations today!

Benefits of the product:

The Reflex 50SC Rebar Cutting Machine is a highly efficient tool for cutting different types of steel bars commonly used in machining and construction projects. It offers several key features that make it a reliable choice:

• Enhanced durability: The level steel shear section minimizes the risk of steel damage.
• Efficient steel shear: Minimal extrusion deformation allows for easy removal of ribbed rolling wire.
• Time and effort-saving: This two-in-one machine maximizes productivity.
• Compact machine body with a small yet robust steel structure, ensuring high-quality performance.
• Effective lubrication system with gear splash, requiring only 8-10kg of petrol for smooth operation.
• Rigid structure minimizes functional loss, with bearings at the gear end to reduce resistance.
• Equipped with rolling castors for easy mobility, while consuming 1/3 less power compared to similar machines.
• A necessary tool for shear reinforcement in construction projects.
• Essential equipment for steel processing, widely used in building construction, bridges, tunnels, power stations, and large-scale water conservation projects for precise steel cutting.
• Lightweight, energy-efficient, reliable, and offers higher efficiency compared to other cutting equipment.

The Reflex 50SC Rebar Cutting Machine provides a reliable and efficient solution for steel cutting needs in various construction and machining applications, ensuring optimal performance and productivity

Product Details:

• Our new arc-cutting machine features an arc thickening blade and a stable chassis design. This ensures a smooth shear section for steel, minimizing deformation, reducing the risk of damage, and improving efficiency. It also allows for direct wire rolling, saving time and effort.
• The thread adjustable block provides accurate positioning, while the solid and unique appearance enhances the steel shearing effect.
• With an independent cutter protection cover, our machine ensures convenient and safe use, prioritizing safety.
• The box is made of high-strength ball mill castings, with internal gears, gear shafts, and connecting rods made of high-quality carbon structural steel or alloy steel.
• All important parts and components undergo high-standard heat treatment for durability and reliability.
• The internal gears, gear shafts, connecting rods, and blades are quenched, tempered, and subjected to high-frequency heat treatment using premium alloy steel. This allows them to withstand heavy loads and ensures a long service life.
• The arc cut blade, compared to ordinary flat cut blades, is more durable and keeps the steelhead flat and intact. It also allows for easy wire setting and re-processing, saving on profile cutting machines, wheels, and manual labour.

Upgrade your steel cutting capabilities with our advanced arc-cutting machine. Experience improved efficiency, durability, and safety in your operations. Contact us today for more information!

Introducing our Detail Display with innovative features!

• Intimate Protective Cover – Crafted from a 1cm thick iron plate, this cover ensures safety and efficiency during steel operations.
• Arc Cut Off – Experience the precision and efficiency of our graceful arc cutting technique.
• Solid Flywheel  – Our machine’s 25cm wide solid flywheel guarantees powerful cutting with reduced impact load.
• Steel Gears – Designed for strength and durability, our machine features steel gears and tooth boxes.
• Hand Pedal – Enjoy a user-friendly experience with our easy-to-use foot and manual switch.
• Steel Link – Built to last, our cutting machine’s solid steel construction ensures durability under high loads.

Experience the Reflex 50SC Rebar Cutting Machine, the epitome of precision and power for the construction and metalworking industry. Upgrade your operations today!

Explore Other Details with Captivating Pictures

• The connecting rod of the cutting machine is constructed with pure solid steel material, and it features an embedded copper tile. This design ensures long-term durability even under high loads.
• The box is made using of high-strength ductile iron castings, while Internal gear, gear shaft, connecting rod are crafted from either carbon steel or alloy materials

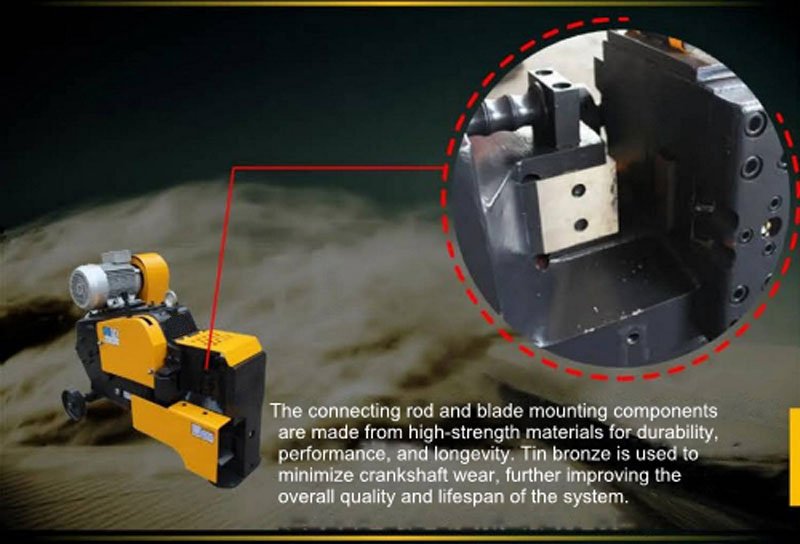

• The connecting rod and blade mounting components are made from high-strength materials for durability. Tin bronze is used to minimize crankshaft wear, further improving the overall quality and lifespan of the system.

Specifications:
