Description

The Behringer HBP420A Automatic Bandsaw is an industrial metal cutting solution designed for workshops requiring reliable automated cutting capability. Built with durable mechanical components and a rigid machine structure, the saw is suited for processing metal stock in fabrication environments where consistency and productivity are essential.

Automatic cutting functionality allows the machine to perform repetitive cutting tasks with minimal operator intervention, improving efficiency in production settings. The hydraulic feed system controls the cutting pressure applied to the blade, helping to achieve consistent cut quality while supporting blade longevity.

Operator usability is also considered in the machine’s design. The system is engineered to mitigate physical fatigue and prevent repetitive motion strain during extended operation, helping maintain operator comfort and safer working conditions during long production cycles.

This unit was previously in service and reported to be fully functional when removed from operation. As an older industrial machine, prospective buyers should consider that ongoing maintenance or servicing may be required compared with purchasing new equipment. However, it remains a practical option for workshops seeking dependable cutting performance at a significantly lower capital cost.

Feature Bullets

Automatic Cutting Operation – Designed for efficient repetitive cutting with automated feed and cutting cycles.
Heavy-Duty Industrial Construction – Built with a rigid frame to maintain stability and cutting accuracy during operation.
Hydraulic Saw Feed System – Provides controlled cutting pressure for consistent results and improved blade life.
Workshop Production Capability – Suitable for fabrication shops, metal processing facilities, and industrial maintenance workshops.
Precision Bandsaw Cutting – Produces clean, accurate cuts on a variety of metal stock materials.
Industrial-Grade Engineering – Manufactured by Behringer, known for durable metal cutting equipment used in heavy industry.
Used Workshop Equipment – Previously in service and operational when removed; suitable for buyers seeking cost-effective industrial machinery.

Specification

Model	Used Behringer HBP420A
Cutting Diameter	420 mm
Saw Band Length	5800 mm
Cutting Width	420 x 420 mm
Dimensions of Saw-Band	5800 x 38 x 1.3 mm
Cutting Speed	17 – 110 m/min
Power Capacity	505 / 7.8 kW
Coolant Voltage	380V
Total Power Requirement	8.5kW
Control Unit	Conventional
Weight of the Machine ca.	3,200 kg
Dimensions of the Machine ca.	30 x 22 x 18.5 cm
Accessories
Roller Conveyor	3 x 0.07 x 0.07 cm
Band Dimension	5800 x 38 x 1.3 mm
Cutting Speed	17-110 m/min
Feed Length	600 mm
Motor	7.5 Kw
Approx Machine Weight	3200 kg
Machine Dimension	3000 x 2300 x 1800 mm
Equipped with
Chip Conveyor	Yes
Variable Speed Drive	Yes

Shipping & Installation

Freight available Australia-wide (buyer to confirm location and requirements)
Machine suitable for palletised or crate transport depending on logistics provider
Electrical connection and commissioning should be carried out by qualified technicians

Warranty & Support

Warranty: Typically sold as-is due to used condition, unless otherwise specified by the seller
Inspection: Buyers are encouraged to inspect the machine prior to purchase
Technical Support: Basic operational guidance may be available depending on Sellers terms

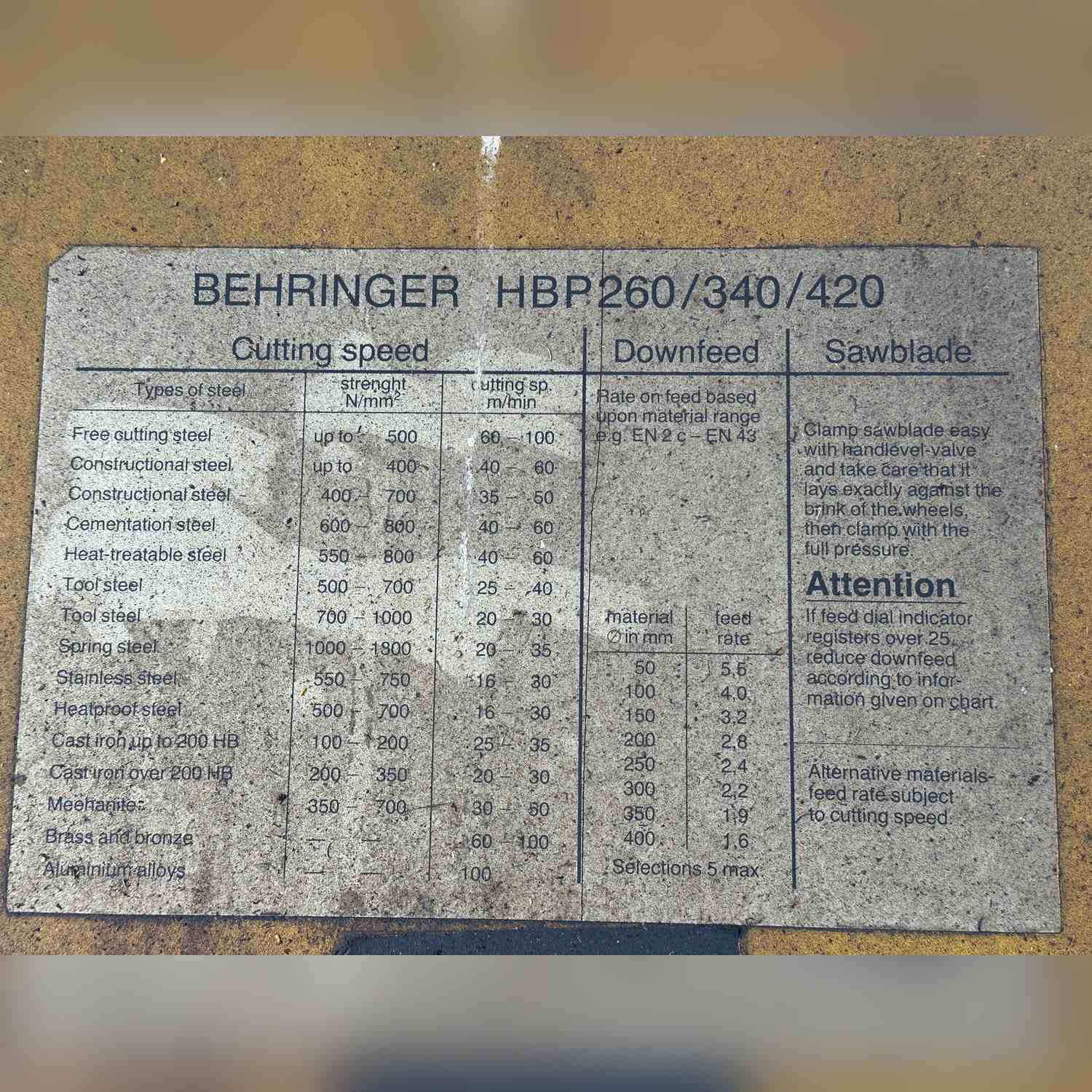

BEHRINGER HBP260/340/420 Specifications

Types of Steel	Strength (N/mm²)	Cutting Speed (m/min)
Free cutting steel	Up to 500	60 – 100
Constructional steel	Up to 400	40 – 60
Constructional steel	400 – 700	35 – 50
Cementation steel	600 – 800	40 – 60
Heat-treatable steel	550 – 800	40 – 60
Tool steel	500 – 700	25 – 40
Tool steel	700 – 1000	20 – 30
Spring steel	1000 – 1800	20 – 35
Stainless steel	550 – 750	16 – 30
Heatproof steel	500 – 700	16 – 30
Cast iron up to 200 HB	100 – 200	25 – 35
Cast iron over 200 HB	200 – 350	20 – 30
Meehanite	350 – 700	30 – 50
Brass and bronze	–	60 – 100
Aluminium alloys	–	100

Downfeed

Note: Rate on feed based upon material range e.g. EN 2 c – EN 43

Material Ø in mm	Feed Rate
50	5.5
100	4.0
150	3.2
200	2.8
250	2.4
300	2.2
350	1.9
400	1.6

Note: Selections 5 max.

Sawblade:

Clamp sawblade easy with handlevel-valve and take care that it lays exactly against the brink of the wheels, then clamp with the full pressure.

Attention:

If feed dial indicator registers over 25, reduce downfeed according to information given on chart.

Alternative Materials:

Feed rate subject to cutting speed.
