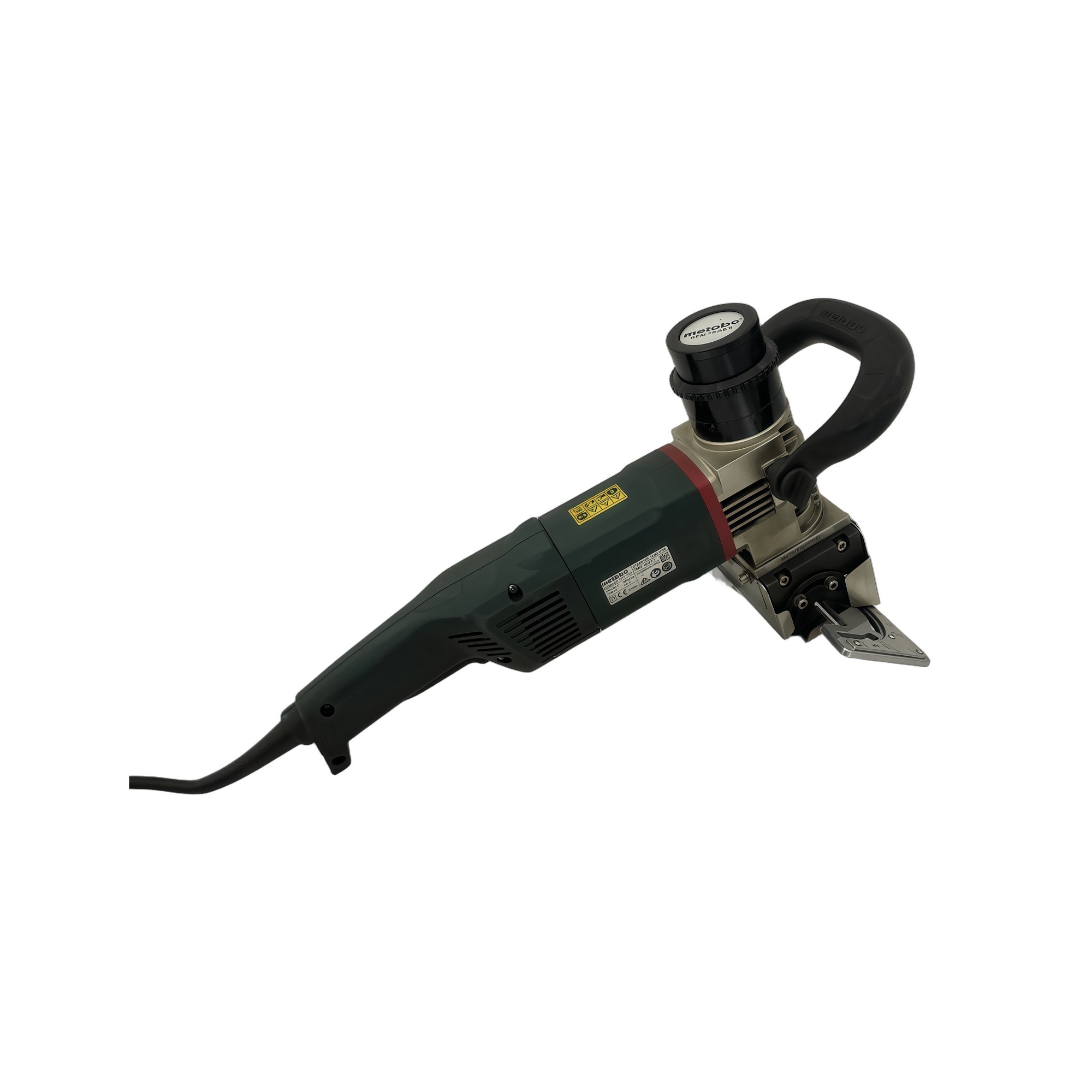

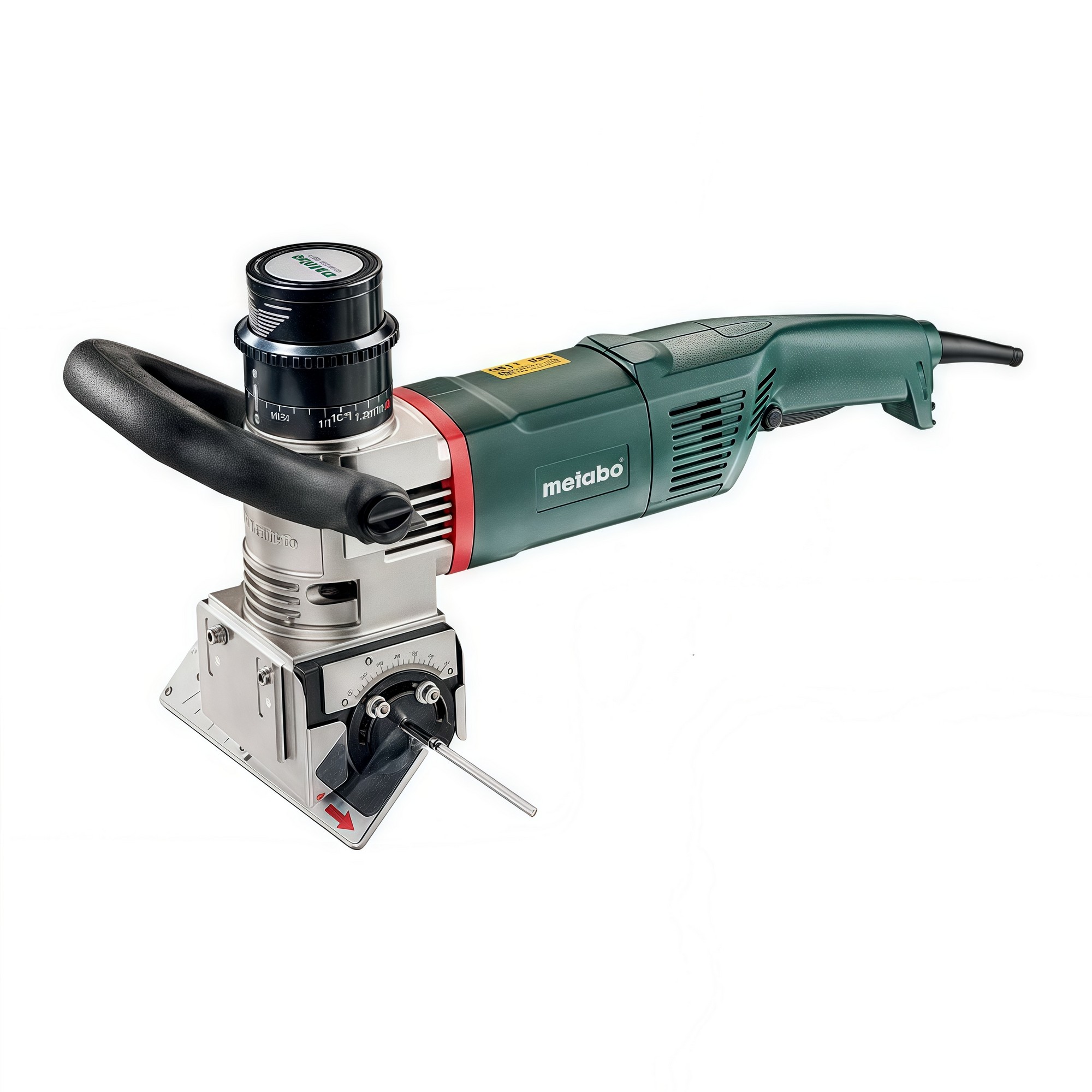

Used Metabo KFM 16-15 F – Metal Bevelling Tool

The Metabo KFM 16-15 F is driven by a 1600W Marathon motor at 12,000 RPM, running a universal milling head fitted with three carbide indexable inserts. The head handles the full 0–90° chamfer range, producing chamfer heights up to 15 mm and widths up to 21 mm at 45° — suited to weld preparation on steel, stainless steel, aluminium, and aluminium alloys encountered across Australian fabrication shops, structural steel yards, and maintenance facilities.

Cutting depth is controlled via Metabo’s patented One-Touch controller, which adjusts in 0.1 mm increments without tools. Positive stop points prevent accidental depth changes under load, and the chamfer angle is set directly through the guide plates for consistent, repeatable results across high-volume runs. A spindle lock is fitted as standard.

The bail handle adjusts without tools to suit different grip positions and workpiece orientations during extended use. Large-scale guide plates maintain stable contact with the workpiece surface, reducing dig-in on flat stock, while an included stop roller guides the tool along pipe for accurate weld seam preparation on round sections. Lateral plates direct swarf away from the operator during the cutting process.

The Marathon motor incorporates Metabo's patented dust protection, with electronic overload protection, soft start, and restart protection built in. The restart protection prevents the machine from self-starting after a power interruption, requiring the operator to manually cycle the switch — a relevant safety feature for Australian commercial workshop environments.

Feature Bullets

• 1600W Marathon Motor – Patented dust protection and 12,000 RPM no-load speed sustain performance across heavy fabrication and weld prep applications.
• Universal 0–90° Milling Head – Three carbide indexable inserts handle any chamfer angle from square to full bevel without a head change.
• One-Touch Depth Control – Patented tool-free depth adjustment in 0.1 mm steps with positive stops to prevent unintentional changes under load.
• 15 mm Max Chamfer Height at 45° – Cuts chamfer widths up to 21 mm, covering structural steel, heavy plate, and industrial pipe preparation.
• Stop Roller Included – Guides the tool along pipe sections for consistent, controlled weld seam preparation on round stock.
• Tool-Free Bail Handle – Repositions without tools for secure two-handed grip across flat plate, pipe, and varied workpiece profiles.
• Electronic Safety Package – Overload protection, soft start, and restart protection prevent uncontrolled starts after power interruption.

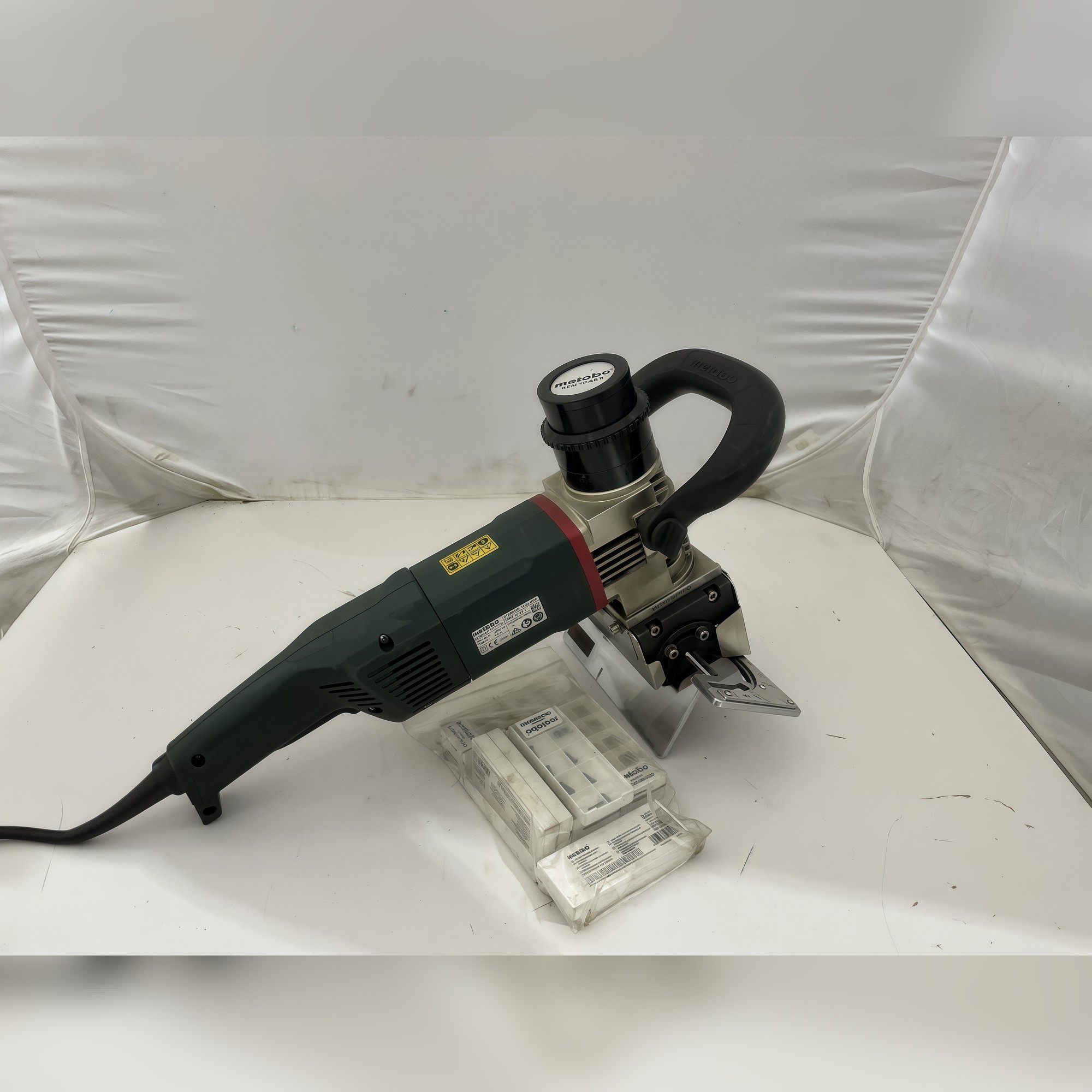

• Used – As-New Condition – Previously used unit presented in as-new condition, complete with original inclusions and metal carry case.

Specification

Inclusions

Standard

• 3× Carbide indexable inserts (Universal)
• Stop roller
• Screwdriver Torx T15
• Screwdriver SW 4 with T-handle
• Open-jawed spanner SW 10
• Metal carry case

Shipping & Installation

• Shipping dimensions: 595 mm (L) × 350 mm (W) × 240 mm (H)
• Shipping weight: 15.1 kg
• Handheld portable tool – no fixed installation required; ready for immediate workshop or on-site deployment
• Metal carry case included for secure transport between job sites
• Suited to workshop, fabrication, structural steel, pipe, and on-site maintenance environments

Warranty & Support

• Sold as used in as-new condition
• Suited to ongoing commercial use in Australian fabrication, structural steel, and heavy maintenance applications
