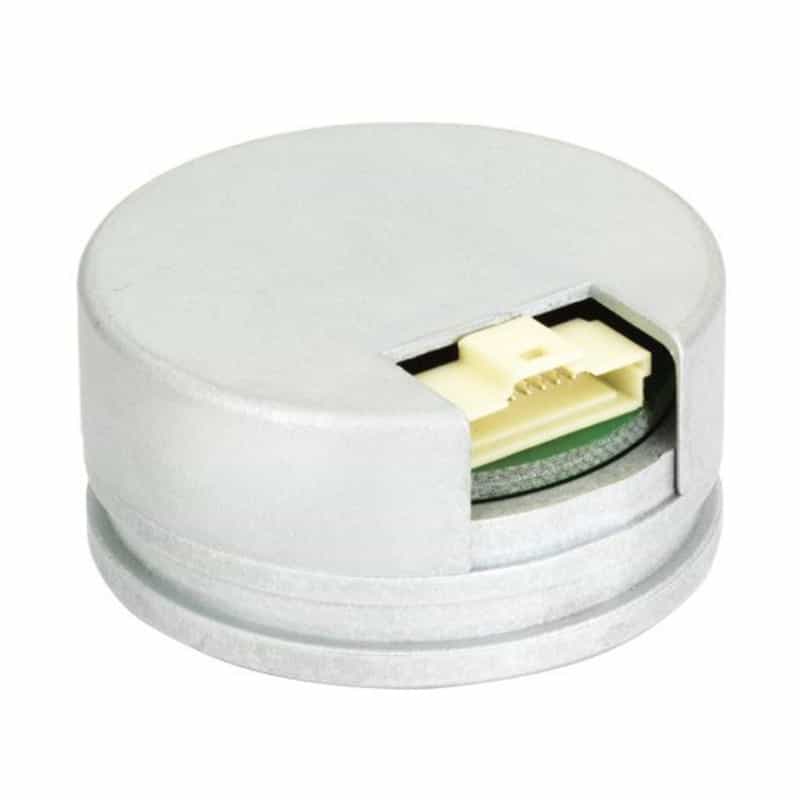

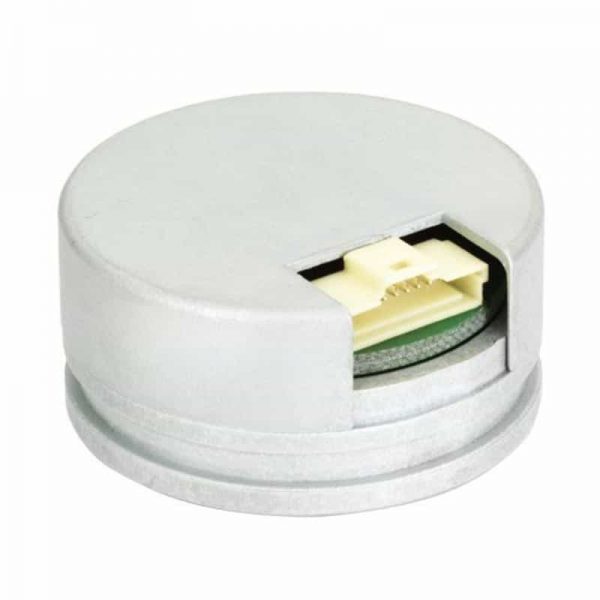

Description

Designed for the use in motor feedback applications requiring both A, B, Z incremental and U, V, W signals.

Robust non-contact sensor technology provides ultimate long term reliability and with simple installation costs of ownership are minimal.
Installation is simplified with a range of magnetic actuators and mounting options for the encoder.

A simple one time zero position programming then removes the need for careful adjustment of the encoder.
Resolutions are available from 64 to 2,048 pulses per revolution (256 to 8,192 counts per revolution with ×4 evaluation). U, V, W commutation signals are simultaneously outputted with 1 to 8 pole pairs (2 to 16 poles).

Features

Incremental resolution from 256 to 8,192 cpr
Simple installation and setup
U, V, W commutation signals with up to 16 poles
Industry standard incremental outputs (RS422)
Operating speed to 30,000 rpm
Compact – 35 mm diameter body
Non-contact, frictionless design
Low inertia
