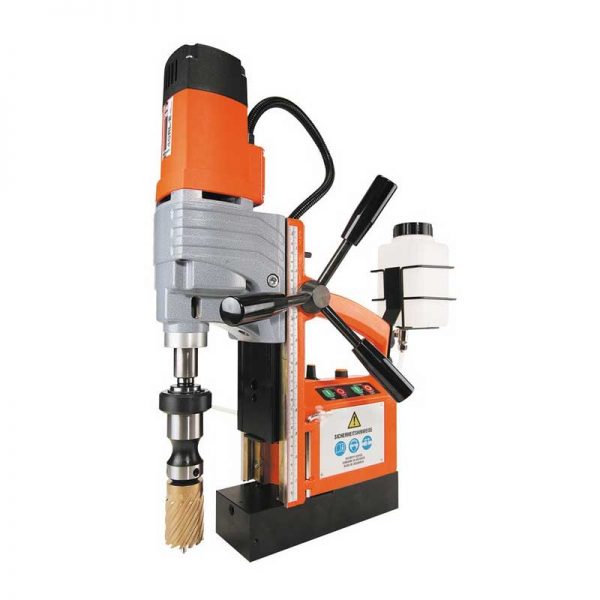

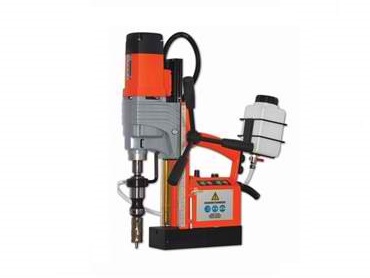

Excision EM 50 RL-E Magnetic Drilling Machine
Was
$ 3,723.00 Excl. GST
$ 4,095.30 Incl. GST
Now Only
$3,425.16 Excl. GST
$3,767.68 Incl. GST
The Excision EM 50 RL-E Magnetic Drill Machine comes with a Forward-reversible with variable speed drive – ideal for tapping. Making it an ideal workhorse.
Excision EM 50 RL-E Magnetic Drilling Machine
Excision EM 50 RL-E Magnetic Drilling Machine
Description
Features
- Solid Brass Guides
- Oil Bath Gearbox 2 Speed
- Forward-reversible drive
- 3 Coil 16000N Magnetic Adhesion
- Morse Taper 2 spindle
- Variable Speed
Excision EM 50 RL-E Magnetic Drilling Machine Diameter
Specification:
| Core Drill Dimensions | 12.0-50.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill | with quick-release chuck up to 20.0mm with MT3 DIN 345 direct |
| Counter-Boring | 10.0-40.0mm |
| Tapping | Tapping Chucks: M3-M14 with tapping Attachment: M3-M20 |
| Arbors | MT2 |
| Stroke | 170mm |
| Height Adjustment | 100mm |
| 4-Speed Gearbox | Right/Left 1. Step 100-250rpm 2. Step 180-450rpm |
| Power Consumption | 1,200W |
| Voltage | 230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength | 3,800N/16,000N |
| Magnetic Base | 92×238mm |
| Weight | 16.0Kg |
Specification
Additional information
| Weight | 12.5 kg |
|---|
