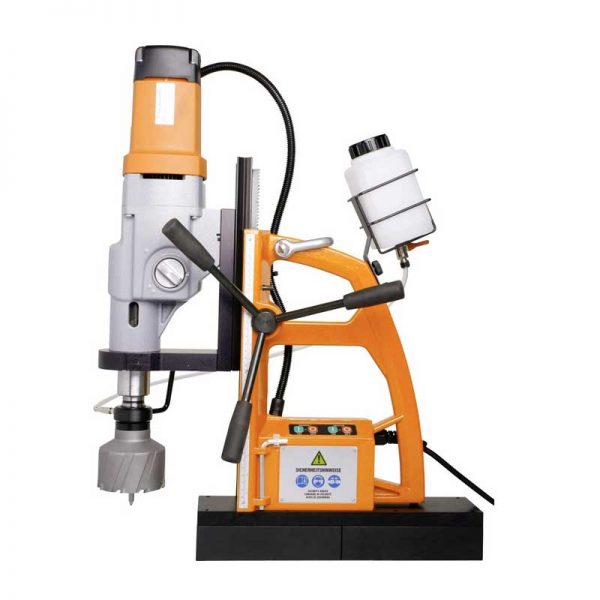

Excision EM 130 MT4 Taper Magnetic Drilling Machine


In stock

The EM 130 MT4 Taper Magnetic Drill Machine comes with a twist drill capacity up to 45mm and tapping capacity of up to M42. It also comes with solid brass guides for maximum durability.

Request Quotation / Check Stock / Questions Please note: This is the fastest way to receive an answer.
Stock levels cannot be checked over the phone.

Description

Excision EM 130 MT4 Taper Magnetic Drilling Machine

Features:
  • 6 Coil MPI 32,000N Magnet
  • Tapping capacity up to M42
  • Twist drill capacity up to 45mm
  • Durable touch pad for ergonomic use
  • Solid brass guides
  • 230mm Stroke
Specification:
Core Drill Dimensions 12.0-130.0mm/20.0-50.0mm (extra long 110mm)
Cutting Depth 50.0mm/110.0mm
Twist Drill Up to 45.0mm with MT4 DIN 345 direct
Counter-Boring 10.0-80.0mm
Tapping With Tapping Attachment: Up to M42
Arbors MT4
Stroke 230mm
Height Adjustment 100mm
4-Speed Gearbox 1. Step 50-150rpm
2. Step 75-239rpm
3. Step 100-310rpm
4. Step 160-490rpm
Power Consumption 2,500W (230V)
Voltage 230V 50/60Hz
Tool Force (10mm)/Magnetic Adhesion Strength 5,000N/33,000N
Magnetic Base ×400mm
Weight 34.0Kg
