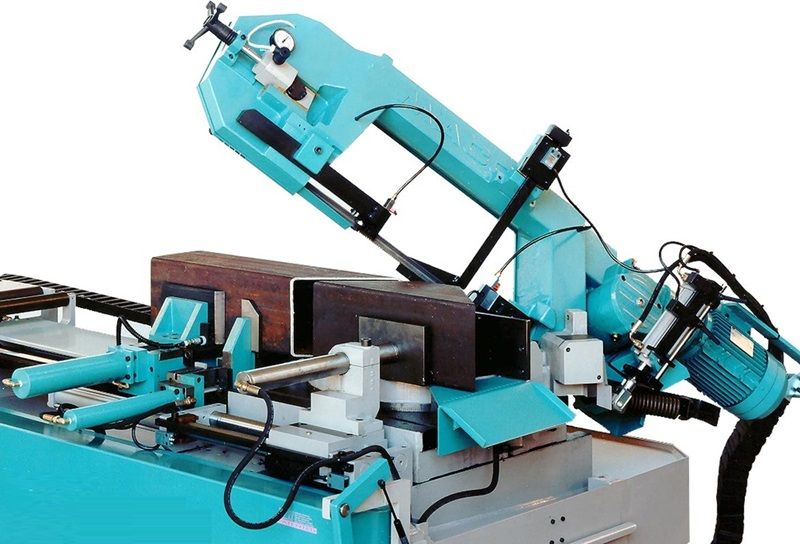

Name: Matrix 260BSM Auto-Feed Hydraulic Band Sawing Machine
Brand: Matrix
SKU: MATRIX-260BSM
Availability: InStock

Description

The Matrix 260BSM Auto-Feed Hydraulic Band Sawing Machine is a remarkable machine that effortlessly combines precision, efficiency, and user-friendly technology. This fully hydraulic machine is designed for cuts ranging from 60° left to 45° right, featuring automatic cycle material feeding and head rotation. It boasts a CNC-controlled feeding axis powered by servo motors, ensuring optimal performance.

Features

Versatile cutting capabilities, accommodates a wide range of cuts, from 60° left to 45° right. Its adaptive design allows for both automatic and semi-automatic cycles, ensuring you have the flexibility to tackle any project.
CN controlled feeding axis, equipped with state-of-the-art servomotors, our machine guarantees precise and smooth material feeding. Set your desired length and piece number directly on the keyboard for effortless operation.
Simplify your work with ready-made programs and a user-friendly touch screen interface. The 7’’ touch screen not only streamlines programming but also provides automatic diagnostic messages to keep everything running smoothly.
Advanced trigonometric functions: With microprocessor machine supervision, the Matrix 260BSM calculates trigonometric functions automatically, allowing you to program up to 5 angle combinations for each indexing pitch.
Optimized cutting efficiency to a new level by automatically calculating stroke repetitions (up to 1300 mm) and setting symmetrical cutting configurations. This ensures optimal bar cutting with minimal waste.
The machine adapts its band descent speed in real-time, ensuring precision and preventing material damage.
Dedicated key allows for a rapid band approach to the workpiece, saving you valuable time and enhancing productivity.
Operating at 400 V and 50Hz CE, the Matrix 260BSM is built to handle the toughest industrial environments with ease.

Technical Specifications

Cutting Capacity	Matrix 260BSM
90 Degrees
Round Tube	260mm
Square Tube	230mm x 230mm
45 Degrees
Round Tube	170-230mm
Square Tube	150mm x 230mm
60 Degrees
Round Tube	120mm
Square Tube	110mm x 150mm
Blade Drive	1.5-2.2 Kw
Blade size	3150mm x 27mm x 0.9mm
Cutting Table Height	940mm
Blade Speed	35/70 m/min
Machine Dimensions	2200mm x 3100mm x 1300mm
Machine Weight	1450 Kg
