Description

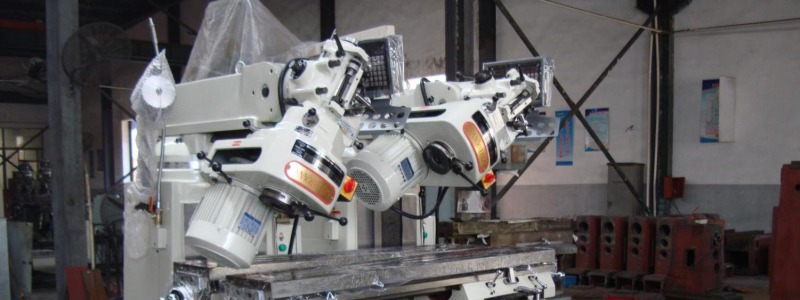

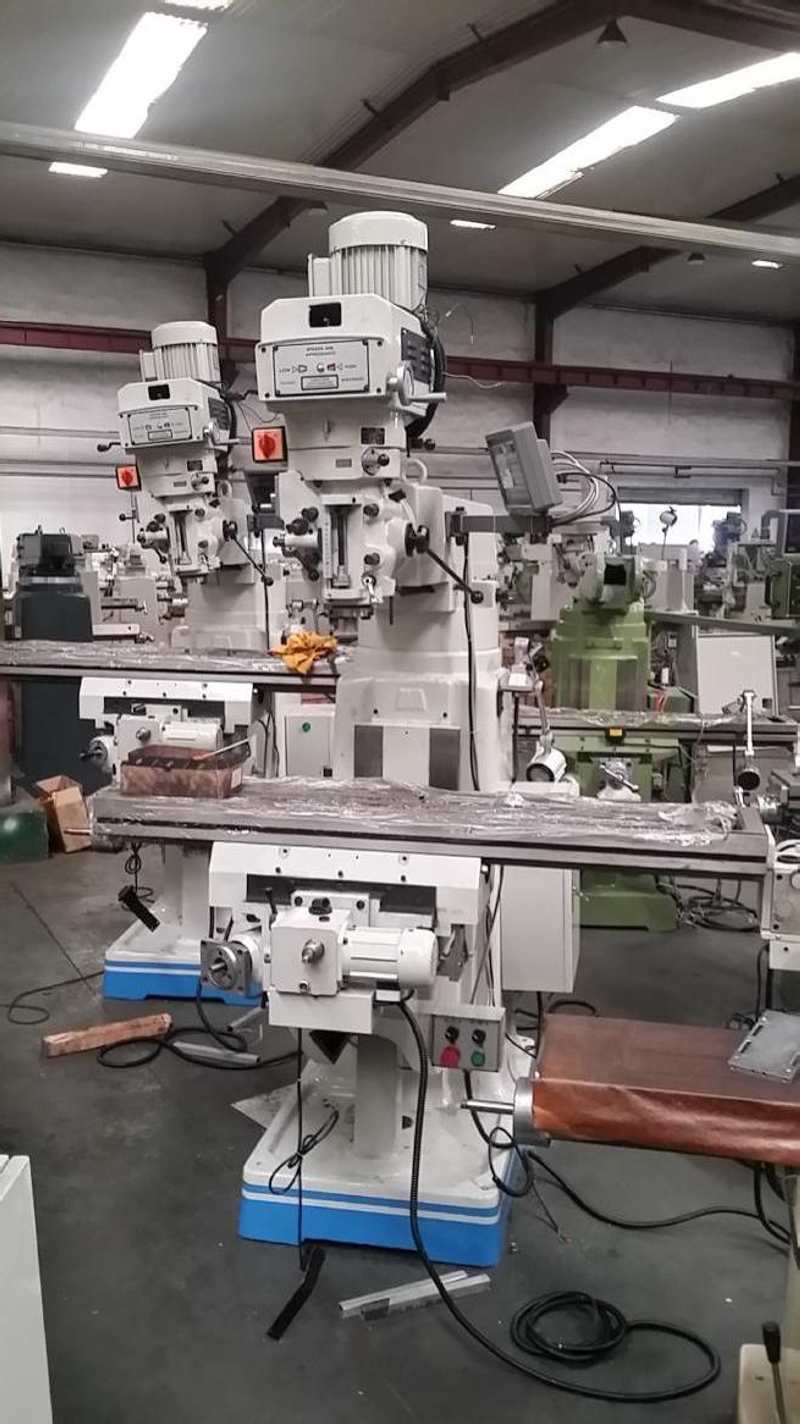

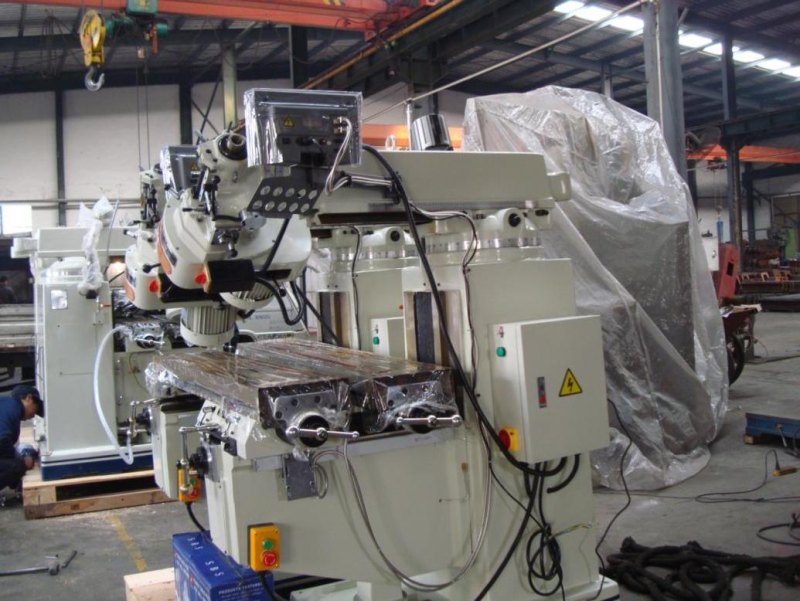

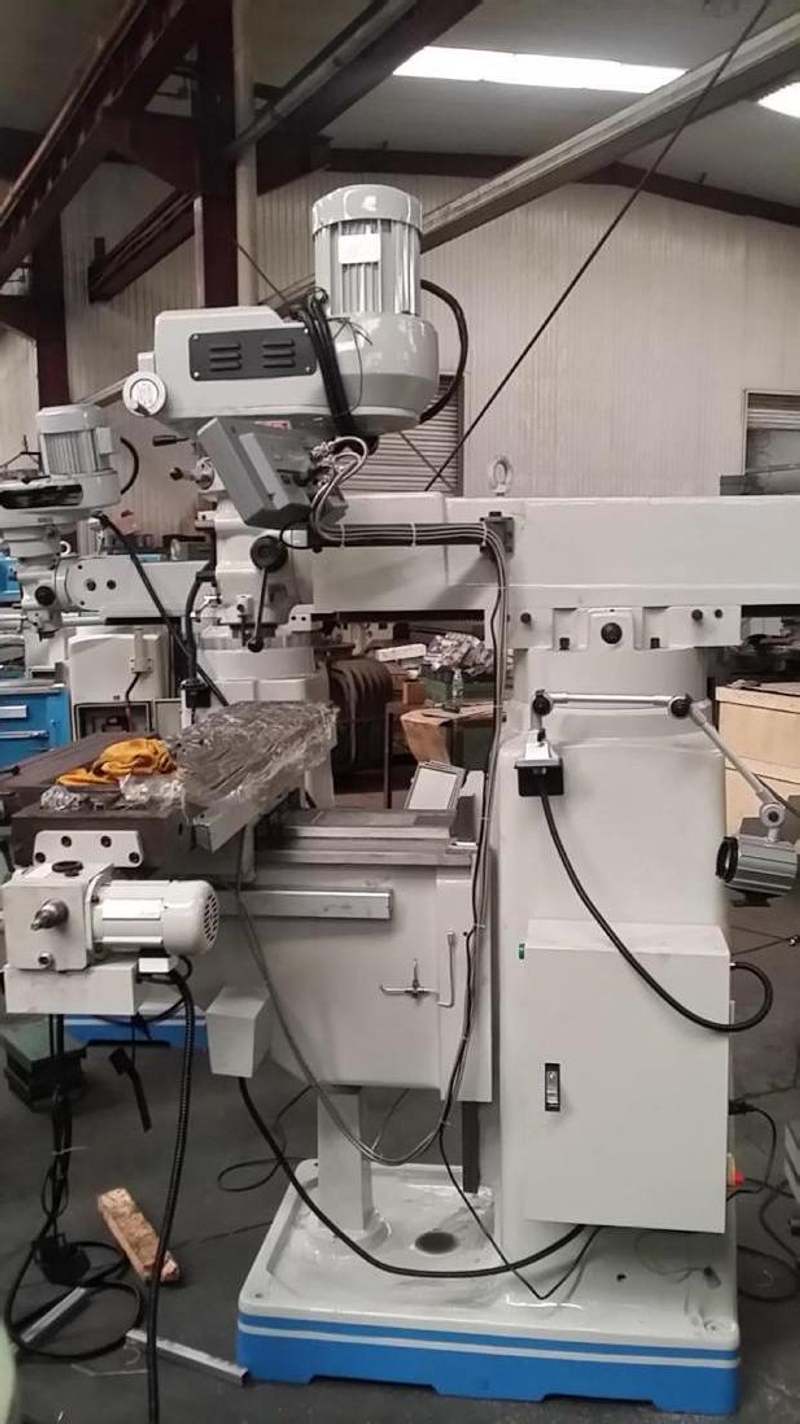

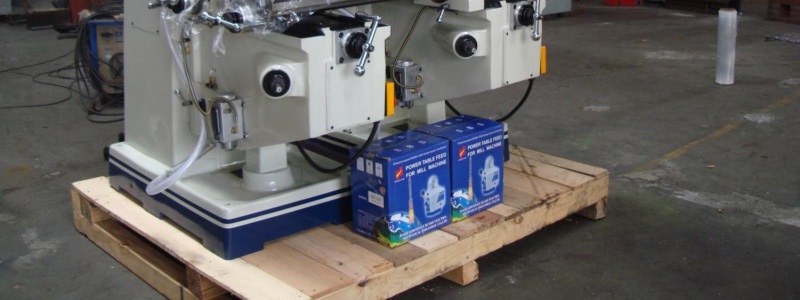

The Matrix M1000TM Universal Turret Manual Milling Machine stands out with its exceptional features and design. It incorporates a 55° swallow tail guideway on the Z-axis and a rectangular guideway on the Y-axis, ensuring stability and smooth operation. The column is reinforced with strengthen ribs on both sides, not only providing rigidity but also adding a touch of elegance to the machine’s appearance.

In terms of travel capacity, this milling machine offers impressive dimensions. It boasts a longitudinal travel of 850mm, allowing for extended workpieces to be efficiently machined. The cross travel spans 400mm, while the vertical travel reaches 420mm, providing versatility and flexibility in various machining applications. The machine is equipped with three 16mm t-slots, enabling secure clamping of workpieces. The ram travel extends up to 470mm, ensuring ample reach for complex milling operations. The distance from the spindle nose to the table surface can be adjusted from 0 to 405mm, accommodating a wide range of workpiece sizes.

The spindle hole taper, available as standard with an R8 taper, offers compatibility with a variety of tooling options. Additionally, ISO30 or ISO40 tapers can be chosen as optional upgrades. The spindle itself offers a travel of 127mm, allowing for precise depth control during milling operations. The spindle speed, with shift grade options, ranges from 65 to 4500 at 50Hz, catering to different material types and machining requirements.

For enhanced milling precision, the machine features an auto quill feed with three steps, providing options of 0.04mm (0.0015″) or 0.08mm (0.003″) or 0.15mm (0.006″) per revolution. The spindle motor boasts a power rating of 2.25kW/3hp, ensuring ample power for various milling tasks. Moreover, the head of the machine can swivel up to 90° and tilt up to 5°, allowing for angled milling operations and increased machining versatility.

In conclusion, the Matrix M1000TM Universal Turret Manual Milling Machine is a highly capable and versatile tool. Its robust construction, precise guideways, generous travel capacities, and adjustable spindle options make it an ideal choice for a wide range of milling applications.

Optional Accessories:

X-axis feeder APF500
Y-axis feeder APF500
XYZ-axis DRO
X-axis gear feeder
Y-axis gear feeder
Plain vice 6”
Rotary table
Dividing head

Specification:

Model	M1000TM
Table size	254×1270 (10”X50”)
Longitudinal travel	850mm
Cross travel	400mm
Vertical travel	420mm
t-slot no and size	3×16
Ram travel	470mm
Distance from spindle nose to table surface	0-405mm
Spindle hole taper	(standard),R8 Optional: ISO30/ISO40
Spindle travel	127mm
Spindle speed	(standard),(shift gradel) 50hz 65-4500
Auto quill feed	(three steps),0.04(0.0015”/0.08(0.003”)/0.15(0.006”)mm/revolution
Spindle motor	2.25kw/3hp
Head swivel	90°
Head tilting	5
Dimension of package	1516X1650X2080mm
Weight	1750kg
