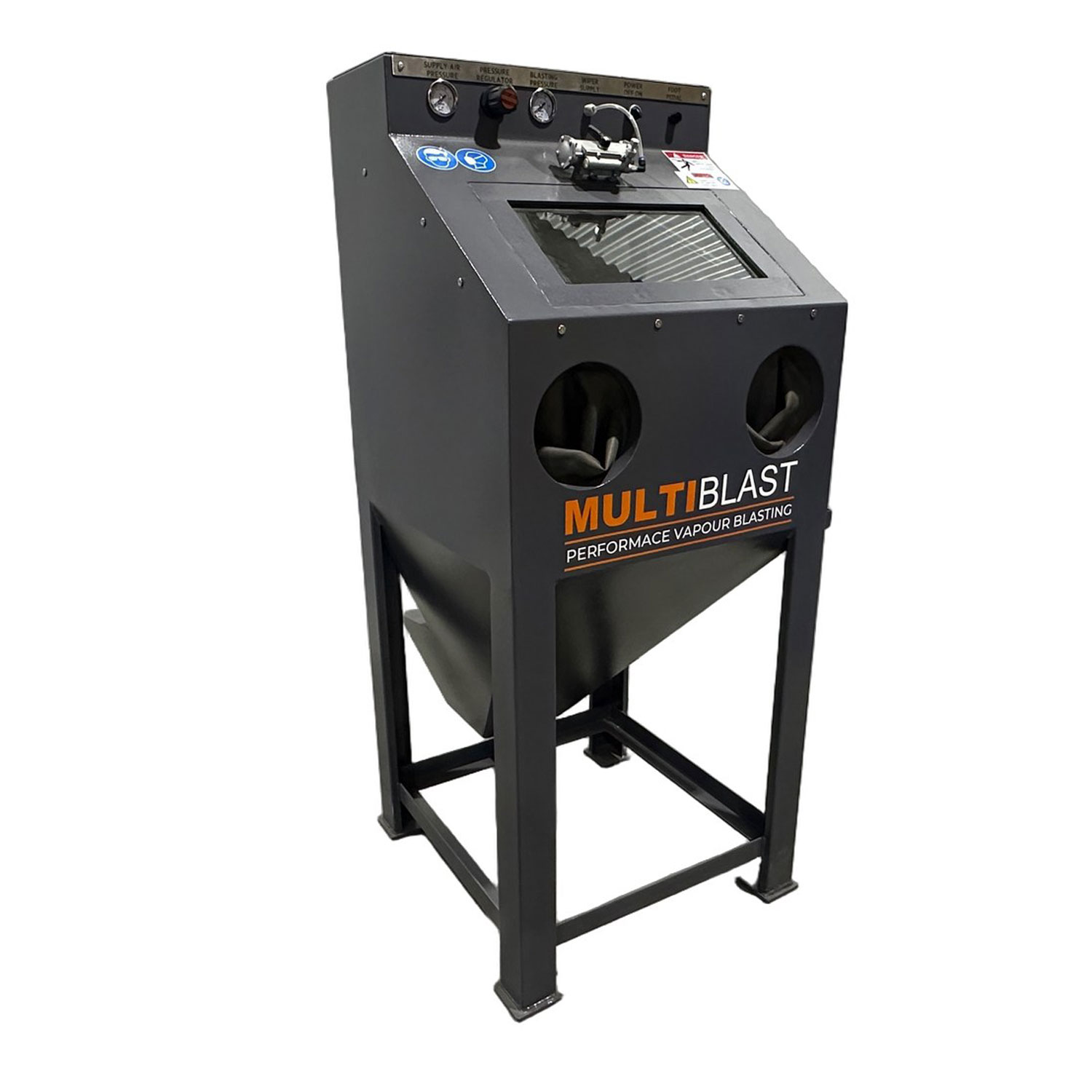

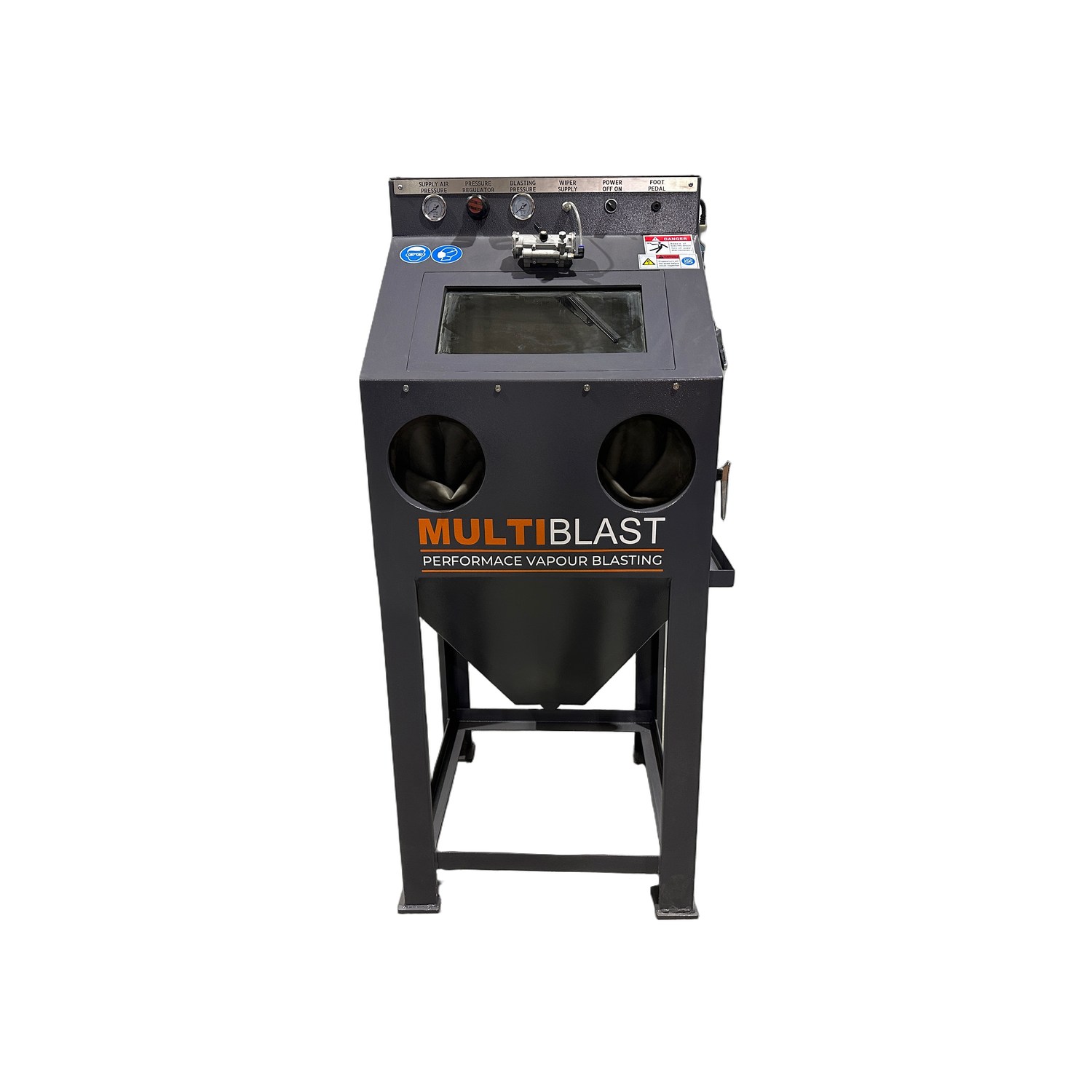

Multiblast PRO680 Vapour Blasting Cabinet – 680mm Wide – 20CFM/565LPM Wet Blasting Cabinet
The Multiblast PRO680 is a 680mm wide, self-contained grey wet blasting cabinet engineered for Australian workshops, automotive workshops, and light industrial environments. Combining a conventional suction blasting system with a centrifugal water pump, it delivers a dust-free vapour blasting process that cleans and polishes components to a superior finish – without the airborne dust hazards of conventional dry blasting. Finished in a professional industrial grey, the PRO680G suits modern workshop fit-outs and commercial environments where presentation matters alongside performance.
Check CFM Conversions:
Multiblast PRO680 Vapour Blasting Cabinet – 680mm Wide - 20CFM/565LPM Wet Blasting Cabinet
Multiblast PRO680 Vapour Blasting Cabinet – 680mm Wide - 20CFM/565LPM Wet Blasting Cabinet
Description
The Multiblast PRO680 Vapour Blasting Cabinet brings proven wet abrasive blasting technology into a sleek, professional-grade grey enclosure – purpose-built for operators who demand both surface preparation performance and a cleaner workshop aesthetic.
Wet blasting (also referred to as vapour blasting or wet abrasive blasting) combines compressed air, water, and abrasive media to clean, deburr, and polish a wide range of components. The water carrier significantly reduces airborne dust, making the process safer and more workshop-friendly than conventional dry sandblasting. The result is a finer, more consistent surface finish – ideal for aluminium alloy engine parts, motorcycle components, hydraulic fittings, and precision machined parts.
The PRO680 cabinet is constructed from Grade 304 stainless steel throughout, ensuring long-term corrosion resistance in wet operating conditions. The interior is protected by a white rubber lining that shields the cabinet walls from media wear while providing a high-contrast visual backdrop for workpieces. At 680mm wide with a 520mm × 480mm access door, the cabinet accommodates a practical range of component sizes common in automotive restoration, engineering workshops, and maintenance facilities across Australia.
Powered by a standard 240VAC single-phase 10A supply and requiring 565L/min (20 CFM) of compressed air at 6.89 Bar (100 PSI), the PRO680 integrates readily into existing workshop compressor setups without requiring three-phase infrastructure.
Features
- Grade 304 Stainless Steel Construction – Full cabinet body manufactured from grade 304 stainless steel for superior corrosion resistance in continuous wet blasting applications, outlasting fiberglass or galvanised alternatives.
- Industrial Grey Powder-Coat Finish – Professional grey exterior finish is more resistant to marking and workshop grime than standard lighter finishes, and integrates naturally into modern industrial and automotive workshop environments.

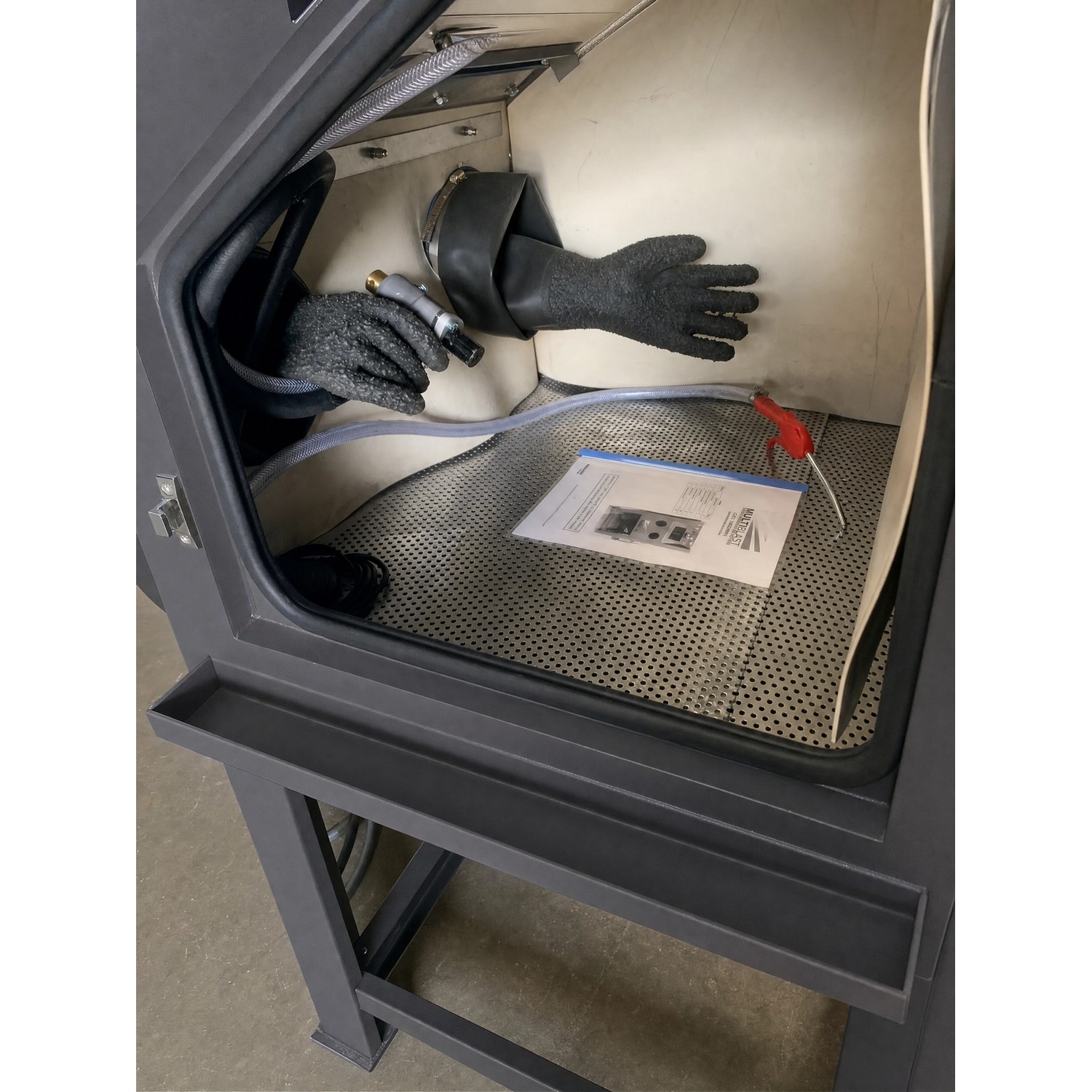

- White Rubber Interior Lining – Full blast area protection via white rubber lining reduces media wear on cabinet walls and provides a high-contrast background for workpiece visibility during blasting.
- Foot Pedal Blast Control – Pneumatic foot pedal allows hands-free blast activation, keeping both hands on the workpiece for greater control and improved surface finish consistency.
- Adjustable Air Pressure Regulator – Operator-adjustable pressure regulation allows fine-tuning of blast intensity to suit different materials and finish requirements — from aggressive cleaning to delicate polishing.
- Pneumatically Operated Window Wiper – Built-in window wiper maintains viewing clarity during operation without requiring the operator to open the cabinet, maintaining process continuity and user safety.
- Trigger Wash-Down Gun – Integrated wash-down gun allows quick interior and workpiece rinsing between cycles for efficient media management and cabinet maintenance.
- Cabinet Exhaust Fan – Fitted exhaust fan manages cabinet atmosphere during operation, supporting a cleaner working environment within the cabinet enclosure.
Specification
| Model | MultiBlast PRO680 |
| Cabinet Color | Industrial Grey |
| Cabinet Material | Grade 304 Stainless Steel |
| Power Requirement | 240VAC Single Phase, 10 Amp |
| Air Consumption (CFM Required) | 565L/min @ 6.89 Bar (20 CFM @ 100 PSI) |
| Cabinet Light | 13W |
| Air Connection Size | 13mm (½″) |
| Water Connection Size | 13mm (½″) |
| Blast Gun Specification | 3mm (⅛″) Air Tip × 8mm (⁵⁄₁₆″) Blast Nozzle |
| Door Dimensions | 520mm Wide × 480mm High |
| Installed Dimensions | 680mm Wide × 680mm Deep × 1670mm High |
| Shipping Dimensions (approx.) | 1200mm × 1200mm × 2000mm |
| Shipping Weight (approx.) | 150 kg |

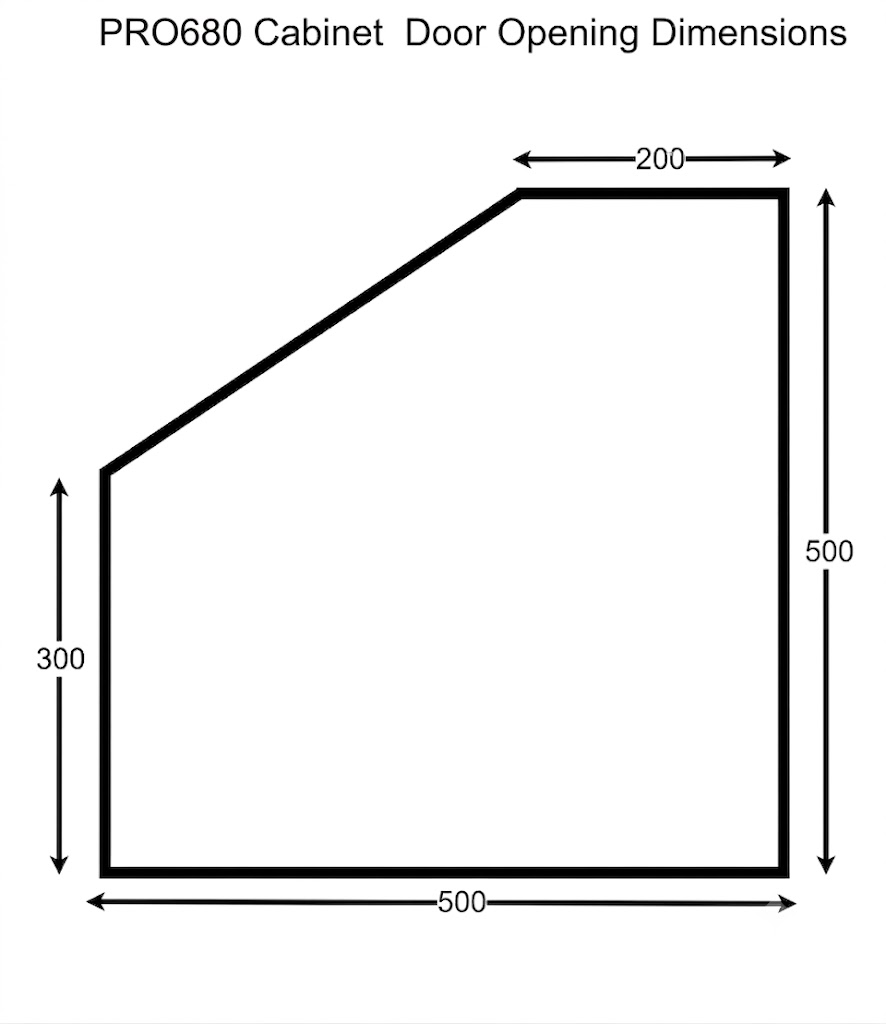

MultiBlast PRO680 Vapour Blasting Cabinet Dimensions
| Dimension | Measurement |
| Overall Width | 680mm |
| Overall Depth | 680mm |
| Overall Height | 1670mm |
| Door Opening Width | 520mm |
| Door Opening Height | 480mm |
The 520mm × 480mm door opening accommodates most small-to-medium engine components, motorcycle engine cases, cylinder heads, hydraulic valve bodies, and similar workshop workpieces common in Australian automotive and engineering applications.
Inclusions
- Multiblast PRO680 Grey Wet Blasting Cabinet (fully assembled)
- Pneumatic foot control pedal
- Heavy duty latex rubber work gloves
- Adjustable air pressure regulator
- Pneumatically operated window wiper
- Trigger wash-down gun
- Cabinet exhaust fan
- Blast gun assembly (3mm air tip × 8mm blast nozzle)
Optional Accessory: Stainless steel nozzle stand for supporting the blasting gun during operation.
Benefits
- Dust-Free Operation. Unlike conventional dry blasting, wet abrasive blasting uses water to carry the media to the nozzle. This eliminates airborne dust within the cabinet, reducing operator health exposure and removing the need for a separate dust filtration system. For automotive and engineering shops without complex extraction infrastructure, this is a meaningful operational advantage.
- Superior Surface Finish. The water-media slurry produces a finer, more uniform surface profile than dry abrasive methods. Components cleaned and polished in the PRO680 emerge with a satin or semi-bright finish particularly valued in automotive restoration, motorsport preparation, and precision engineering — without the risk of embedded abrasive media contamination common in dry blasting.
- Professional Grey Aesthetic. The industrial grey exterior finish of the PRO680 is a deliberate departure from the more common white-body cabinets in this class. Grey is more forgiving of workshop grime and handling marks, maintains its appearance longer in busy workshop environments, and aligns with the professional fit-out standards expected in modern automotive detailing, motorsport, and engineering facilities.
- Self-Contained and Ready to Run. The PRO680 requires only a 240VAC single-phase 10A power connection and a compressed air supply of 20 CFM / 100 PSI — specifications comfortably within range of most workshop rotary screw or piston compressors. No three-phase supply, no specialist installation.
- Versatile Application Range. The wet blasting process within the PRO680 is well-suited to cleaning and polishing aluminium alloy engine components, carburettors, gearbox casings, hydraulic fittings, stainless steel parts, motorcycle engine covers, and other components where a clean, bright finish is the objective rather than aggressive profiling.
Applications
The Multiblast PRO680 is suited to the following industries and use cases:
- Automotive restoration and engine rebuilding workshops
- Motorcycle restoration and performance workshops
- Motorsport preparation and race engineering facilities
- Hydraulic and pneumatic component reconditioning
- Precision engineering and machined component cleaning
- Mining and heavy equipment maintenance shops (component-level cleaning)
- General light industrial parts cleaning and surface preparation
Shipping & Installation
- Cabinet is supplied fully assembled; no site installation required beyond connecting compressed air and water supply lines.
- Shipped as a single free-standing unit; freight is required — not suitable for standard parcel delivery.
- Approximate shipping weight: 150 kg. Approximate shipping carton: 1200mm × 1200mm × 2000mm.
- Forklift or pallet jack access recommended at delivery point.
- Suitable for indoor workshop installation on level concrete flooring.
- Compressed air supply: minimum 565L/min (20 CFM) at 6.89 Bar (100 PSI) via 13mm (½″) male fitting.
- Water supply: standard 13mm (½″) hose connection.
- Power: standard 240VAC single-phase 10A GPO outlet.
- Freight options available nationally; contact us for a freight quote to your location.
Warranty & Support
- 12-month parts and labour warranty from date of purchase. Covers manufacturing defects and component failure under normal operating conditions; excludes damage from misuse or operator error.
- Spare parts and consumables (blast nozzles, gloves, rubber lining) available through the supplier.
- Technical support available via phone and email for setup, media selection, and operational queries.
- Cabinet is designed for ongoing commercial use; all stainless steel construction supports long service life in continuous wet blasting environments.
