MultiBlast PRO1200WA Automatic Turntable Wet Blasting Cabinet

Manual blasting cabinets produce a finish that varies with operator technique, and the PRO1200WA is designed to remove that variable. As an automatic wet blasting cabinet, it runs four automatic guns fitted with Ø8 mm boron carbide nozzles, mounted on independently driven oscillating systems, two guns to the side and two overhead. Blast distance and angle are set at commissioning and oscillation speed runs through a variable frequency drive, so once a program is proven on this PLC wet blast machine, every part comes out the same.

The main cabinet is fabricated from 3 mm SUS304 stainless steel with a 3 mm wear-resistant rubber curtain lining, avoiding the rust bleed and static build-up associated with dry blasting. Vapour blasting mixes abrasive, compressed air, and water to suppress airborne dust and produce a finer, more uniform surface finish than dry media on its own. Water is recovered through a rear sedimentation tank and returned by a 4 kW abrasive pump, with a separate 75 W pump handling window cleaning and a 50 mm overflow managing tank level.

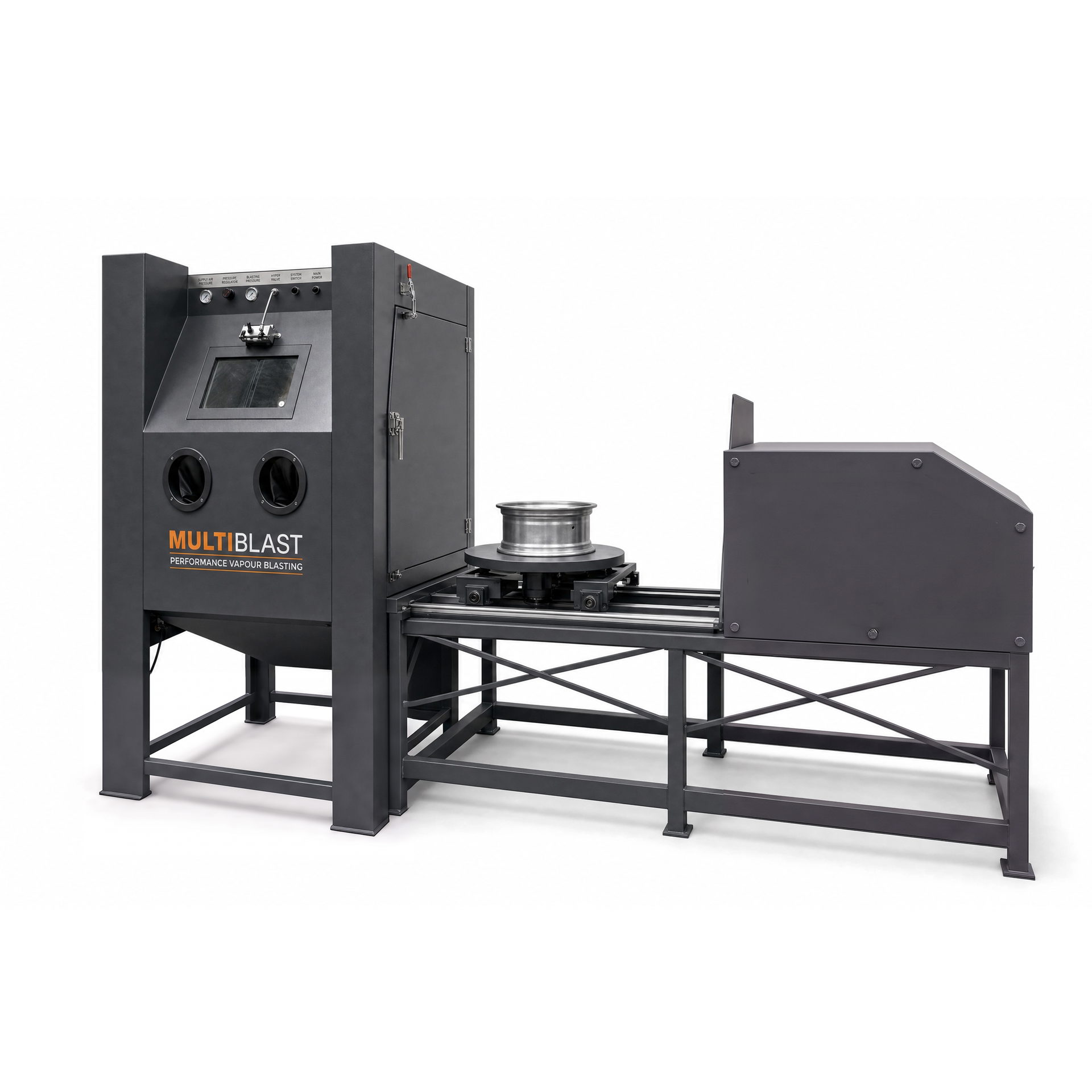

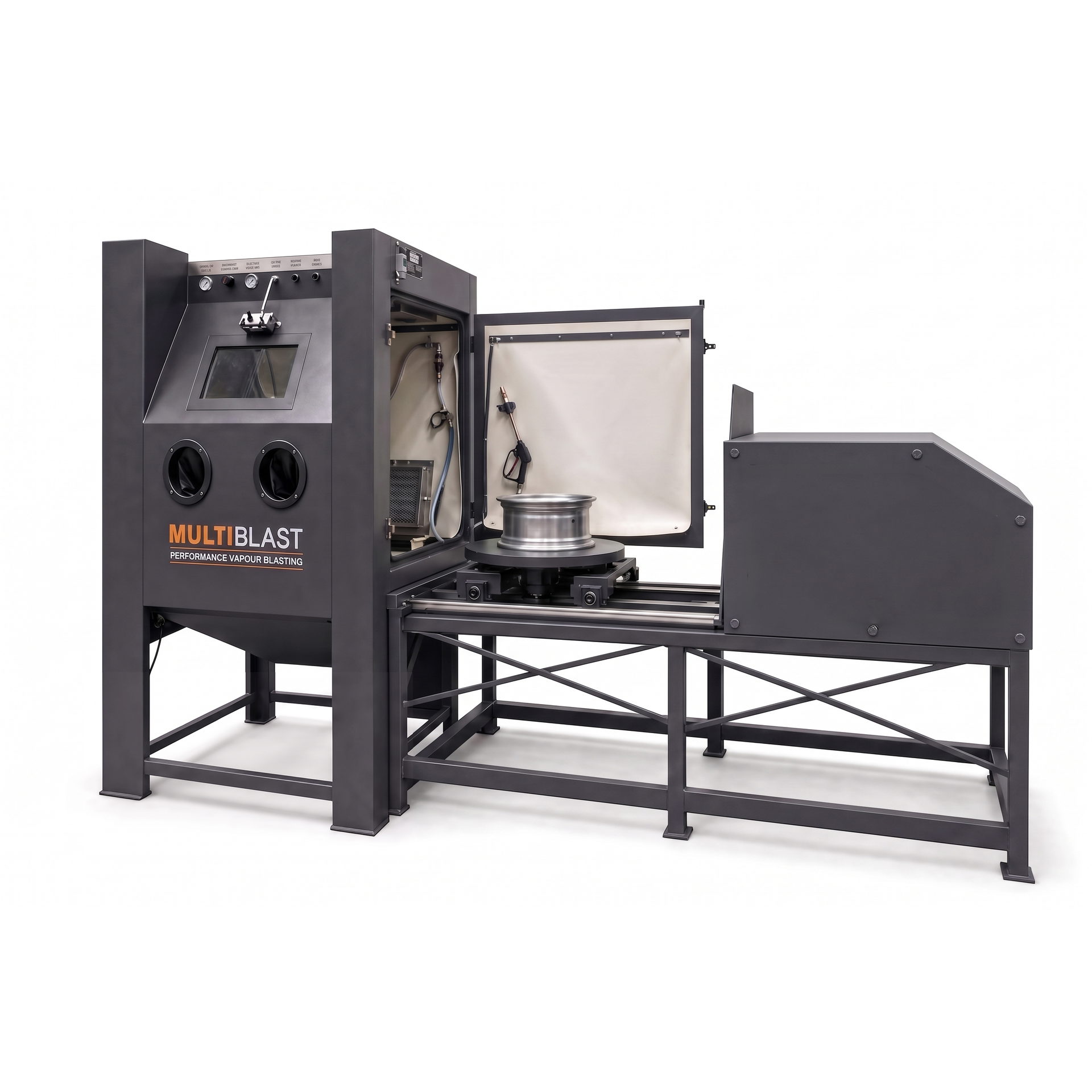

As an auto turntable vapour blasting machine, parts are loaded outside the cabinet onto an electric trolley and carried into the chamber, where the Ø700 mm motorised turntable takes over under variable frequency speed control. This wet blast cabinet with turntable is rated to handle workpieces up to Ø635 mm by 310 mm high. Alongside the automatic guns, the operator has a fingertip rinsing gun and a fingertip blow-off gun for finishing and drying, with a pneumatic wiper and twin 38 W defogging fans keeping the front viewing window clear throughout the cycle.

Cycle time, turntable speed, gun oscillation, and gun selection are all set and recalled through the PLC touchscreen, so changeover between parts is a program selection rather than a mechanical set-up exercise. As a fixed-footprint automated vapour blast cabinet, the PRO1200WA is intended for dedicated bays in Australian production and maintenance environments where consistent, repeatable surface finishing matters more than manual operator skill.

Key Features

• Four automatic Ø8 mm boron carbide guns – Mounted on independently driven oscillating systems, two side and two overhead, for repeatable coverage of cylindrical and conical parts without relying on operator technique.
• Motorised Ø700 mm turntable – Driven with variable frequency speed control, handling workpieces up to Ø635 mm by 310 mm high.
• Electric loading trolley – Loads parts outside the chamber and carries them in, reducing handling time between cycles on this automatic wet blasting cabinet.
• 3 mm SUS304 stainless steel chamber – Lined with 3 mm wear-resistant rubber curtain, eliminating rust contamination and the static build-up associated with dry blasting.
• Closed loop water recovery – A rear sedimentation tank and 4 kW abrasive pump recover process water, holding consumption to roughly 1 m³ per eight-hour shift.
• PLC touchscreen control – Cycle time, turntable speed, and gun oscillation are set and recalled per part, turning this PLC wet blast machine’s changeover into a program selection rather than a manual reset.
• Clear-view wet blasting – A pneumatic window wiper and twin 38 W defogging fans keep the operator’s view of the part clear throughout the wet cycle.

Specifications

Inclusions

Standard

• 1 x set of Electric Control
• 1 x set of Sedimentation Tank Pump
• 1 x set of Sedimentation Tank
• 1 x set of Abrasive Pump
• 1 x set of Recycled Water
• 5 x Abrasive/Water Pipe
• 1 x set of Blast Gun Movement System
• 1 x set of Motor-Powered Cart
• 1 x set of Motor-Powered Turntable
• 1 x Blast Room

Shipping & Installation

• Floor space required: 1300 mm x 1200 mm, footprint at 2200 mm high for the cabinet itself
• Working footprint including the extended electric trolley and rear sedimentation tank: 3700 mm x 2200 mm x 2275 mm
• Electrical supply required: 415 V, 3 phase, 50 Hz, 6.5 kW installed load
• Compressed air supply required: ≥5 m³/min (177 CFM) at 0.6 MPa (87 psi) via a 1.5 in connection – sized to a 30–37 kW class rotary screw compressor
• Water supply required: ½ in tap connection, approximately 1 m³ per eight-hour shift
• Drainage: Ø50 mm overflow connection
• Shipping dimension 3 packages as mentioned below:
  • Package 1: 192.5 x 224 x 235 cm
  • Package 2: 225 x 150 x 175 cm
  • Package 3: 72.5 x 72.5 x 75 cm

Warranty & Support

• 2-year Uptime Assurance warranty
• Lifetime priority support included
• Local Australian spare parts and service
• Wear items stocked locally, including nozzles, rubber curtain lining, and pump seals
• Commissioning and operator training available

Not sure which size suits your parts? See Which Vapour Blasting Cabinet Do You Need?
