Description

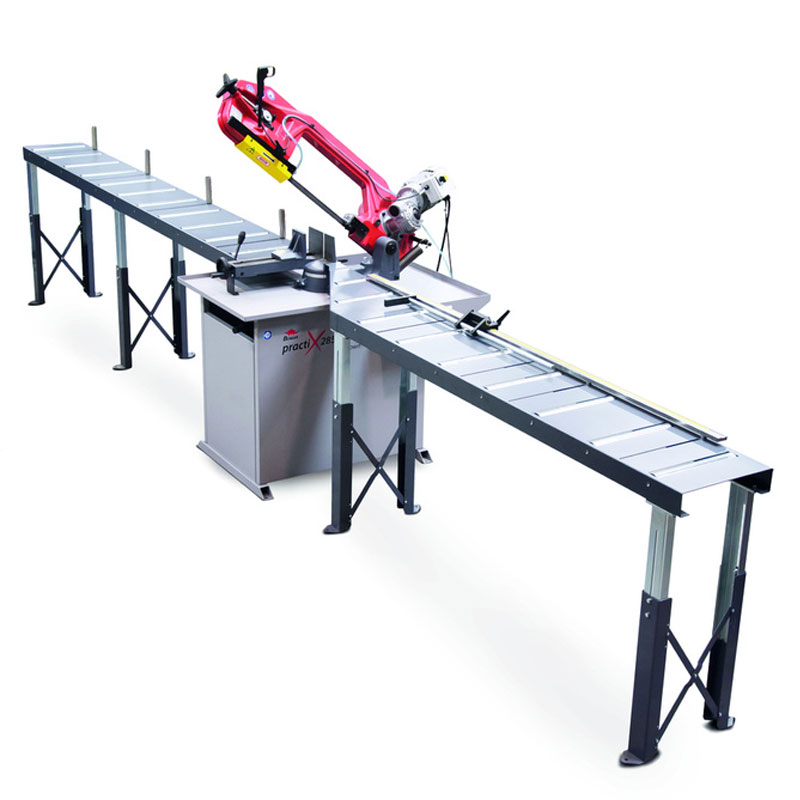

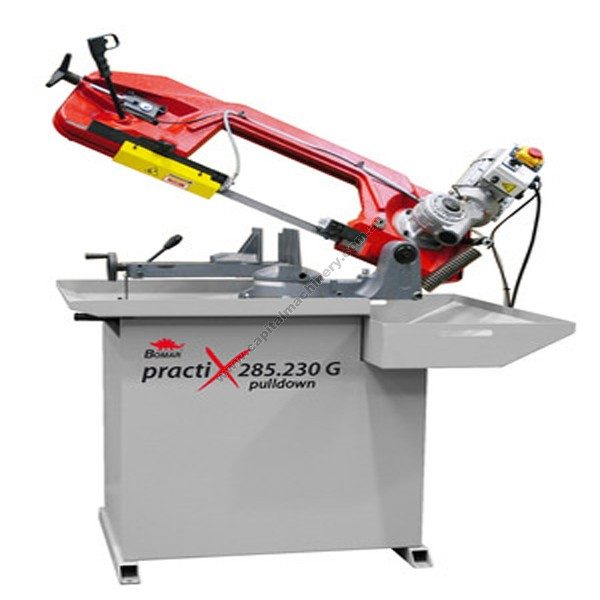

PractiX 285.230 G pulldown is a band saw suitable for usage in assembly and workshop. Its frame is made from grey casting and is resistant to vibrations. Downfeed of frame to the cut is performed manually.

Bomar Practix 285.230 G Pulldown Bandsaw Technical Specifications

Working Mode	Manual
Mitre Cuts Range	0° to 60
Drive	1 kW, 3×400 V/50 Hz
Bandsaw Speed	37 – 70 m/min.
Saw band Dimensions	2,720 x 27 x 0.9 mm
Material Loading Height	982 mm
Shortest Remainder Length	40 mm

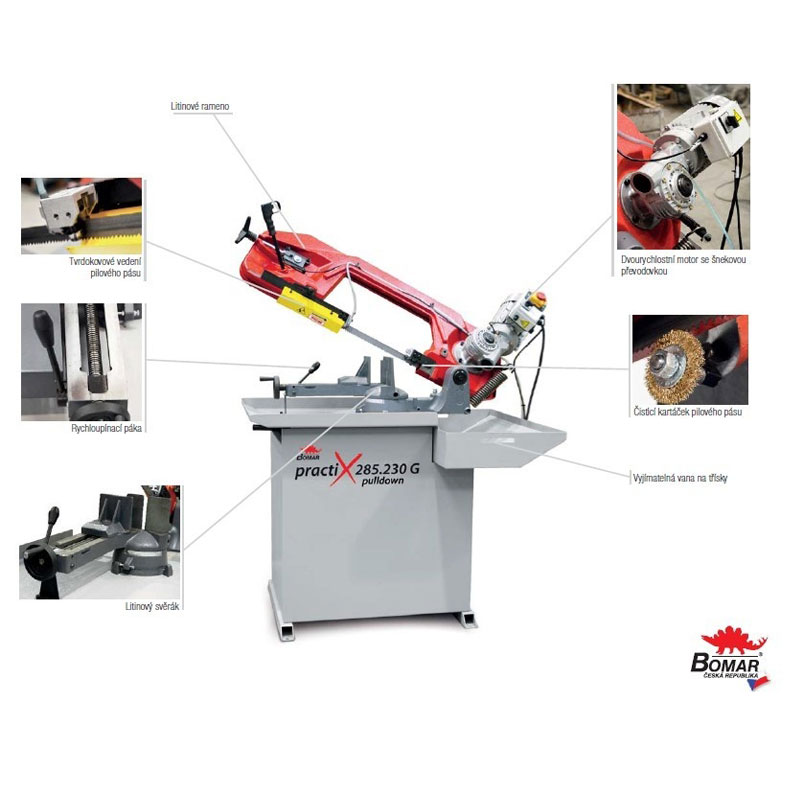

The machine is equipped with a 2-speed electric motor. Saw frame can be easily turned up to 60° and accuracy of cuts is supported by precise hard-metal guiding of the saw band. Material clamping in the vice is performed very easily via a lever. PractiX 285.230 G manual is a band saw designed for universal usage in assembly and workshop. Downfeed to the cut is performed via own weight of the saw frame. Downfeed speed is hydraulically regulated via the bypass cylinder. After the cut is finished, the saw band stops running, so permanent control is not necessary. Saw frame can be turned up to 60° and accuracy of angle cuts is supported by precise hard-metal guiding of the band. The material can be clamped in the vice very easily via a lever.
