Bomar Transverse 610.440 DGH Semi Automatic Bandsaw

$23,950.00 Excl. GST $26,345.00 Incl. GST

1 in stock

TRANSVERSE 610.440 DGH is a Semi-automatic bandsaw capable of mitre cutting in both left and right directions 60° – 0° – 60°. Adjustment of the mitre position is performed easily and directly from the operator’s position. This machine is also equipped with a digital angle readout, band speed is variable from 20 – 90 m.min-1 The machine can be easily controlled from a moveable remote control panel as shown (Bundle clamp shown is optional)

Product ID: TRANS-610-440-DGH-BOMAR Categories: , Tags: , Brand:
$23,950.00 Excl. GST $26,345.00 Incl. GST

 Shipping Fee

Description

Bomar Transverse 610.440 DGH Semi Automatic Bandsawr   Product Brochure

TRANSVERSE 610.440 DGH is a Semi-automatic bandsaw capable of mitre cutting in both left and right directions 60° – 0° – 60°. Adjustment of the mitre position is performed easily and directly from the operator’s position. This machine is also equipped with a digital angle readout, band speed is variable from 20 – 90 MPM
The machine can be easily controlled from a moveable remote control panel as shown (Bundle clamp show is optional)

Features

  • Double Mitre Left / Right 60°45° 90°-45°-60°
  • Digital cutting angle readout
  • Unique blade force relief valves fitted to guide arm assembly (Controls cutting force for accurate cutting and longer blade life)
  • Laser Line Generator allowing for easy set up of the workpiece cutting position
  • Full stroke hydraulic vice clamping & Hardened vice jaws
  • Electronic adjustable variable blade speed control from 20 – 90 Meters Per Minute
  • Fully adjustable hydraulic feed rate
  • Carbide blade guides
  • Blade tension gage
  • Powerful drive motor
  • Heavy-duty grease-filled reduction gearbox
  • Recirculating Coolant System with washdown gun

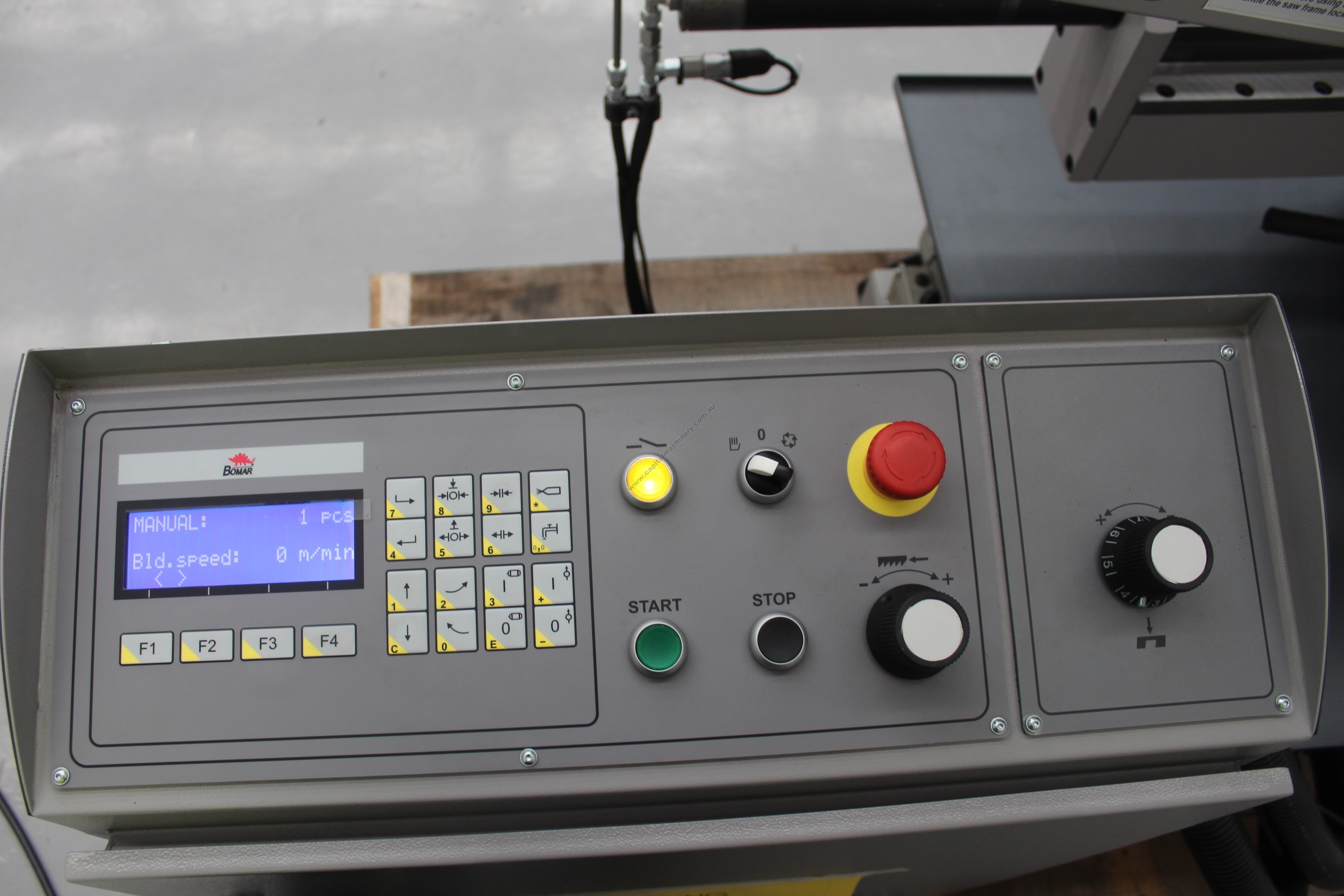

  • Moveable remote operators control pendant for improved operator access

Saw band motor output: 1,5 KW 415V / 50 Hz

Total power installed:  3,0 kVA
Saw band speed: 20 / 90 m/min

Saw band dimensions: 5200 x 34 x 1,1 mm
Smallest diameter to cut: 5 mm
Shortest scrap length: 30 mm
Material laying height: 780 mm
Dimensions: 2600 x 550 x 1420 mm

Cutting Capacity

cutting capacity Bomar Transverse 610 440 DGH

Additional information

Additional information

Weight1000 kg
Cutting Capacity

610
