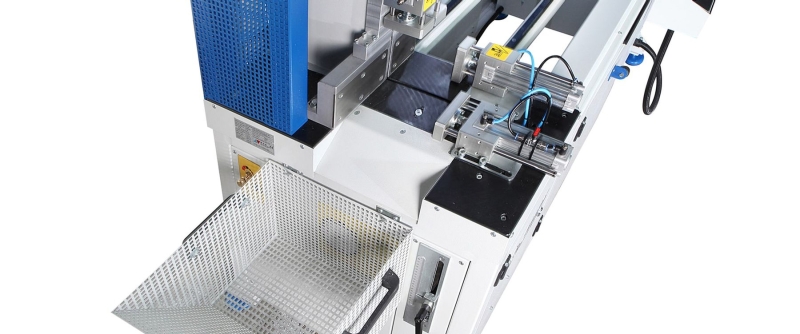

Brobo SL500 Automatic Aluminium Saw
$34,000.00 Excl. GST
$37,400.00 Incl. GST
The Brobo SL500 Automatic Aluminium Saw – Automatic Repetitive cutting machine with extreme accuracy and speed with servo motor motion system for aluminium corner connector profiles and other mass production profile cutting operations
Brobo SL500 Automatic Aluminium Saw
Brobo SL500 Automatic Aluminium Saw
Description
The Brobo SL500 Automatic Aluminium Saw – Automatic Repetitive cutting machine with extreme accuracy and speed with servo motor motion system for aluminium corner connector profiles and other mass production profile cutting operations
- Automatic profile slicing machine

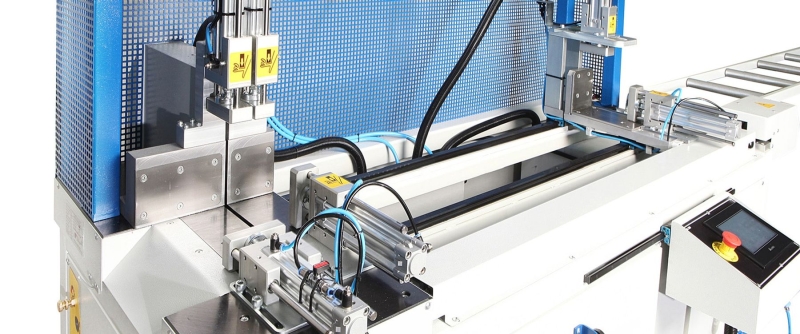

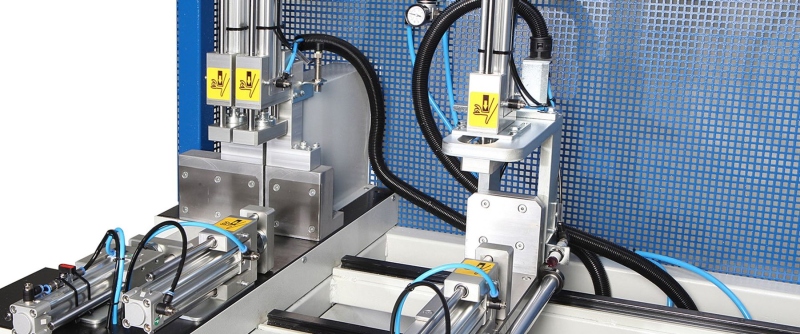

- Double side clamping system
- +/- 0,1mm accuracy
- Ø 500 mm saw
- 90° cutting angle
- Cutting width min./max.: 4 mm/∞
- 3,0 m support conveyor with rollers

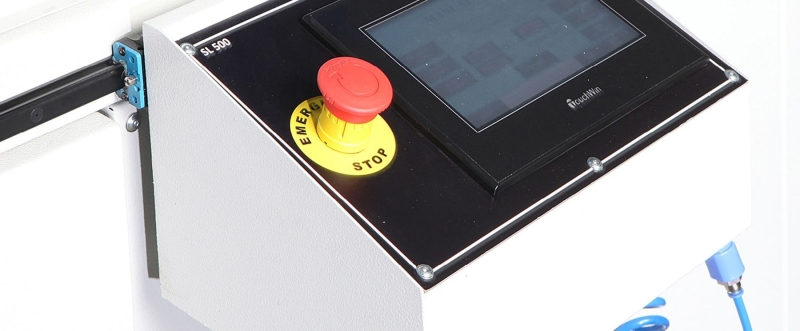

- Display “touch screen”
- Servo control motion system
- Automatic feeding system

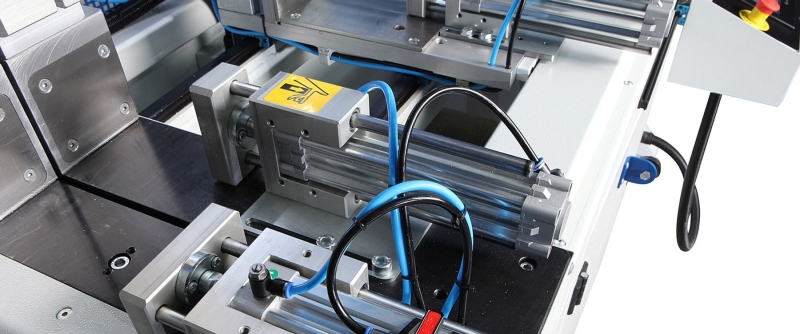

- Hydro-pneumatic cylinder and cooling systems for aluminium cutting

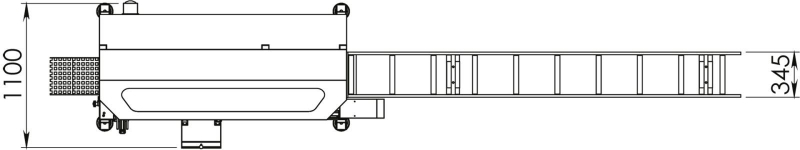

Brobo SL500 Top View
Bandsaw Top ViewB

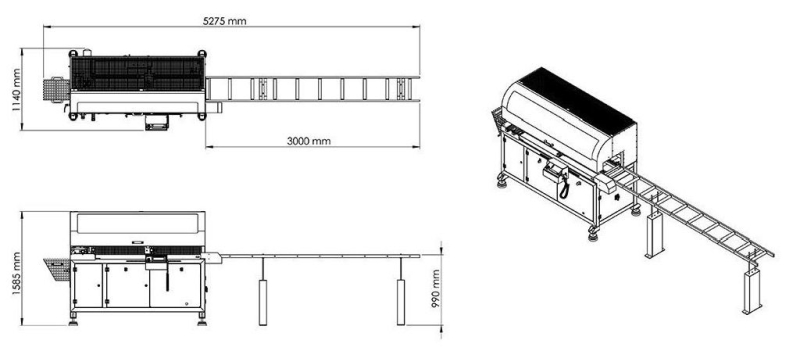

Brobo SL500 Front, Side and Back View

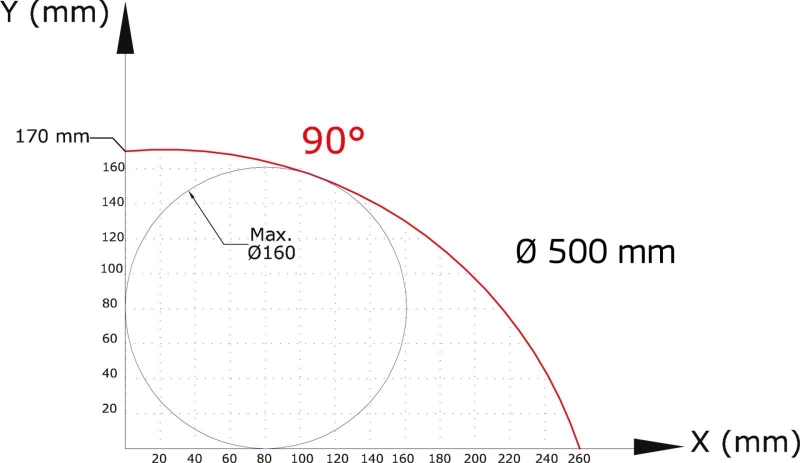

Brobo SL500 Angle Guide Plan
Specifications
| Model | Brobo SL500 |
| Power Supply |
380-400 V, 3 ph, 50-60 H
|
| Spindle speed | 3000 rpm |
| Total kW | 5 kW |
| Air pressure | 6-8 Bar |
| Air Consumption | 30 lt/min |
| Saw Outside Diameter | Ø500 |
| Inside Diameter of Saw | Ø30 |
| Saw Thickness | 4.2 mm |
| Number of Teeth | 120 |
| Machine Height | 1600 mm |
| Machine Length | 2000 mm |
| Machine Width | 1200 mm |
| Machine Weight | 310 Kg |
Frequently Asked Questions
What type of warranty and after-sales support do you provide with these machines or products ?
Capital Machinery Sales – Warranty and Support Policy
At Capital Machinery Sales, we are committed to supporting every machine we supply.
Our support includes:
- Spare Parts Availability: We keep a wide range of commonly used spare parts and consumables in stock.
- Pre-Dispatch Checks: All machinery is thoroughly checked and pre-commissioned before leaving our facility.
- Support Options in the Event of a Fault:
- Remote Support: Assistance via email, phone, or live video to help diagnose and resolve issues.
- On-Site Service: Repairs carried out by our in-house service engineers or trusted repair contractors.
- In-House Repairs: Machines can be returned to us for expert inspection and servicing.
Specification
Additional information
| Weight | 310 kg |
|---|---|
| Dimensions | 200 × 120 × 160 cm |
| Kilowatt (kW) |
