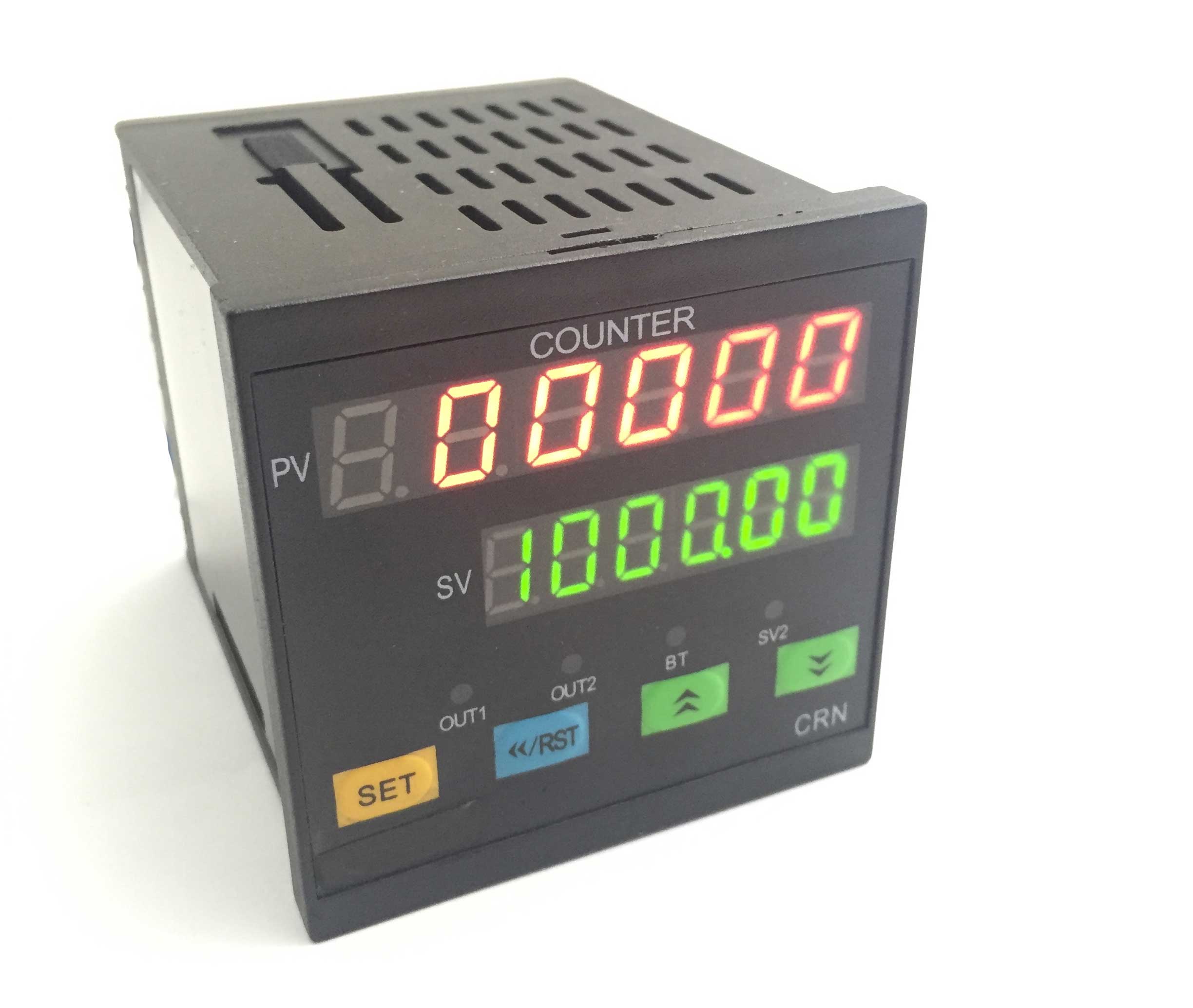

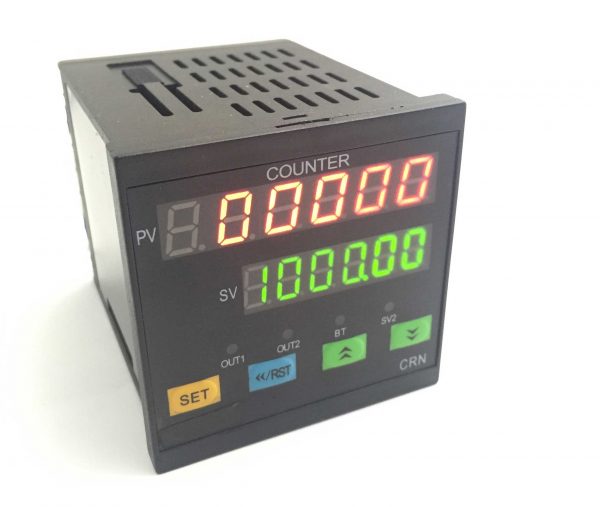

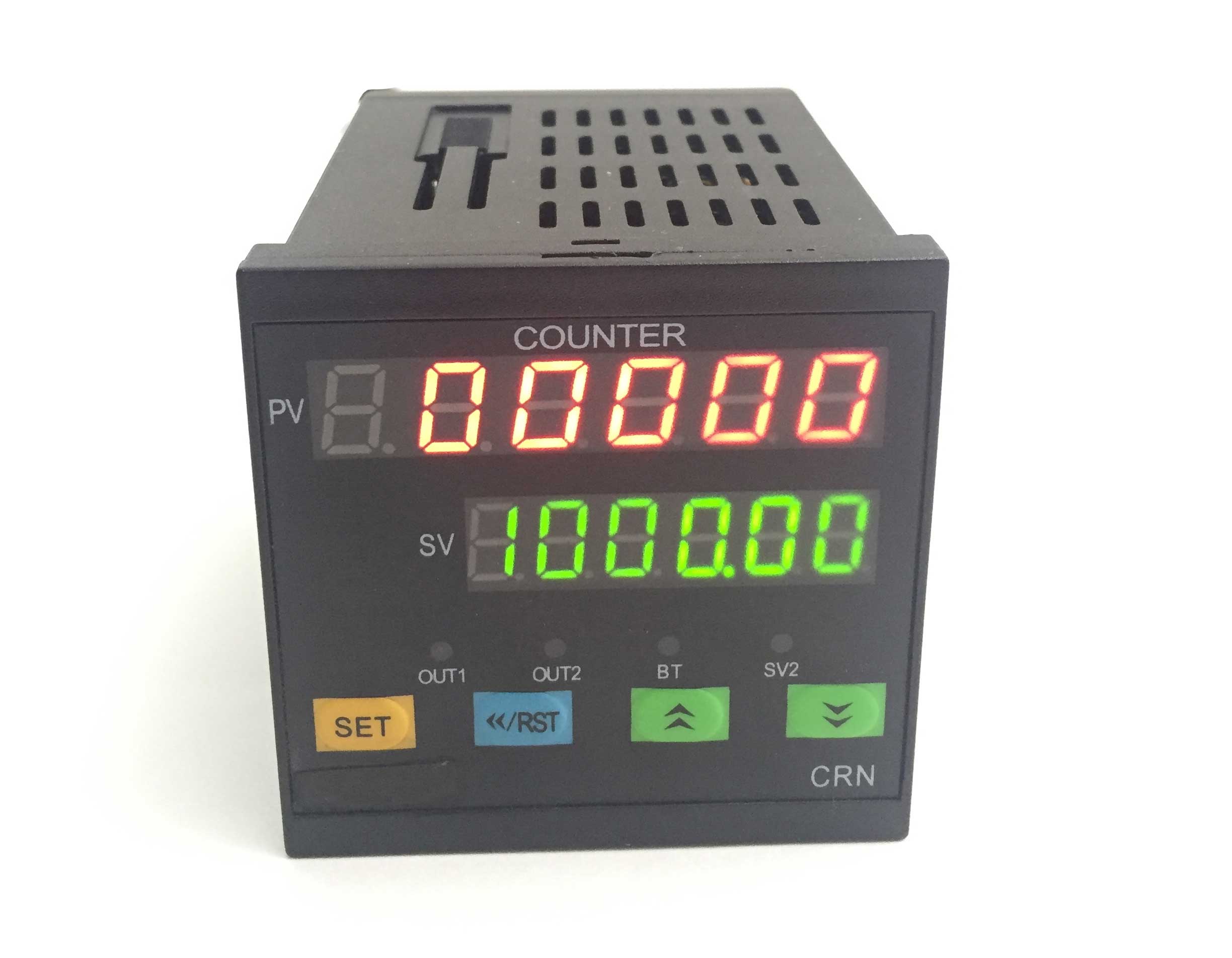

DIGIMAX Digital Incremental Position Counter
|Preset counter, soft buttons operation, easily operate 6 LED display
– Counting mode: counting Up or counting down, counting up and down, selectable by software

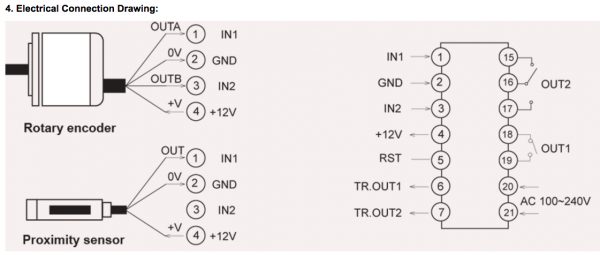

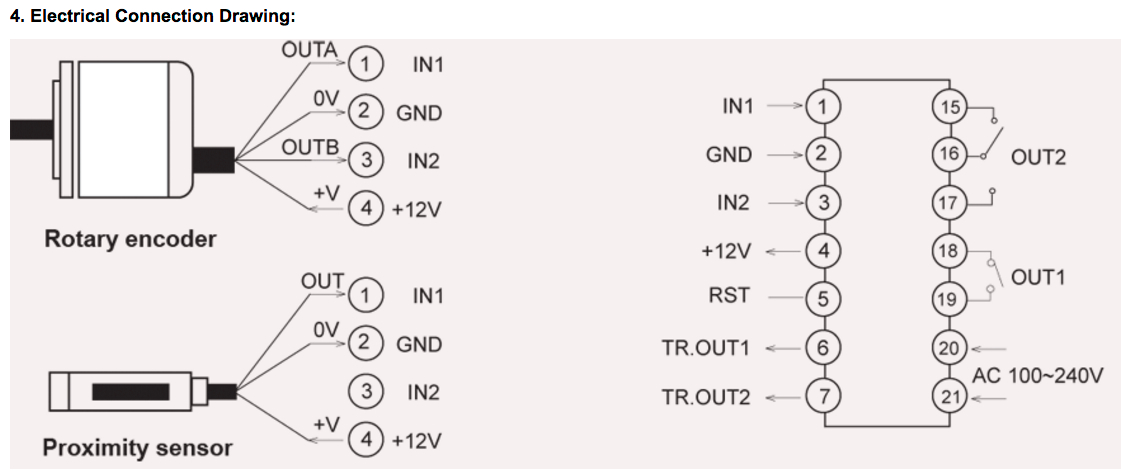

– CP1, CP2 input, reset signal input; input mode: voltage(PNP),non-voltage input (NPN)
– 2 x Relay output
* Counter speed: 30Hz/300Hz/1000Hz/5000Hz is selectable by software
– Modulus: 0.00000-99.9999 (6 digit)
– Power fail holding function, up to 10 years.
– Reset modes: manual reset, auto reset (0.1~9.9s), external reset
– Dimensions: 72X72mm
– Application: Can be used with Encoder, photoelectric sensors, proximity switch’s, applications include industrial & commercial machinery i.e. Axis Digital position readouts and incremental counters.
