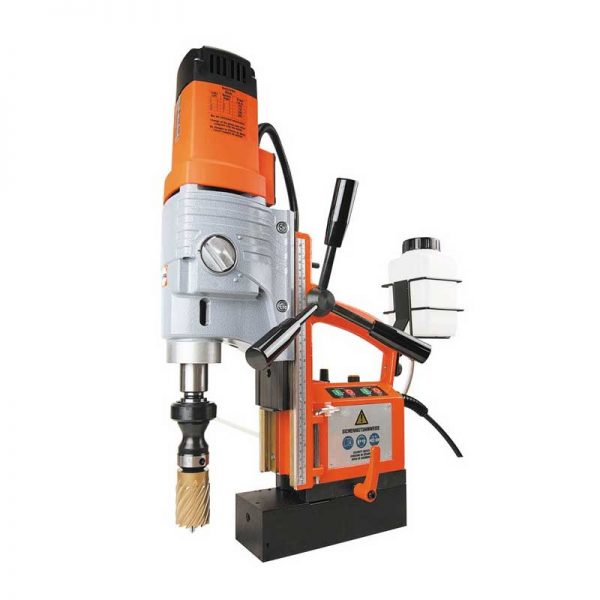

Description

Features:

Solid Brass Guides
Tapping capacity up to M30
Oil Bath Gearbox 4 Speed
3 Coil 20,000N Magnetic Adhesion
Forward-reversible drive
Morse Taper 3 spindle
Variable Speed

Specifications:

Core Drill Dimensions	50.0-110.0mm
Cutting Depth	50/110.omm
Twist Drill	1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN
Counter-Boring	10.0-55.0mm
Tapping	Tapping Chucks: Up to M30 with Tapping Attachment: Up to M30
Arbors	MT3
Stroke	190mm
Height Adjustment	60mm
4-Speed Gearbox	1. Step 50-110rpm 2. Step 75-175rpm 3. Step 105-245rpm 4. Step 165-385rpm
Power Consumption	1,800W
Voltage	230V 50/60Hz
Tool Force (10mm)/Magnetic Adhesion Strength	4,000N/20,000N
Magnetic Base	92×238mm, 30° adjustable right and left, 10mm front and back
Weight	22.0Kg
