Description

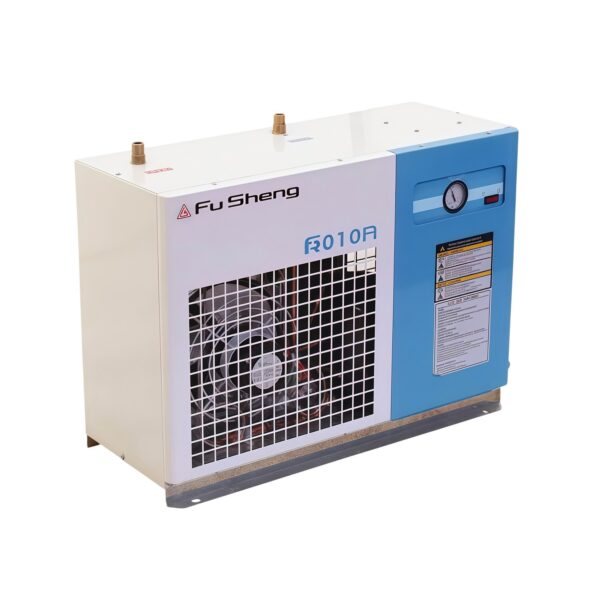

Industrial compressed air systems demand clean, dry air to protect pneumatic equipment and maintain process integrity. The Fusheng FR010A Refrigerant Compressed Air Dryer delivers exceptional moisture removal performance, conditioning air to a nominal dew point of 3°C. This high-efficiency refrigerant dryer handles airflow capacities up to 1.2 m³/min (42.4 cfm) at rated pressures of 700 kPa, making it ideal for protecting downstream equipment from corrosion, contamination, and operational failures caused by moisture.

The dryer employs advanced refrigeration technology to cool incoming air and condense moisture efficiently. The condensed water is automatically drained, while the cooled dry air pre-cools incoming air through a high-efficiency heat exchanger, optimising energy consumption. With a robust stainless steel construction and industrial-grade refrigerant system, the Fusheng FR010A provides reliable, continuous performance in demanding industrial environments.

Typical Applications

General manufacturing and production facilities
Pneumatic tool and equipment protection
Industrial automation and control systems
Food and beverage processing operations
Pharmaceutical and chemical manufacturing
Electronics assembly and cleanroom environments
Compressed air system upgrades and retrofits
Heavy-duty industrial plant and machinery

Features and Benefits

Fusheng refrigeration technology delivers superior moisture removal and energy efficiency, protecting your critical pneumatic systems and extending equipment lifespan.

Superior Moisture Removal

Refrigerant cooling system condenses moisture efficiently from compressed air
Nominal dew point of 3°C prevents downstream condensation and corrosion
Automatic condensate drain with isolation valve ensures continuous operation

Energy-Efficient Design

High-efficiency stainless steel heat exchanger pre-cools incoming air
Optimized refrigeration cycle minimizes energy consumption
Auto capacity control adjusts operation based on actual air demand

Durable Construction

Corrosion-resistant chassis and enclosure withstand harsh industrial environments
Industrial-grade R134a or R407C refrigerant ensures reliable performance
Unobstructed low-pressure loss air flow path maintains system efficiency

Convenient Operation

Standard 240 Volt plug-and-play connection for easy installation
Fan-forced air-cooled refrigerant condenser operates in various climates
Auto protection functions safeguard system and equipment integrity

Specification

Model	Fusheng FRO10A
Air Flow Capacity	1.2 m3/min (42.4 cfm)
Rated Air Pressure	700 kPa (102 psi)
Maximum Pressure	1,000 kPa (145 psi)
Inlet Air Temp	35°C Nom. / 50°C Max.
Ambient Temp.	32°C Nom. / 40°C Max.
Dew Point	2°C Nom. / 10°C Max.
Inlet & Outlet Size	3/4 inch BSP
Electricity Supply	240 Volts, 10 Amps

Peace of Mind Confidence

Every Fusheng FR010A Refrigerant Compressed Air Dryer is engineered and manufactured to the highest standards, delivering reliable moisture removal performance in the most demanding industrial applications. Our commitment to quality ensures your compressed air system remains protected and efficient.

ISO 9001 quality standards certification on every unit
High-efficiency stainless steel heat exchanger for durability and performance
Industrial-grade refrigerant system designed for continuous operation
Performance rated specifically for demanding industrial climates
Comprehensive warranty and nationwide technical support
