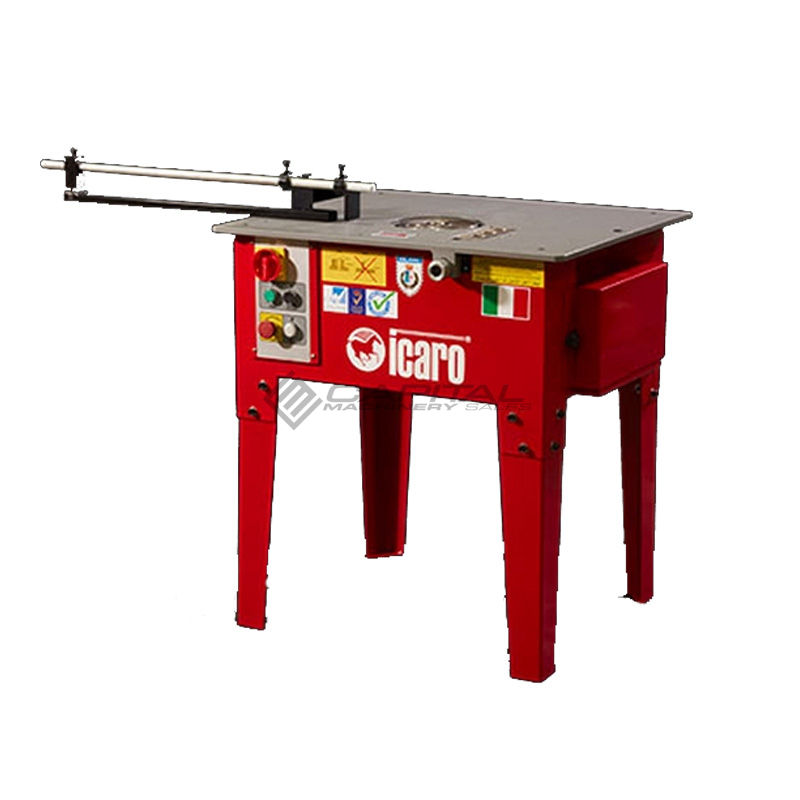

ICARO ST16 Stirrup Bender
If you are looking for the Best Deals for Rebar Benders, Capital Machinery Sales is the local authority in rebar machinery. We have a wide selection of High-Quality Rebar Bending Machines that are built to perform at maximum output and withstand even the most demanding applications. The ICARO ST16 Stirrup Rebar Benders is capable of producing quality output that you have come to expect from the line of Icaro rebar machinery products. It is perfect for forming applications and presents a great addition to your workshop.
ICARO ST16 Stirrup Bender
ICARO ST16 Stirrup Bender
Description
ICARO ST16 Stirrup Bender Product Information

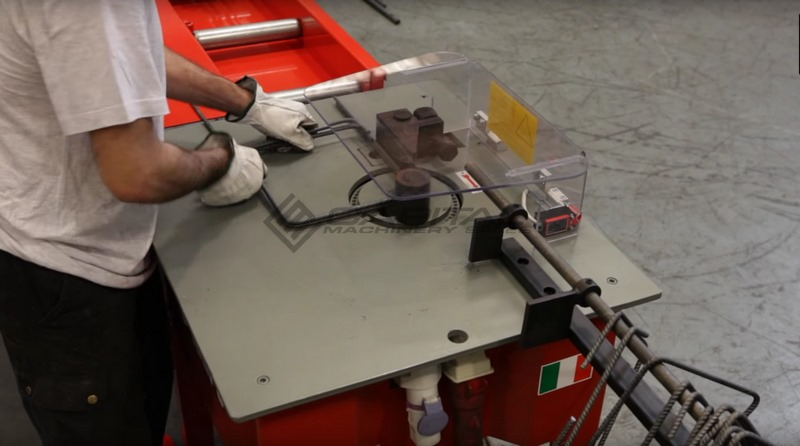

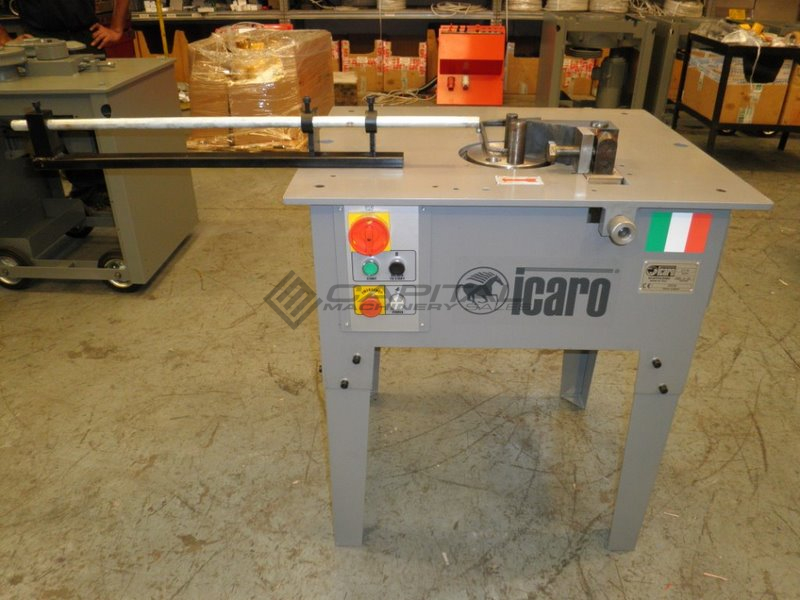

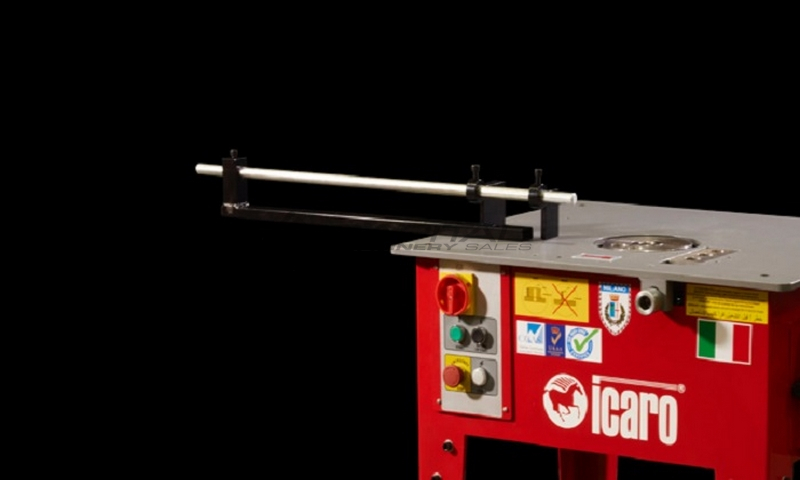

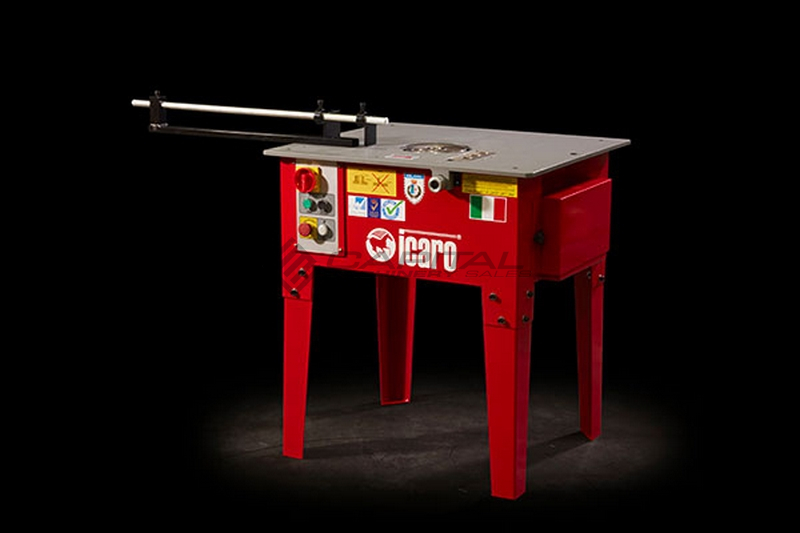

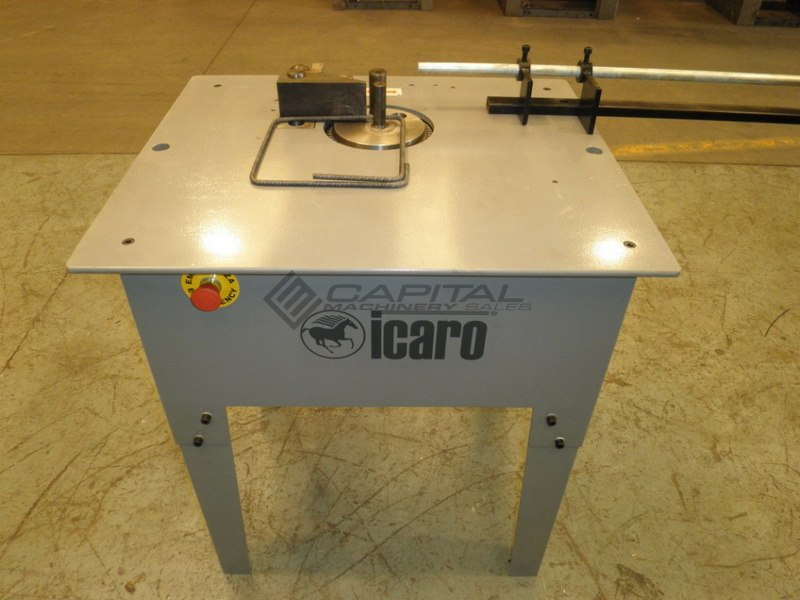

The Icaro’s ST16 stirrup bender machines are designed with maximum attention to detail in order to guarantee high-speed production of stirrups of different sizes.
The Icaro machines, which are all equipped with a manual electrical panel, can be either single phase 240vac or three phase 415vac.
This is a compact machine that comes with four removable legs, allowing fast and easy transportation from one work site to another. Users will find this machine particularly easy to operate, thanks to a handy tool tray, fitted on every piece.
TECHNICAL FEATURES
- Our stirrup benders machines follow all CE standard European laws as well as worldwide regulations. The quality control procedures performed on our machines abide by ISO9001/2008 norms.
- Every machine comes with a stirrup tool so as to measure each side of the stirrup with utmost precision.
- Four removable legs allow for great practicality and reduced use of space.
Common Australian Bar Grades
Grade 250 – 250MPA = 25.5 Kg/mm2
Grade 300 – 300MPA = 30.6 Kg/mm2
Grade 500 – 500MPA = 51.0 Kg/mm2
|
Weight Kg |
175 |
|
Measurements cm |
80 x 70 x 96 |
|
Motor (50 Hz) KW/HP |
1,5/2 |
|
Motor (60 Hz) KW/HP |
CUSTOM |
|
RPM (50hz) |
21 |
|
Oil KG |
1 |
|
65 kg/mm2 |
85 kg/mm2 |
||||
|
1 |
2 |
3 |
1 |
2 |
3 |
|
16 |
12 |
10 |
14 |
10 |
8 |
|
Standard |
Optional |
|
1 Ѳ50mm bush |
|
|
1 Ѳ60mm bush |
|
|
1 30 mm square pin |
|
|
2 pins 1 Ѳ30/32mm |
|
|
1 Ѳ30/22mm stirrup bending pin |
|
|
1 Ѳ30/15mm stirrup bending pin |
|
General Equipment
|
Standard |
Optional |
|
1pedal control |
|
|
1 magnetotermic switch |
|
|
1 taper pin |
|
| 1 linear measurer tool |
|
|
1 hex key set for maintenance |
5-bend programming eletric panel |
| 1 reversing and grip pins set | C.E. front protection |
ICARO Rebar Machine Demo Cut, Bend, Spiral, Stir up Bend and Combined Video
ICARO Machinery is renowned for its top-quality rebar bending and cutting equipment, designed to meet the demanding needs of the construction and steel fabrication industries. Whether you need a heavy-duty industrial rebar bender, an automatic rebar bending machine, or a compact, portable rebar bender, ICARO has a solution tailored to your requirements. Known for their precision, durability, and ease of use, ICARO rebar benders are ideal for bending steel bars and rebar with efficiency and consistency, making them a preferred choice among contractors and builders worldwide.
For those looking to enhance their construction projects, ICARO rebar benders are available in a variety of models, including electric rebar bender and cutter combinations, hydraulic rebar benders, and manual rebar bending tools. These machines are designed to handle everything from small-scale projects to large, commercial construction sites. Whether you need a reliable rebar spiral bender or a powerful high-speed rebar bender, ICARO ensures smooth operation that delivers precise bends every time, helping you save time and reduce material waste.
If you’re searching for "ICARO rebar bender for sale," look no further than Capital Machinery Sales, a trusted supplier of top-tier construction equipment. Capital Machinery Sales offers a wide range of ICARO machinery, from portable electric rebar benders to automatic rebar bending machines, all available with reliable customer support and competitive pricing. Whether you’re in Melbourne, Sydney, Brisbane, or anywhere across Australia, Capital Machinery Sales has the equipment you need to get the job done.
One of the standout features of ICARO rebar benders is their ability to handle complex bending tasks, such as creating stirrups or bending at precise angles. These machines are built for performance, with robust construction and advanced technology to ensure efficiency and safety. For those looking to rent or buy rebar benders, Capital Machinery Sales also offers flexible options that cater to small contractors or large industrial operations, ensuring you have access to the best tools for the job.
ICARO Machinery is a name you can trust for all your rebar bending and cutting needs. Whether you’re installing reinforced concrete, performing structural work, or completing steel fabrication projects, ICARO equipment helps you achieve professional-grade results effortlessly. Visit Capital Machinery Sales today to explore their extensive range of ICARO rebar benders and cutters, available for purchase or hire. With their expert advice and top-notch customer service, you’ll find the perfect solution for your construction projects.
