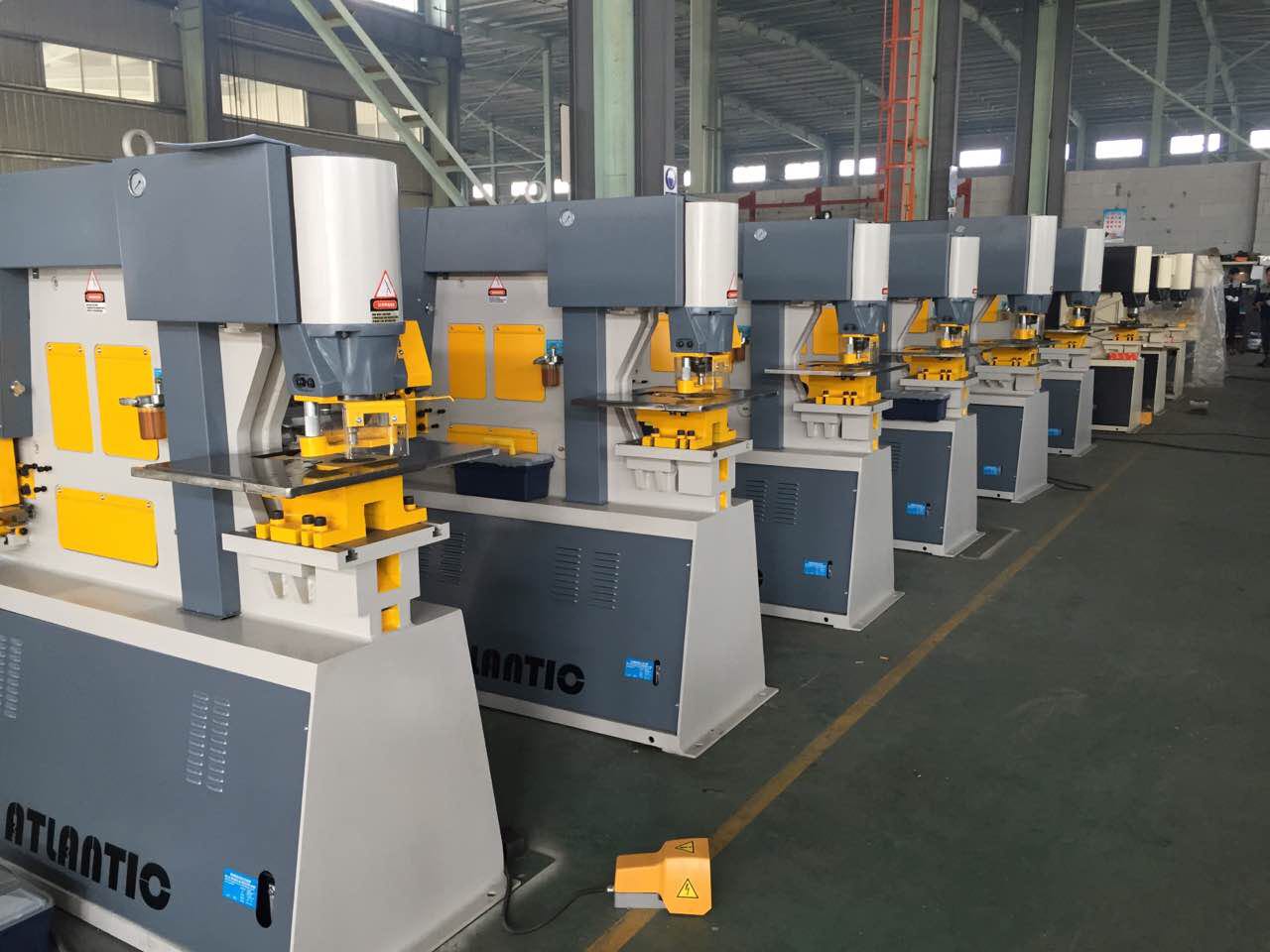

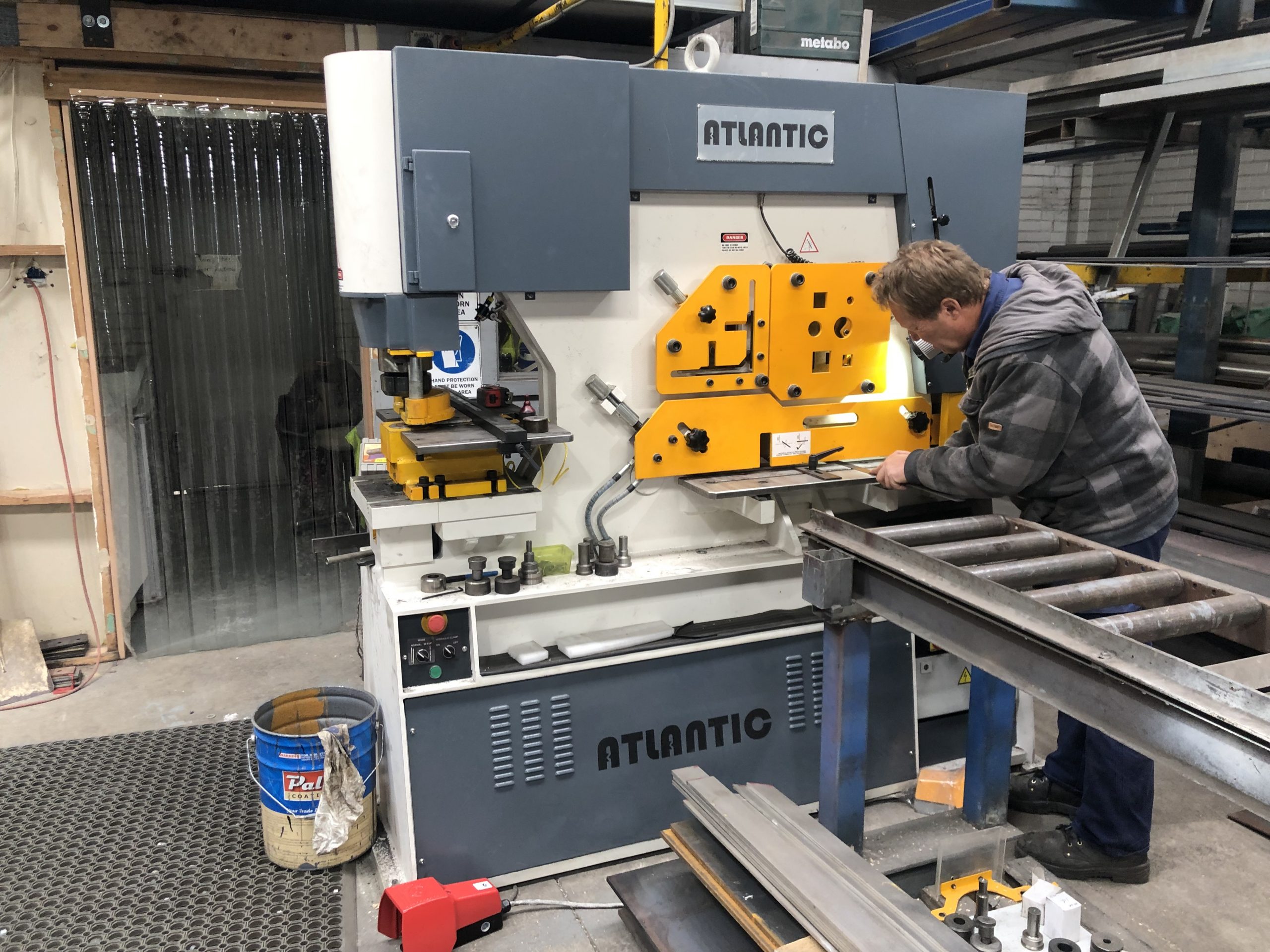

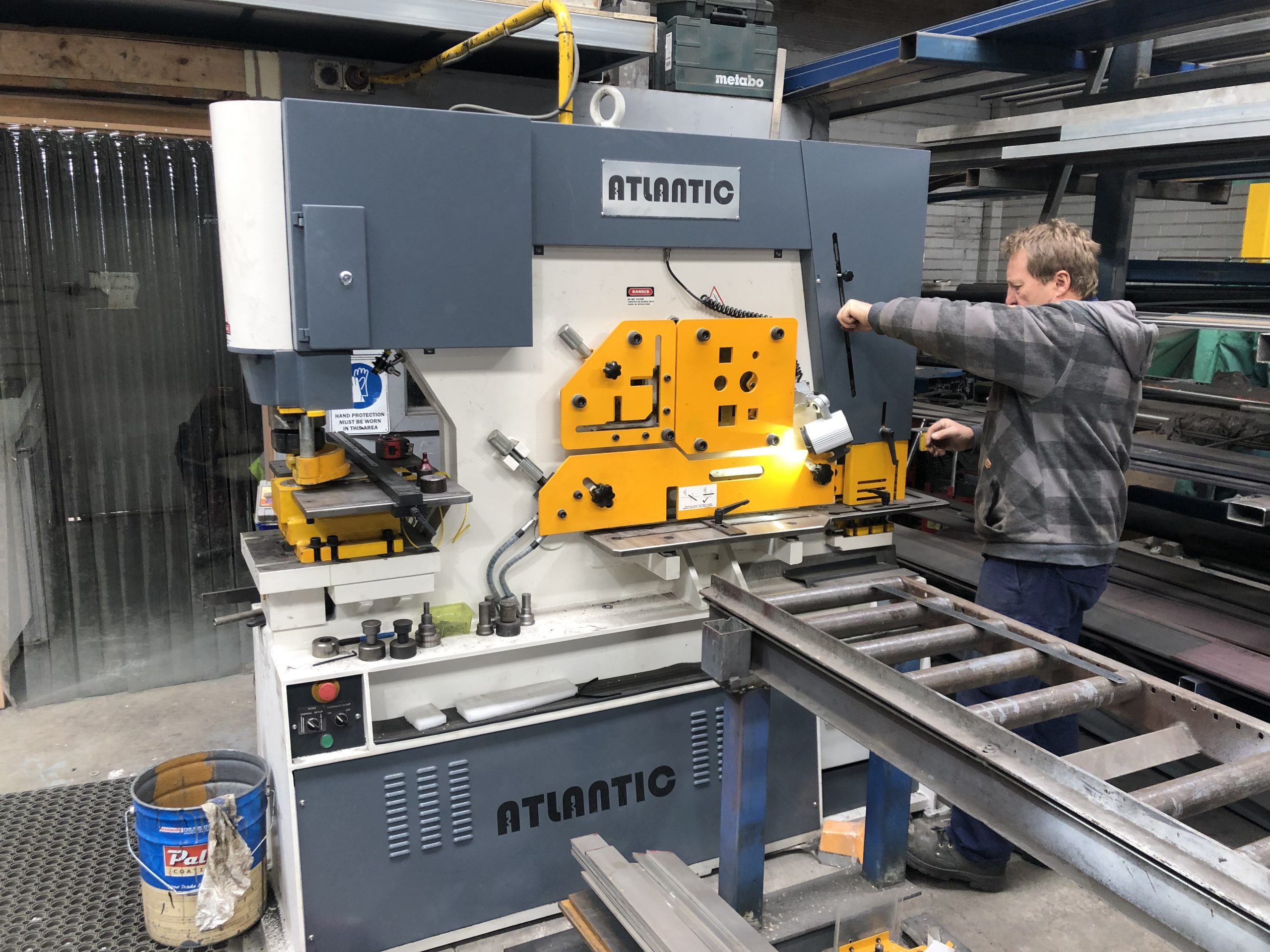

Kingsland Atlantic Multi 125 Iron Worker

   Kingsland Multi 125 Hydraulic IronWorker Manual

The KINGSLAND ATLANTIC MULTI series Ironworkers are built to perform steel and metalworking applications at an optimal level. These robust steelworkers have 5 working stations, equipped with safety control systems for operators. The Kingsland Atlantic Multi 125 Iron Worker is able to perform 2 stations simultaneously. The updated system gives accurate power inching at all five workstations and allows the machine to be stopped at any position giving safe and accurate tool setting and work positioning.

These universal machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and with easily adjusted hold downs at all five work stations to safely control the operations. Comprehensive safety guards are fitted as standard on all work stations.

Free standing on a suitable floor, they just require an electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded foot controls, one operating the punch end cylinder, the other operating the shear end cylinder. The shear cylinder provides the power to the three shearing and the notch stations.

The system gives accurate power inching at all five work stations and allows the machine to stopped at any position giving safe and accurate tool setting and work positioning. Limit switches at both ends of the machine control stroke length at all stations.

Centralized lubrication is metered by a one-shot system, is only one feature of the low maintenance requirement. An optional ‘Production Pack’ is available to enhance the machine specification, this includes:

• 1 low voltage halogen lamp on a movable magnetic base,
• 1.0m long touch and cut ruled length stop,
• fine adjustment facility to the punch stroke
• measuring scales in the notch

Features

• Large punch table with multi-purpose bolster
• Removable table block for overhang
• Punch table, shear table an notch table standard equipment
• Power inching and adjustable strokes at punch & shear end
• Centralized pressure lubrication
• Wide variety of applications for large hole punching: bar bending, tube notching,…
• Miter cut flanges of angle under shear blade
• Work station guards standard fitment
• Two cylinder operation
• Overload relief on hydraulic system
• Interchangeable bearings, seals and valves readily available in
• Machines with very low maintenance
• Punch adapters
• Swing away punch stripper unit
• Easy change punch holder
• One low volt halogen lamp on a movable magnetic base
• Fine adjustment facility to the punch stroke
• Measuring scales in the notch table
• 1.0m long touch and cut ruled length stop
• Universal die bolster
• Heavy-duty support tables with guides at shear station and notch station
• Heavy-duty punch table with guides and backstop
• Shear body blade with 4 cutting edges
• Section arm & body blade with 1 cutting edge
• Angle cutting arm & body blades with 4 cutting edges
• Rectangular notch bolster blades with 4 cuttings edges
• Service toolkit
• Work station guards
• Instructions, operating and maintenance

All Kingsland Multi Machines Include:

• Independent Multi Cylinder Operation
• 5 Stations – Punch,
• Shear, Notching, Angle,
• Round & Square Bar.
• 10 Sets Of Punches & Dies of your choice
• Special Non-Deform Shear Blade

Production Kit Includes

• Touch & Cut
• Halogen Work Light
• Central Lubrication,
• Fine Punch Adjustment
• Punch Table And Back Stops
