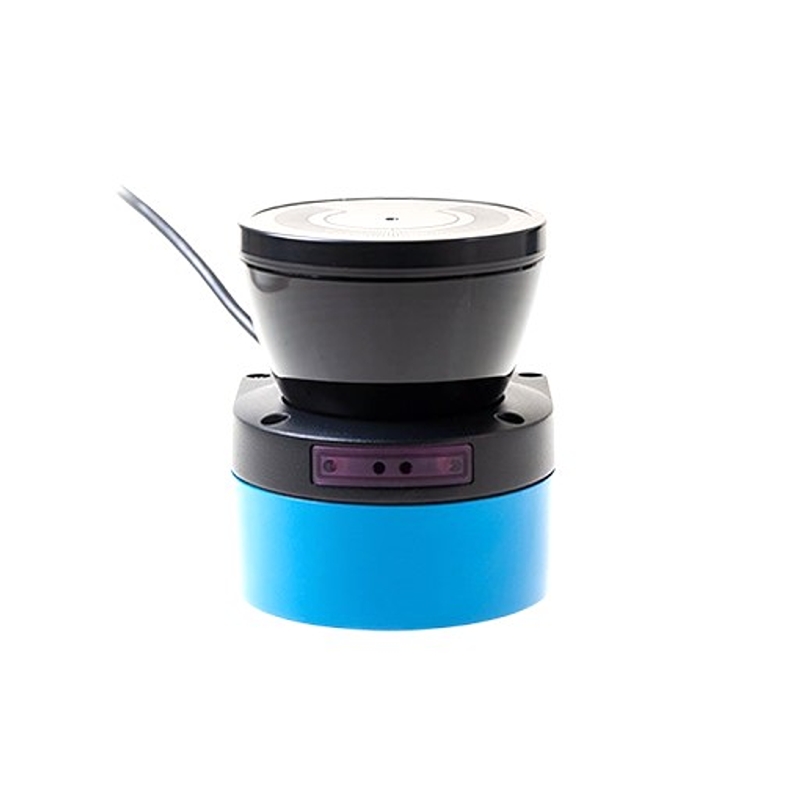

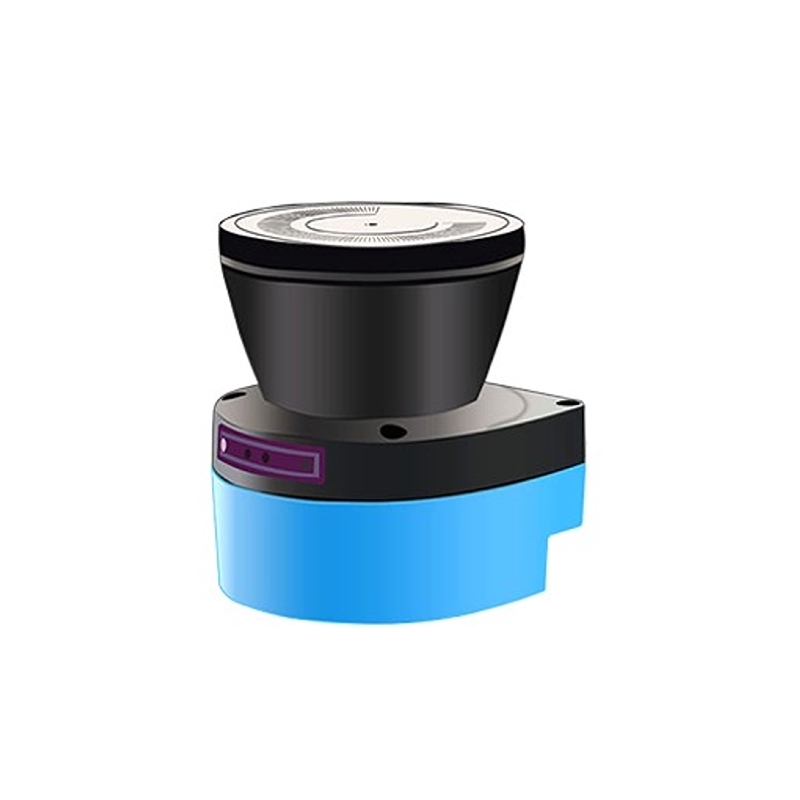

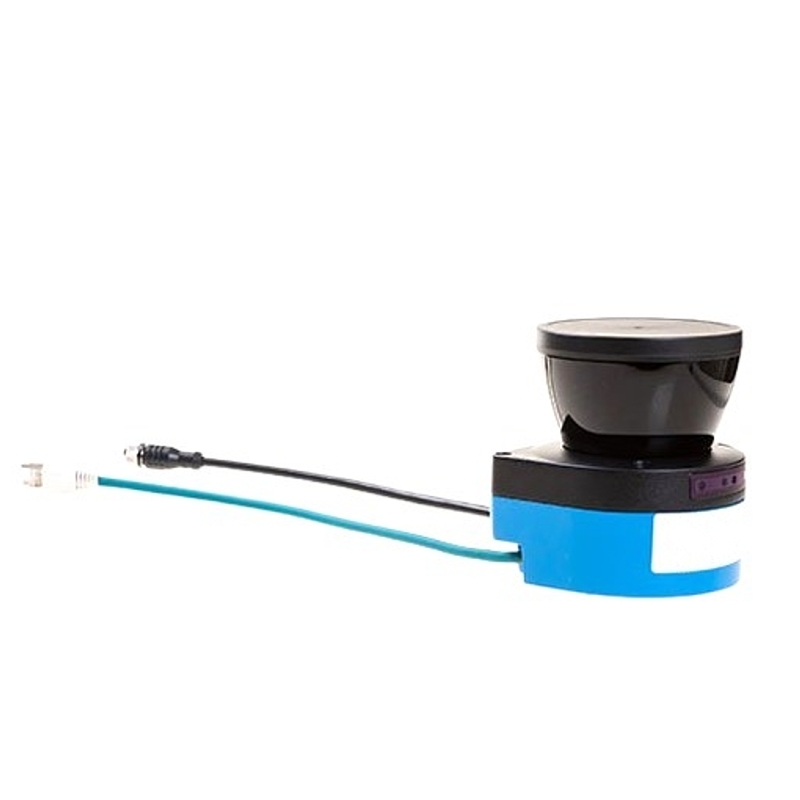

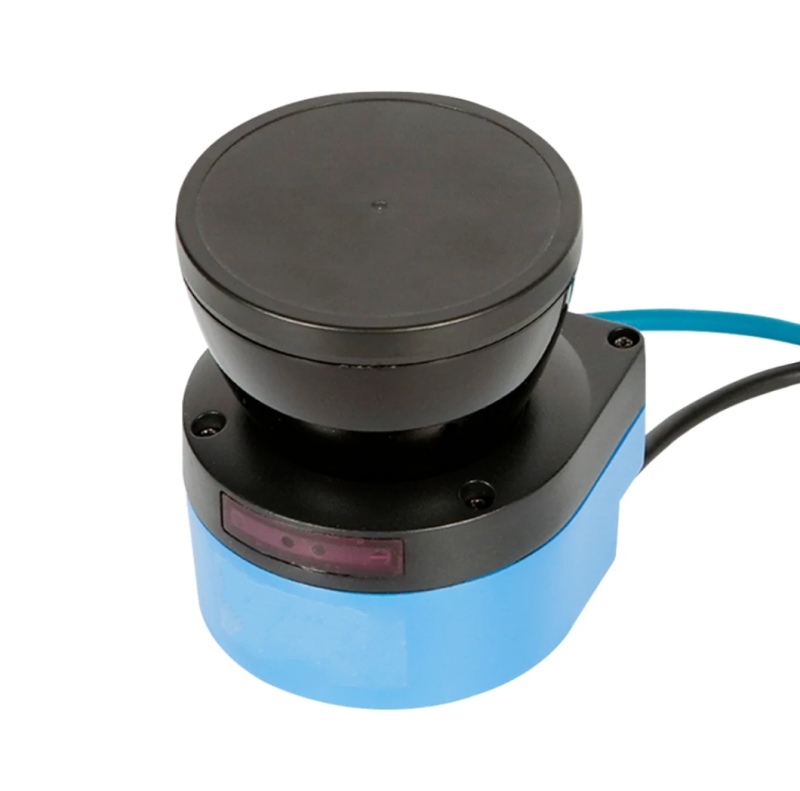

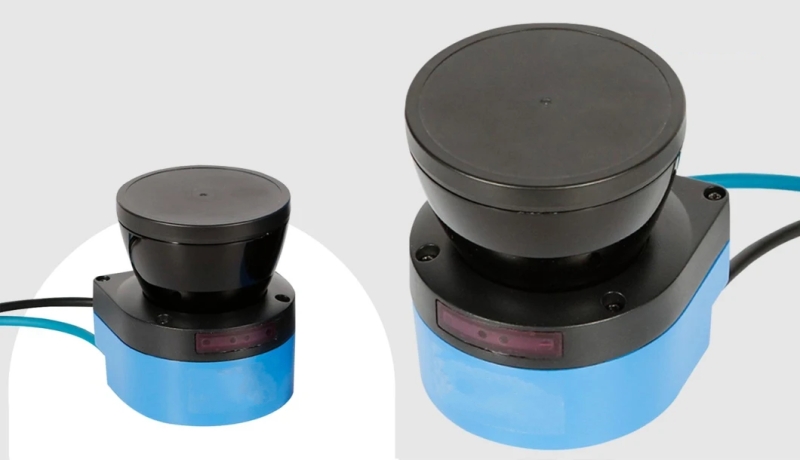

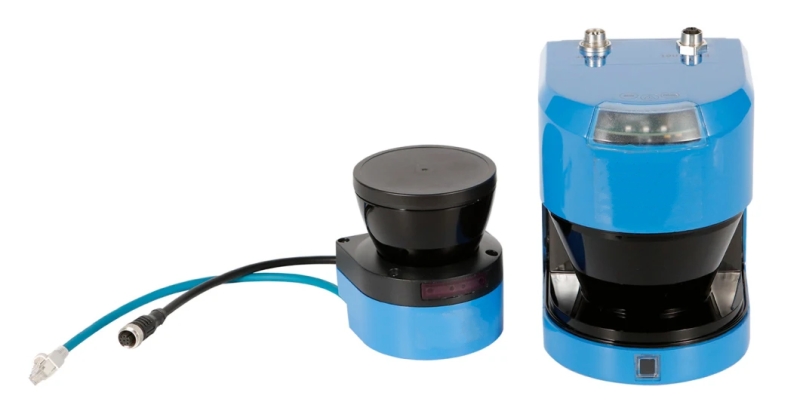

LaserZone LZD Laser Safety Scanner Sensor LIDAR
$3,290.00 Excl. GST
$3,619.00 Incl. GST

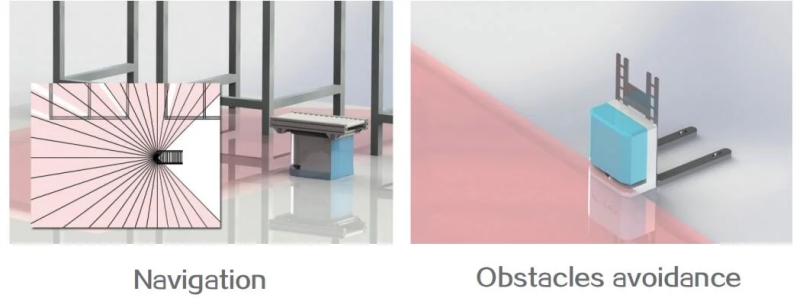

The LaserZone LZD Laser Safety Scanner Sensor LIDAR is a newly launched miniature series of laser radar products. The product is small in size, flexible and reliable, and easy to use. LND radar includes detection type and measurement type, which can realize AGV obstacle avoidance, laser separation, medium and long-range measurement, and other functions. It’s also used in modern logistics, highway traffic, automobile detection, and other fields.
LaserZone LZD Laser Safety Scanner Sensor LIDAR
LaserZone LZD Laser Safety Scanner Sensor LIDAR
Description

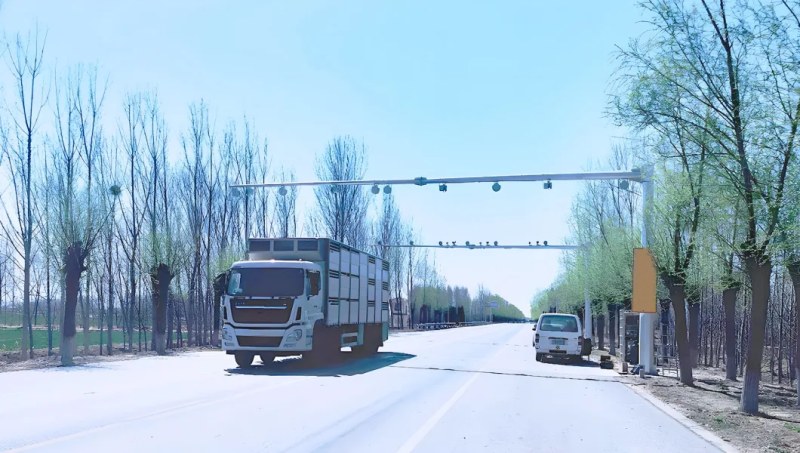

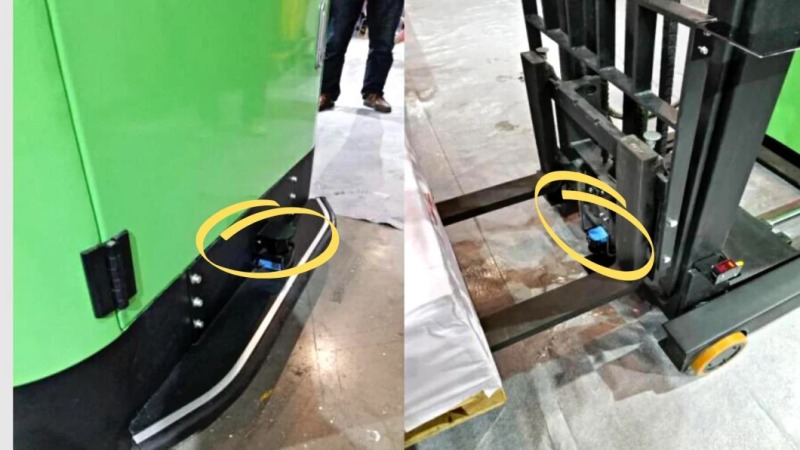

The LaserZone LZD Laser Safety Scanner Sensor LIDAR is a newly launched miniature series of laser radar products. The product is small in size, flexible and reliable, and easy to use. LZD radar includes detection types, and measurement types, which can realize AGV obstacle avoidance, laser separation, medium and long-range measurement, and other functions. It’s also used in modern logistics, highway traffic, automobile detection, and other fields.
LaserZone LZS Laser Safety Scanner Sensor – Infrared LIDAR Visual Parts
| LZD Series Lidar Sensor | ||||
| Model | LZD202AI | LZD202AS | LZD202AF | LZD212BN |
| General parameters: | ||||
| In-Put Type | Vehicle Separator | Specific detection | Obstacle avoidance | |
| Light Source | Laser | |||
| Laser wave | 905nm | |||
| Laser grade | Grade 1(safe to people eyes) | |||
| Detection scope | 0°~180° | 0°~180° | 0°~140° | 0°~270° |
| Detection frequency | 50Hz | 50Hz | 50Hz | 25Hz |
| Angle resolution | 0.25° | 0.25° | 0.25° | 0.5° |
| Work Distance | 0~20m 90% reflectivity 18m 10% reflectivity | 0.3~2m >1% reflectivity | 0~10m >1% reflectivity | |
| Repeatability | ±10mm | |||
| Mechanical and electronic parameters: | ||||
| Supply Voltage | 12~30VDC | |||
| Power | <30W | |||
| Data interface | Ethernet | RS232 | ||
| In put function | I/O 24V | – | – | 5-way Input |
| Output function | Relay output(Normal Open) | Relay output(Normal Open) | ||

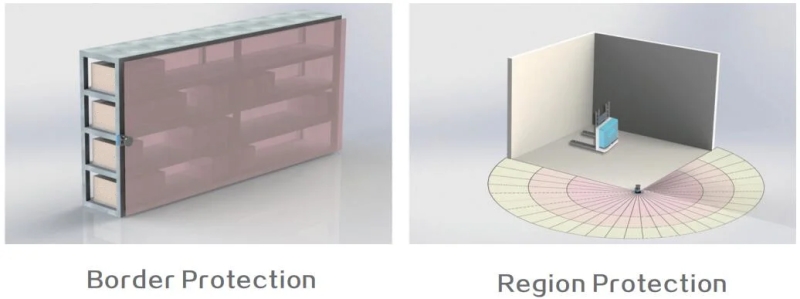

| Area division | Yes | Yes | ||
| Protection rating | IP67 | |||
| Work temperature | -30℃ ~ +60℃ | |||
| Dimension | 95mm ×96mm ×109mm | |||
