Description

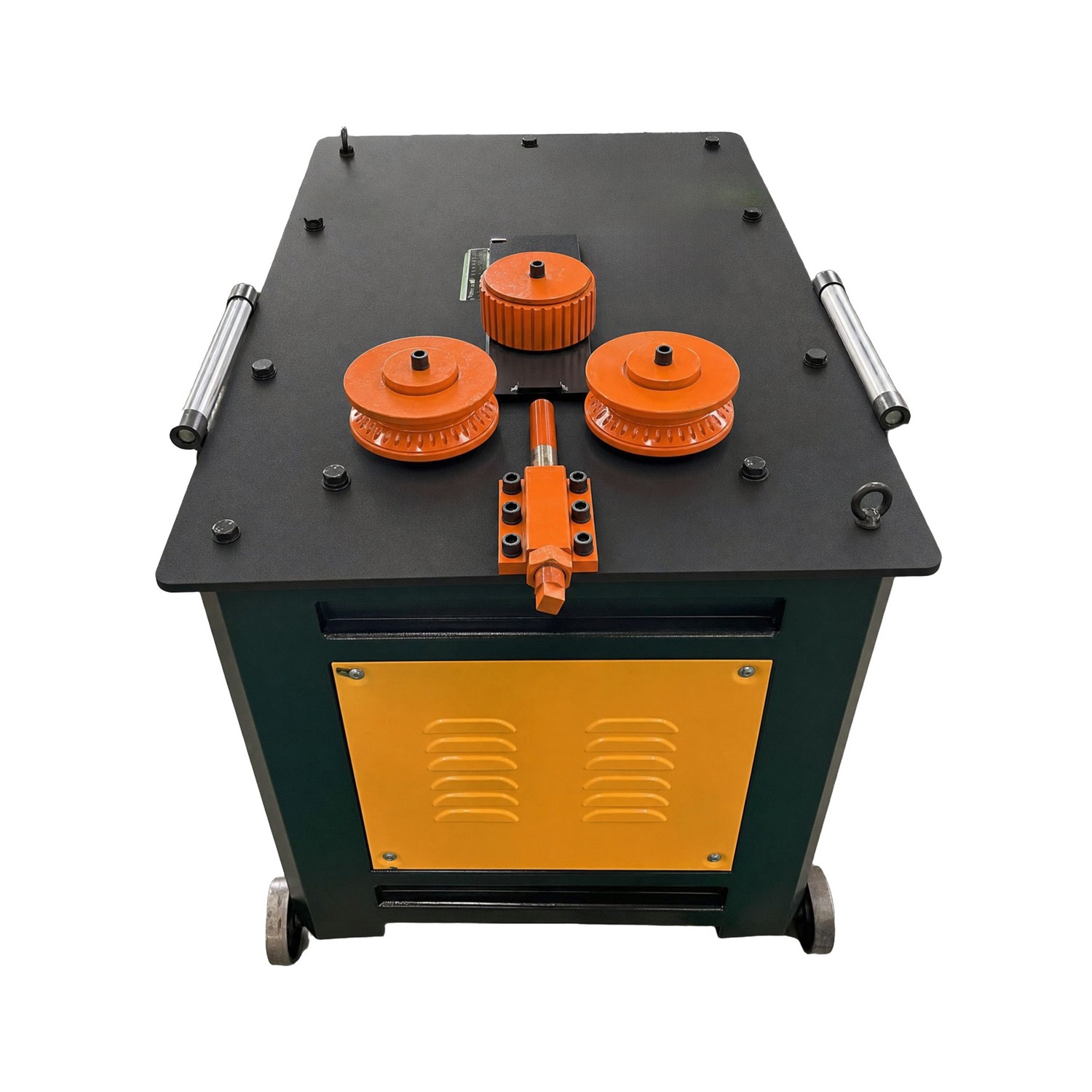

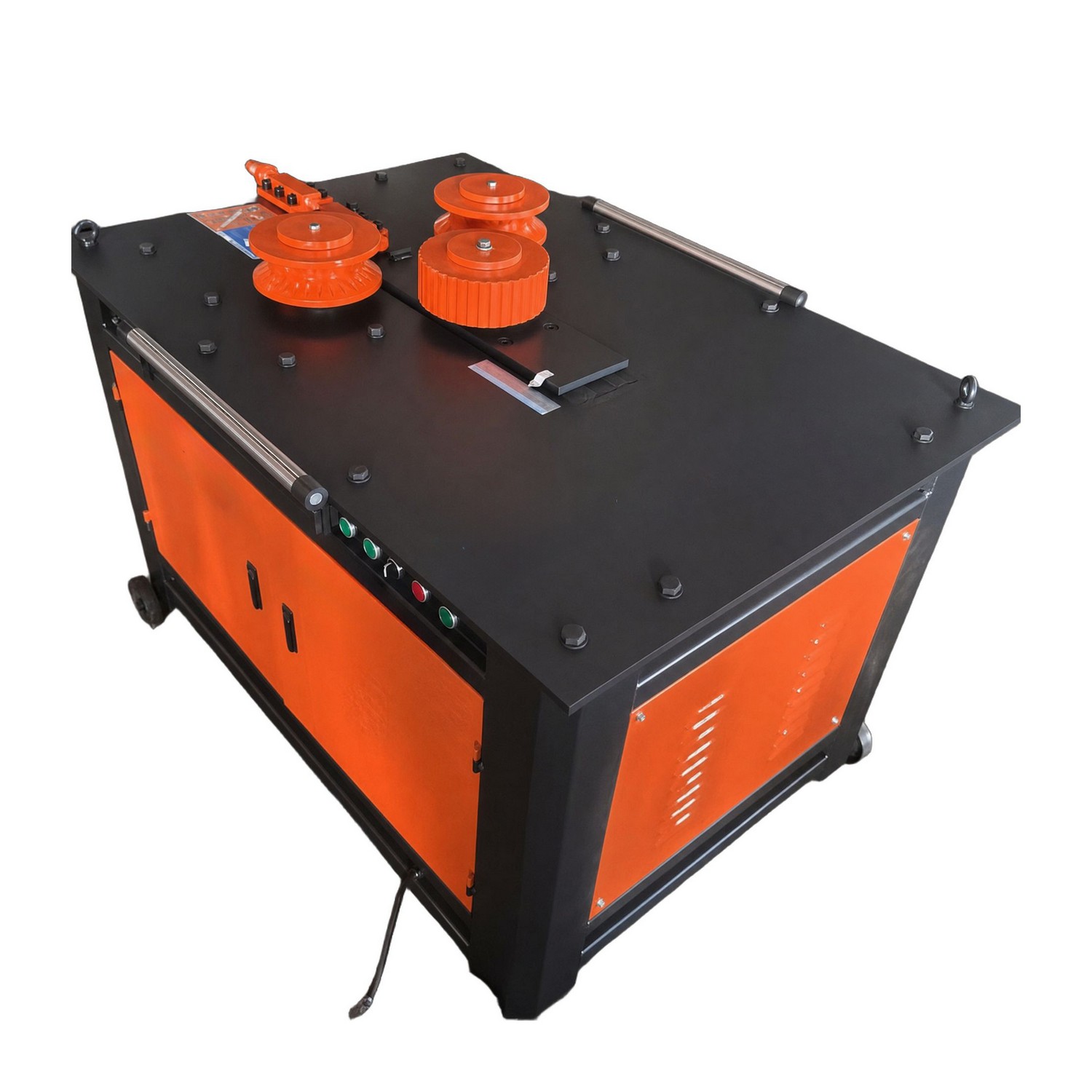

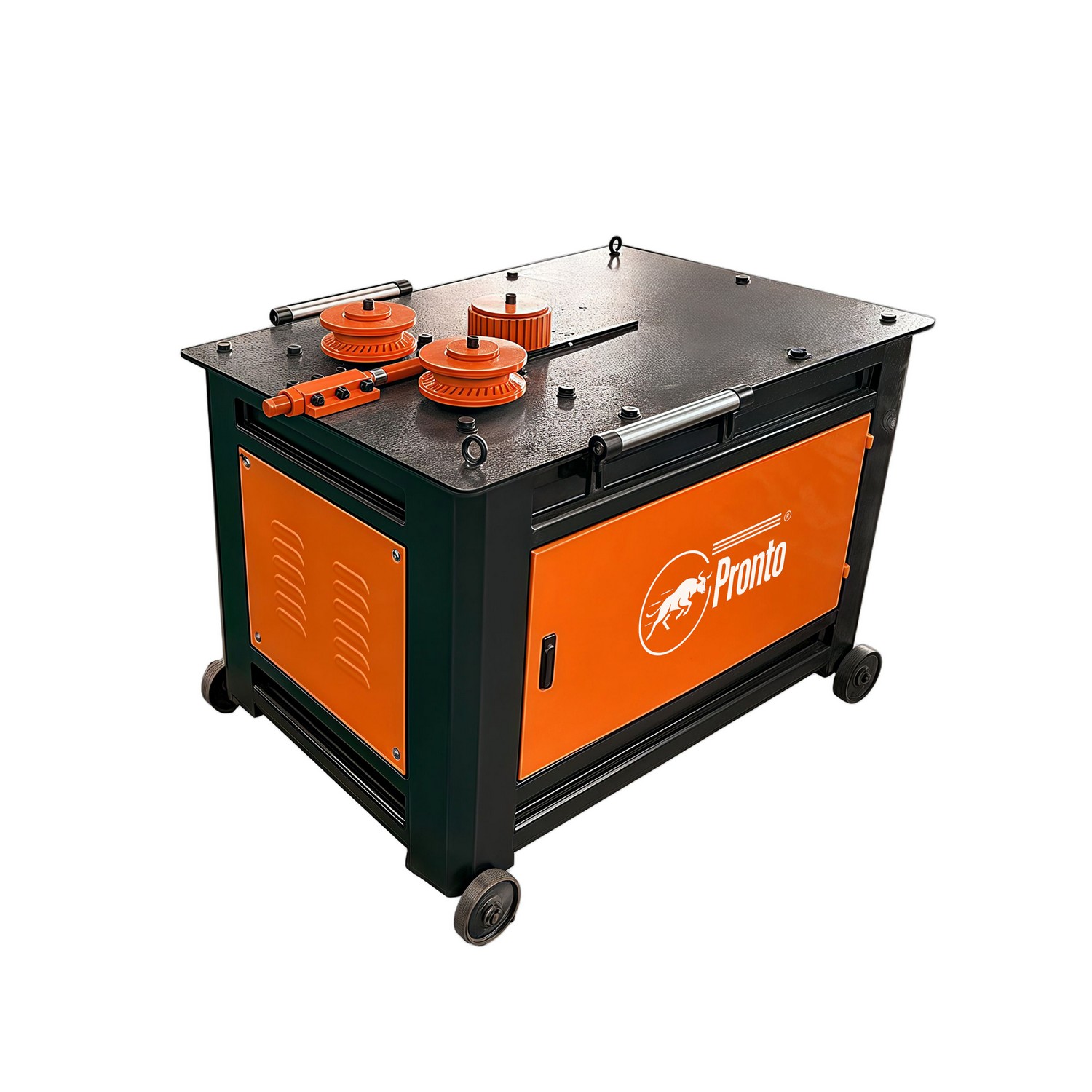

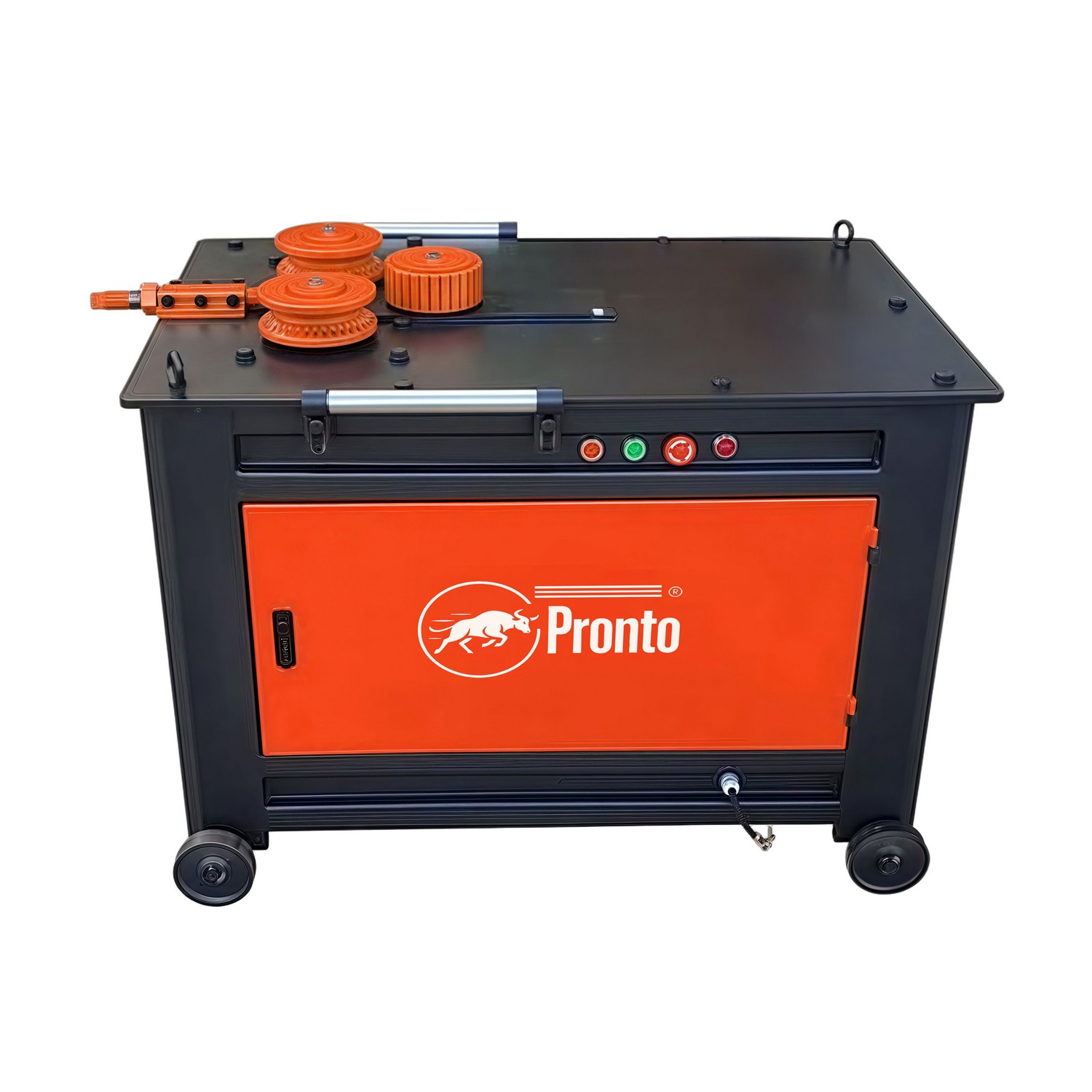

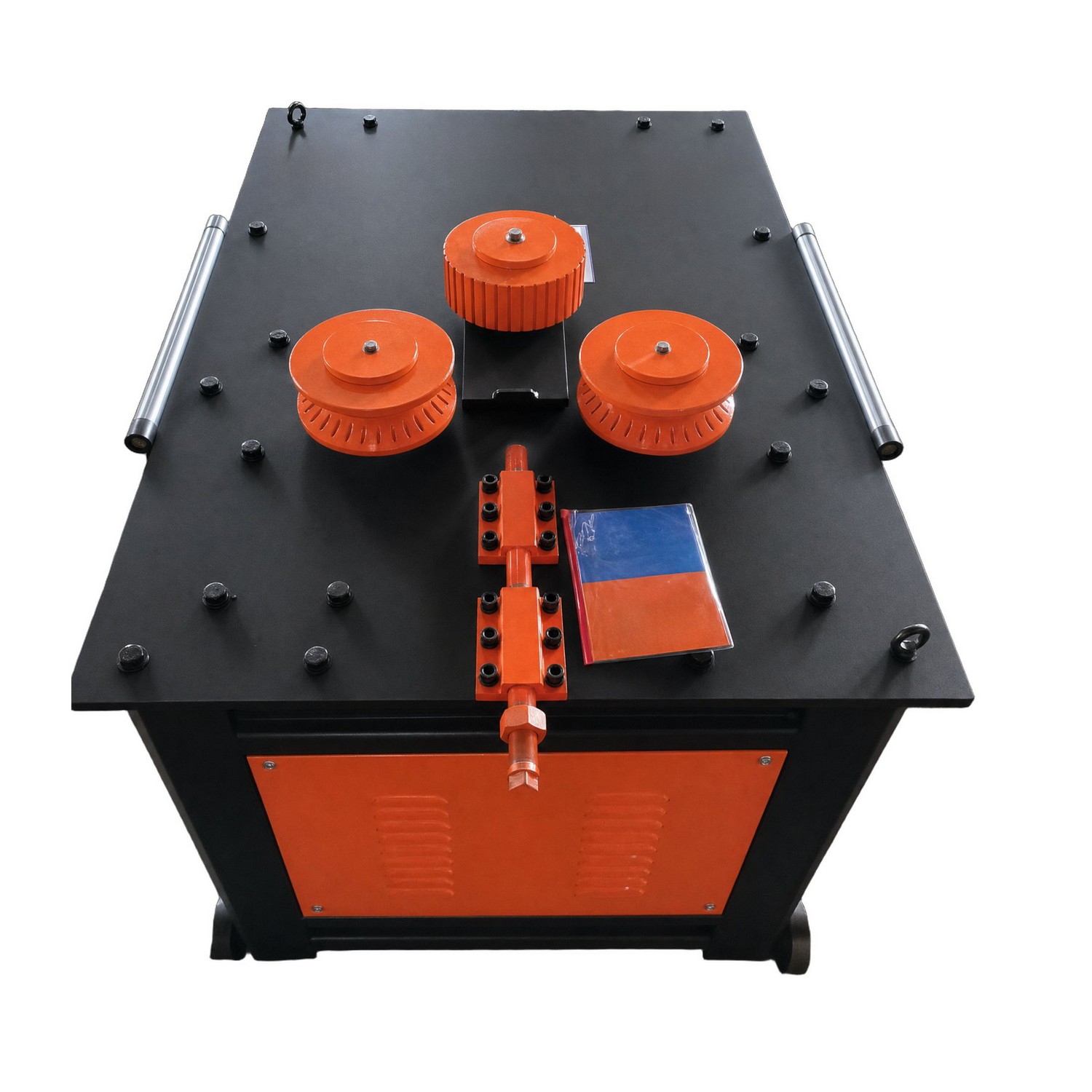

The Pronto SB32 is a heavy-duty spiral bending machine engineered to form steel reinforcing bar into circular and spiral shapes for structural and infrastructure applications. The machine is built on a solid frame with a 12mm panel thickness, measuring 1100 x 800 x 850mm and weighing approximately 380kg.

A 4kW motor drives the bending mechanism at 1440 r/min, producing a spiral bending speed of 28 r/min. The machine handles round plain bar from 14–32mm and deformed (ribbed) bar from 14–30mm, with a vernier scale (1cm = 1.5m) fitted to support accurate spiral sizing during operation.

Bending capability spans a spiral diameter range from Ø16 to Ø32, with no upper limit on maximum spiral diameter across the range — allowing the machine to be set up for both tight and large-radius spiral forms as job requirements change. On the control cabinet upgrade, the operator can also produce U-shape bends by manually entering three sets of data on the touchscreen, giving the machine flexibility beyond circular and spiral forming.

This combination of motor power, bar capacity range, and heavy-duty panel construction makes the SB32 suited to construction, civil, and infrastructure environments producing circular or spiral reinforcing bar forms for buildings, bridges, and similar structural work.

Key Features

4kW drive motor – Runs at 1440 r/min to power the spiral bending mechanism at a working speed of 28 r/min.
Round bar capacity to 32mm – Bends round plain bar from 14mm up to 32mm diameter.
Deformed bar capacity to 30mm – Bends deformed (ribbed) reinforcing bar from 14mm up to 30mm diameter.
Vernier scale for accurate sizing – Fitted scale (1cm = 1.5m) supports precise spiral diameter setting during operation.
Wide spiral diameter range – Covers Ø16–Ø32 bar sizes with no upper limit on maximum spiral diameter.
Heavy-duty panel construction – 12mm panel thickness supports stable operation under sustained industrial use.
Optional Upgraded control cabinet with touchscreen HMI – On the control cabinet upgrade, entering three sets of data on the touchscreen produces U-shape bends, in addition to circular and spiral forms.

Specifications

Model	Pronto SB32
Round Plain Bar Capacity	14 – 32 mm
Deformed Bar Capacity	14 – 30 mm
Motor Power	4 kW
Motor Speed	1440 r/min
Spiral Bending Speed	28 r/min
Vernier Scale	1 cm = 1.5 m
Panel Thickness	12 mm
Rated Voltage	415V, 50HZ 3 Phase
Dimensions (L x W x H)	1100 x 800 x 850 mm
Machine Weight	380 kg

Spiral Bending Diameter Range

Ø16	0.3 m	Unlimited
Ø18	0.4 m	Unlimited
Ø20	0.4 m	Unlimited
Ø22	0.4 m	Unlimited
Ø25	0.4 m	Unlimited
Ø28	0.5 m	Unlimited
Ø32	0.6 m	Unlimited

Inclusions

Base machine: GWH32 Rebar Spiral Bending Machine
Optional upgrade: version with control cabinet, featuring a 7-inch touchscreen HMI

Control Cabinet Touchscreen (Optional Upgrade)

The control cabinet upgrade is fitted with a 7-inch touchscreen HMI, giving the operator a digital interface for setting up and monitoring the bending cycle. The operator manually enters three sets of data on the touchscreen to produce U-shape bends, alongside the machine’s circular and spiral bending capability.

Screen Size	7.0 inches
Resolution	800 × 480
Touch Panel	4-wire resistive touchscreen
Display	TFT-LED backlight, 16.77 million colours
Brightness	200 cd/m² (adjustable)
Power Supply	DC 24V (22–26V)
Front Panel Protection	IP65
Operating Temperature	0–50°C
Overall Dimensions	205.4 × 146.5 × 38.5 mm

Note: This touchscreen does not have a USB flash drive port or Ethernet port — data transfer and programming are handled via RS232 or USB-B connection to a PC, not by copying files to/from a USB stick or over a network.

Shipping & Installation

Machine footprint: 1100 x 800 x 850mm, weight approximately 380kg
Heavy-duty panel construction intended for a fixed workshop, yard, or site-compound location rather than portable/handheld use

Warranty & Support

The Pronto SB32 is backed by a 1-year manufacturer’s warranty, covering the machine against manufacturing defects from the date of purchase.

Coverage: 1 year from date of purchase, covering manufacturing defects
Not covered: Damage caused by misuse or mishandling; quick-wear/consumable parts
After-sales technical support available for servicing and troubleshooting

Frequently Asked Questions

Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?

Tool shops and general resellers may offer a wide product range, but often lack the specialised knowledge to properly assess applications or provide ongoing technical support. An industrial machinery specialist ensures the right machine is selected and fully supported long after purchase. In most cases, buying directly from the importer or specialist also results in a lower purchase cost, as additional reseller margins are not added.

What after-sales support and warranty do you provide?

Industry leading after-sales support, Australia-wide. Backed by over 30 years of industry experience, more than two decades in business, and a long history of satisfied customers Australia-wide, Capital Machinery Sales provides after-sales support you can count on, long after your machine is delivered, backed by our dedicated support team.

Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
In-house repairs: Send your machine back to us for expert servicing and overhaul.

We’re in this together. Our shared goal is to keep your business running, and we are committed to delivering the best after‑sales service in the industry to make that happen. That’s why so many of our customers have been with us for years, and why they continue to return. Need service, application advice, or want to discuss a support plan? Contact our team and we will take care of it.

How quickly will I receive my machine?

Often, we can ship the same day if required, depending on stock availability, the time your order is placed and the available shipping options.

Specification

Additional information

Weight	380 kg
Dimensions	110 × 80 × 85 cm
