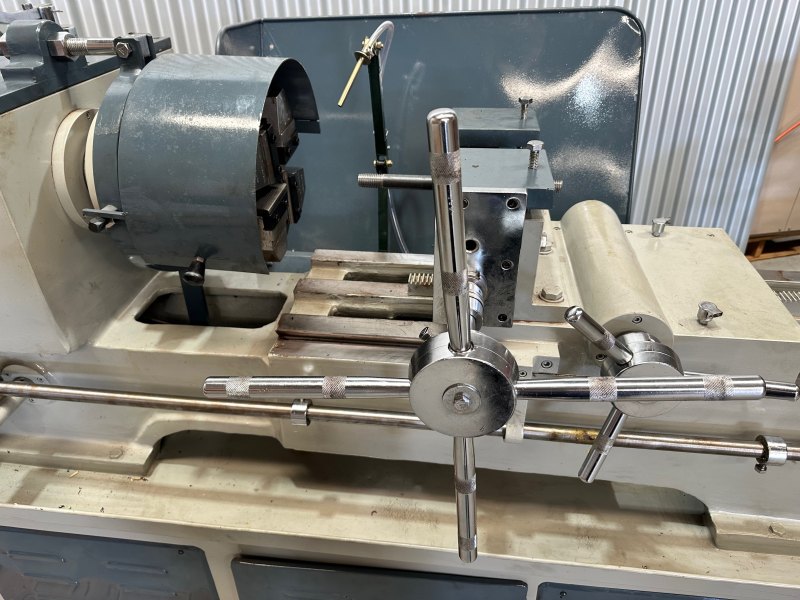

SMG 12 – 60 Bed Type Rebar Bar Threading Machine (1/2″ – 2.1/2″)
- Brand: Steel Machinery Group
In stock
The SMG 12 – 60 Bed Type Rebar Bar Threading Machine (1/2″ – 2.1/2″) are Bar threading machines designed to cut external threads on bars using a tangential chaser design, A threading chaser is used for cutting the thread onto the bar allowing the bar to remain stationary while the die-head rotates cutting the thread, Different types of threads can be cut on the bar such as BSW, NPT, UNF, METRIC, UNC, ACME, BSF threads, etc and Threading Capacity: 1/2″ to 2.1/2″
Stock levels cannot be checked over the phone.
SMG 12 - 60 Bed Type Rebar Bar Threading Machine (1/2" - 2.1/2")
SMG 12 - 60 Bed Type Rebar Bar Threading Machine (1/2" - 2.1/2")
Description
SMG Bar Rod Threading Machine-Operators Manual
SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times. A wide range of Tangential Die Chasers are available for: BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.
- Robust headstock fitted with case hardened gears and oversized spindle bearings.
- Hard chrome plated pillar type slideways
- Hardened heat-treated vice jaws
- High-Speed Steel Tangential Die Chasers
- Recirculating lubrication system
- 2 Speed spindle
Steel Bar Threading Machine Die Heads Available Diameter 12 – 60mm (1/2″ – 2.1/2″) Metric & Imperial Thread Pitches
Metric Bolt Thread
| Metric ISO Thread ISO 261, DIN 13 External thread Flank angle 60° |
||
| Nominal Size M | Outside Ø of thread mm | Pitch mm |
| 6 | 5.974 | 1 |
| 8 | 7.972 | 1.25 |
| 10 | 9.968 | 1.5 |
| 12 | 11.966 | 1.75 |
| 14 | 13.962 | 2 |
| 16 | 15.962 | 2 |
| 18 | 17.958 | 2.5 |
| 20 | 19.958 | 2.5 |
| 22 | 21.958 | 2.5 |
| 24 | 23.952 | 3 |
| 27 | 26.952 | 3 |
| 30 | 29.947 | 3.5 |
| 33 | 32.947 | 3.5 |
| 36 | 35.94 | 4 |
| 39 | 38.94 | 4 |
| 42 | 41.937 | 4.5 |
| 45 | 44.937 | 4.5 |
| 48 | 47.929 | 5 |
| 52 | 51.929 | 5 |
| 56 | 55.925 | 5.5 |
| 60 | 59.925 | 5.5 |
| 64 | 63.92 | 6 |
| 68 | 67.92 | 6 |
| 72 | 71.92 | 6 |
Bar Threading Machine Specifications
| MODEL | 1/2″ to 2.1/2″ (BED TYPE) |
| Saddle Movement | 22″ |
| Spindle Speed Range | 45 – 90 |
| Number of Spindle Speed | 2 |
| Threading Capacity | 1/2″ to 2.1/2″ |
| Production per Hour | 70-90 |
| H.P. Required | 7.5 H.P. |
| Lead Screw | Optional |
| Weight (KG) Approx. | 990 |
SMG 12 – 60 Bed Type Bar Threading Machine (1/2″ – 2.1/2″) Video Demo
- rebar threader machine
- rebar threading machine
- cnc rebar threading machine
- rebar thread cutter machine
- rebar thread making machine
- threading machine for rebar
- rebar thread chasing machine
- rebar thread cutting machine
- rebar thread forming machine
- rebar thread milling machine
- used rebar threading machine
- rebar thread machine for sale
- manual rebar threading machine
- compact rebar threading machine
- electric rebar threading machine
- portable rebar threading machine
- automatic rebar threading machine
- hydraulic rebar threading machine
- heavy duty rebar threading machine
- high speed rebar threading machine
- industrial rebar threading machine
- rebar threading and cutting machine
- rebar threading machine manufacturer
- semi automatic rebar threading machine
- rebar thread cutting and rolling machine
- rebar thread rolling machine
- electric portable rebar threading machine
- hydraulic rebar thread rolling machine
- rebar thread rolling machine price
- rebar thread rolling cutting machine
- Thread rolling machine for rebar
- Rebar thread rolling dies
- Steel bar threading machine
- Rebar threading tool
- Threaded rod cutter machine
- Threading machine for construction
- Threading machine for rebar connection
- Mechanical rebar threading machine
- Rebar thread tapping machine
- Automatic bar threading machine
- Rebar thread rolling equipment
- Rebar thread rolling process
- Rebar thread rolling technology
- Portable bar threading machine
- Hydraulic bar threading machine
- Electric bar threading machine
- Threading die for rebar
- Rebar thread cutting tool
- Threading cutter for rebar
- Rebar thread chaser
Frequently Asked Questions
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
What after-sales support and warranty do you provide?
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
How quickly will I receive my machine?
Specification
Additional information
| Weight | 950 kg |
|---|---|
| Dimensions | 220 × 112 × 160 cm |
| Types | |
| Motor size | |
| Net Weight | 1190 kg |
| Bar Size |
