SMG 650NM Electric Tube and Pipe Notching Machine
$4,468.00 Excl. GST
$4,914.80 Incl. GST
Durable, high-precision electric notching machine engineered for flawless 90° cuts in tubing and pipe. Ideal for metal fabrication shops, welders, and structural frame builders.
Product Description

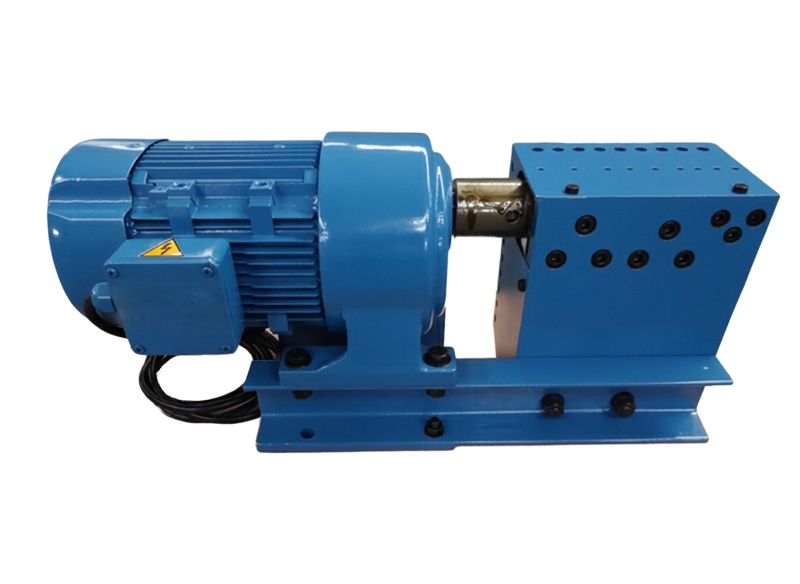

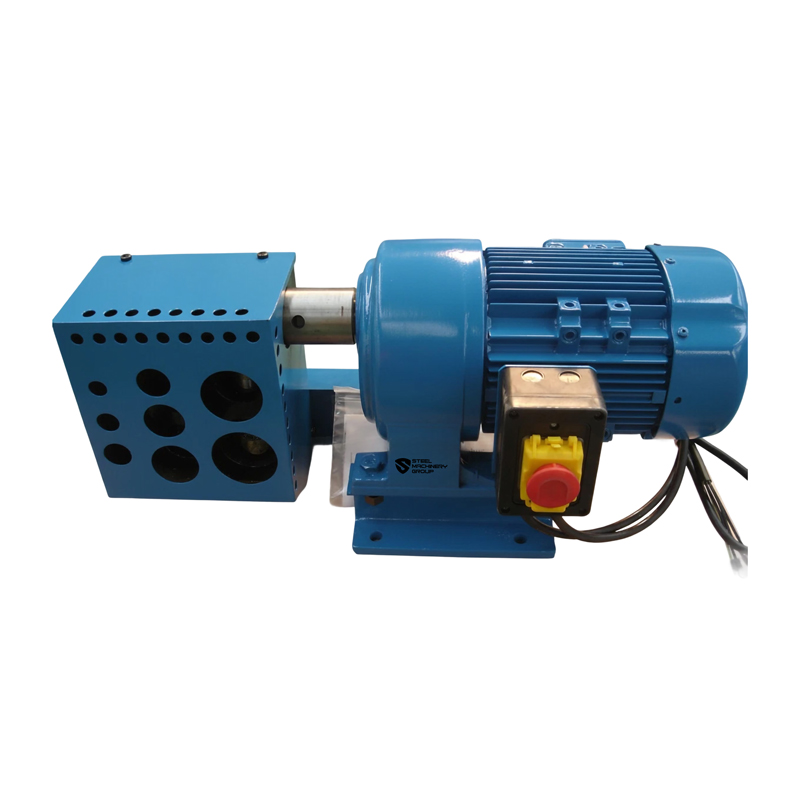

The SMG 650NM Electric Tube & Pipe Notching Machine is built for professional fabricators who demand speed, consistency, and reliability. Whether you’re building tubular frames, guardrails, or custom structures, this machine consistently delivers clean notches with minimal setup.
SMG 650NM Electric Tube and Pipe Notching Machine
SMG 650NM Electric Tube and Pipe Notching Machine
Description
SMG 650NM Electric Tube and Pipe Notching Machine – Operator’s Manual
The SMG 650NM Electric Tube & Pipe Notching Machine is built for professional fabricators who demand speed, consistency, and reliability. Whether you’re building tubular frames, guardrails, or custom structures, this machine consistently delivers clean notches with minimal setup.
Key Features & Benefits
- Comprehensive Notching Range

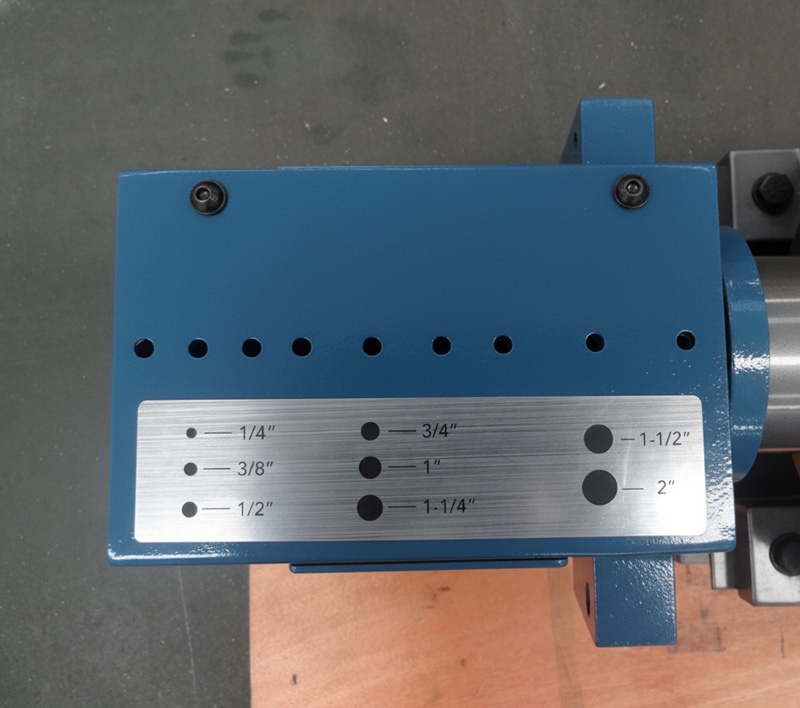

Capable of notching pipes and tubes from ¼” (6.35 mm) up to 2″ (50.8 mm) (Schedule-40 standard)

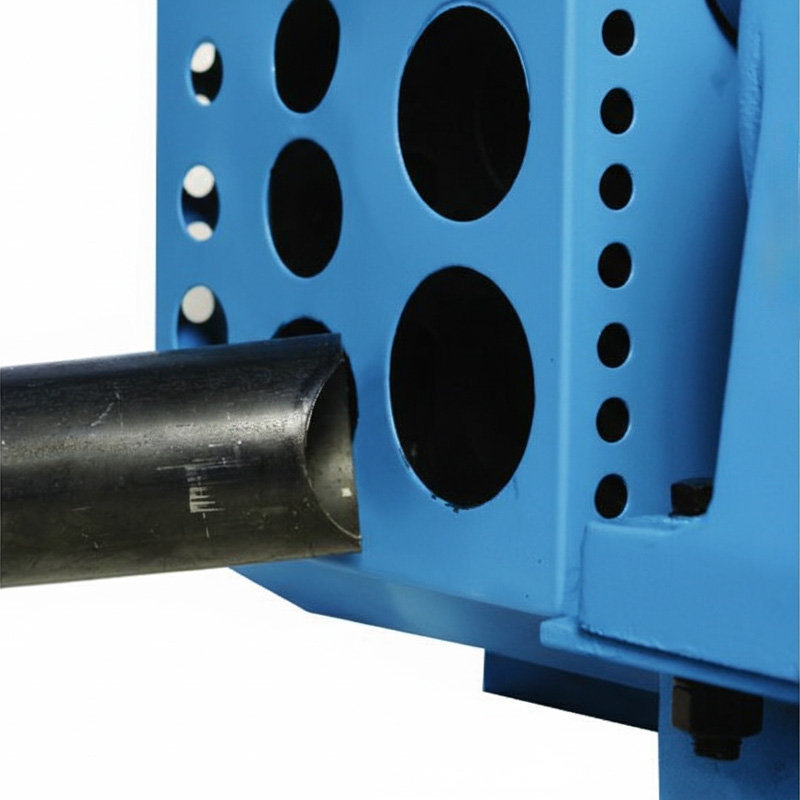

- Efficient 90° Notch Process
Perform one side, reverse 180°, and notch the opposite side to create perfect 90° notches quickly
- Electric Drive (240V, Single Phase)
Designed for standard workshop power, eliminating the need for special circuits
- Rigid Construction & Precision Design
High-strength frame and components ensure durability and consistent alignment
- User-Friendly Operation
Intuitive controls, minimal setup, and quick tool change reduce downtime
- Safety & Chip Control
Guards and shields help protect operators from debris and chips
Specification
| Model | SMG 650NM |
| Phase | 240vac Single Phase |
| Capacity | ¼” to 2” (6.35 – 50.8 mm) |
| Blade Size | 50.8 mm |
| Cutting Thickness | 3 mm |
| Motor Amperage | 13 amp |
| Motor Power | 1.5 KW 240VAC, 50Hz |
| Net Weight | 98 kg |
| Lead Time | 15-20 days |
| Dimensions | 82 x 45 x 48 cm |
| Shipping Weight | 112 kg |
Inclusion
Standard
- Steel notching frame
- Adjustable pipe holder
- Swivel and rotating base
Optional
- Drill press adapter kit
- Additional pipe clamp sizes
- Custom worktable mounting kit
Shipping & Installation
- Packing: 1 unit per crate
- Shipping Dimensions: 820 × 450 × 480 mm
- Weight: 112 kg gross
- Installation: Can be mounted on standard drill presses and minor assembly required
Warranty & Support
- Warranty: 1-year standard manufacturer’s warranty
