SMG RG24E Electric Roll Grooving Machine
$9,803.00 Excl. GST
$10,783.30 Incl. GST
The SMG RG24E Electric Roll Grooving Machine is a powerful and versatile tool designed for forming roll grooves on large steel pipes ranging from 8″ to 24″ SCH10 to SCH 40. Its advanced features and strong build make it ideal for large-scale production in workshops or on job sites. Suitable for a wide range of pipe sizes commonly used in industrial settings, providing flexibility in grooving operations.

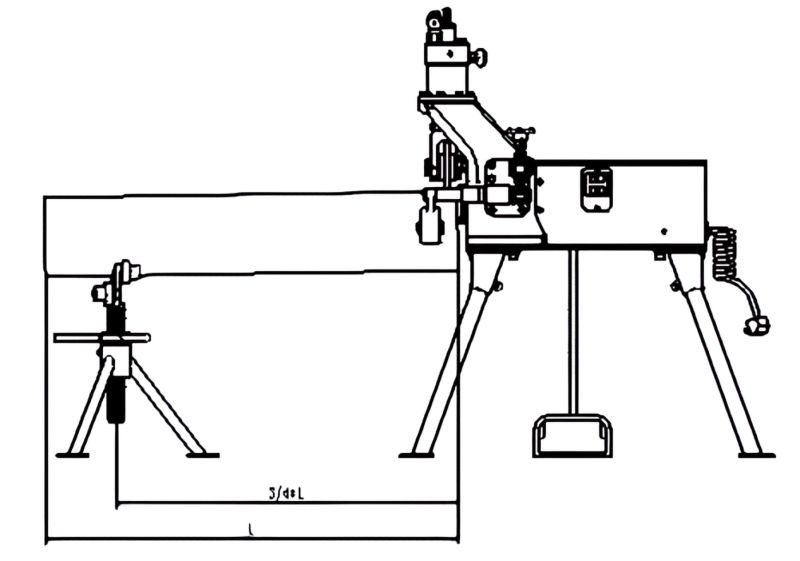

SMG RG24E Electric Roll Grooving Machine
SMG RG24E Electric Roll Grooving Machine
Description
SMG RG24 Electric Roll Grooving Machine – Operation Manual
The SMG RG24E Electric Roll Grooving Machine is a powerful and versatile tool designed for forming roll grooves on large steel pipes ranging from 8″ to 24″ SCH10 to SCH 40. Its advanced features and strong build make it ideal for large-scale production in workshops or on job sites. Suitable for a wide range of pipe sizes commonly used in industrial settings, providing flexibility in grooving operations.
Features
- This machine operates with electric hydraulic power, providing precision and efficiency in forming roll grooves.
- Capable of grooving pipes from 8″ to 24″ in size, accommodating a range of pipe dimensions commonly used in industrial applications.
- Integrated with a motor, hydraulic feeding pump, and pipe stand, offering a comprehensive solution for roll grooving needs.
- Equipped with a high-performance gear reducing motor that ensures a compact size, low noise operation, and reliable performance.
- The unique split type hydraulic system prevents oil leaks, extends the service life of the machine, and ensures consistent performance.
- The groove depth lock knob enables high-quality grooves and enhances grooving efficiency, ensuring precise and consistent results.
Rolling Groove Parameter Table
| Steel Tube Nominal Diameter | Outer Diameter of the Steel Pipe | Sealing Surface | Groove Width | Groove Bottom Diameter | Roll Groove Depth | Utmost Trumpet | |||
| Benchmark | Tolerance | A | B | Basic | Tol. | ||||
| in. mm |
in. mm |
+in. + mm |
-in. -mm |
±0.03in. ±0.76mm |
±0.03in. ±0.76mm |
in. mm |
in. mm |
in. mm |
in. mm |
| 8OD 200 |
8.000 203.2 |
0.063 1.60 |
0.031 0.79 |
0.750 19.05 |
0.469 11.91 |
7.816 198.53 |
-0.025 -0.64 |
0.092 2.34 |
8.17 207.5 |
| 8″ 200 |
8.625 219.1 |
0.063 1.60 |
0.031 0.79 |
0.750 19.05 |
0.469 11.91 |
8.441 214.40 |
-0.025 -0.64 |
0.092 2.34 |
8.80 223.5 |
| 10OD 250 |
10.000 254.0 |
0.063 1.60 |
0.031 0.79 |
0.750 19.05 |
0.469 11.91 |
9.812 249.23 |
-0.027 -0.69 |
0.094 2.39 |
10.17 258.3 |
| 10″ 250 |
10.750 273.0 |
0.063 1.60 |
0.031 0.79 |
0.750 19.05 |
0.469 11.91 |
10.562 268.28 |
-0.027 -0.69 |
0.094 2.39 |
10.92 277.4 |
| 12OD 300 |
12.000 304.8 |
0.063 1.60 |
0.031 0.79 |
0.750 19.05 |
0.469 11.91 |
11.781 299.24 |
-0.030 -0.76 |
0.109 2.77 |
12.17 309.1 |
| 12″ 300 |
12.750 323.9 |
0.063 1.60 |
0.031 0.79 |
0.750 19.05 |
0.469 11.91 |
12.531 318.29 |
-0.030 -0.76 |
0.109 2.77 |
12.92 328.2 |
| 14″ 350 |
14.000 355.6 |
0.063 1.6 |
0.031 0.79 |
0.938 23.83 |
0.469 11.91 |
13.781 350.04 |
-0.030 -0.76 |
0.109 2.77 |
14.16 359.7 |
| 15″ 375 |
15.000 381.0 |
0.063 1.6 |
0.031 0.79 |
0.938 23.83 |
0.469 11.91 |
14.781 357.44 |
-0.030 -0.76 |
0.109 2.77 |
15.16 385.1 |
| 16″ 400 |
16.000 406.4 |
0.063 1.6 |
0.031 0.79 |
0.938 23.83 |
0.469 11.91 |
15.781 400.84 |
-0.030 -0.76 |
0.109 2.77 |
16.16 410.5 |
| 18” 450 |
18.000 457.2 |
0.063 1.6 |
0.031 0.79 |
1.000 25.40 |
0.469 11.91 |
17.781 451.64 |
-0.030 -0.76 |
0.109 2.77 |
18.16 461.3 |
| 20” 500 |
20.000 508.0 |
0.063 1.6 |
0.031 0.79 |
1.000 25.40 |
0.469 11.91 |
19.781 502.44 |
-0.030 -0.76 |
0.109 2.77 |
20.16 512.1 |
| 22” 550 |
22.000 559 |
0.063 1.6 |
0.031 0.79 |
1.000 25.40 |
0.500 12.70 |
21.656 550.06 |
-0.030 -0.76 |
0.172 4.37 |
22.20 563.9 |
| 24” 600 |
24.000 610.0 |
0.063 1.6 |
0.031 0.79 |
1.000 25.40 |
0.500 12.70 |
23.656 600.86 |
-0.030 -0.76 |
0.172 4.37 |
24.20 614.7 |
Specifications:
| Model | SMG RG24E |
| Capacity | 8′-16′ (DN200-DN400, Φ219-Φ426) SCH 10/40 steel pipe. 18′-24′ (DN450-DN600, Φ457-Φ630) SCH 10/40 steel pipe. |
| Max Wall Thickness: | 13mm |
| Output Speed: | 20RPM |
| Motor: | 3 Phase, 415V |
| Power: | 1100W |
| Frequency: | 50/60Hz |
| Package Dimension | 1100 x 750 x 100 mm |
| Weight | 230 kg |
Standard Equipment:

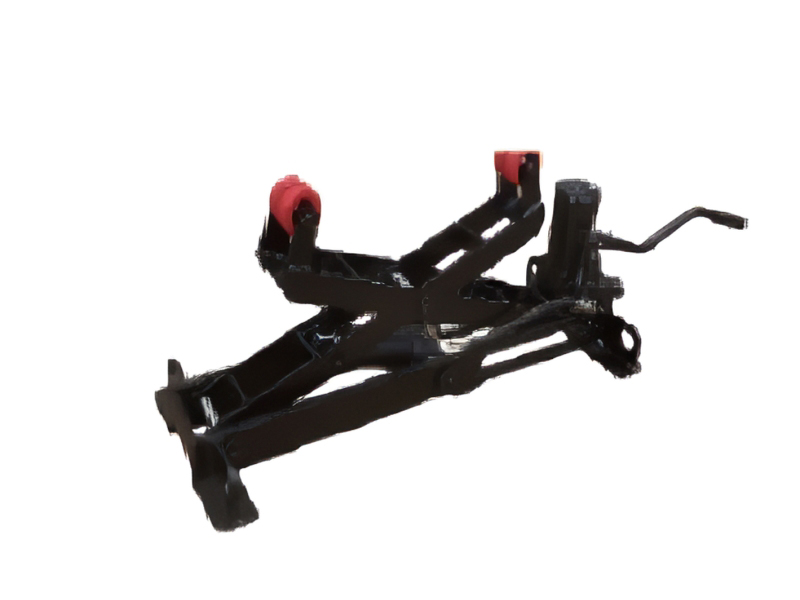

- Pipe Stand
- Foot Switch

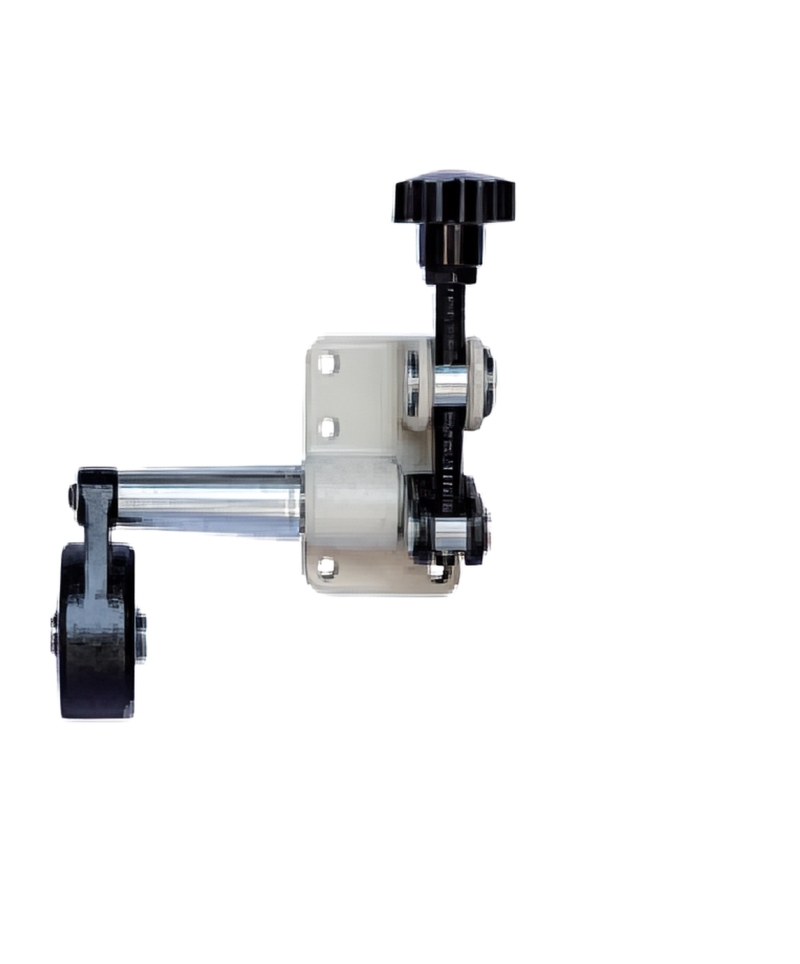

- Guide Wheel Unit

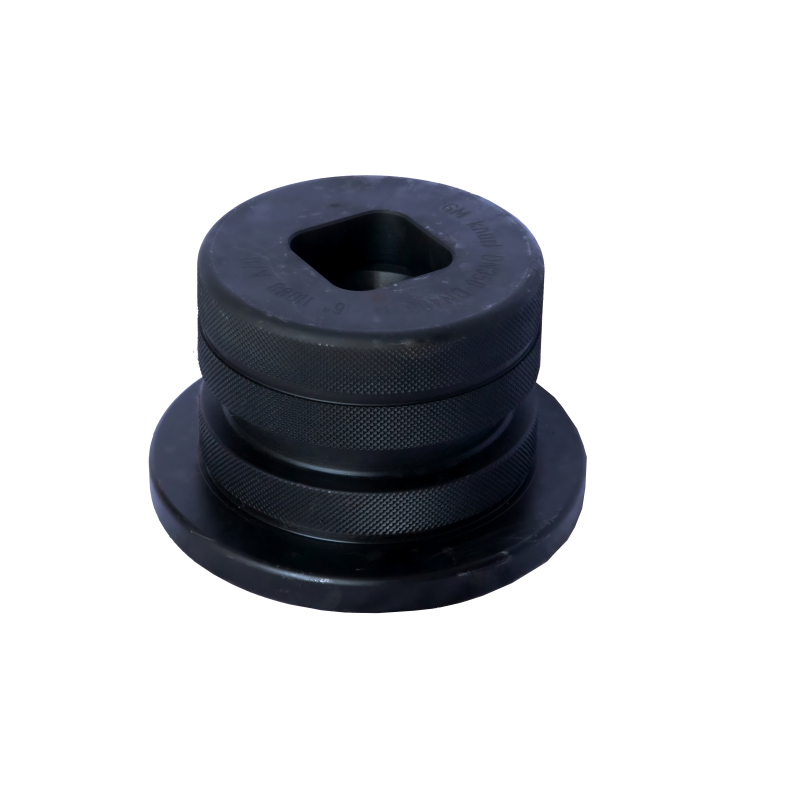

- Knurl Wheel （Φ219-Φ325)
- Knurl Wheel （Φ355-Φ426)
- Knurl Wheel （Φ457-Φ630)
- Pinch Roller （Φ219-Φ325)
- Pinch Roller （Φ355-Φ426)
- Pinch Roller （Φ457-Φ630)
- pipe roll groover
- roll grooving tool
- roll grooving unit
- manual roll groover
- roll grooving system
- electric roll groover
- pipe grooving machine
- portable roll groover
- roll grooving machine
- roll grooving process
- roll grooving station
- automatic roll groover
- bench top roll groover
- hydraulic roll groover
- heavy duty roll groover
- roll grooving apparatus
- roll grooving equipment
- roll grooving attachment
- grooving machine for pipes
- grooving rollers for pipes
- semi automatic roll groover
- pipe end preparation machine
- compact roll grooving machine
- grooving machine for pvc pipe
- grooving machine for steel pipe
- grooving tool for pipe fittings
- grooving machine for copper pipe
- pipe threading and grooving machine
- grooving machine for ductile iron pipe
- grooving machine for fire sprinkler pipe
