Unitech TBM89NC Semi Automatic Tube Bending Machine
The Unitech TBM89NC Semi-Automatic Tube Bending Machine delivers precision, reliability, and efficiency for a wide range of pipe and tube bending applications. Designed with a numerical control (NC) system, this machine offers consistent bending accuracy, ease of operation, and dependable performance suitable for small to medium-scale production.
Built with a robust hydraulic system, the TBM89NC ensures stable performance during long operation cycles, even under high-temperature conditions. Its ergonomic design maximizes workspace efficiency while maintaining durability through high-quality materials and ISO 9001-certified manufacturing standards.
Unitech TBM89NC Semi Automatic Tube Bending Machine
Unitech TBM89NC Semi Automatic Tube Bending Machine
Description
The Unitech TBM89NC Semi-Automatic Tube Bending Machine delivers precision, reliability, and efficiency for a wide range of pipe and tube bending applications. Designed with a numerical control (NC) system, this machine offers consistent bending accuracy, ease of operation, and dependable performance suitable for small to medium-scale production.
Built with a robust hydraulic system, the TBM89NC ensures stable performance during long operation cycles, even under high-temperature conditions. Its ergonomic design maximizes workspace efficiency while maintaining durability through high-quality materials and ISO 9001-certified manufacturing standards.
Features

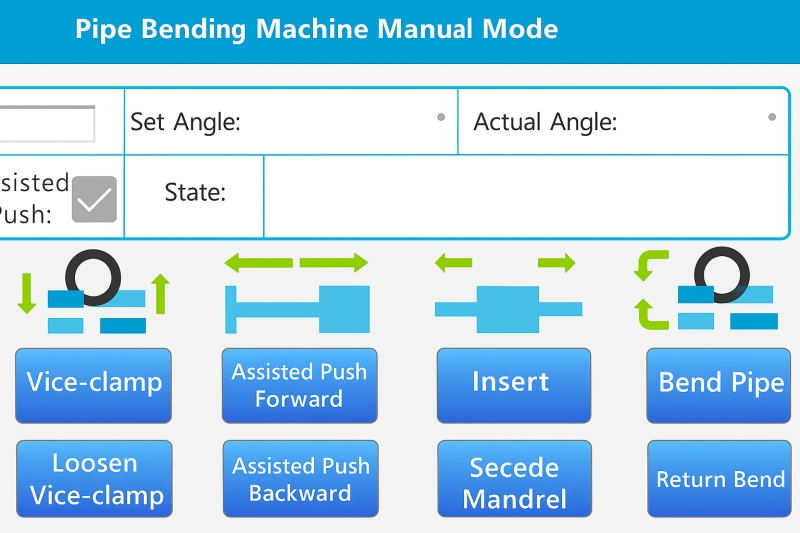

- Numerical Control Operation – Simplifies setup and provides flexible adjustment of bending parameters.
- High Accuracy and Repeatability – Integrated encoder ensures precise and consistent bending angles.
- Program Memory – Stores multiple processing models and allows quick switching between bending programs.
- Automatic Counting & Power Failure Memory – Retains data and production counts during interruptions.

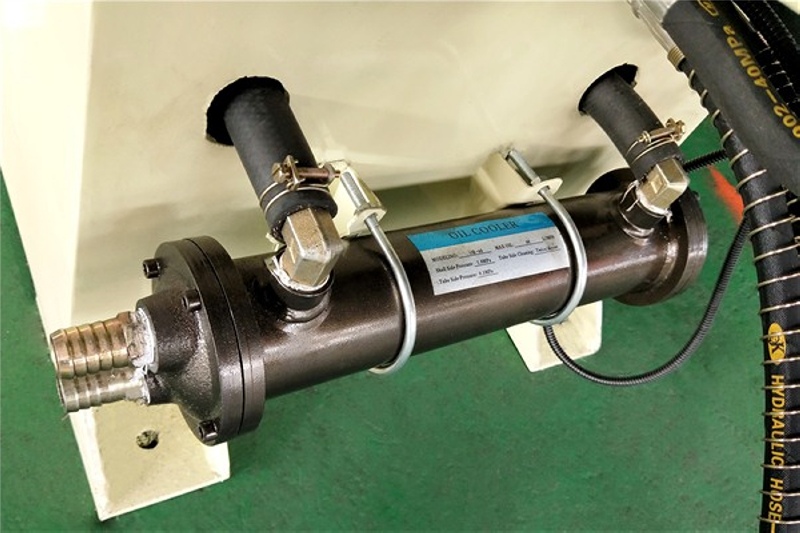

- Efficient Hydraulic Cooling System – Enables long-term stability in high- temperature environments.
- Heat-Treated Main Shaft – Enhances strength, wear resistance, and longevity.
- Quality Assurance – All components are tested and assembled under strict ISO 9001 standards.

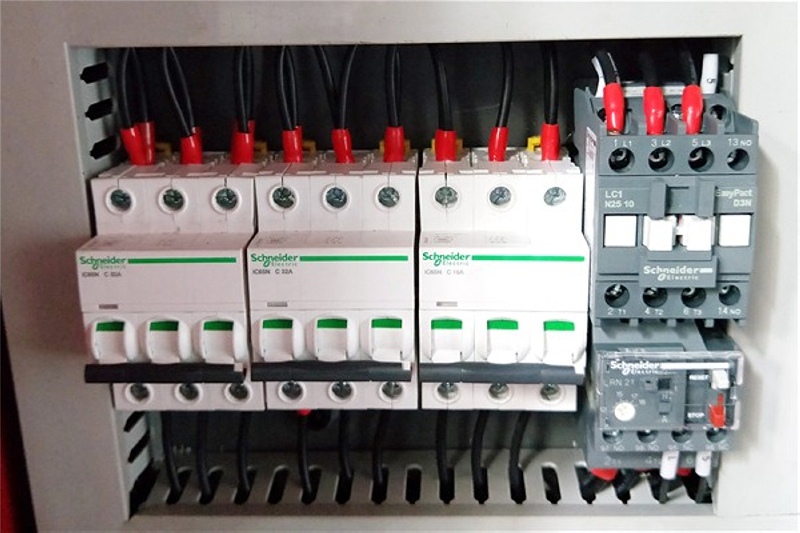

- Durable Control System – Utilizes solenoid valves and integrated circuits for reliable hydraulic control.
- Versatile Material Compatibility – Suitable for bending steel, stainless steel, aluminum, and copper pipes.
Specifications
| Model | TBM89NC |
| Max bending capability | Ø89 × 6 mm (Carbon Steel) Ø75 × 5 mm (Stainless Steel) |
| Max bending radius | R450 |
| Min bending radius | According to diameter |
| Max bending degree | 190° |

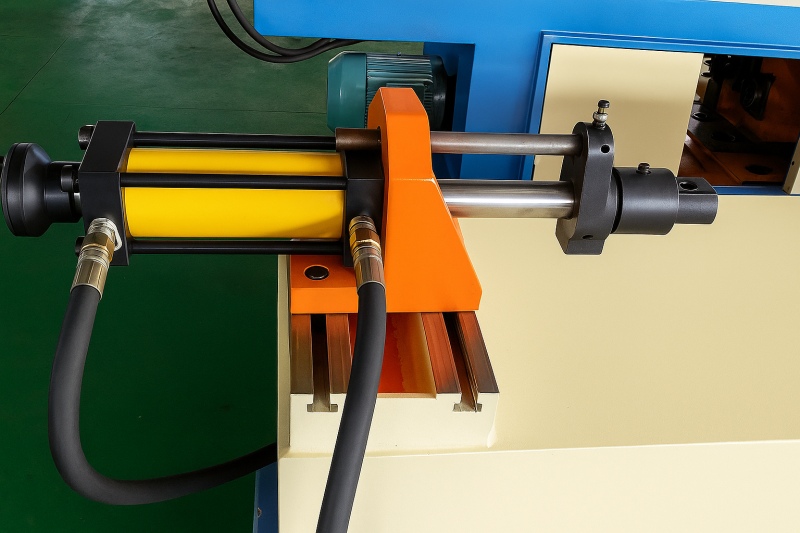

| Max effective distance of mandrel | 3300 mm |

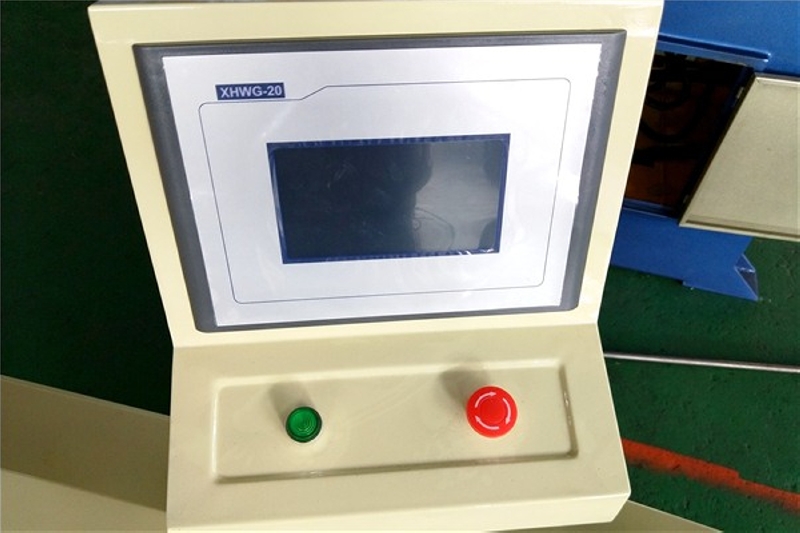

| Control system | NC controller |
| Max elbow bend pipe | 16 |
| Max storable sections | 16 x 16 |

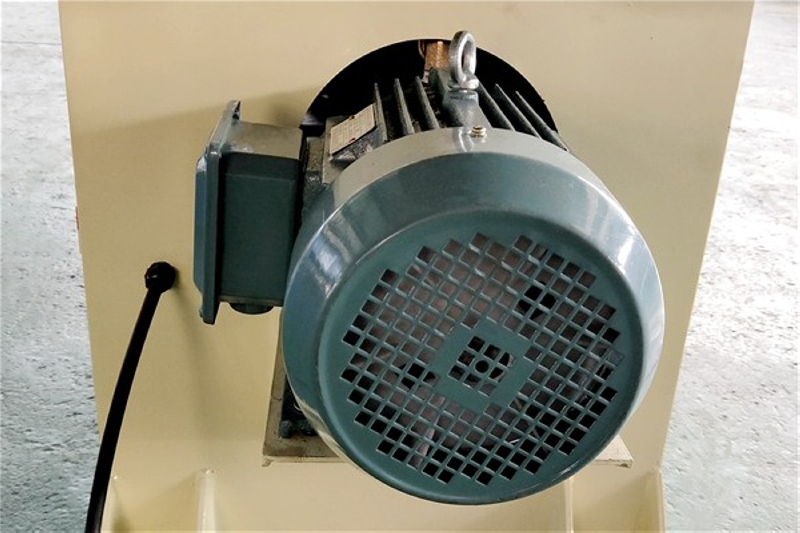

| Motor power | 11.0 kW |
| Max hydraulic pressure | 14.0 MPa |
| Hydraulic system control | Electromagnetic valve |
| Oil tank capability | 260 L |
| Measurement | 4400 x 1050 x 1500 mm |
| Weight of machine | 3500 kg |
Shipping & Installation
- Dimensions: 3600 × 900 × 1500 mm
- Packaging: Heavy-duty palletized crate
- Gross Weight: 1800 kg
Unitech TMB63NC/TMB89NC Semi Automatic Tube Bending Machine Video
Unitech TBM NC Series Semi-Automatic Tube Bending Machines
Frequently Asked Questions
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
What after-sales support and warranty do you provide?
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
How quickly will I receive my machine?
Specification
Additional information
| Weight | 990 kg |
|---|---|
| Dimensions | 440 × 105 × 150 cm |
| Kilowatt (kW) | |
| Net Weight | 3500 kg |
