Atlantic CNC Fiber Laser Cutting Machine Type: HFLGSE3015- 3000W

Carbon Structural Steel Plate Welding Bed Body

The bed body adopts a thick and strong plate welding structure, and the closed cavity is provided with a heat dissipation hole, so that the heat generated during the welding process is dissipated in time, and the stress concentration in the welding process is avoided to cause the bed body to become deforming. Annealing process removes the material stress. The thick welded plates and the heavy weight of the body ensures that the machine bed is stable and has no deflection when the cutting head is running at high speed and high Acceleration for a period of 20 years of regular use

Automatic Shuttle Table

The machine is equipped with a dual-platform automatic shuttle table allowing higher productivity. Fast switching time of 30 seconds

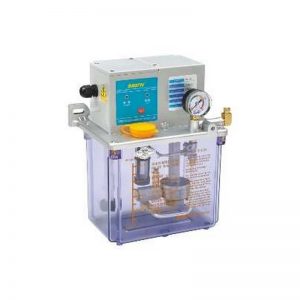

Automatic Lubrication Unit

Automatic lubrication of all Axes. Programmable oil output frequency.

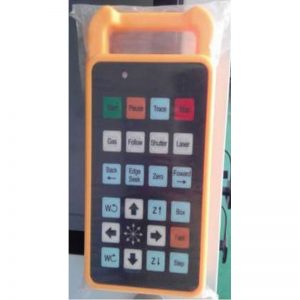

Remote Control

Machines are standard equipped with a wireless remote control to activate machine functions such as jogging machine Axes, activating and interrupting the cutting process.

.

Real Time Monitoring of the Cutting Process by Camera and Extra Display

A camera is mounted inside the cutting zone so that the operator can view the real time cutting process on an extra screen at the operator panel.

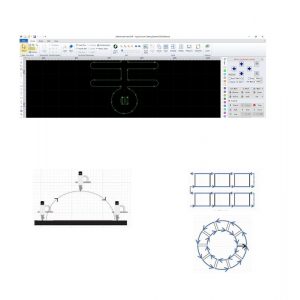

CNC with Cypcut Software

CypCut laser cutting control system (CypCut for short) is a set of system software designed for plane laser cutting, including laser cutting process, common layout function and laser processing control, most of its functions are applied in graphics processing, parameter settings, custom cutting process editing, layout, path layer planning, simulation and cutting process control.

CypCut software can realize process control only if used with Dog and Control Card.

CypCut will enter DEMO mode while running on a computer without Dog, so that you can get all other functions except process control for normal use. Therefore, CypCut can be installed in a separate notebook for the design before processing.

CypCut has high integration, improved functions, easy operation, high stability and leading technology. Therefore, we may provide users with solutions with core competitiveness.

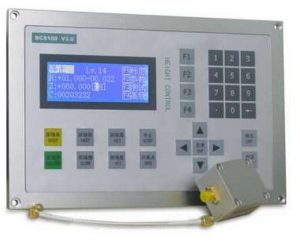

Capacitive Height Controller

The capacitive height controller is a high-performance control device which used closed-loop control method. It also provides a unique Ethernet communication (TCP / IP protocol) interface, it can easily achieve many functions with CypCut software, such as
automatic tracking of height, segmented piercing, progressive piercing, edge seek, leapfrog, arbitrary setting of lift-up height of cutting head. Its response rate is also improved greatly. Especially in servo control aspects, its running speed and accuracy should obviously be better than other similar products, owing to dual closed-loop algorithm of speed and position.

IPG YLR Laser Source K version

IPG Photonics is a global leader of the high power fiber laser. The fiber laser manufactured by it has such advantages as high quality light beam quality and reliability, ultrahigh output power, higher electro-optical conversion efficiency, lower maintenance cost, volume with compact structure, mobility and durability, low consumption, environment friendly, etc.

Electro-optical conversion efficiency: >25% Power operating range: 10%~105% Light beam mass: BPP<2.5 Service life of pumping source: 100,000h.

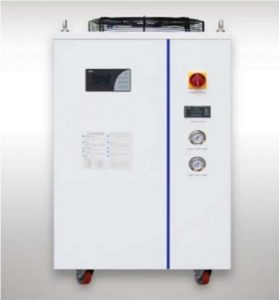

Industrial Water Chiller

High power water chillers with high cooling capacity and ±1℃ precise temperature control is characterized by dual circulating refrigeration system and dual temperature control system.

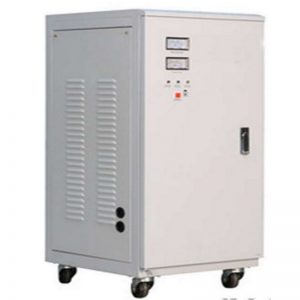

Voltage Stabilizer

Fully automatic compensated voltage stabilizer is an energy- saving new product, with the functions of over/under-voltage protection, delay and error protection.
It has advantages of small volume, light weight, large capacity, high efficiency, wide range, high precision, strong protection, without wave

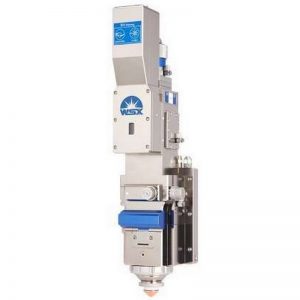

WSX NC60 Auto Focus Cutting Head (up to 4kW)

1. This kind of laser head has a strong advantage on medium power large format fibre laser cutting application.
2. Completely sealed internal structure of the laser head can avoid optical part being polluted by dust.
3. Two-point centring adjustment of laser head; the focus adjusting take imported motor driving and has a great improvement in perforation.
4. Protective lens takes more convenient replacement drawer installation way.
5. Can be equipped with various kind of QBH connectors laser machine.

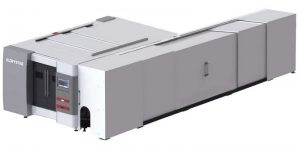

Option with Tube Cutting 6m

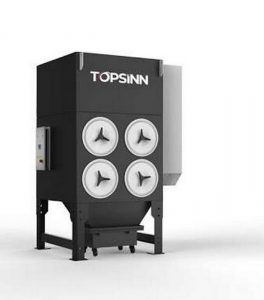

Optional Fume Dust Extractor

Technical Data
