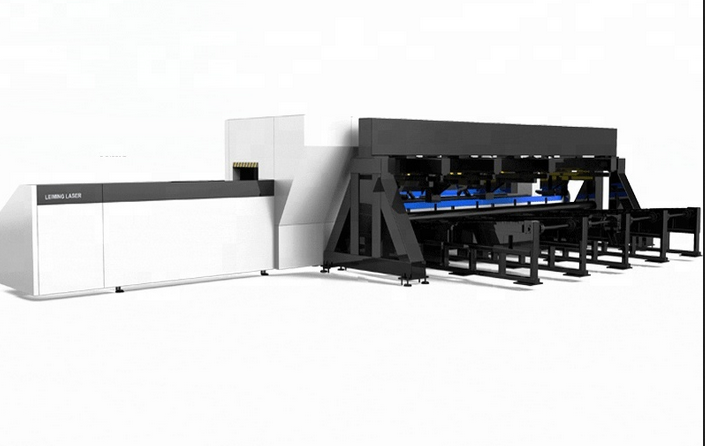

Atlantic Leiming Tube Laser Machine
- Brand: Atlantic Leiming
In stock
This Atlantic Leiming fiber laser cutting machine is specially used to cut pipe. It is suitable for cutting circular tube, square tube and other shaped tubes. For more details about our professional laser pipe cutting machine, contact us.
Request Quotation / Check Stock / Questions
Please note: This is the fastest way to receive an answer.
Stock levels cannot be checked over the phone.
Stock levels cannot be checked over the phone.
This product is already in quote request / check stock list
SKU:
LMN6020T
Categories: CNC Plasma Cutters, Sheet Metal and Fabrication
Tags: Atlantic Fiber Laser, Atlantic Laser Machines, High-Power Fiber Laser, Leiming Fiber Laser, Request Quote, Tube Laser Cutting
Brand: Atlantic Leiming
Atlantic Leiming Tube Laser Machine
Atlantic Leiming Tube Laser Machine
Description
Atlantic – Leiming Fibre Tube Laser
Model LMN6020T
Laser Type Fiber Laser IPG
Laser Power 2000W
Tube Cutting Length Range Max 6000 mm
Maximum chuck load capacity 120 kg
Maximum length of laying-off 4000mm
X-axis travel 6500 mm
Y-axis travel 240 mm
Z-axis travel 220 mm
A-axis travel Infinite rotating
W-axis travel Infinite rotating
Round Tube Cutting Diameter Range 20mm~200mm
Square Tube Cutting Range 20mm x 20mm ~140mmx140mm
Other available tube: Rectangular tube, round tube, OB tube, D-tube, triangle tube, elliptical tube, equal-diameter shaped tube and other standard tube type
Working Voltage 380 V/50Hz
Power Consumption 24.33 KW
Automatic clamp tube Yes
Follow-up support Yes
Machine Dimension 13200*1600*2350mm
Gross weight 15 tons
