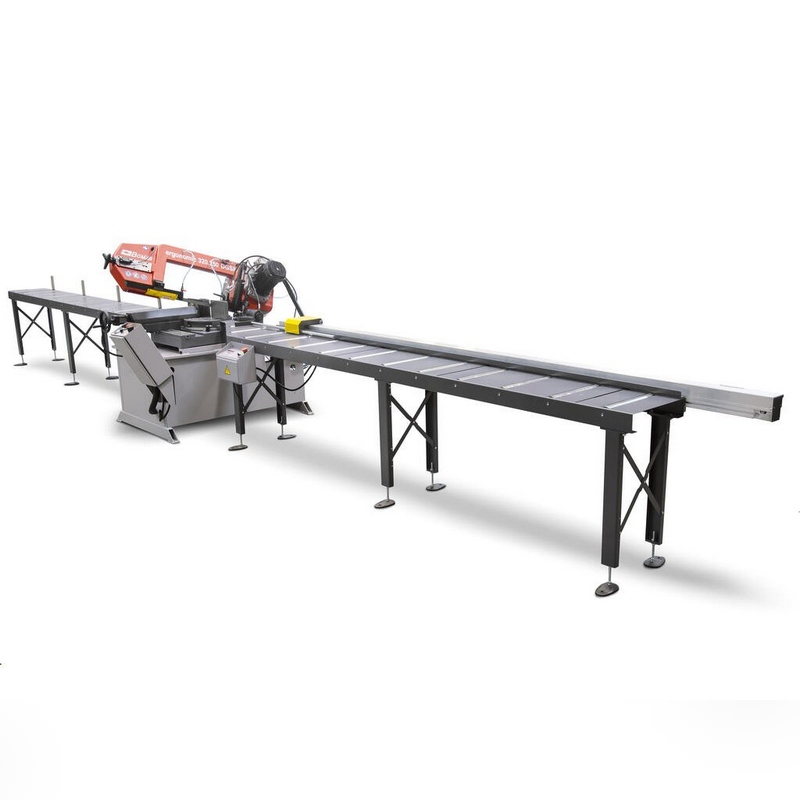

Bomar 320.258 DGH Ergonomic Semi-Automatic Mitre Cutting Bandsaw
The Bomar ERGONOMIC 320.258 DGH is designed to accurately cut all types of structural or solid materials. Semi-automatically operated with automatic bow raise at the end of the cutting cycle and fast-acting hydraulic vice clamping.
Bomar 320.258 DGH Ergonomic Semi-Automatic Mitre Cutting Bandsaw
Bomar 320.258 DGH Ergonomic Semi-Automatic Mitre Cutting Bandsaw
Description
Bomar 320.258 DGH Ergonomic Semi-Automatic Mitre Cutting Bandsaw Manual

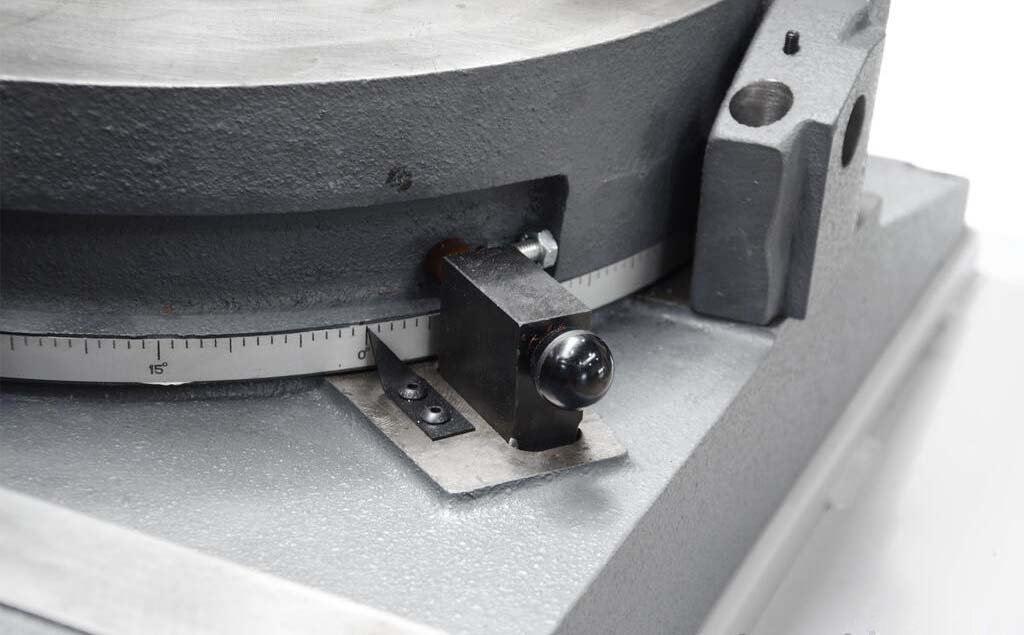

Bomar Ergonomic 320.258 DGH is semi-automatically operated with automatic bow raise at the end of the cutting cycle and fast-acting hydraulic vice clamping suitable for fast accurate processing of solid or structural materials. Angle cutting can be performed easily directly from the operators position by swivelling the saw bow either left or right 45°- 90° – 60° the mitre angle can be read from a visible graduated scale .
Blade rotation speed is electronically variable from 20 to 120 metres per minute to cover all types or materials and sections as well as increasing blade life and cutting rates greatly improving productivity With the new user-friendly control design, the operation can set up the material and swivel the bow to the desired angle controlling the cutting feed rate with ease.
Bomar Ergonomic 320.258 DGH Specifications
| Manufacturer | Bomar |
| Machine Type | Bandsaws / Semi-Automatic Horizontal Bandsaw |
| Operation Type | Semi-Automatic, Pivot action, Straight Cutting, Mitre Cutting |

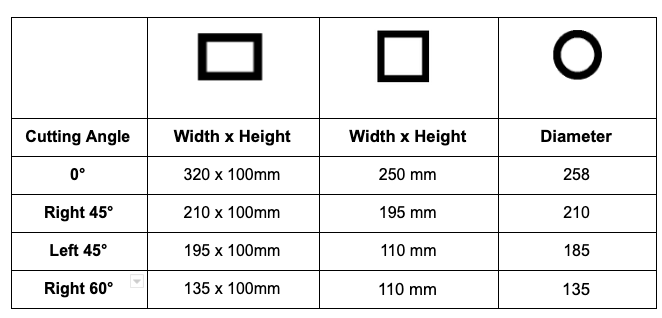

| Max Capacity Cut Size | 320 |
| Material Type | Sections |
| Materials | Non-ferrous, Ferrous, PVC |
| Blade Size | 2910 x 27 x 0.9 |
| Blade Speed | 20 to 120 m/min |
| Dimensions | 1900 x 860 x 1500 mm |
| Power Supply | 400V, 3 phase |

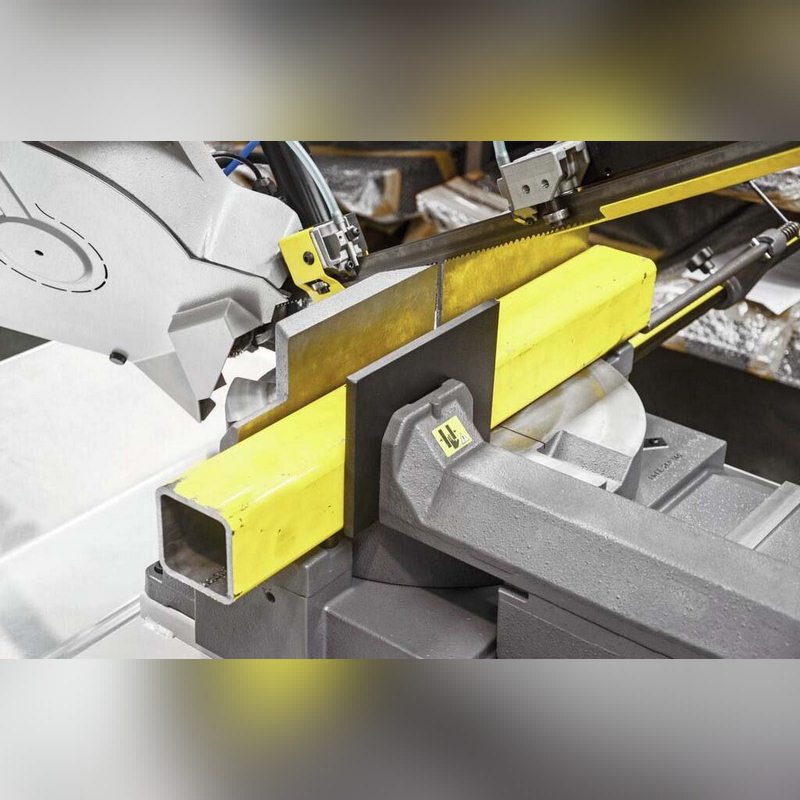

Considerably larger cutting capacity than traditional styled cold saws allowing cutting of multiple sections of material for faster processing. Heavy Duty Cast Alloy Saw Frame eliminating bow deflection and cutting vibration. Carbide side and upper blades guides keeping the blade running true increasing blade life and accuracy.
Standard Equipment
• Robust heavy-duty cast iron saw bow
• Double Mitre 45° – 90° – 60°

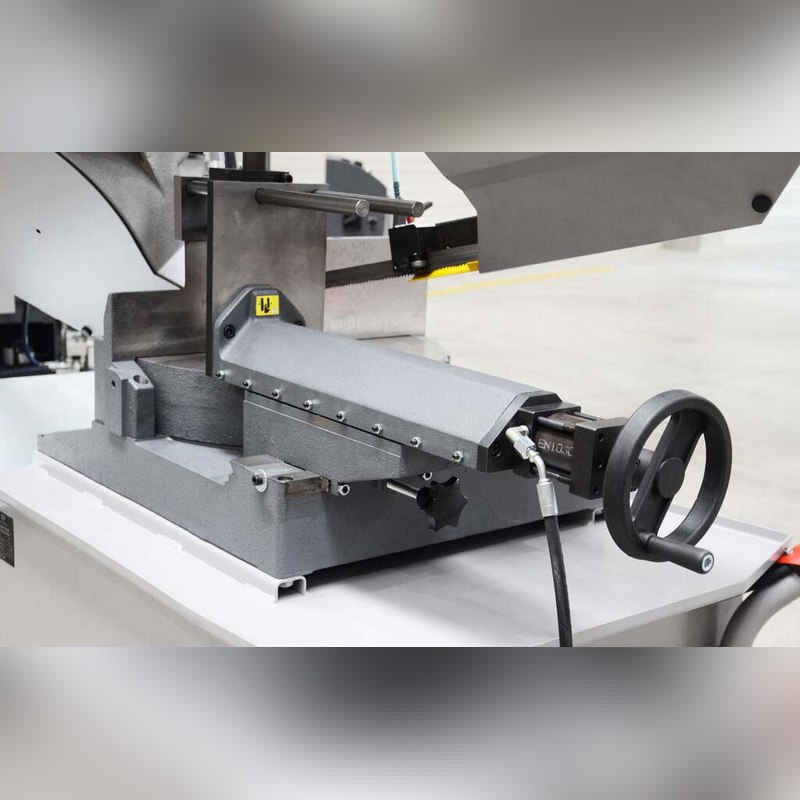

• Hydraulic Vice clamping with automatic clamping and unclamping of the work piece

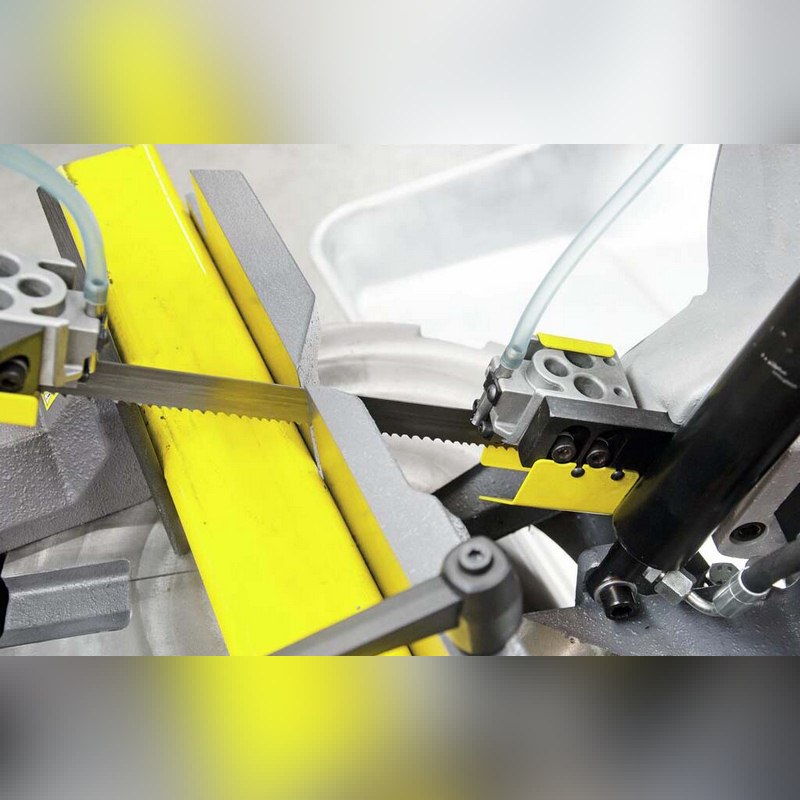

• Carbide blade guides increasing cutting accuracy
• Automatic switch-off of the blade band after finishing the cut.
• Automatic switch-off for low blade tension or blade breakage

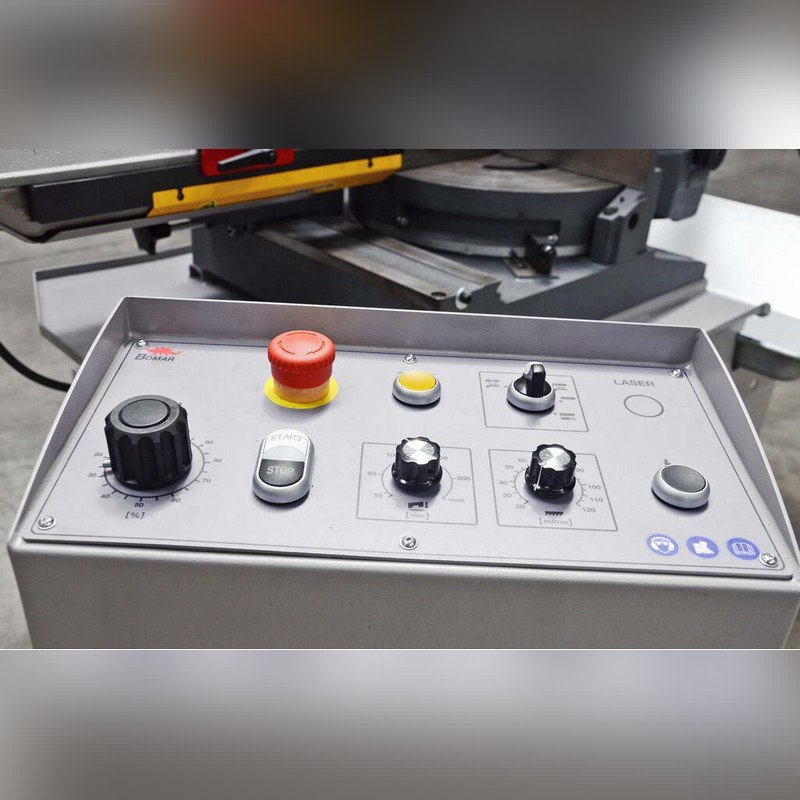

• An adjustable saw bow raises the height from the control panel.
• Ergonomic construction and operation working height 775 mm.
• Recirculating the coolant system in the base of the machine.

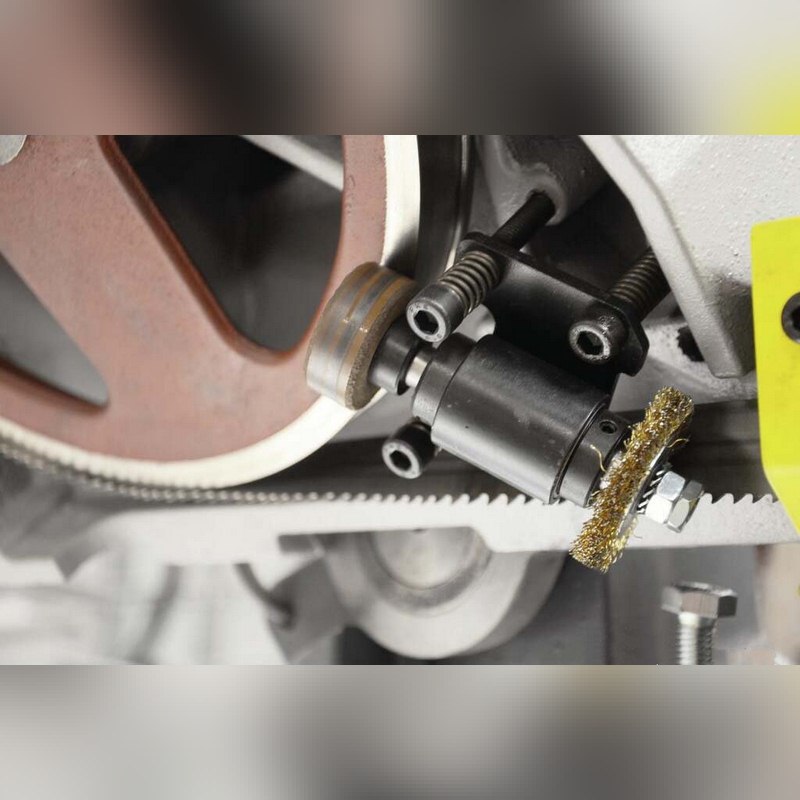

• Chip cleaning wash down gun connected to coolant system
• Wide range of accessories.
• Powerful 1.5kw blade drive motor
• Designed to CE standards and safety regulations
Optional Equipment
• Laser Line Generator for fast accurate location of the material cutting position
