Bomar Individual 720.540 DGH Semi Automatic Bandsaw
The Individual models are semi-automatic band saws in two-column design, which offers both-sided angle cutting in the range of -60° to +60°.
Bomar Individual 720.540 DGH Semi Automatic Bandsaw
Bomar Individual 720.540 DGH Semi Automatic Bandsaw
You may also like
-
$915.00 Excl. GST $1,006.50 Incl. GST Product ID: PHM-105-PB -
$7,950.00 Excl. GST $8,745.00 Incl. GST Product ID: BOM-ERG-01 -
$69,500.00 Excl. GST $76,450.00 Incl. GST Product ID: BOMAR-E290-258 DGANCBomar 290.258 DGA CNC Automatic Double Mitre Cutting Bandsaw Fully Automatic Bandsaw
$69,500.00 Excl. GST $76,450.00 Incl. GST -
$23,450.00 Excl. GST $25,795.00 Incl. GST Product ID: BOM-TR-DGH-01Bomar Transverse 510.330 DGH Semi Automatic Double Angle Bandsaw
$23,450.00 Excl. GST $25,795.00 Incl. GST -
Product ID: CUTRL-PSM440 - 610DMNC -
Product ID: CUTRL-PSM350M
Description
The Individual models are semi-automatic band saws in two-column design, which offers both-sided angle cutting in the range of -60° to +60°.
The saw is equipped with hydraulic full-stroke vice, frame on pre-stressed linear guides, variable speed of saw band, adjustable down feed and cutting pressure, automatic cutting pressure regulation, precious hard-metal guiding of saw band, powerful engine, modern control, freely movable control panel and productive hydraulic aggregate.

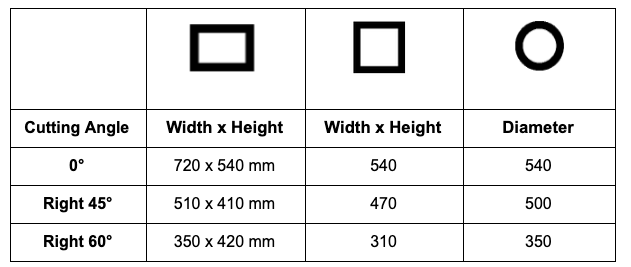

Cutting
| Round profile | Rectangular profile | Bunch | Square profile | ||
|---|---|---|---|---|---|
| 0° | [mm] | 540 | 720 x 540 | 720 x 540 | 540 x 540 |
| 45° right | [mm] | 500 | 520 x 420 | 540 x 470 | 470 x 470 |
| 45° left | [mm] | 515 | 520 x 325 | 540 x 475 | 510 x 510 |
| 60° right | [mm] | 350 | 350 x 420 | 540 x 310 | 310 x 310 |
| 60° left | [mm] | 355 | 335 x 330 | 540 x 320 | 320 x 320 |
Technical data
| Main motor power | 4 kW/3×400 V |
| Saw band dimension | 66400x54x1.3 mm |
| Machine dimension | 2000 x 3250 x 2420 mm |
| Weight | 2000 kg |
Cutting Capacity
Additional information
Additional information
| Weight | 1000 kg |
|---|---|
| Cutting Capacity | 720 |
