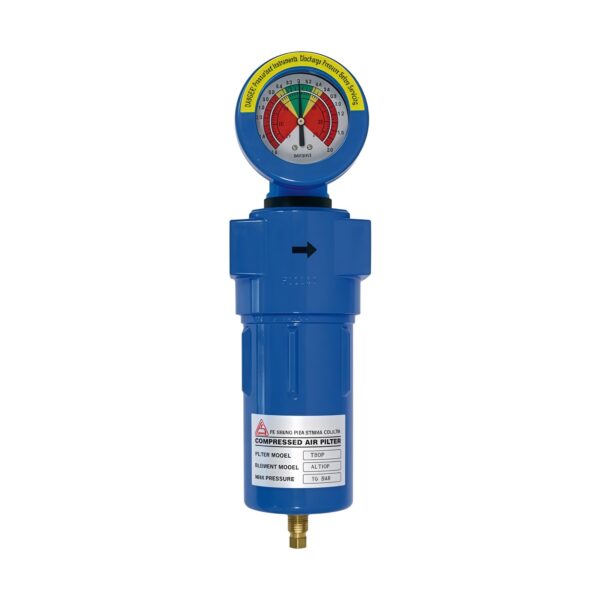

Fusheng T5P Compressed Air Filter Assembly with 3-Micron Particulate Filter, Gauge & Auto Drain – 23CFM/651LPM
The Premium T5P Compressed Air Filter delivers exceptional coarse particulate filtration for demanding industrial applications. Engineered to handle airflow capacities up to 0.66 m³/min (23 cfm) at a maximum pressure of 16 bar, this Grade P filter effectively removes solid particles down to 3 microns. The robust aluminium housing and high-efficiency pleated element combine superior dirt-holding capacity with minimal pressure drop, ensuring your pneumatic systems remain protected while optimising energy consumption.
Check CFM Conversions:
Fusheng T5P Compressed Air Filter Assembly with 3-Micron Particulate Filter, Gauge & Auto Drain – 23CFM/651LPM
Fusheng T5P Compressed Air Filter Assembly with 3-Micron Particulate Filter, Gauge & Auto Drain – 23CFM/651LPM
Description
The Premium T5P Compressed Air Filter delivers exceptional coarse particulate filtration for demanding industrial applications. Engineered to handle airflow capacities up to 0.66 m³/min (23 cfm) at a maximum pressure of 16 bar, this Grade P filter effectively removes solid particles down to 3 microns. The robust aluminium housing and high-efficiency pleated element combine superior dirt-holding capacity with minimal pressure drop, ensuring your pneumatic systems remain protected while optimising energy consumption.
Designed for reliability and ease of maintenance, the Premium T5P integrates seamlessly into existing compressed air treatment systems. The automatic float-type drain valve eliminates manual intervention, while the differential pressure gauge provides at-a-glance monitoring of filter condition. Whether protecting pneumatic tools, control valves, or downstream equipment, this filter delivers consistent, dependable performance across a wide range of industrial environments.
Typical Applications
- General manufacturing and assembly lines
- Pre-filtration for high-efficiency coalescing filters
- Protection for pneumatic tools and control valves
- Industrial air treatment systems
- Workshop and automotive applications
- Packaging and material handling equipment
- Pneumatic automation and robotics systems
- Food processing and light manufacturing
Features and Benefits
Advanced filtration technology delivers reliable, continuous protection for your critical pneumatic equipment and downstream processes.
High-Capacity Filtration
- Pleated filter element design significantly increases the effective filtration surface area
- Enhanced dirt-holding capacity extends service intervals and reduces maintenance frequency
- Optimized flow path accommodates higher air volumes without compromising filtration efficiency
Energy-Efficient Operation
- Advanced element and housing geometry minimizes operating pressure drop across the system
- Reduced pressure resistance directly translates to lower compressor energy consumption
- Differential pressure gauge prevents energy waste from clogged filters
Durable Construction
- Robust aluminium filter housing guarantees a long, rust-free operational lifespan
- Precision-engineered casing enables quick, straightforward filter element replacement
- Float-type drain valve automatically discharges accumulated water and contaminants
Long-Term Reliability
- Comprehensive 2-year warranty protects against faulty materials and workmanship
- Standardized components ensure replacement elements and spare parts remain available
- Consistent 3-micron particulate removal maintains downstream equipment integrity
Specifacation
| Model | Fusheng T5P |
| Ai Flow Capacity | 0.66 m3/min (23 cfm) |
| Maximum Pressure | 16 bar (232 psi) |
| Filter Grade | P |
| Filter Type | Coarse Particulate |
| Filtration | 3 micron |
| Oil Removal | N/A |
| Inlet & Outlet Ports | 1/2 inch BSP |
| Filter Element Kit | FS AET5P |
Peace of Mind Confidence
Every Premium T5P Compressed Air Filter is manufactured to exacting standards, ensuring reliable performance in demanding industrial environments. Our commitment to quality means you can trust this filtration system to protect your valuable pneumatic equipment day after day.
- Rigorous quality control testing on every unit
- Built with premium-grade, corrosion-resistant materials
- Designed for continuous, heavy-duty industrial operation
- Backed by a comprehensive 24-month warranty
- Supported by a nationwide network for parts and service
Frequently Asked Questions
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
What after-sales support and warranty do you provide?
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
How quickly will I receive my machine?
