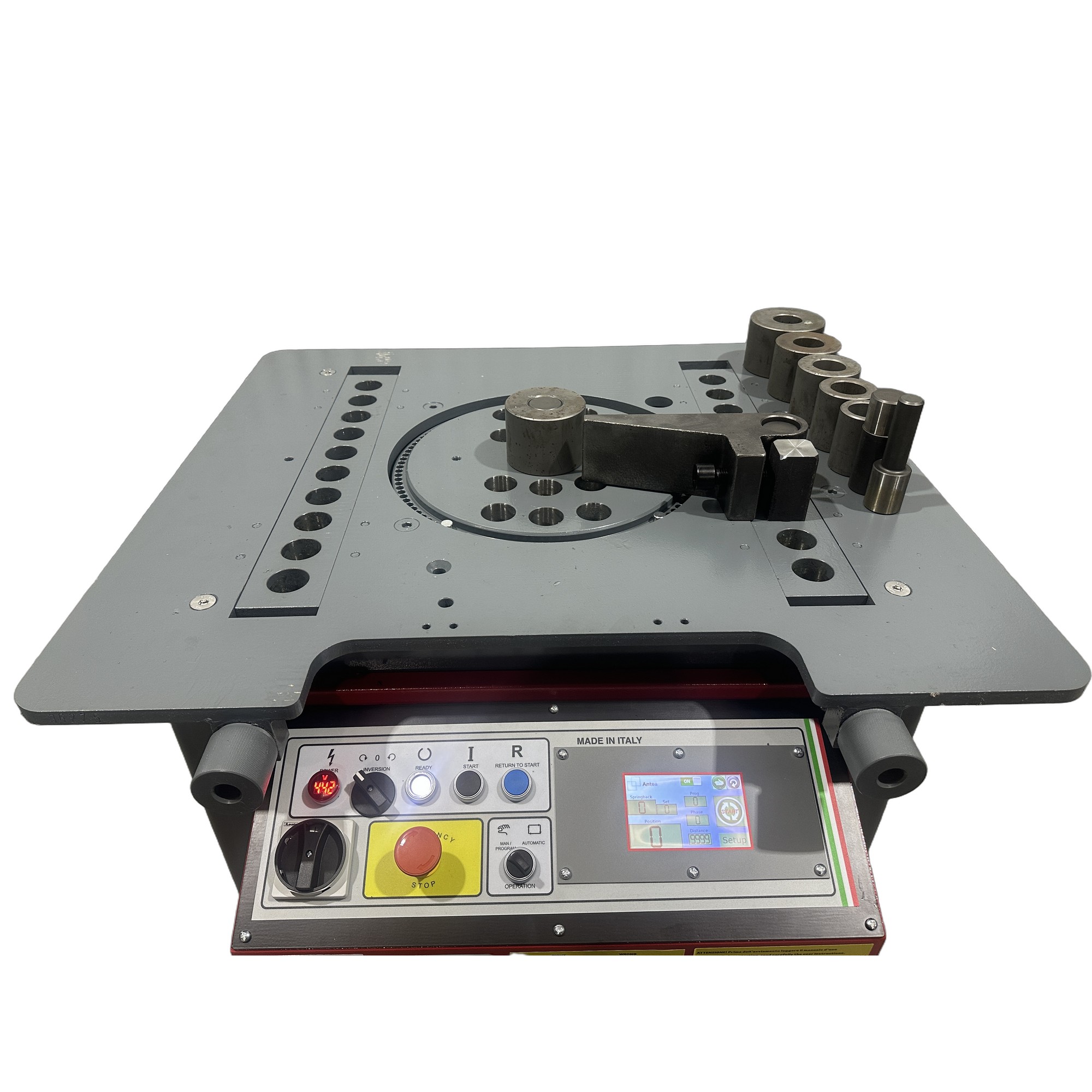

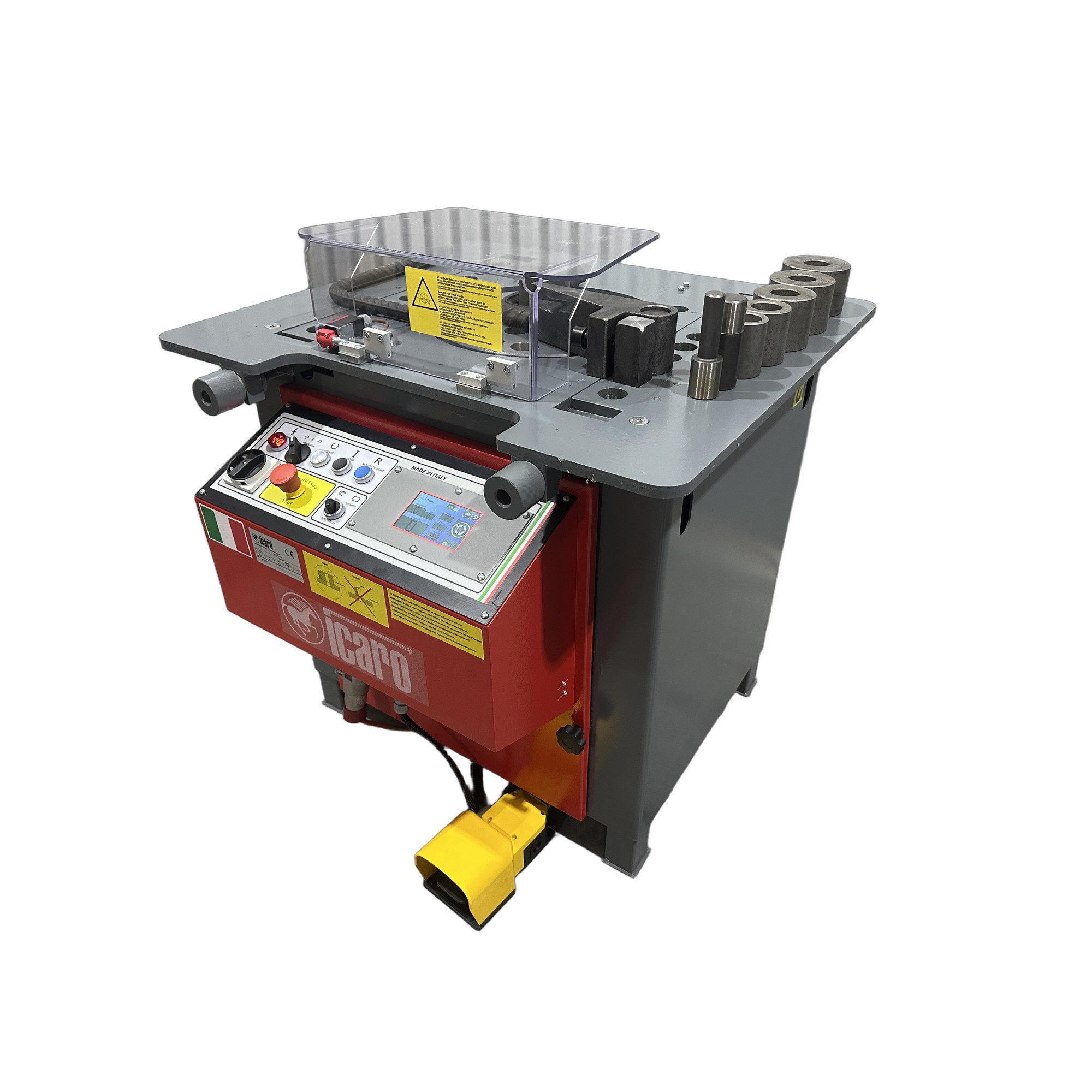

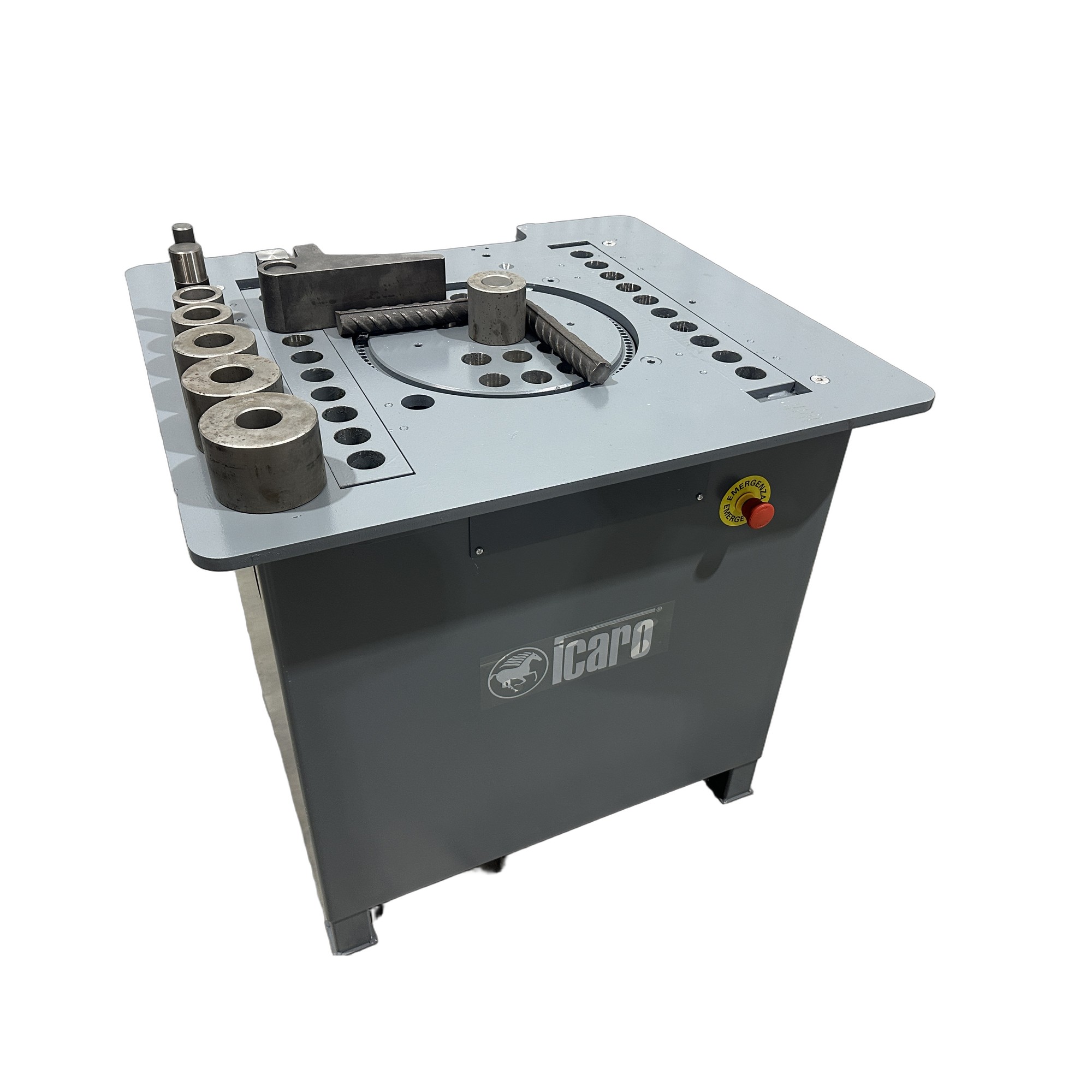

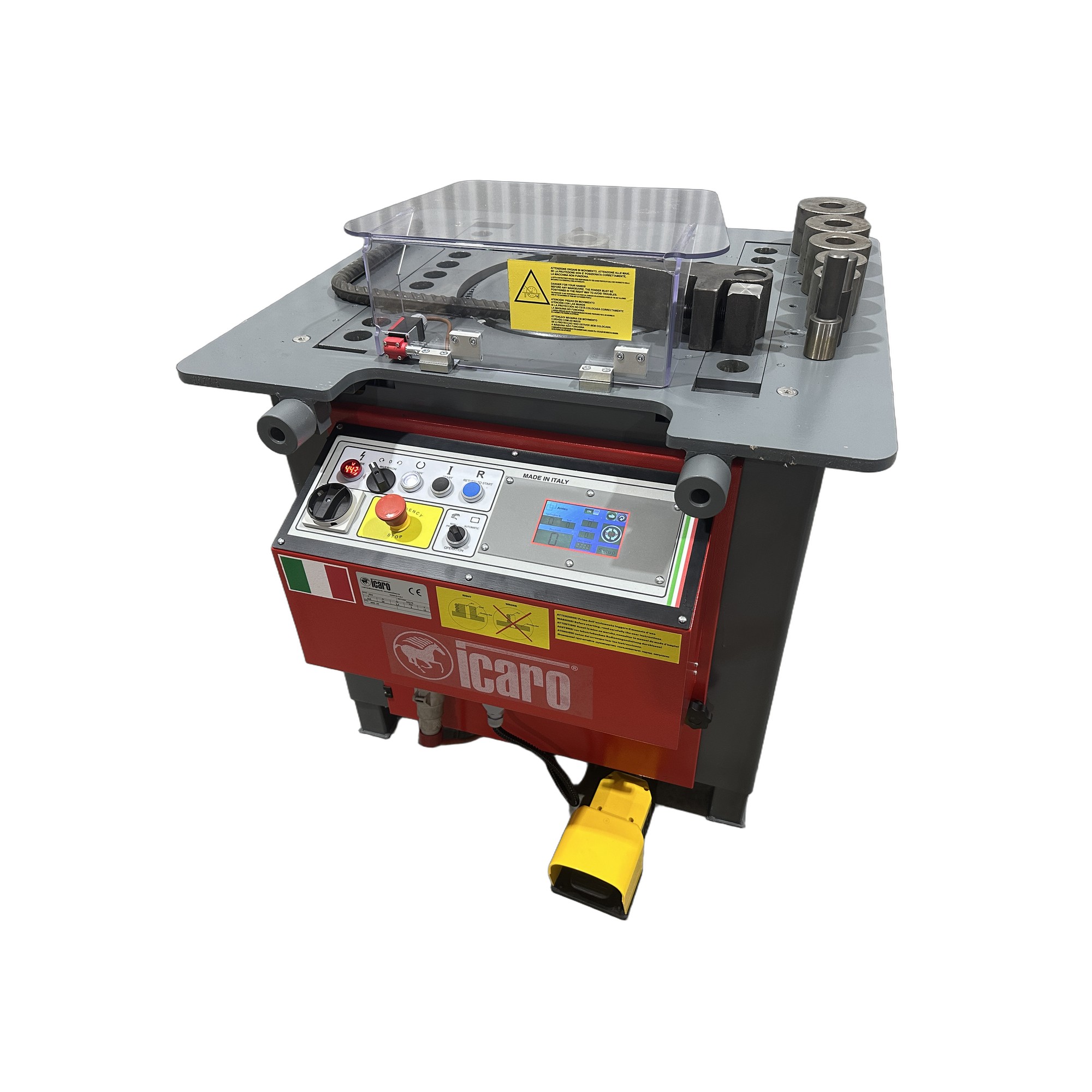

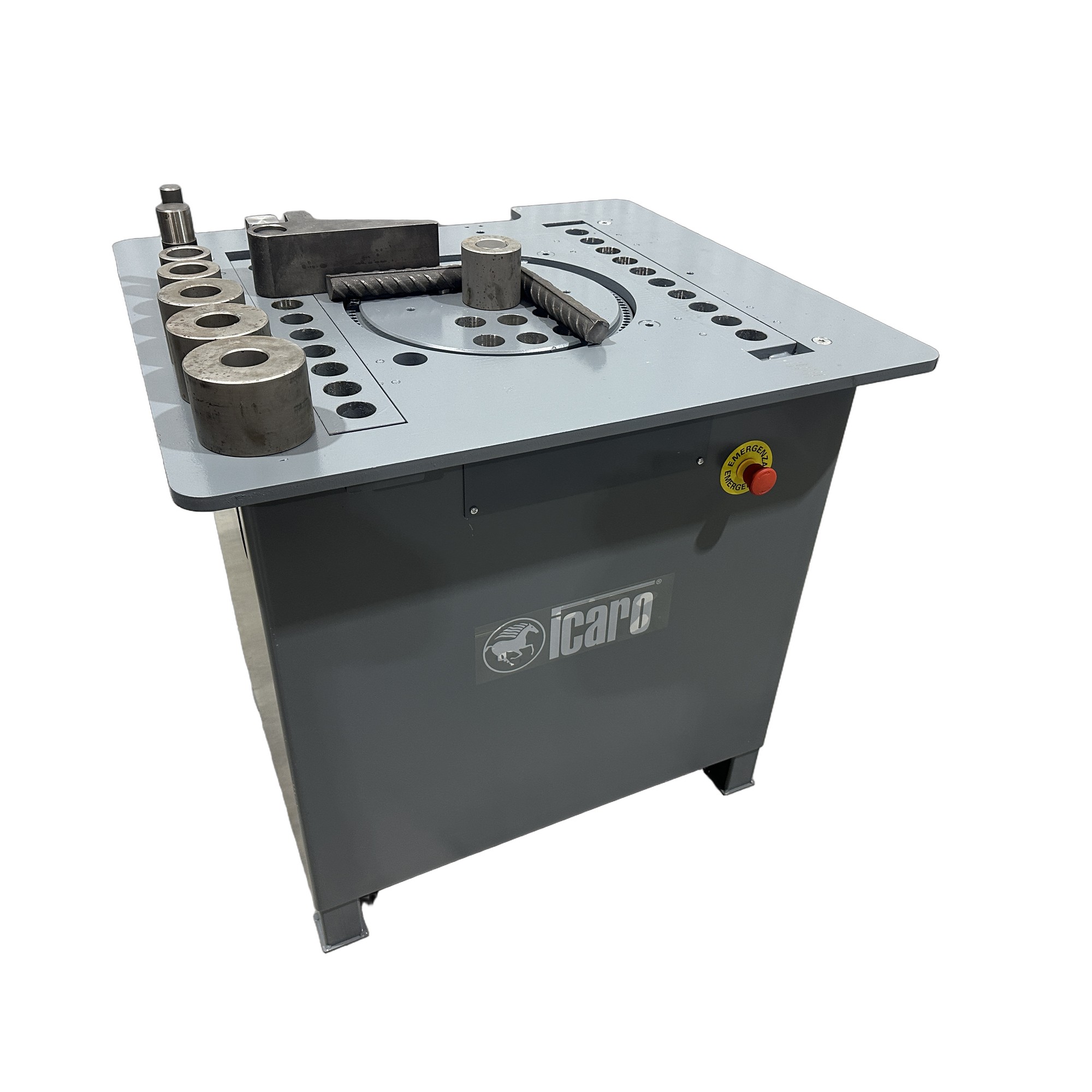

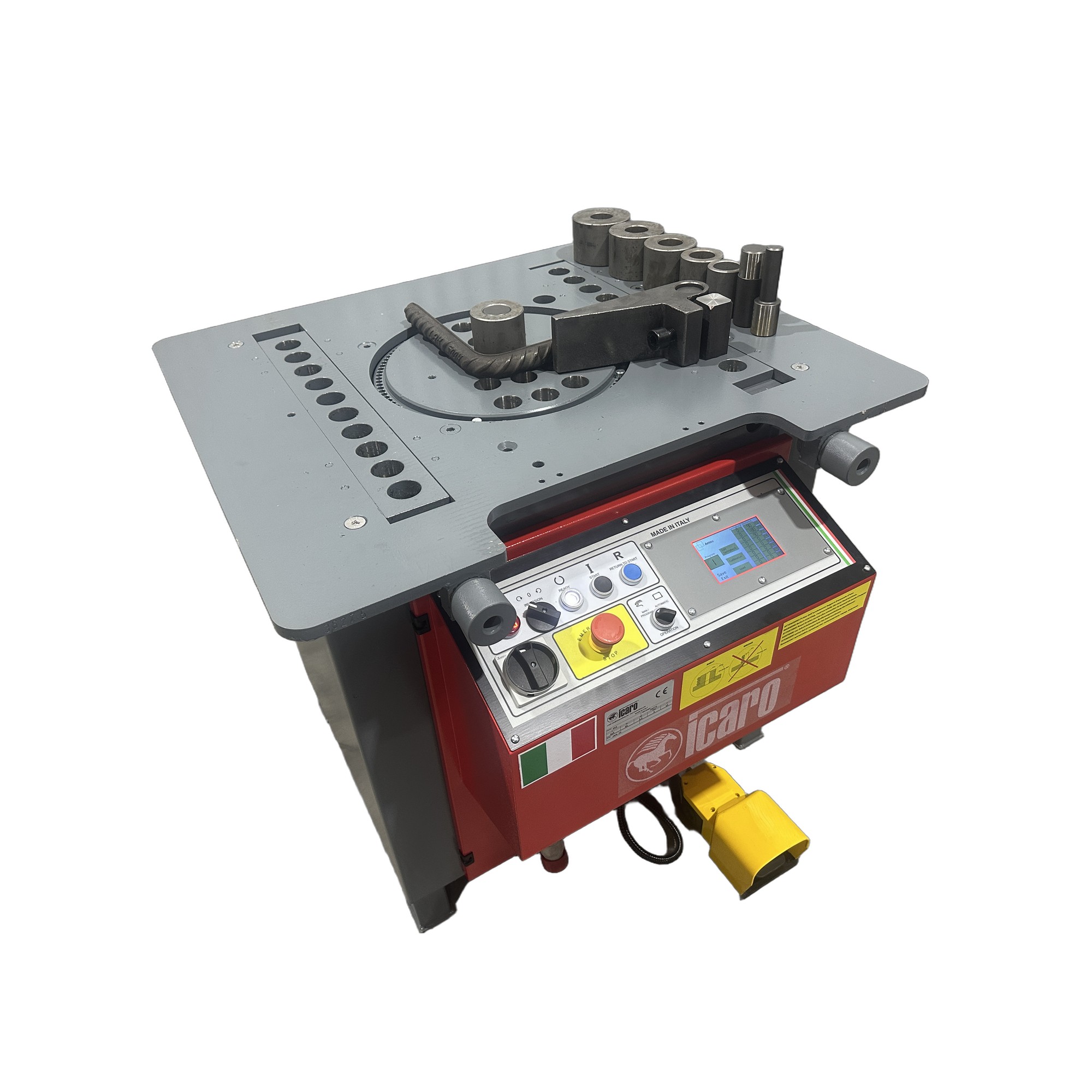

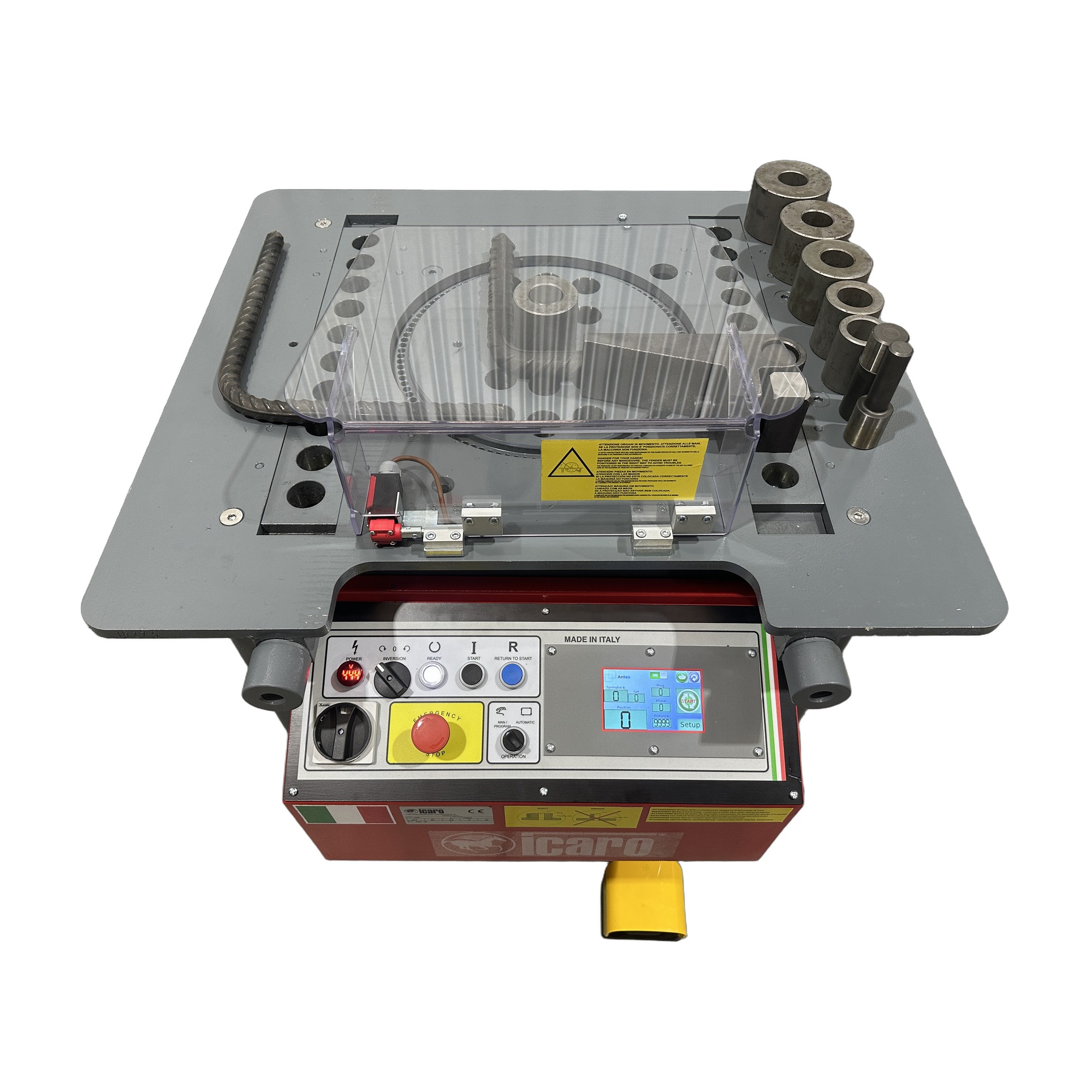

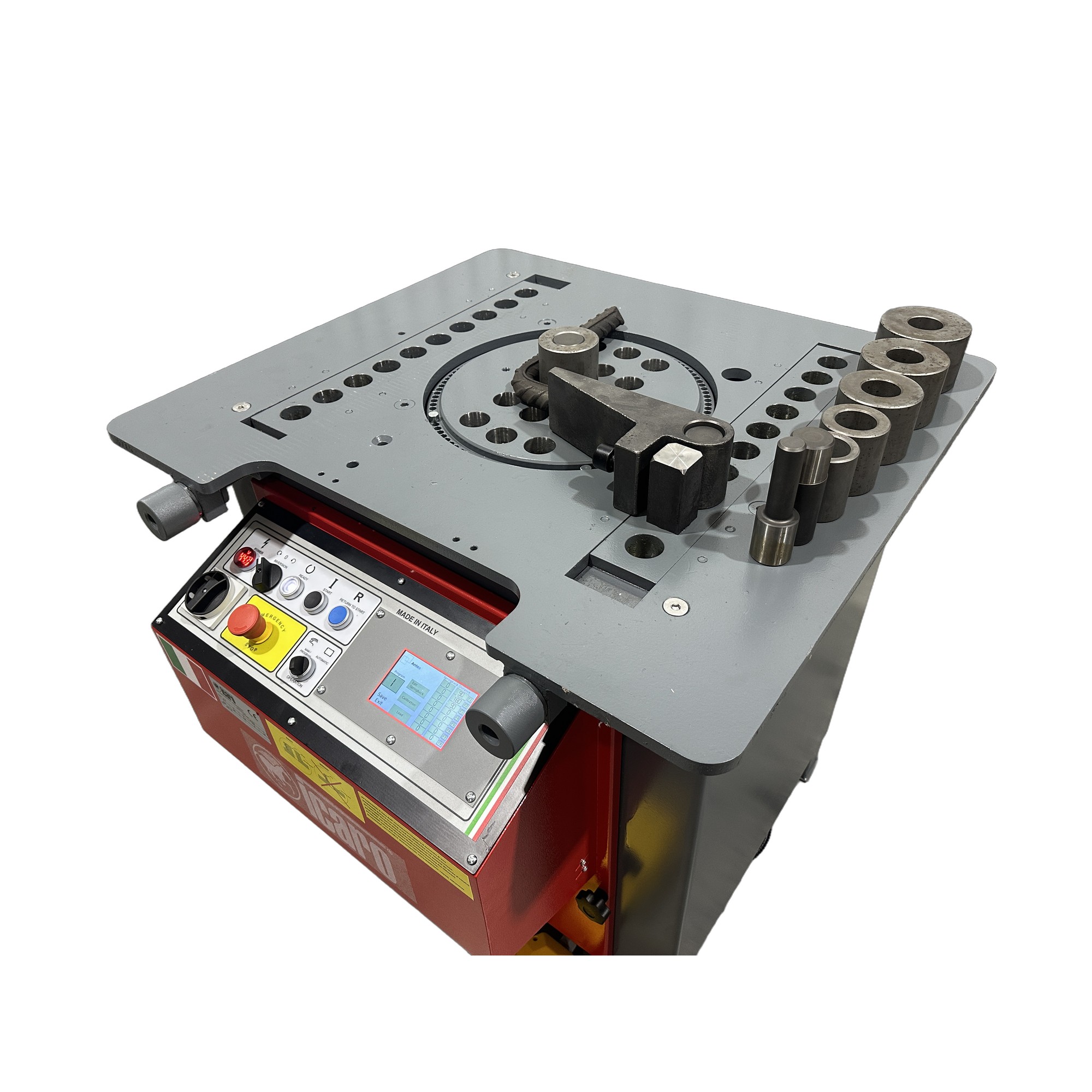

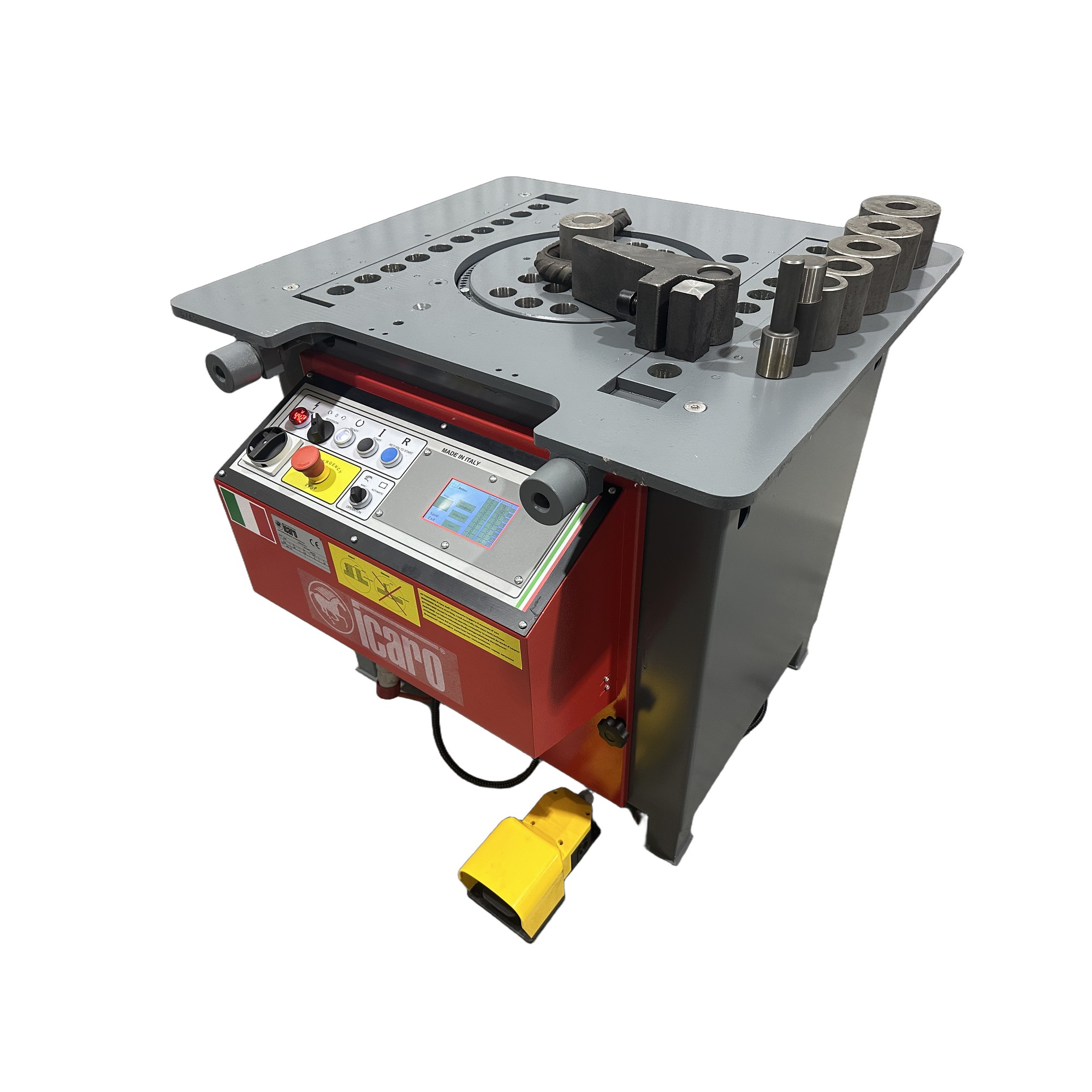

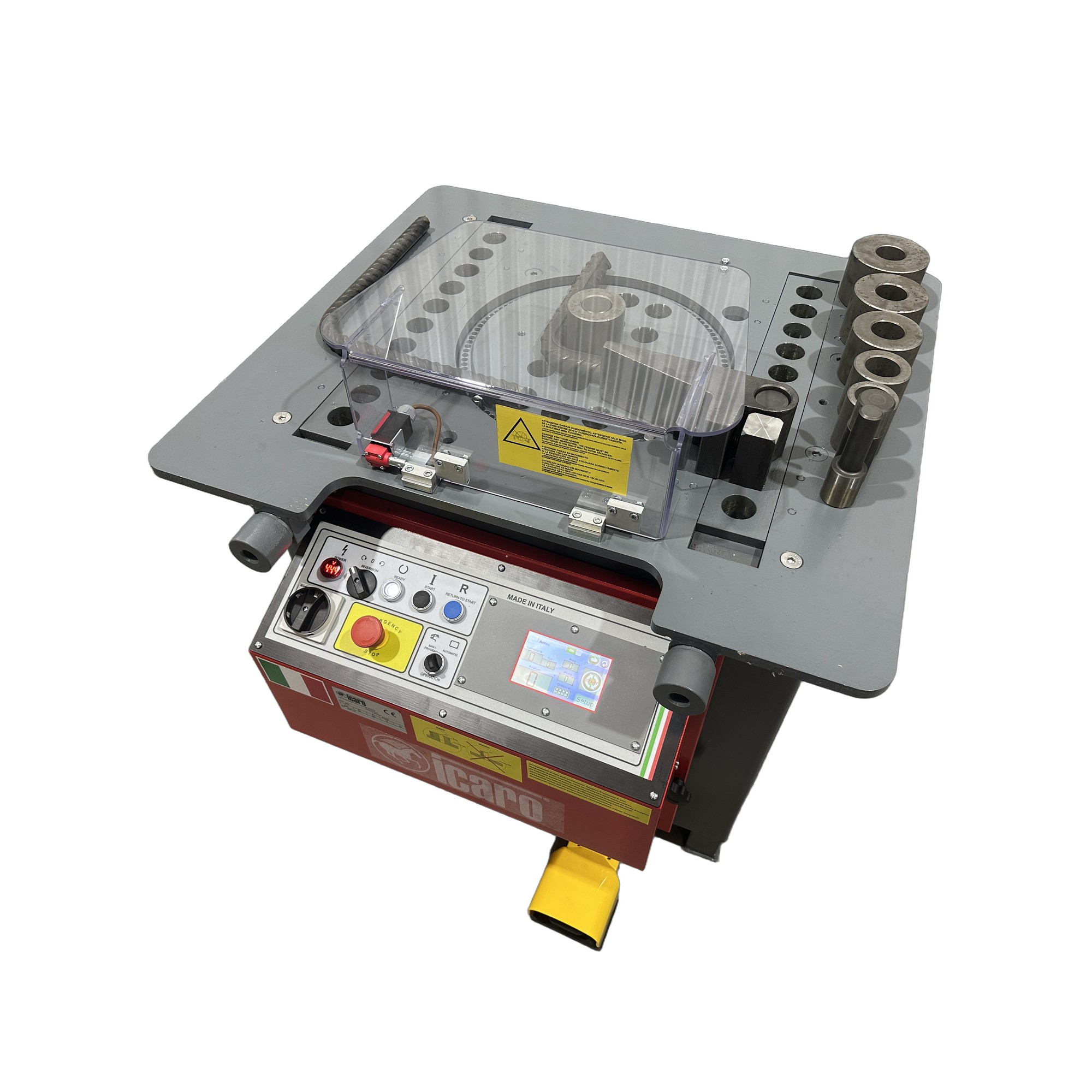

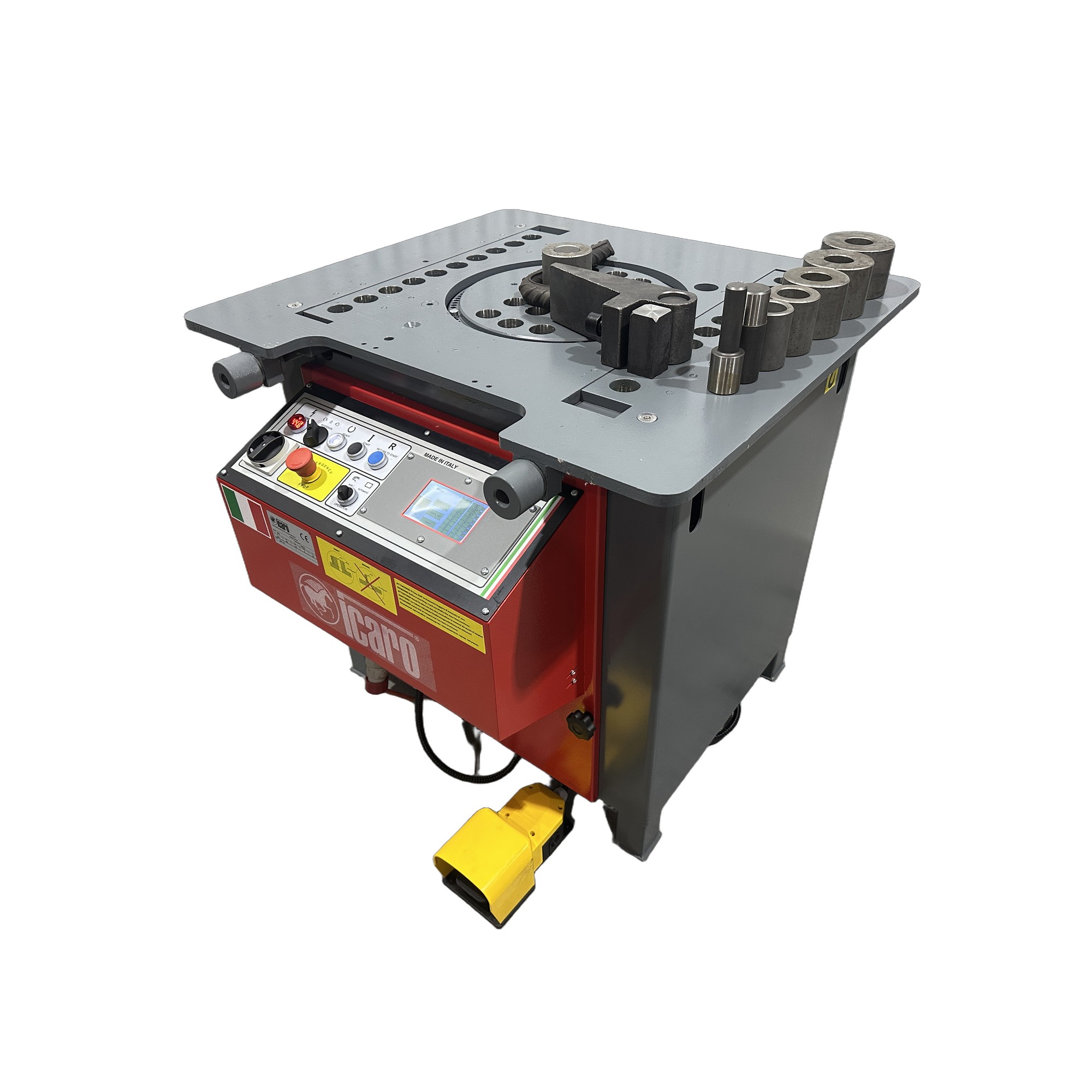

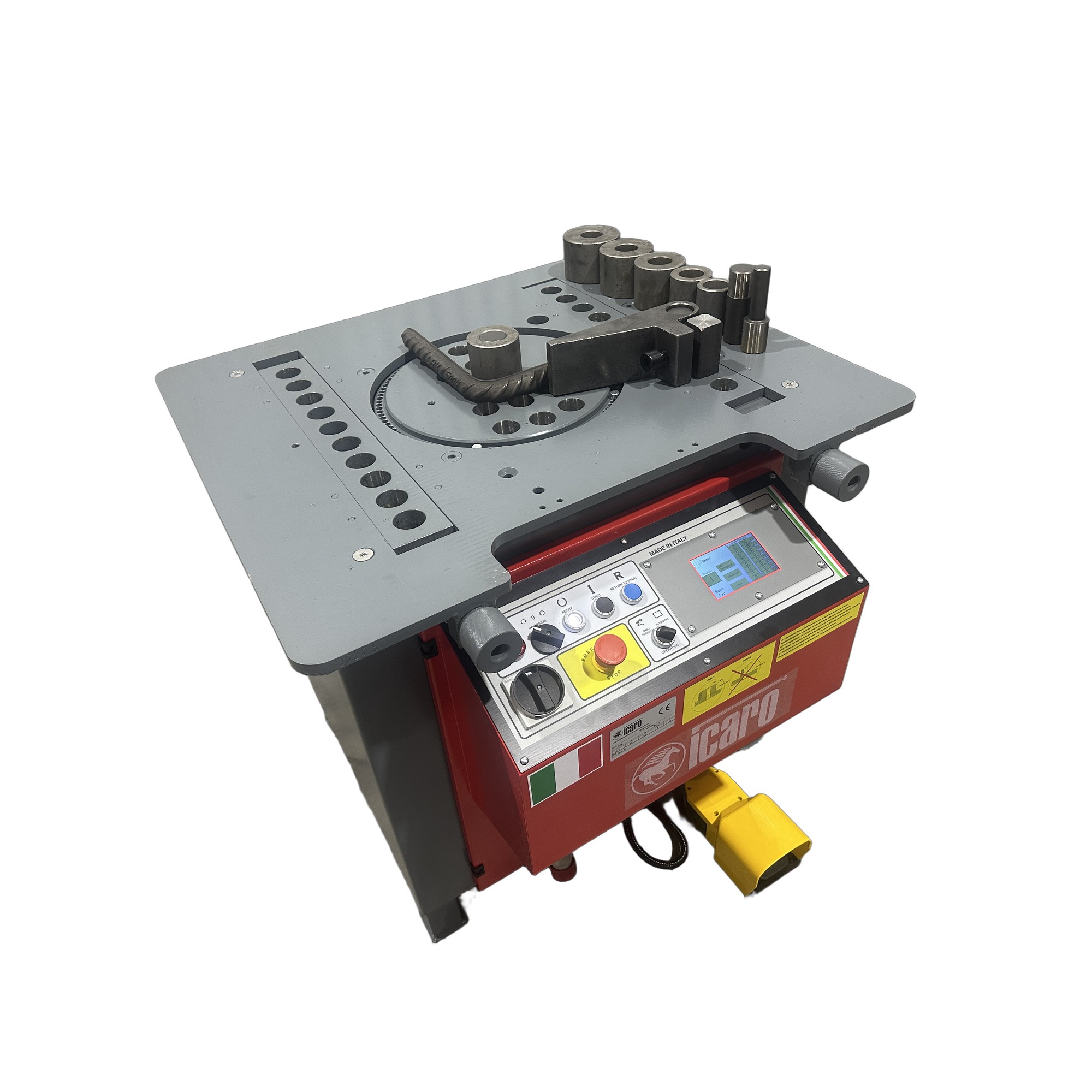

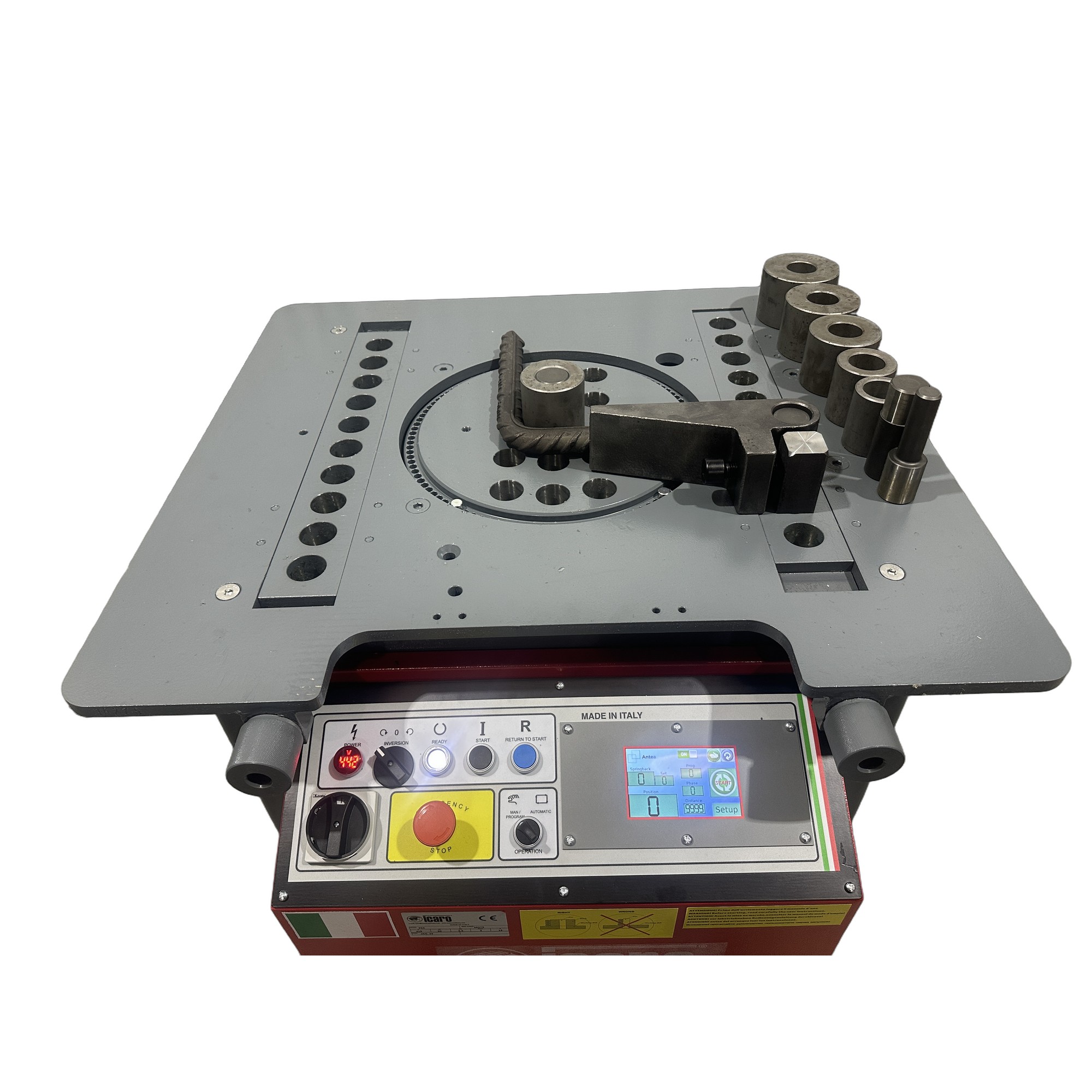

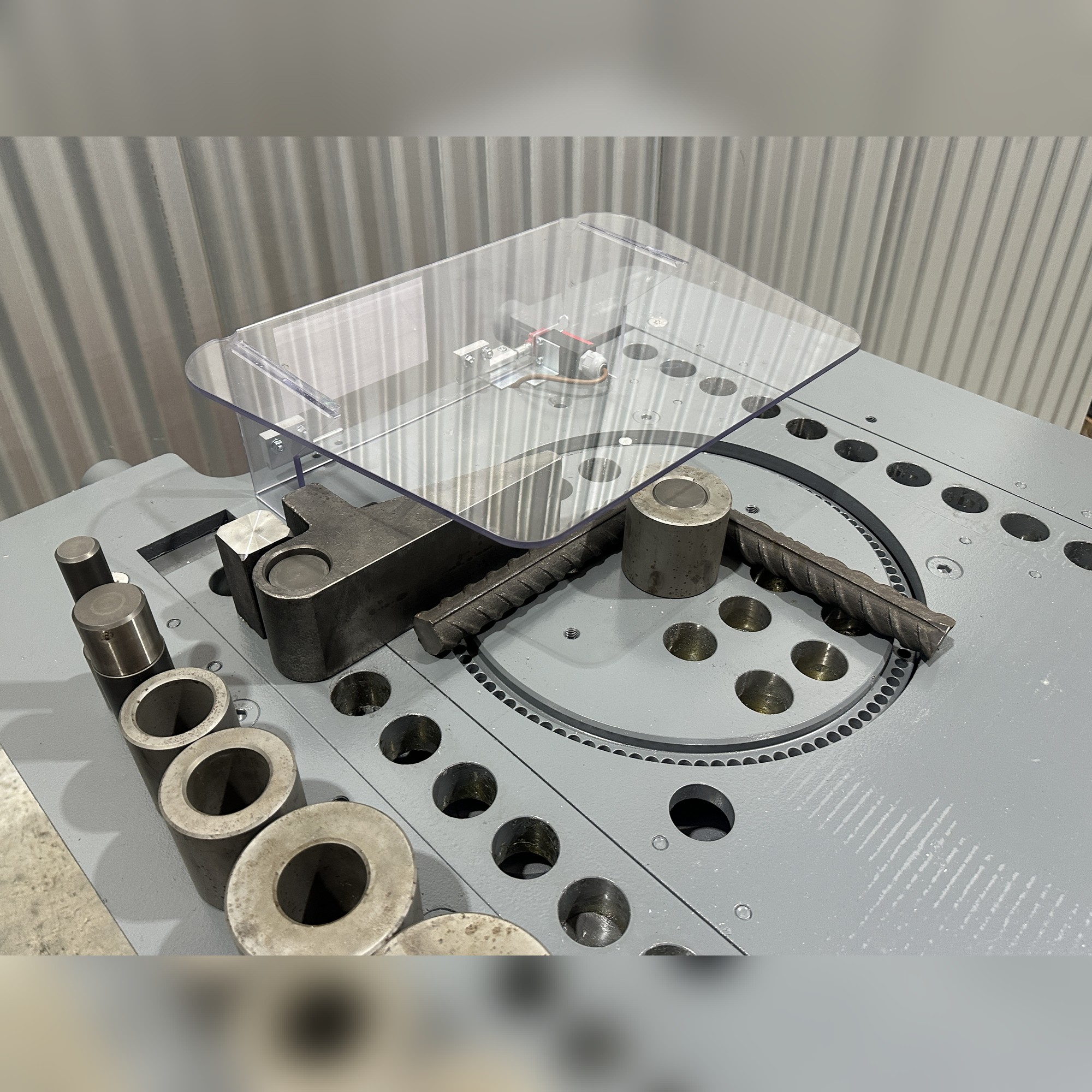

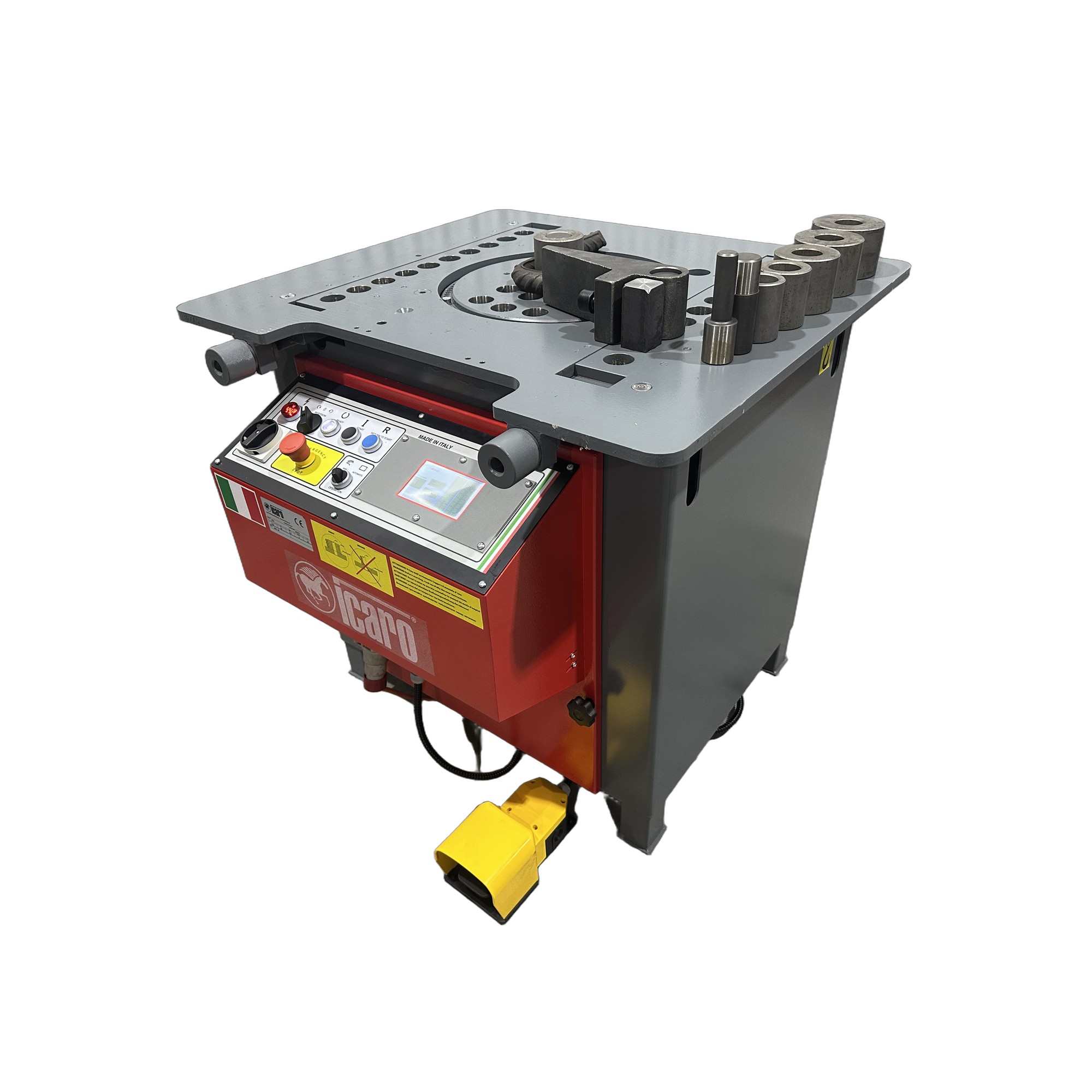

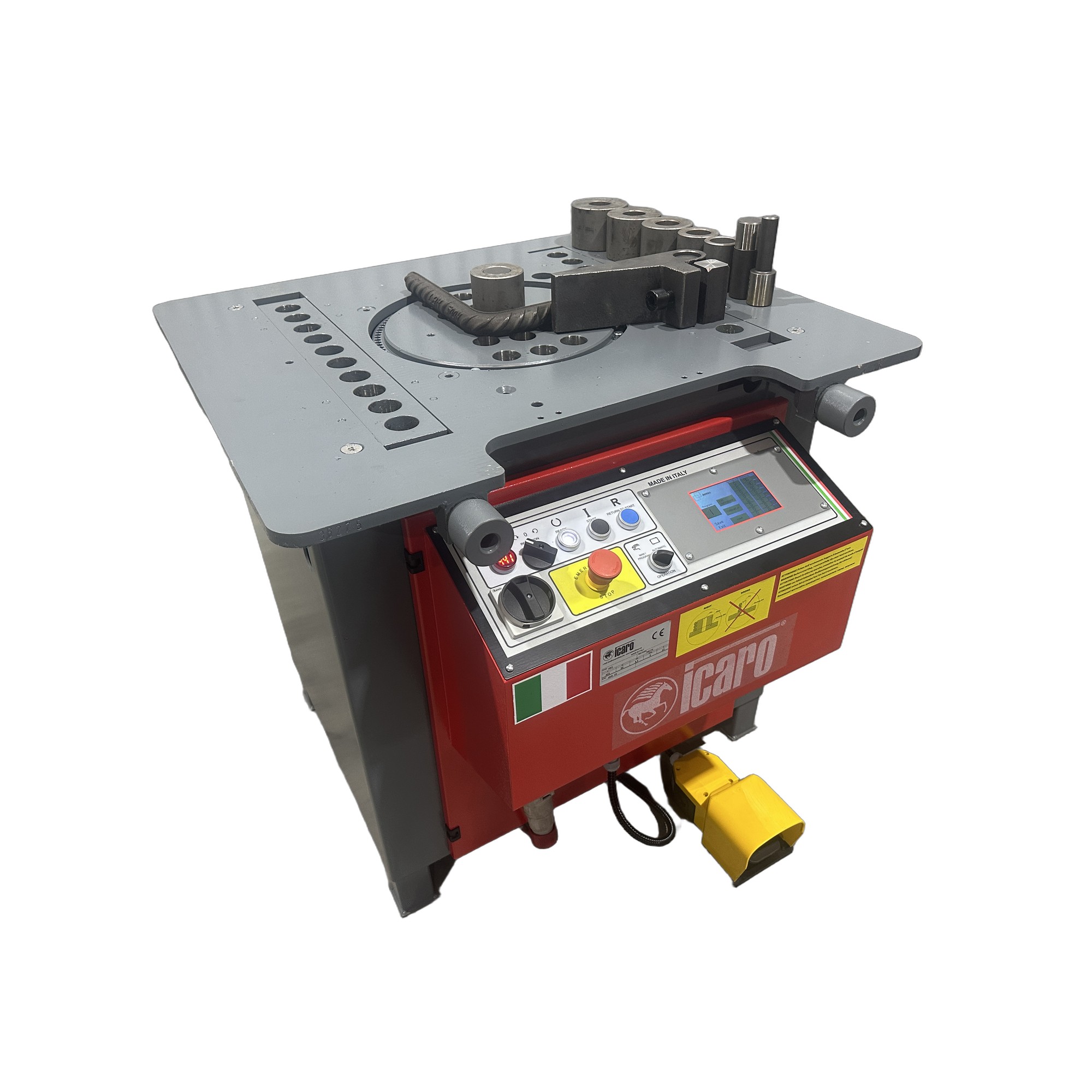

ICARO P56 Rebar Bender With 2 Long Saddles & Digital Angular Controller
The ICARO P56 Rebar Bender presents is a practical investment for your workshop. Our selection of Rebar Benders are all manufactured with the premium European electronics and hardware that ensuring exceptional longevity and performance results even on the most demanding projects.
ICARO P56 Rebar Bender With 2 Long Saddles & Digital Angular Controller
ICARO P56 Rebar Bender With 2 Long Saddles & Digital Angular Controller
Description
ICARO Digital Angle Controller Operation Manual (For ICARO Models 2025 and Newer)
The ICARO P56 Rebar Bender presents is a practical investment for your workshop. Our selection of Rebar Benders are all manufactured with the premium European electronics and hardware that ensuring exceptional longevity and performance results even on the most demanding projects.
Includes: ICARO NC Digital Programmable Angle Controller is an optional accessory that you can purchase for your Icaro rebar machine.
ICARO P55 Rebar Bender Features
- Manufactured in Italy using local European components
- Bidirectional bending table for efficient bending in both directions.
- User friendly design, fast and easy operation and control
- Proprietary special purpose grease filled gearbox with laminated helical gearing
- Multiple controller options available
- All machines are bluetooth ready: allowing production diagnostics and equipment monitoring using the optional antenna module.
- Compact design for workshops and onsite use

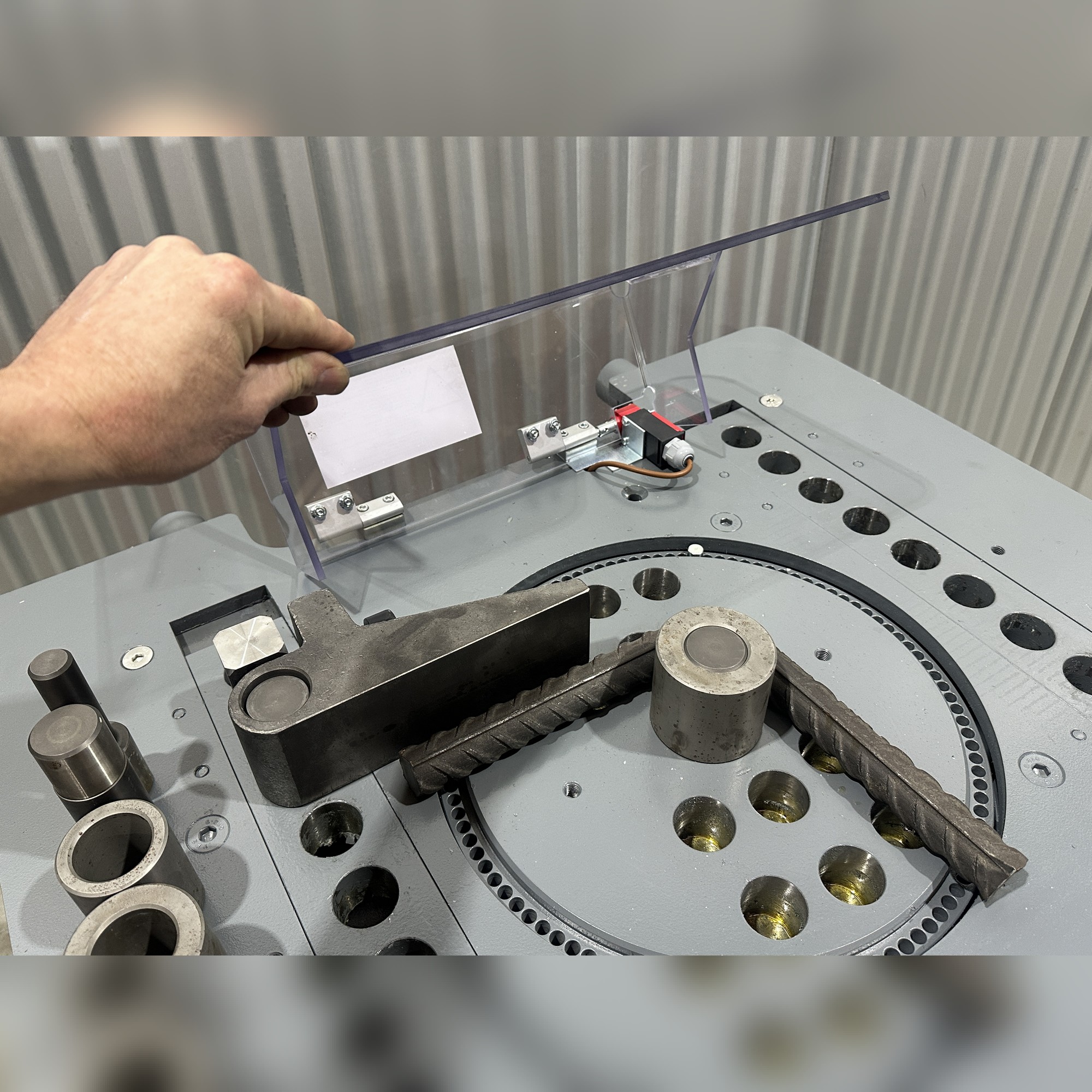

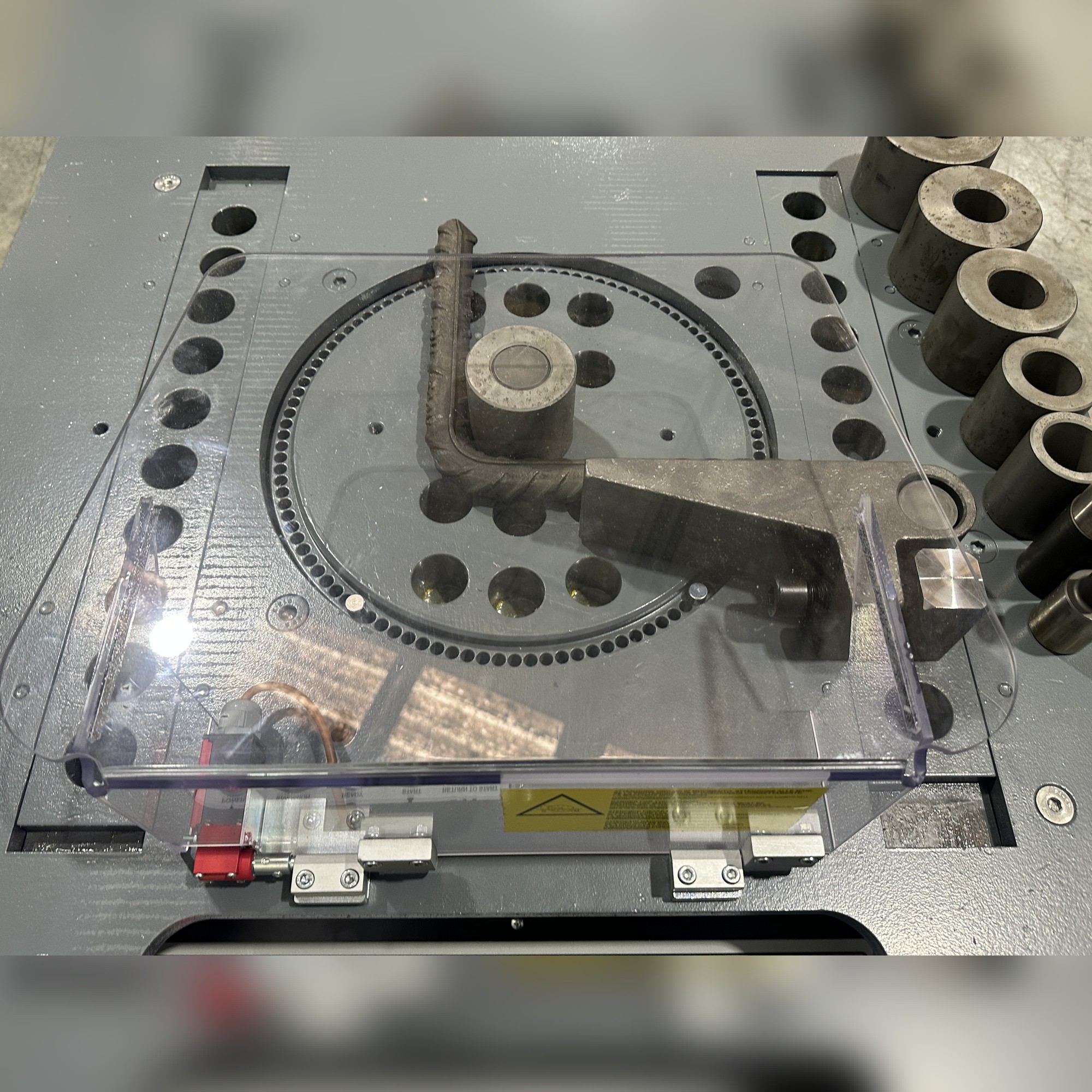

- Safety guarded with interlock systems
- Abides by CE standard European laws and global regulations ISO9001/2008
- Replacement bending bushes and spare parts available in stock

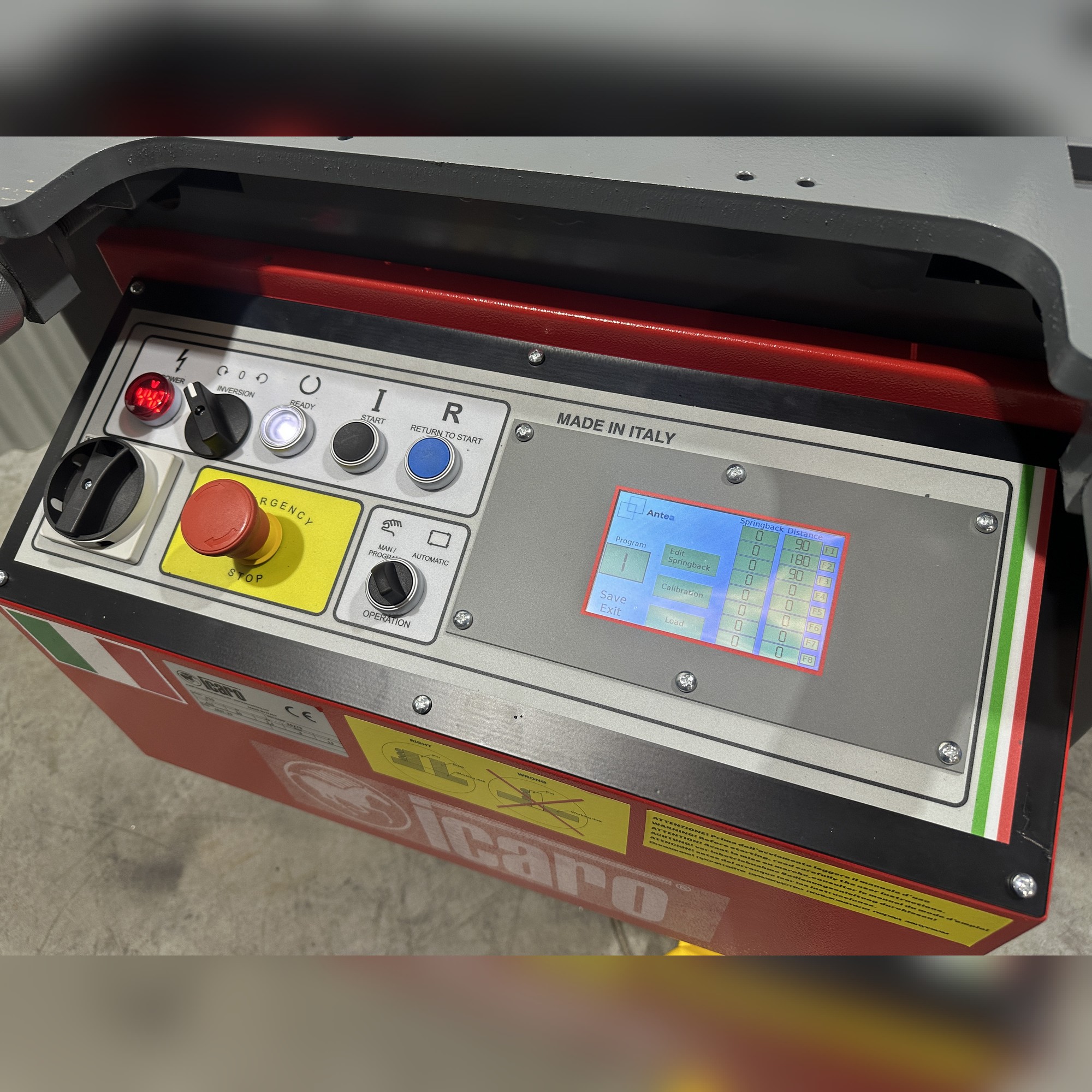

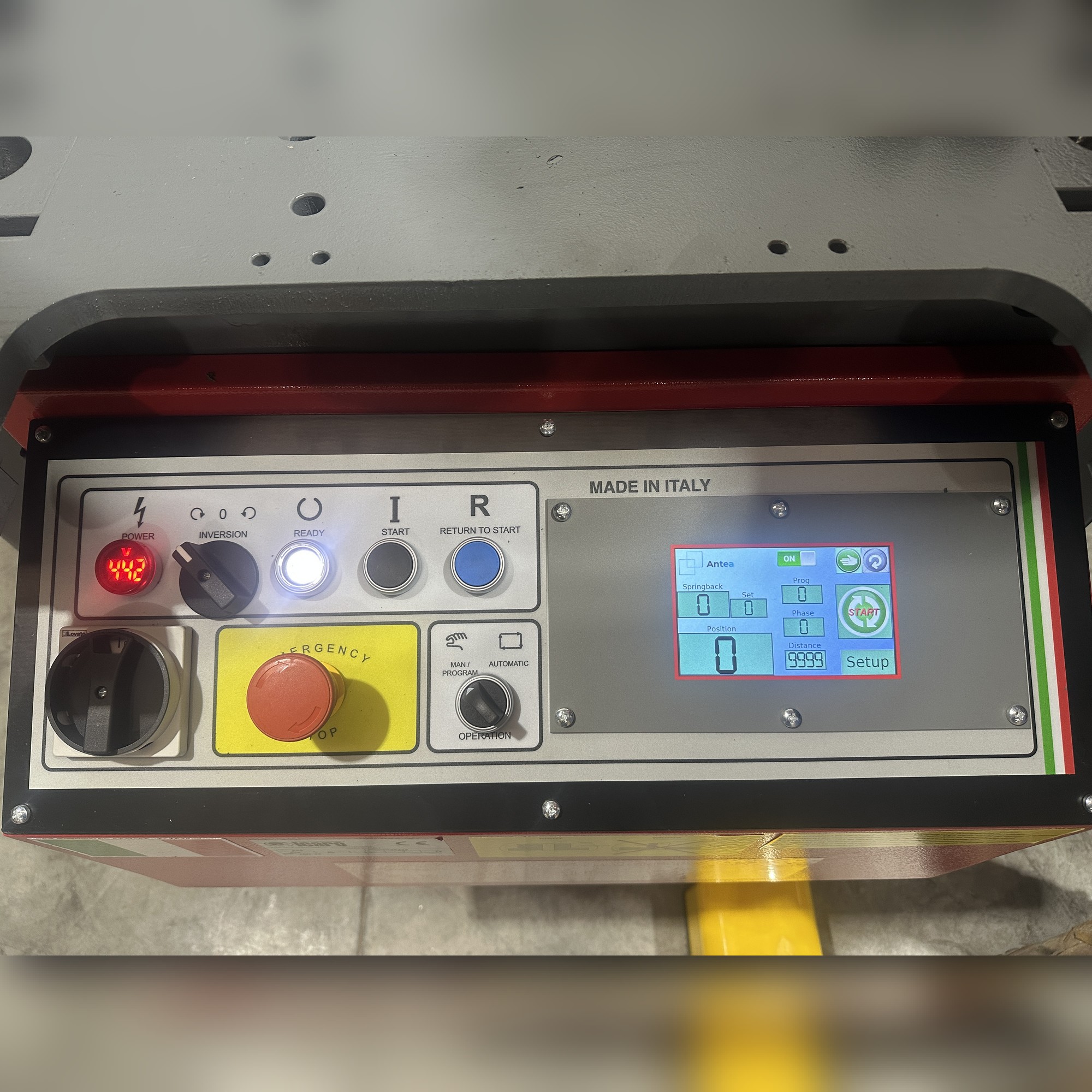

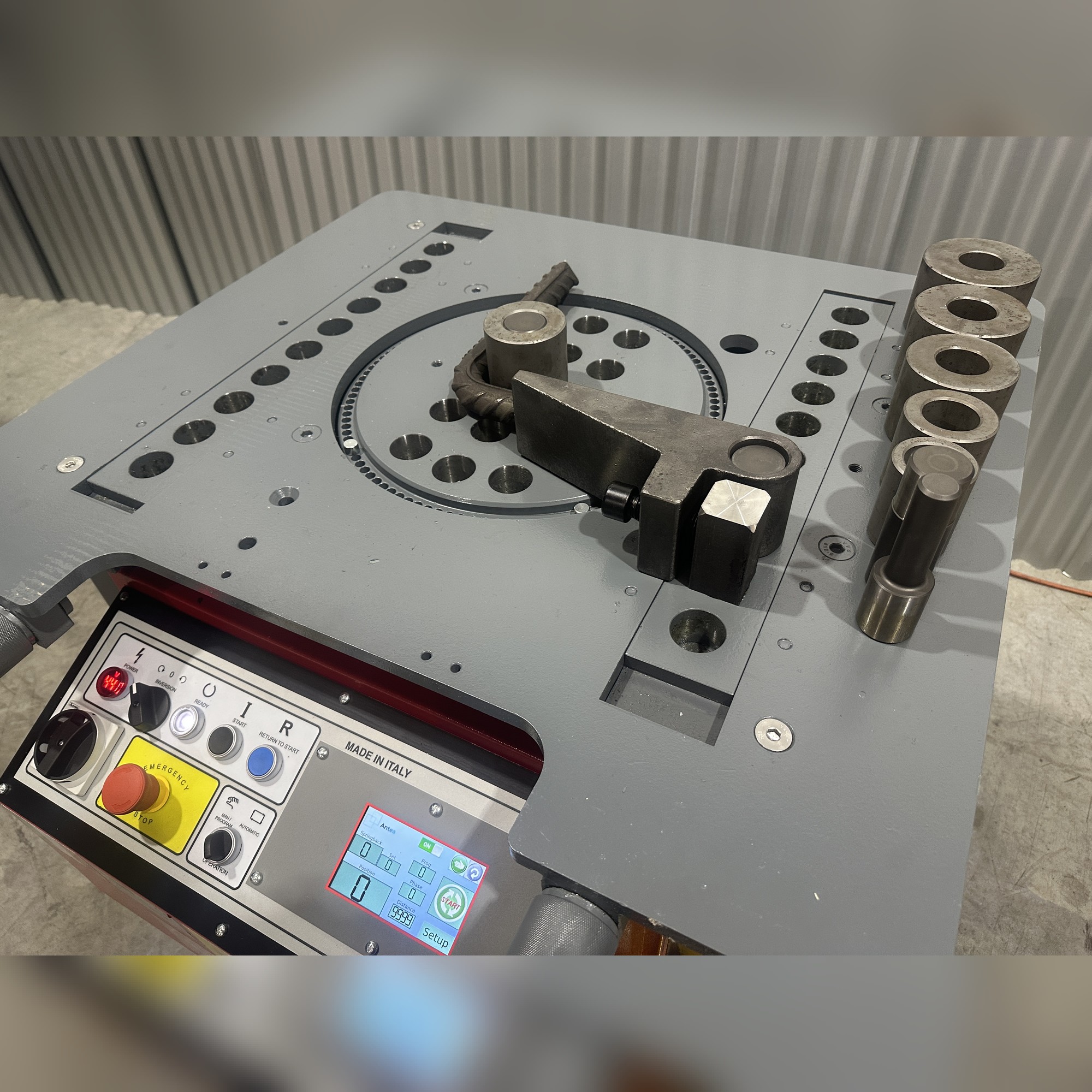

Digital Angle Controller
The ICARO Digital Angle Controller is an optional accessory that features the following capabilities:
– Ability to change bending angles quickly from the operator’s keypad.
– Ability Input multiple bending angles steps
– Easily Adjust rebar bending angle correction as required i.e + 5 Degree’s
– Control rotary table bending direction Left or Right rotation
– Set part quantity using the incremental batch counter
Common Australian Bar Grades
- Grade 250 – 250MPA = 25.5 Kg/mm2
- Grade 300 – 300MPA = 30.6 Kg/mm2
- Grade 500 – 500MPA = 51.0 Kg/mm2
All the tests were carried out using iron bars coming from all over the world. The iron bars we used all followed these standards: DIN488, BS4449/2005, BS4449/97, ASTM/A706/A706M-00, ASTM (A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness.
|
Technical Specification |
|
|
Net Weight Kg |
690 |
|
Measurements cm L x W x H |
130 x 95 x 95 |
|
Motor (50 Hz) KW/HP |
5, 5/7, 5 |
|
Motor (60 Hz) KW/HP |
6, 6/9 |
|
Table RPM (50hz) |
5 |
|
Gearbox Grease KG |
13 |
|
Working Table Diameter Disc ϴ |
400 |
|
Model |
Motor Drive Kw |
Bending Capacity |
Weight Kg |
Machine Dimensions CM |
||
|
Grade 500 – 500MPA = 51.0Kg/mm2 Bars per Bend |
||||||
|
|
|
1 x Ø |
2 x Ø |
3 x Ø |
|
|
|
P26 |
1.85 |
24 |
16 |
12 |
350 |
68X61X83 |
|
P32 |
2.2 |
26 |
20 |
16 |
350 |
76X70X83 |
|
P36 |
3 |
32 |
24 |
18 |
365 |
86X90X85 |
|
P42 |
3 |
36 |
28 |
22 |
500 |
100X90X89 |
|
P46 |
3 |
42 |
30 |
30 | 520 | 100X90X89 |
|
P52 |
4 |
44 |
34 |
26 |
590 |
110X91X89 |
|
P55 |
5.5 |
46 |
36 |
28 |
620 |
110X100X89 |
|
P56 |
5.5 |
54 |
36 |
28 |
690 |
130X95X95 |
|
P62 |
5.5 |
54 |
40 |
30 |
1000 |
150X100X100 |
|
P70 |
7.5 |
70 |
42 |
35 |
1200 |
160X115X90 |
|
General Equipment |
|
| Standard | Optional |
| 1x Checking block | Digital Angle programmable controller |
| 3x Bush holding pin x Hole Ø32mm | Linear length stop |
| 1x Bush Ø 60 x Hole Ø32mm | Extender Arm for large radius bending |
| 1x Bush Ø 70 x Hole Ø32mm | Stirrup Bending Attachment with length stop |
| 1x Bush Ø 80 x Hole Ø32mm | Spiralling forming attachment |
| 1x Bush Ø 90 x Hole Ø32mm | |
| 1x Bush Ø 100 x Hole Ø32mm | |
| 1x Bush Ø 110 x Hole Ø32mm | |
| 1x Square pin x Hole Ø30mm | |
| 1x Stirrup pin x Hole Ø30mm | |
| 2x Rotating pins | |
| 1x Set of belts (3 pcs) | |
| 1x Foot Pedal Control | |
| Bluetooth ready module | |
| C.E Safety guard & limit switch | |
| Digital display voltage Indicator (60V-500V) | |
Standard Equipment
Optional Equipment
Controller Options
- Set bending angles by changing the limit switch striker pin
- Bi-directional table rotation selector
- Reference return switch Supply voltage Indicator
- Ability to change bending angles quickly from the operator’s keypad.
- Ability Input multiple bending angles steps
- Easily Adjust rebar bending angle correction as required i.e + 5 Degree’s
- Control rotary table bending direction Left or Right rotation
- Set part quantity using the incremental batch counter
ALL ICARO BENDERS ARE BLUETOOTH-READY
Each bender includes built-in Bluetooth diagnostics for real-time machine condition monitoring. Simply install the optional antenna and download the free Apple or Android app.
Each bender is fitted with our extremely innovative technology for Bluetooth diagnostics, that will let you check the conditions of your machine at every moment.
See ICARO P55 Rebar Bender In Action
Frequently Asked Questions
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
What after-sales support and warranty do you provide?
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
