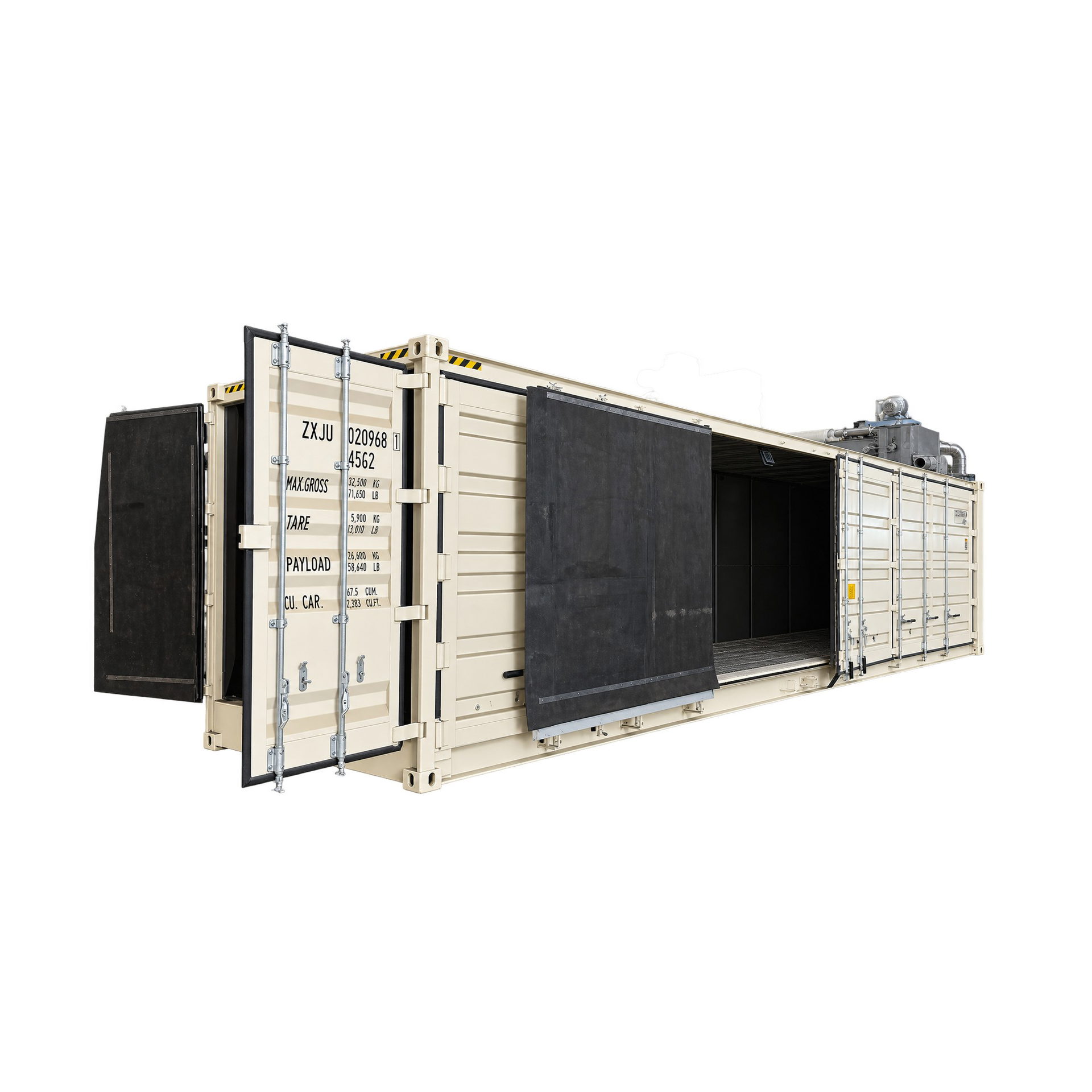

MultiBlast PROBRS12000 Blasting Room Container Blast System
The MultiBlast PROBRS Blasting Room Container Blast System offer a wide range of Abrasive Blast Rooms in a variety of configurations for all types of cleaning, peening and finishing operations. MultiBlast PROBRS also recognize the need for Blast Cleaning in remote locations and smaller Blast Operations and thus included into the range the Container Blast Room. A purpose built, easily relocatable system comprises all the features of the larger MultiBlast Blast Rooms.
MultiBlast PROBRS12000 Blasting Room Container Blast System
MultiBlast PROBRS12000 Blasting Room Container Blast System
You may also like
-
$92,565.00 Excl. GST $101,821.50 Incl. GST Product ID: MULTIBLAST-PROBRS6000
MultiBlast PROBRS6000 Blasting Room Container Blast System
$92,565.00 Excl. GST $101,821.50 Incl. GST
Description
The MultiBlast PROBRS12000 Blasting Room Container Blast System offer a wide range of Abrasive Blast Rooms in a variety of configurations for all types of cleaning, peening and finishing operations. MultiBlast PROBRS also recognize the need for Blast Cleaning in remote locations and smaller Blast Operations and thus included into the range the Container Blast Room. A purpose built, easily relocatable system comprises all the features of the larger MultiBlast Blast Rooms.
Features:

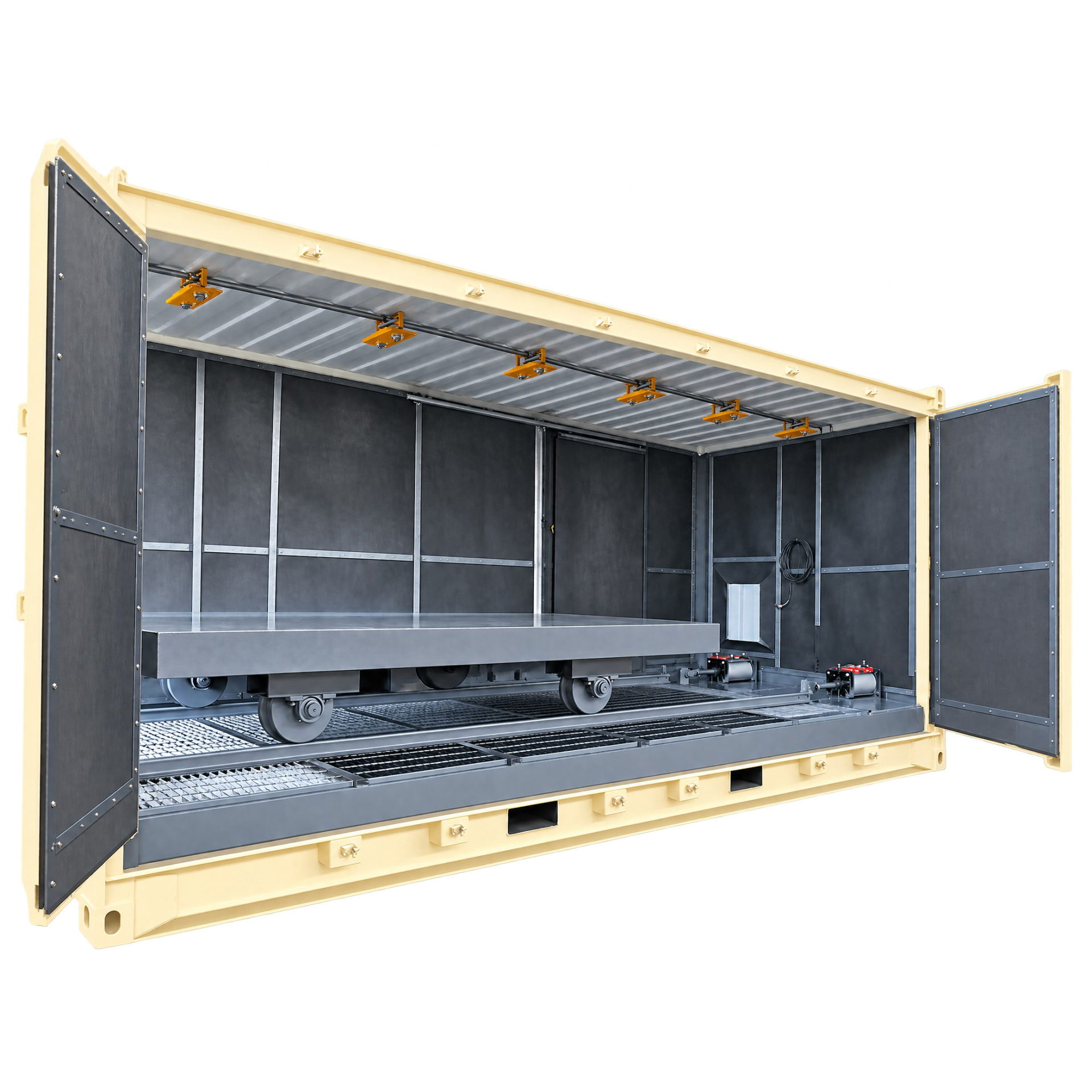

- Recovery Floor Module located at one end.

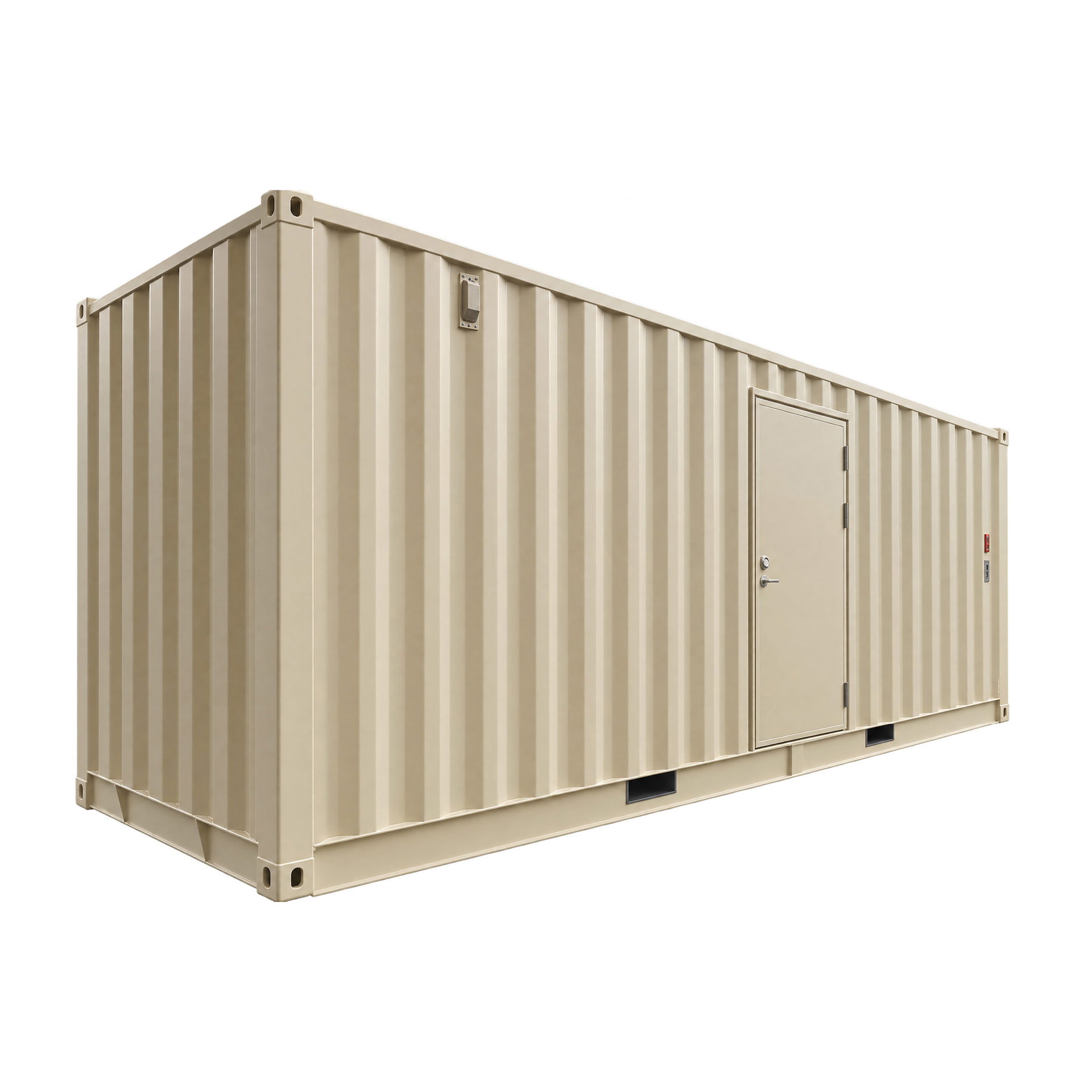

- 2400mm Wide x 2900mm High x 6000mm Deep NEW Hi-Cube Container.
- Pneumatic Deadman System integrated with Door Interlocks.
- Recovery 1.5 System includes Abrasive Air Wash Module.
- 4000CFM Reverse Pulse Dust Collector.
- Safety Door Interlocks on all doors.
- Six (6) – Standard length Energy saving LED Lights.
- Toughened Safety Glass Viewing Windows.
- MultiBlast Manufactured Recovery Components. (Australian Made)
- HD Blast Hose and Sized Blast Nozzle.
- Operator Safety Blast Helmet & Breathing Filters.
General Description
The Multiblast Blasting Room Container Blast System offers a unique means of Abrasive Recovery. In conjunction with the “W” Section Floor, a most efficient ventilation system is provided. This has some outstanding advantages when compared with other Blast Room designs. The economics of recycling durable Abrasive Media provides a very attractive payback on investment scenario. This system can conform to the requirements of AS1627-4 (Metal finishing – Preparation and pretreatment of surfaces – Abrasive Blast Cleaning of steel)
- A simplified design combining Down and End Draught Ventilation and pneumatic conveying in the same air movement
- Elimination of Mechanical Parts from the Abrasive Conveying system, reducing costly maintenance and breakdowns
- Clear Visibility for the Blast Operators comfort and effectiveness in sighting the blast target
- The Pneumatic Conveying system, in conjunction with the Abrasive Reclaimer, air washes the abrasive media before re-blasting, ensuring that dust and foreign matter are removed. This is particularly important where coatings such as Powder Coat, Paint, Metal Spray etc are applied post Blast.
Wireframe Diagram
Specification
| Production Name |
MultiBlast PROBRS12000
|
| Room Dimension | 12000 Length x 2400 Width x 2500 Height |
| Total Power | 10.9 kw |
| Minimum Air Supply Requirement | |
| CFM | 230 CFM |
| LPM | 6500 LPM |
| Cleaning Effect | |
| Surface Preparation Level |
ISO 8501-1 – Sa 2.5
|
| Surface Preparation Level |
ISO8501-1:1988 40μm~80μm
|
| Abrasive Specification | |
| Initial Filling Capacity | 1 Tonne |
| Diameter | φ0.4~φ1.5 mm |
| Blasting Room | 1 x 40ft container wear resistant rubber guard plate |

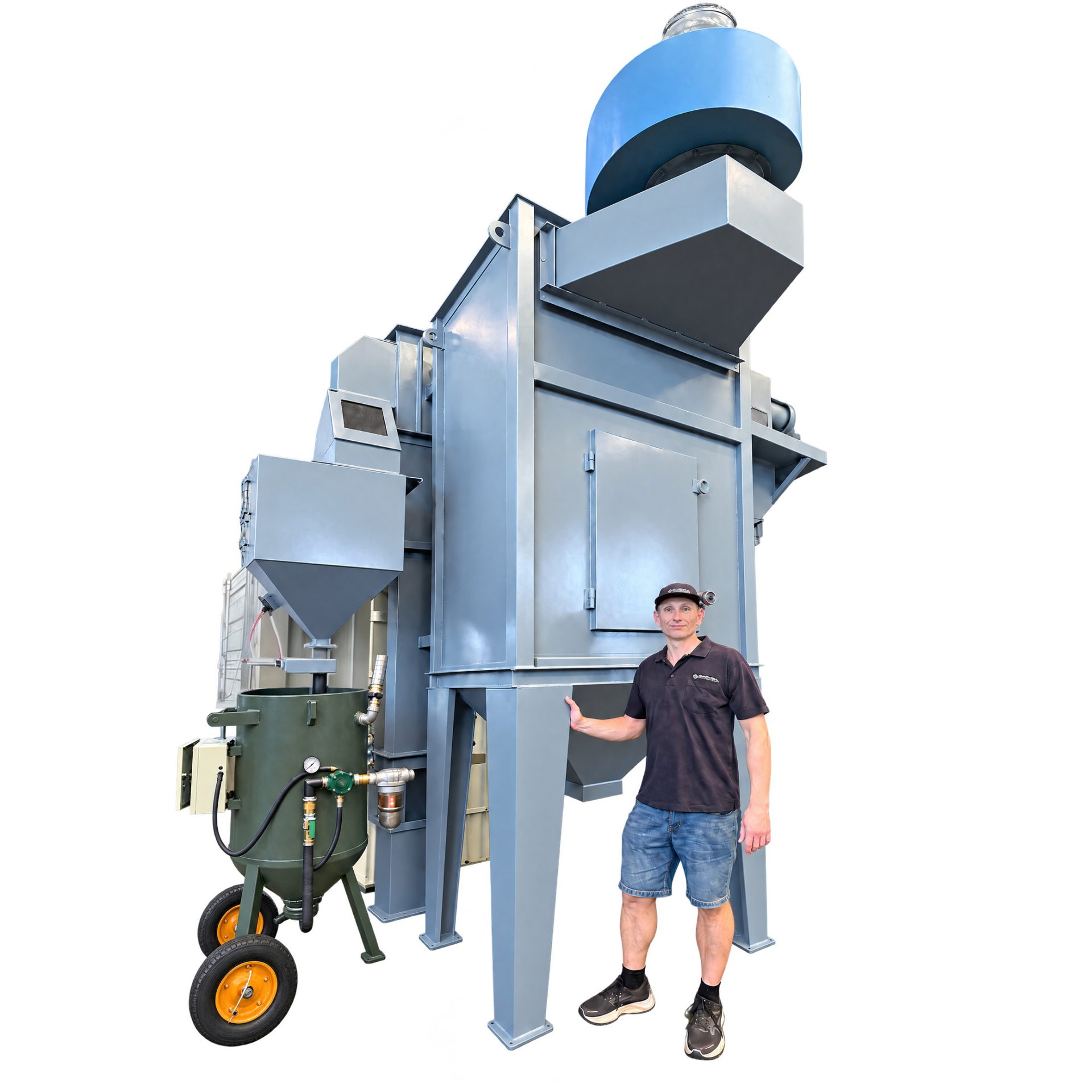

| 1 Set – Sandblasting Machine – Air Jet + Sand Blast | |
| Gun Quantity |
1 pcs (pneumatic remote control)
|
| Venturi Nozzle Diameter | Φ10 mm |
| Volume Of In-Tank | 0.3m3 |
| Emitted Dose | 1500-2500kg/h |
| Working Air Pressure | 5-8 bars |
| Floor Recovery System | |
| 1 Set – Crosswise Screw Conveyor Recovery System | |
| Delivery Capacity | 15t/h |
| Reduction Box Motor Power | Share with bucket elevator |
| 2 Set – Automatic Scraper Conveyor | |
| Pneumatic Cylinder Control |
Length: approx.: 12 meters
Delivery capacity: 15t/h |
| 1 Set – Bucket Elevator- | |
| Lifting Capacity | 15t/h |
| Power | 3kw |
| Speed | 1.6m/s |
| 1 Set – Abrasive Separator- | |
| Separation Capacity | 15t/h |
| Power |
Share the same with bucket elevator
|
| Multiple Level Air Wash Type – Storage Hopper And Abrasive Dosing Unit (Manual+Air Cylinder Control) | |
| Air Speed | 4-5m/s |
| Dust Collector Air Volume | 7000 m3/h |
| Ventilation Speed | 0.15m/s |
| Dust-Proof Led Lam | |
| Illumination | around 120 lx |
| Power | 8×50w |
| 1 Set – Fan Motor | |
| Centrifugal Fan Motor Power | 7.5kW |

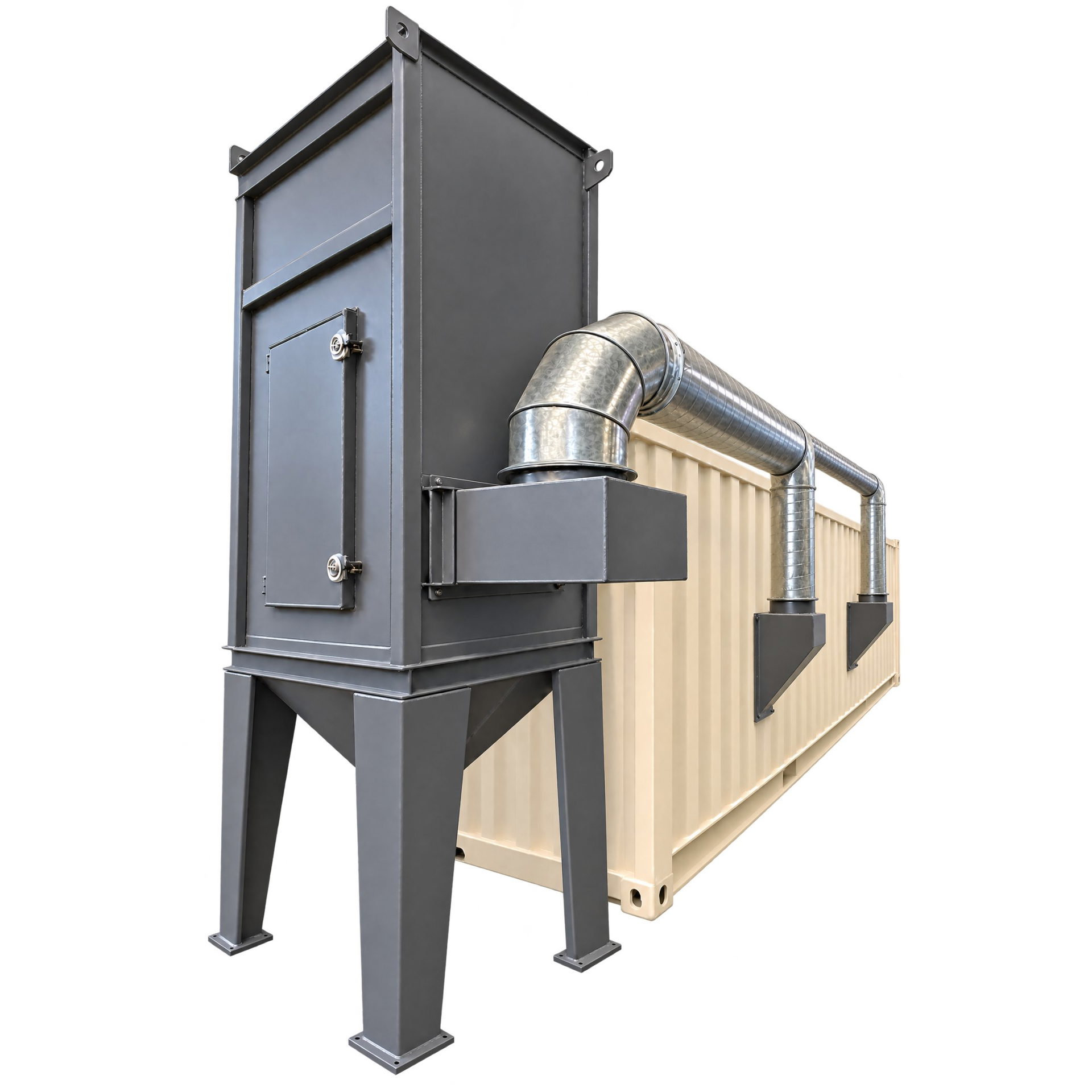

| 1 Set – Dust Collector | |
| Cartridge Filters | HL-7 |
| Filter Brand | Donaldson |
| Effective Filtering Area | 120m2 |
| Dust Collecting Efficiency | ≥99.2% |
| Air Shock Valve For Filter With Timing Device | |
| 1Unit – Collection Silo | |
| Storage Capacity | 1 Tonne |
| Total Machine Noise | ≤60dB |
| 1 Unit – Electric Control System |
A mpere meter, Emergency stop,
Manual key switch, Contactor, Button, Indicator, Control element |
| Air Source |
Air compressor NOT Included
|
Additional information
Additional information
| Dimensions | 1200 × 240 × 250 cm |
|---|
