Description

Rapidcut pneumatic cutters are lightweight and easy to handle.

They require minimal maintenance, reducing down time and making them a very cost-effective tool in demanding applications.

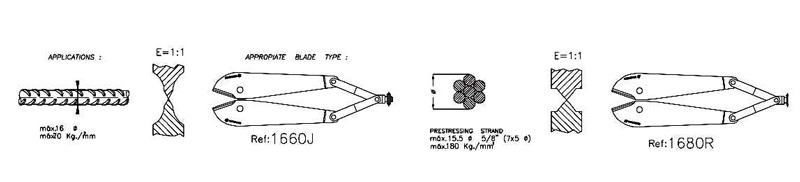

Rapidcut 16 Series Cutters are fitted with 1660J cutter heads, which suits rebar and mesh to 686 Mpa (70kg/mm2) yield strength.

Typical rebar and mesh sold in Australia is rated at 500Mpa.
1680R cutter heads are available for 15.2mm OD (0.6″) High Tensile Stressing Wire (Prestressing Strand) from stock to fit existing cutters.

Specifications

Total Weight	18.0 Kg.
Dimensions	1164 mm long x 264mm high
Cutting Range	Maximum 16mm Ø in steel up to 70 Kg./mm2 Maximum 15.5mm Ø in steel up to 180 Kg./mm2
Cutting Velocity	10 cuts per minute
Air Pressure Required	90 – 120 PSI (6—8.5 Bar)
Air Consumption	Approx: 48 litres/cut at 7 Bar

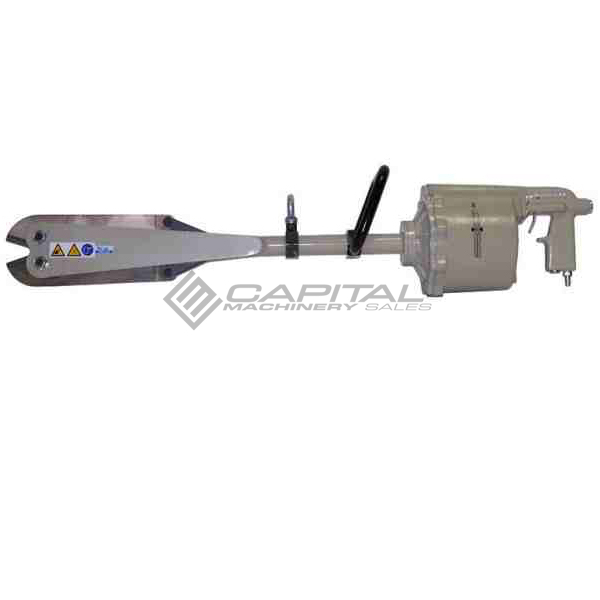

Rapidcut 16 Pneumatic Cutter
