SMG F1000H Hydraulic Flange Facing Machine With 7.5kW Hydraulic Power Unit, Hoses and Fittings

The SMG F1000H Hydraulic Portable Flange Facing Machine is built around the same ID-mounted clamping system, powered 360° tool post, and three-speed continuous feed gearbox as the rest of the F1000 series, driven by a dedicated 7.5kW hydraulic power unit rather than compressed air or an electric motor. The power unit is supplied complete with hoses and fittings, giving the machine higher available torque for heavier facing and boring cuts.

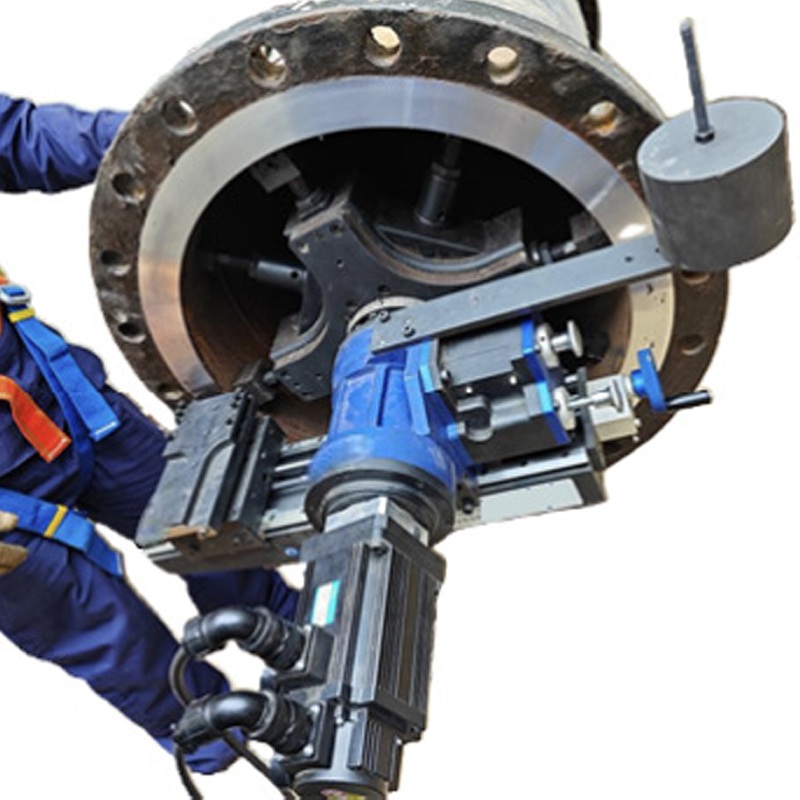

Internal quick-set adjustable clamping jaws expand to grip the flange bore across the full 145–813mm loading range, centring the machine on the flange without external fixtures. Combined with a working capacity of 153–1000mm, this gives the machine a wide working range from a single, self-contained facing head that centres and locks in place before machining begins.

Operator control is built around the three-speed feed gearbox and the 100mm geared automatic tool post travel, which advances the tool through facing and boring passes without requiring the operator to manually crank or reposition the unit mid-cut. Because the drive is hydraulic rather than pneumatic, the machine does not depend on a site compressed air compressor, and the higher available torque of the hydraulic pack allows steadier, more controlled feed through harder materials and deeper passes, reducing the load on the operator during extended facing runs.

The facing head ships in a compact 1120 x 760 x 950mm crate at approximately 218kg, while the 7.5kW hydraulic power unit ships separately at approximately 310kg in a 1080 x 800 x 1150 mm crate. The F1000H is suited to flange facing, seal groove machining, weld preparation, and counter boring on pipe, valve, and pump flanges across oil and gas, power generation, heavy equipment, and shipbuilding and repair applications, particularly where higher cutting torque or independence from compressed air supply is required.

Features

• 7.5kW hydraulic power unit – Supplied complete with hoses and fittings, delivering high-torque output for heavier facing and boring passes independent of site compressed air infrastructure.
• Powered 360° tool post – Completes continuous machining passes around the full flange face without repositioning, widening the range of facing, grooving, and counter-boring operations possible from a single setup.
• Three-speed continuous feed gearbox – Delivers six selectable in/out facing feed rates from 0.139mm/rev to 0.628mm/rev, producing a fine, consistent surface finish suited to gasket sealing faces.
• Quick-set adjustable clamping jaws – Internal ID-mounting clamps set up quickly across the 145–813mm working range, minimising setup time and manual handling on-site.
• Wide facing and mounting range – Covers 153–1000mm working diameter and 145–813mm loading diameter from a single machine, reducing the need for multiple facing units across a flange size range.
• Geared automatic tool post travel – 100mm stroke handles deep facing and boring passes without needing to reposition or re-clamp the machine mid-operation.
• Repeatable feed control – Separate 3-speed boring feed rates (0.05 / 0.10 / 0.20mm/rev) allow the operator to match feed rate to material and finish requirements.

Specification

Tool Bit Specifications

• Facing and grooving tool bits use HSS holders fitted with HSS-Co or carbide inserts, selected according to material and required finish
• Suitable for flat facing, seal groove machining, weld preparation, and counter boring
• Exact tool bit set supplied depends on order specification

Shipping & Installation

• Facing machine shipping dimensions: 1120 x 760 x 950 mm, shipping weight approximately 218 kg
• Hydraulic power unit shipping dimensions: 1080 x 800 x 115 mm, shipping weight approximately 310 kg – ships in a separate crate from the facing head
• Portable, ID-mounted facing head – no fixed installation required; power unit is stationary during operation and connects via the supplied hoses
• Suited to both workshop and on-site/field deployment; independent of site compressed air infrastructure

Warranty & Support

• 1-year standard warranty covering manufacturing defects
• Spare parts (tool bits, hydraulic seals, hoses, clamping components)
• Pre-dispatch product testing and commissioning
• After-sales technical and application support available for setup and troubleshooting

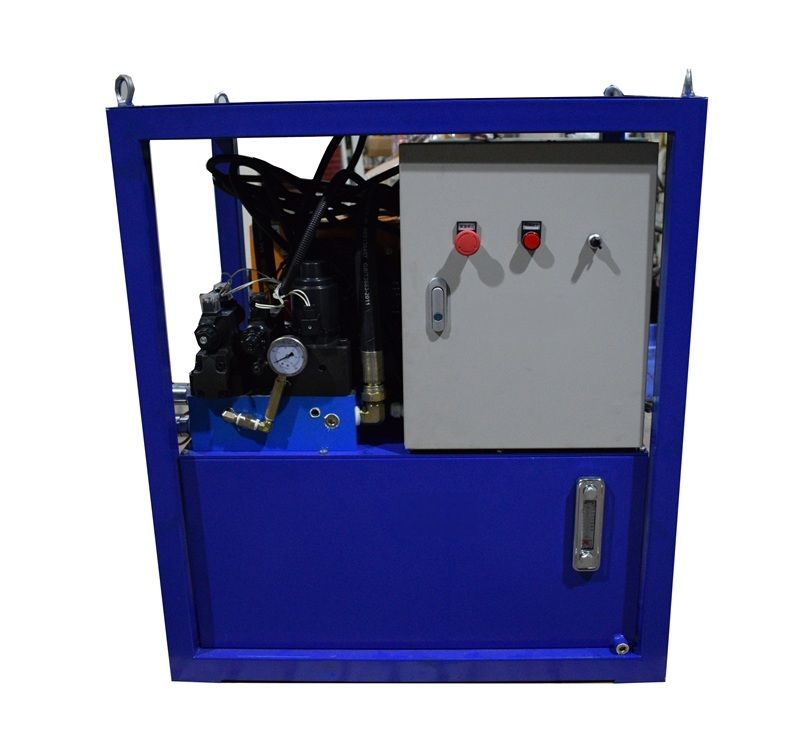

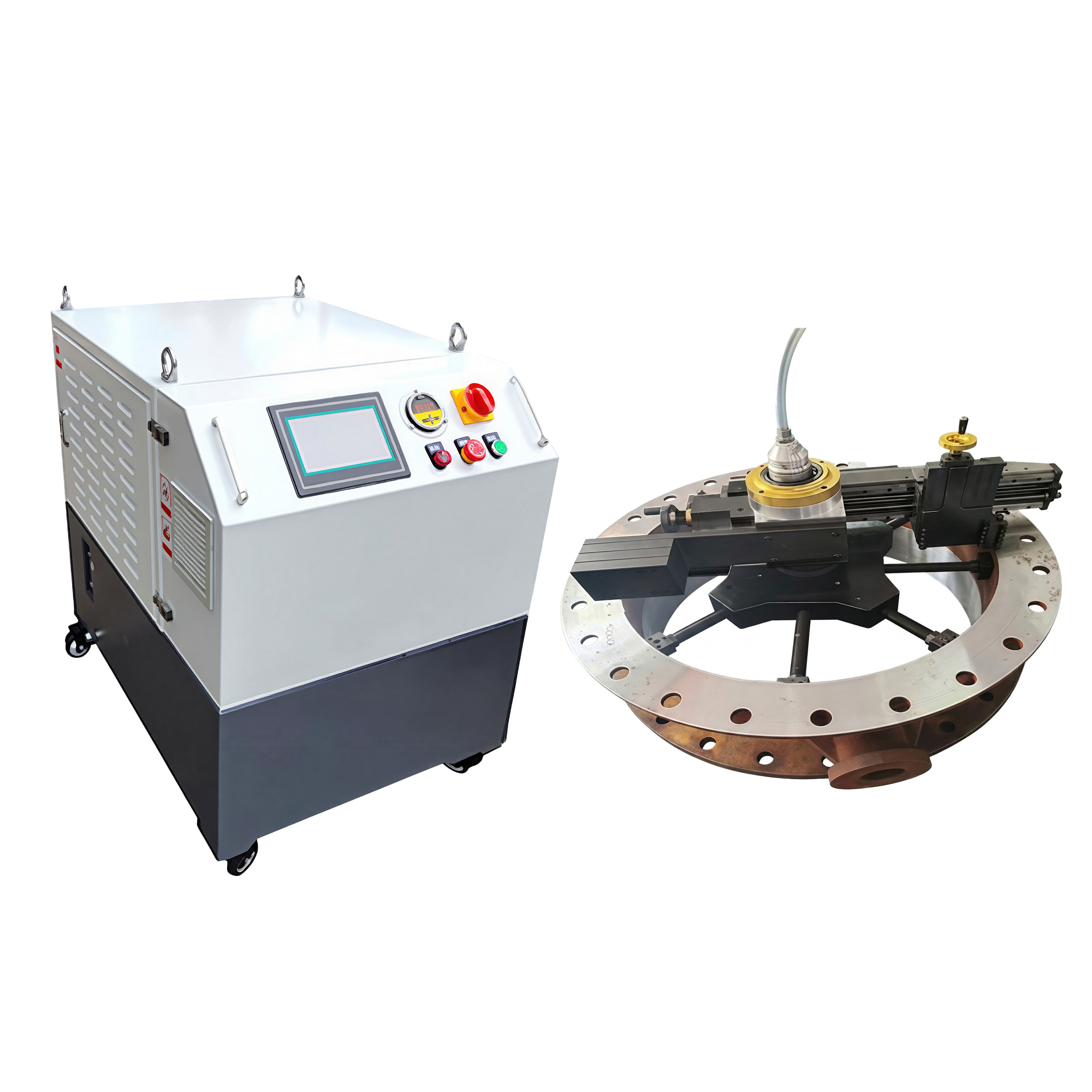

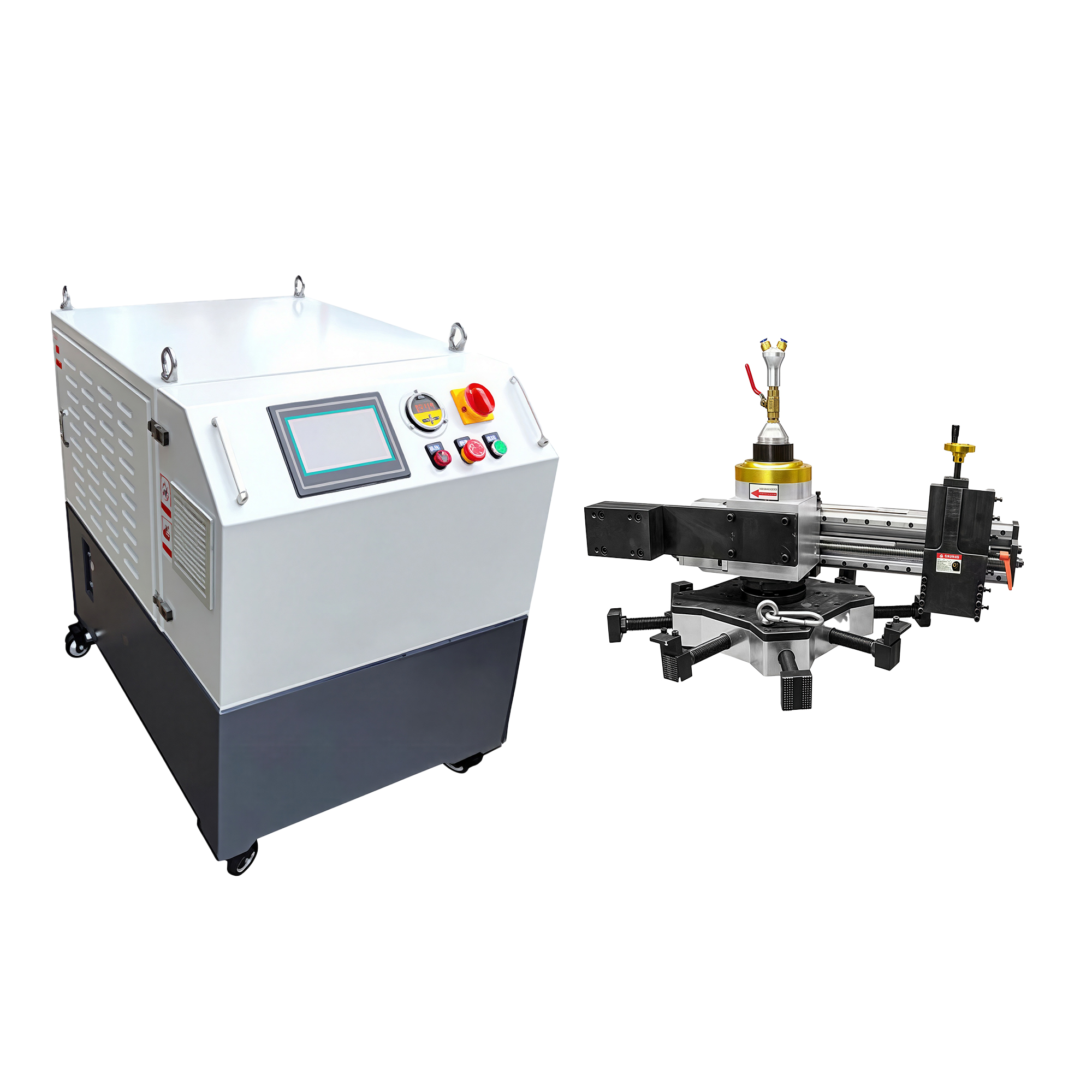

SMG F1000H Hydraulic Power Station Unit Dimension

SMG F1000H Hydraulic Flange Facing Machine Video
