SMG Flange Facing Equipment and Machine
-
SMG F110M Flange Alignment Tool
The SMG F110M Flange Alignment Tool is a robust and specialized tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-10 tons (10-100kN), it is well-equipped to handle various industrial applications.
$2,674.00 Excl. GST $2,941.40 Incl. GST
Product ID: SMG-F110M -
SMG F440M Flange Alignment Tool
The SMG F440M Flange Alignment Tool is a specialized and robust tool specifically designed for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is well-suited for a variety of industrial applications.
$5,032.00 Excl. GST $5,535.20 Incl. GST
Product ID: SMG-F440M -
SMG F990H Flange Alignment Tool
The SMG F990H Flange Alignment Tool is a specialized and robust tool specifically designed for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is well-suited for a variety of industrial applications.
$4,380.79 Excl. GST $4,818.87 Incl. GST
Product ID: SMG-F990H -
SMG F990M Flange Alignment Tool
The SMG F990M Flange Alignment Tool is a specialized and robust tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is ideal for a wide range of industrial applications.
$6,095.00 Excl. GST $6,704.50 Incl. GST
Product ID: SMG-F990M -
SMG F990S Flange Alignment Tool Package
The MG F990S Flange Alignment Tool Package includes includes a hydraulic hose, and hand pump, making it a comprehensive and convenient solution for your alignment needs. The SMG F990S Flange Alignment Tool itself is a specialized and robust tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), it is suitable for a wide range of industrial applications.
$5,225.08 Excl. GST $5,747.59 Incl. GST
Product ID: SMG-F990S -
SMG F350 Portable Flange Facing Machine
The SMG F350 Portable Flange Facing Machine is the perfect onsite tool for any flat face flanges you need to refinish. It’s user-friendly and efficient, delivering a smooth finish that creates optimized gasket contact and seating conditions with ease.
Was $ 7,518.00 Excl. GST $ 8,269.80 Incl. GST Now Only$6,766.20 Excl. GST $7,442.82 Incl. GST
Product ID: SMG-F350 -

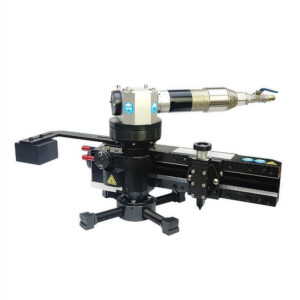

SMG F610 Pneumatic Flange Facing Machine (Facing Range: 2 – 24” (50 – 610mm)
The SMG F610 Pneumatic Flange Facing Machine is a portable flange facing machine built for on-site facing, bevelling, and turning of pipe, valve, and pump flanges from 50–610 mm (2″–24″). Driven by a 0.89 kW pneumatic motor running at up to 42 RPM, it delivers machine-shop accuracy in a lightweight, ID-mounted flange facing machine that can be set up and run in horizontal, vertical, or overhead orientations. It is suited to oil and gas, power generation, heavy equipment, and shipbuilding and repair environments where flange face machining needs to happen in place, without removing the flange for workshop repair.
$19,332.00 Excl. GST $21,265.20 Incl. GST
Product ID: SMG-F610P -
SMG F1000P Pneumatic Flange Facing Machine, 153–1000mm OD / 145–813mm ID
The SMG F1000P Pneumatic Flange Facing Machine is an ID-mounted flange facing machine built to re-face, groove and prepare flange sealing surfaces from 153mm up to 1000mm OD without removing the flange from the line. A 1.7kW pneumatic drive turns the powered 360° tool post through a three-speed continuous feed gearbox, while quick-set adjustable clamping jaws speed up setup across the 145–813mm ID mounting range and reduce operator handling time on site. Suited to oil and gas, power generation, and heavy equipment applications where compressed air is already available, it delivers repeatable machine-shop accuracy directly at the flange.
$26,757.00 Excl. GST $29,432.70 Incl. GST
Product ID: SMG-F1000P -
SMG F1000H Hydraulic Flange Facing Machine With 7.5kW Hydraulic Power Unit, Hoses and Fittings
The SMG F1000H Hydraulic Portable Flange Facing Machine is an ID-mounted portable flange facing machine that re-faces, grooves and prepares flange sealing surfaces from 153mm up to 1000mm without removing the flange from the line. A 7.5kW hydraulic power unit, supplied complete with hoses and fittings, drives the powered 360° tool post through a three-speed continuous feed gearbox, while quick-set adjustable clamping jaws speed up setup across the 145–813mm working range and reduce operator handling time on site. High-torque hydraulic drive makes it well suited to heavier facing and boring passes across oil and gas, power generation, and heavy equipment applications, independent of a site compressed air supply.
$37,196.00 Excl. GST $40,915.60 Incl. GST
Product ID: SMG-F1000H
