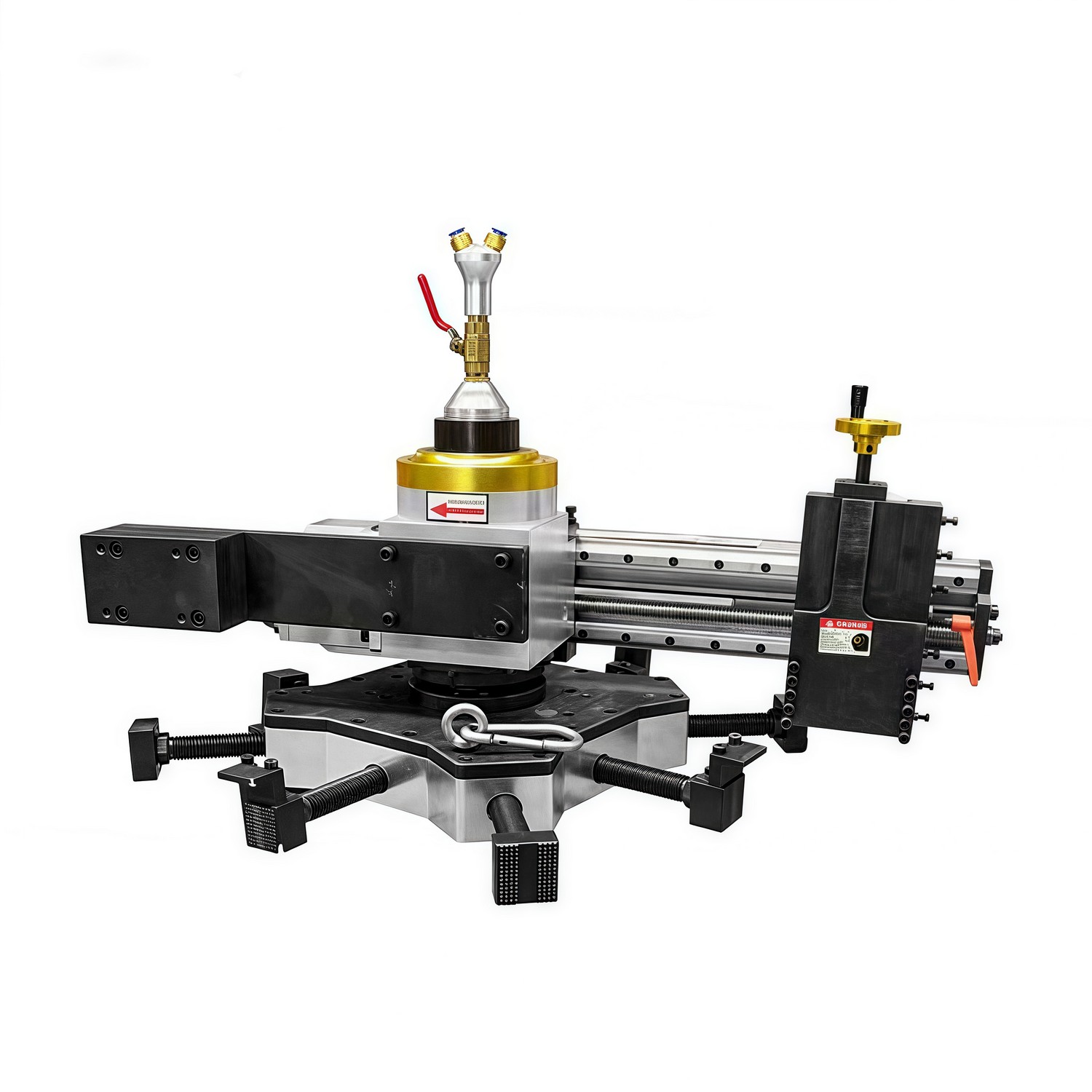

SMG F1000E Electric Flange Facing Machine, 153–1000mm / 145–813mm

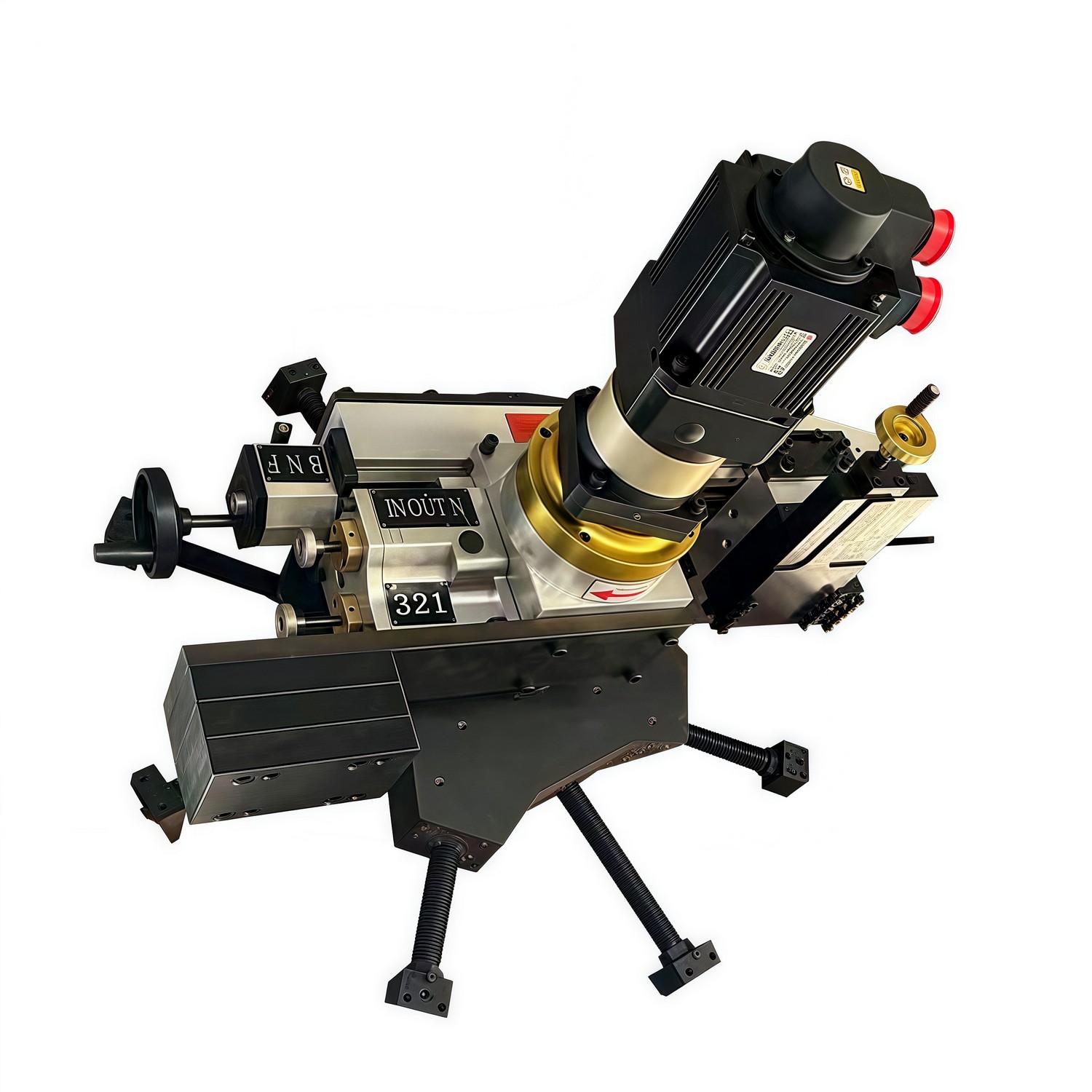

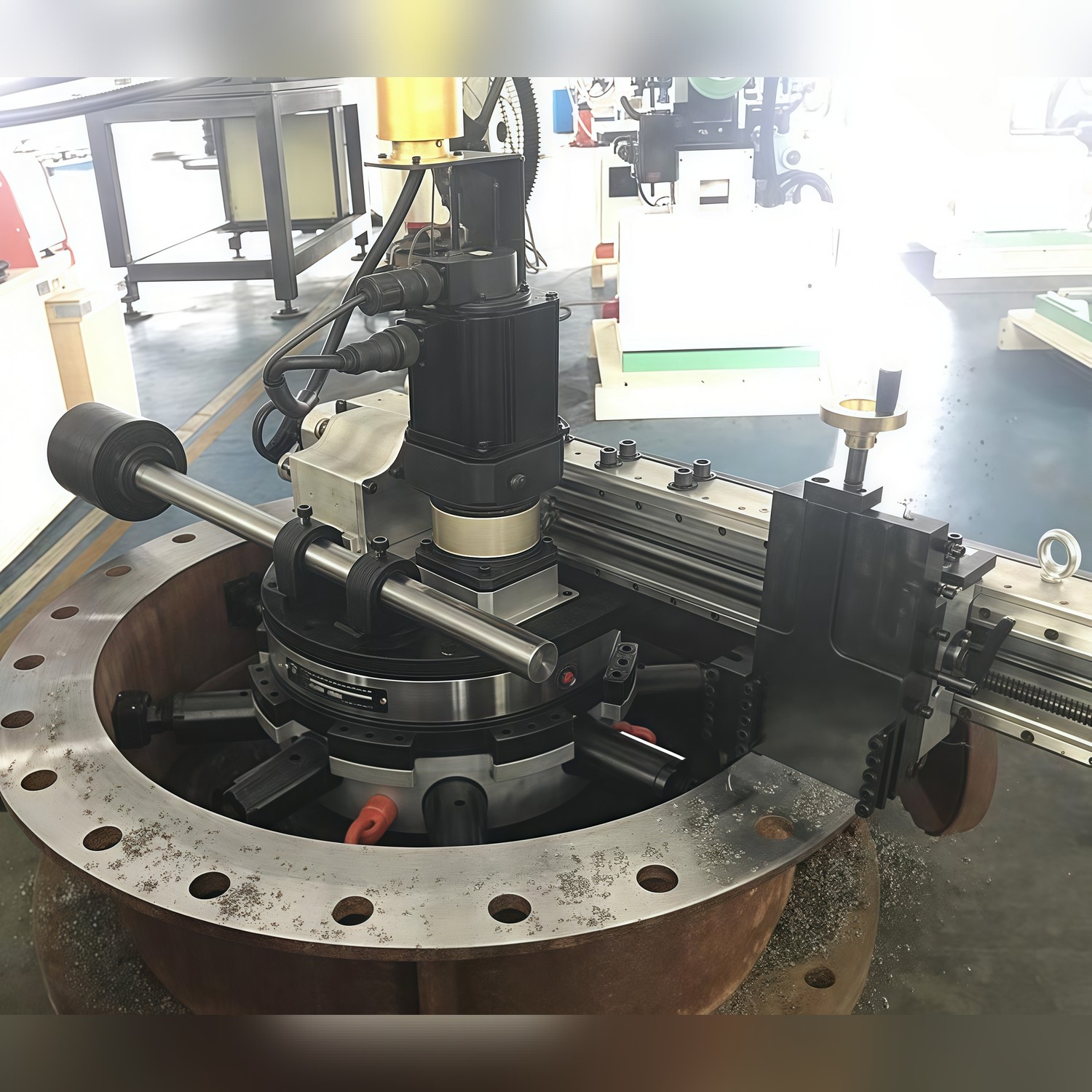

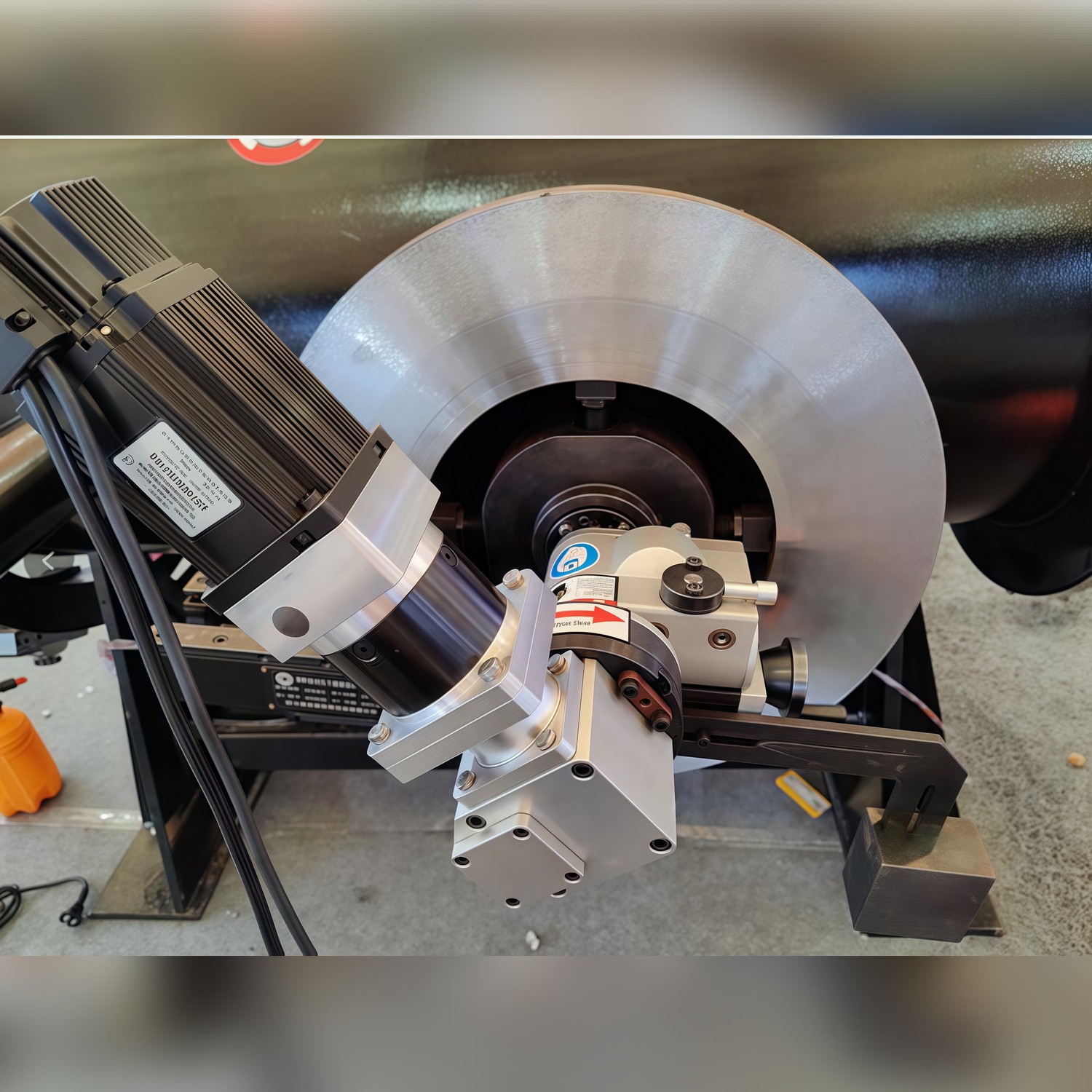

The SMG F1000E Electric Flange Facing Machine shares the same ID-mounted clamping system, powered 360° tool post, and three-speed continuous feed gearbox as the rest of the F1000 series, driven here by a 2kW servo motor instead of a pneumatic or hydraulic power source. The servo drive gives the operator consistent, controllable feed speed across the 0–33 RPM spindle range without needing a compressed air or hydraulic power unit on site.

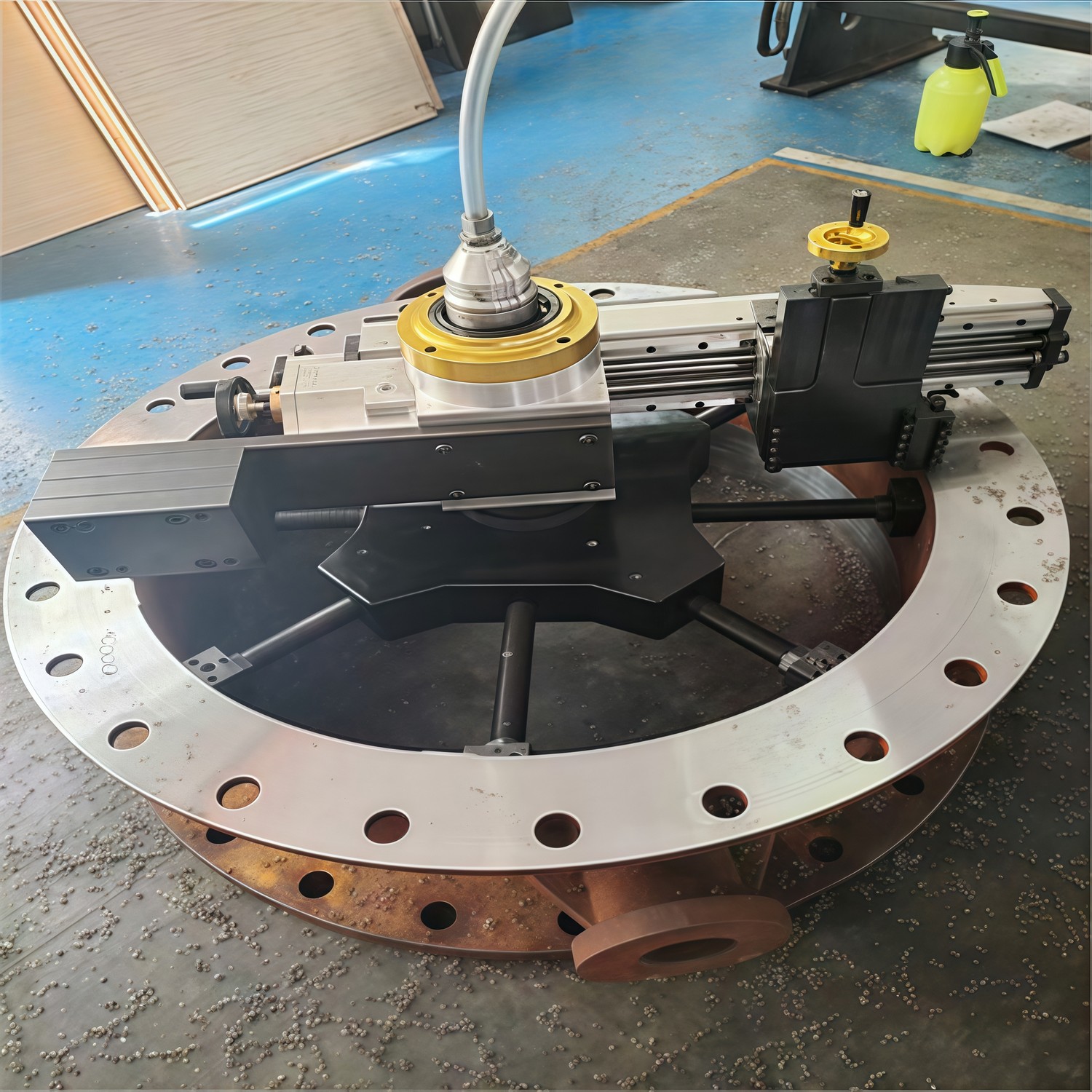

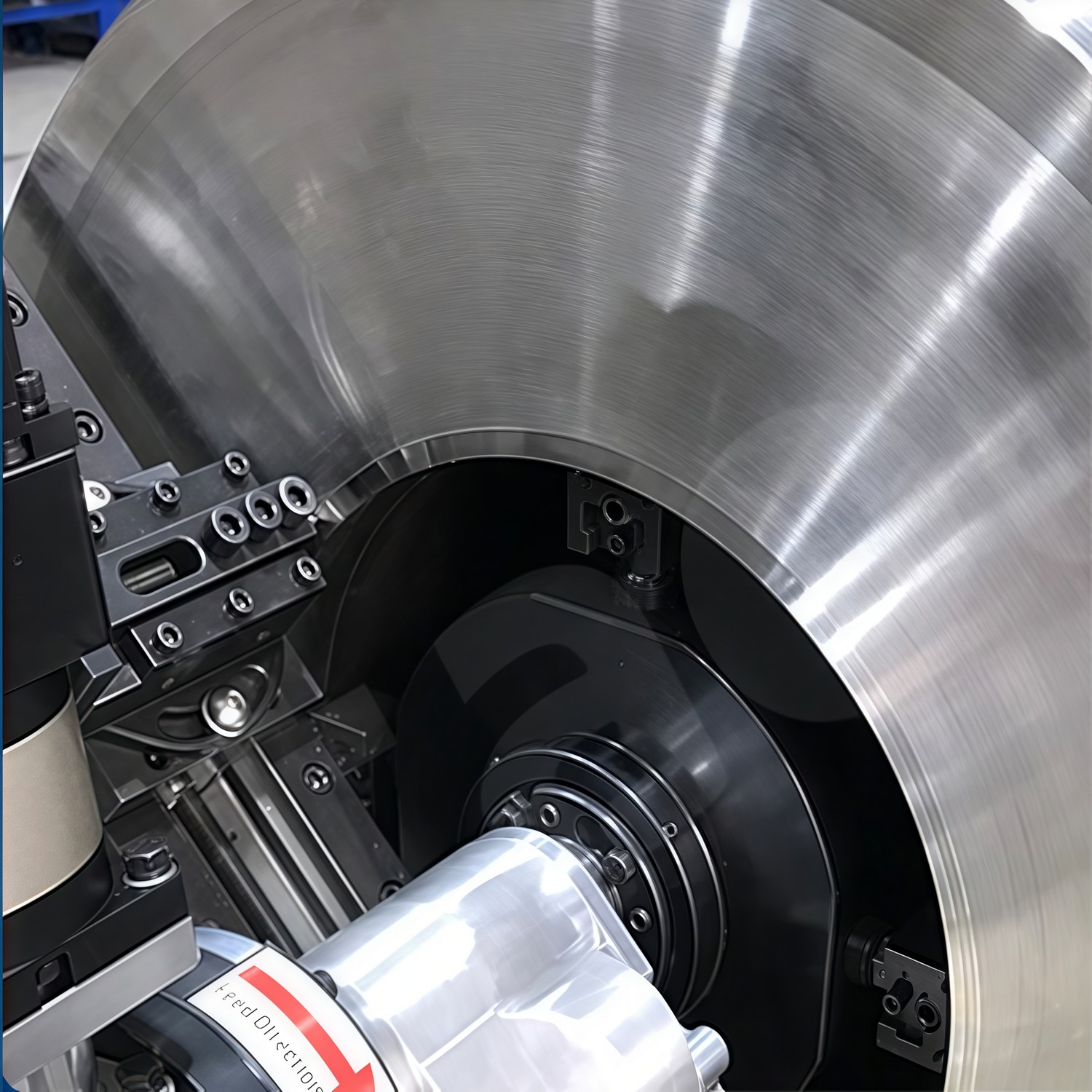

Internal quick-set adjustable clamping jaws expand to grip the flange bore across the full 145–813mm loading range, centring the machine on the flange without external fixtures. Combined with a working capacity of 153–1000mm, this gives the machine a wide working range from a single, self-contained facing head that centres and locks in place before machining begins.

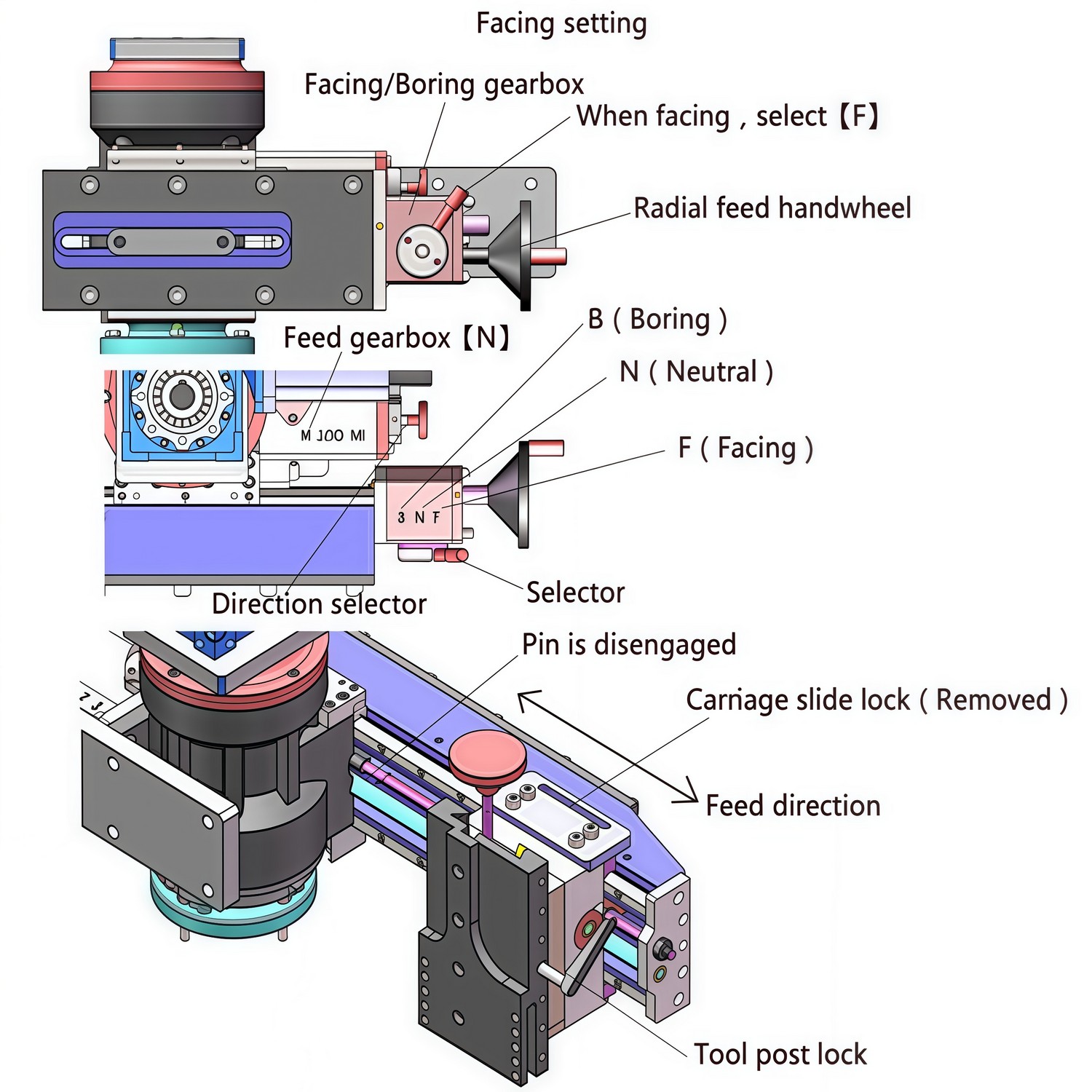

Operator control is built around the three-speed feed gearbox and the 100mm geared automatic tool post travel, which advances the tool through facing and boring passes without requiring the operator to manually crank or reposition the unit mid-cut. The servo motor’s consistent speed control reduces the amount of manual feed correction needed during longer facing passes compared with a purely mechanical drive, and because the machine runs on electric power only, it removes the need to run compressed air lines or a hydraulic pack to the work site.

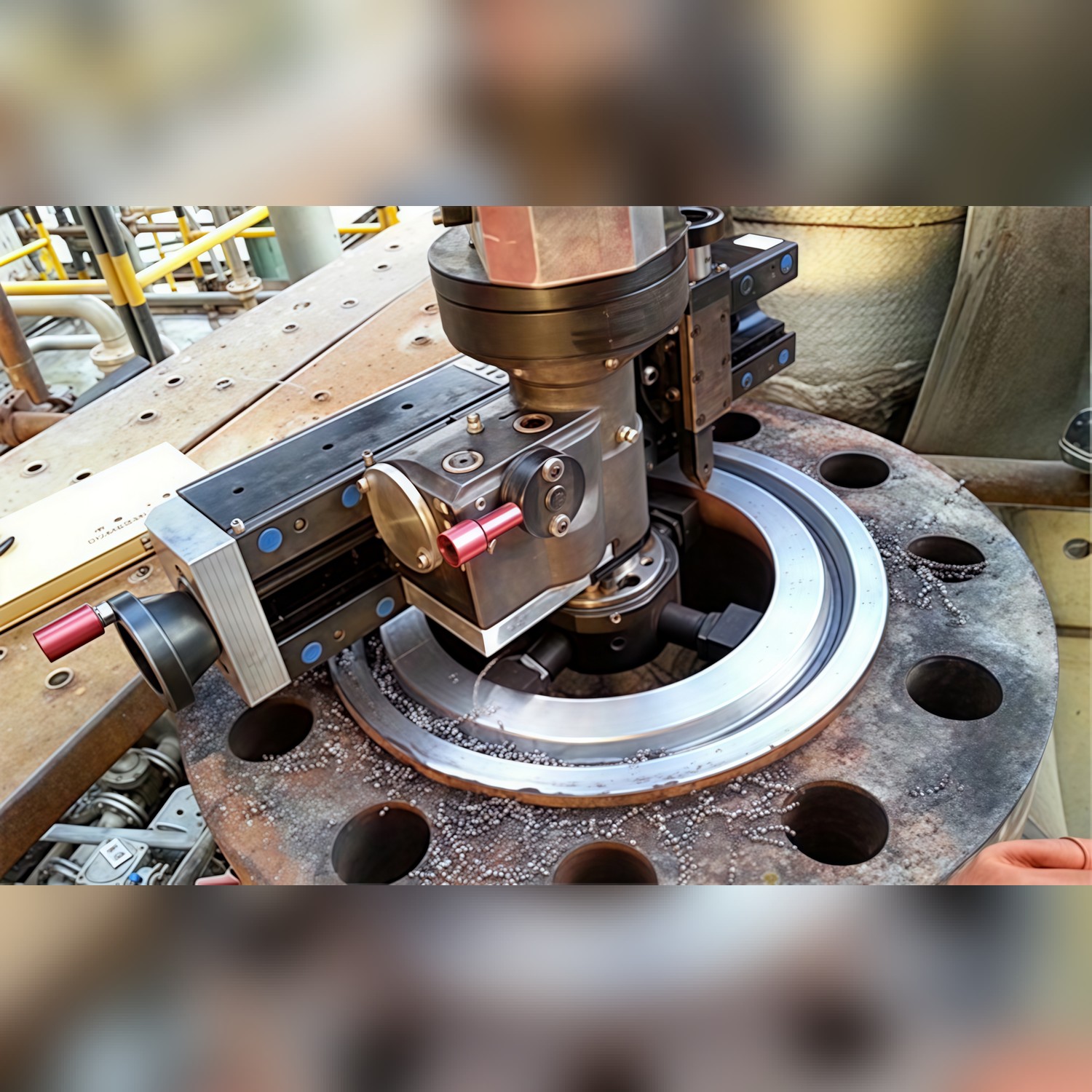

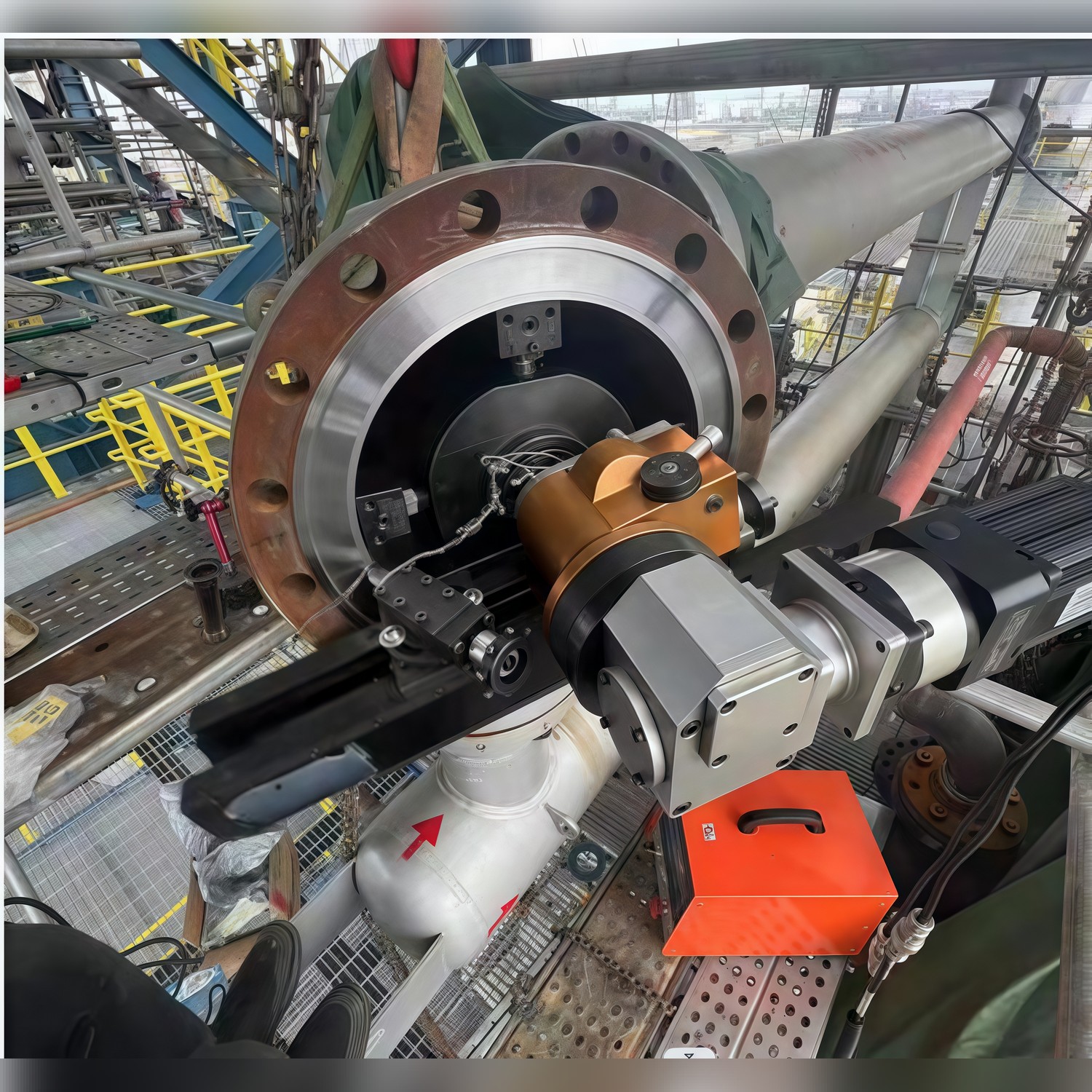

As a newly introduced configuration in the F1000 range, official shipping dimensions and weight for the servo electric variant have not yet been published by the supplier; these are expected to be close to the pneumatic and hydraulic base machine figures given the shared chassis, but should be confirmed before this listing goes live. The F1000E is suited to flange facing, seal groove machining, weld preparation, and counter boring on pipe, valve, and pump flanges across oil and gas, power generation, heavy equipment, and shipbuilding and repair applications, particularly on sites without existing compressed air or hydraulic infrastructure.

Features

• 2kW servo motor drive – Electrically powered drive system suited to sites without compressed air or hydraulic infrastructure, providing consistent, controllable torque across the 0–33 RPM spindle speed range.
• Powered 360° tool post – Completes continuous machining passes around the full flange face without repositioning, widening the range of facing, grooving, and counter-boring operations possible from a single setup.
• Three-speed continuous feed gearbox – Delivers six selectable in/out facing feed rates from 0.139mm/rev to 0.628mm/rev, producing a fine, consistent surface finish suited to gasket sealing faces.

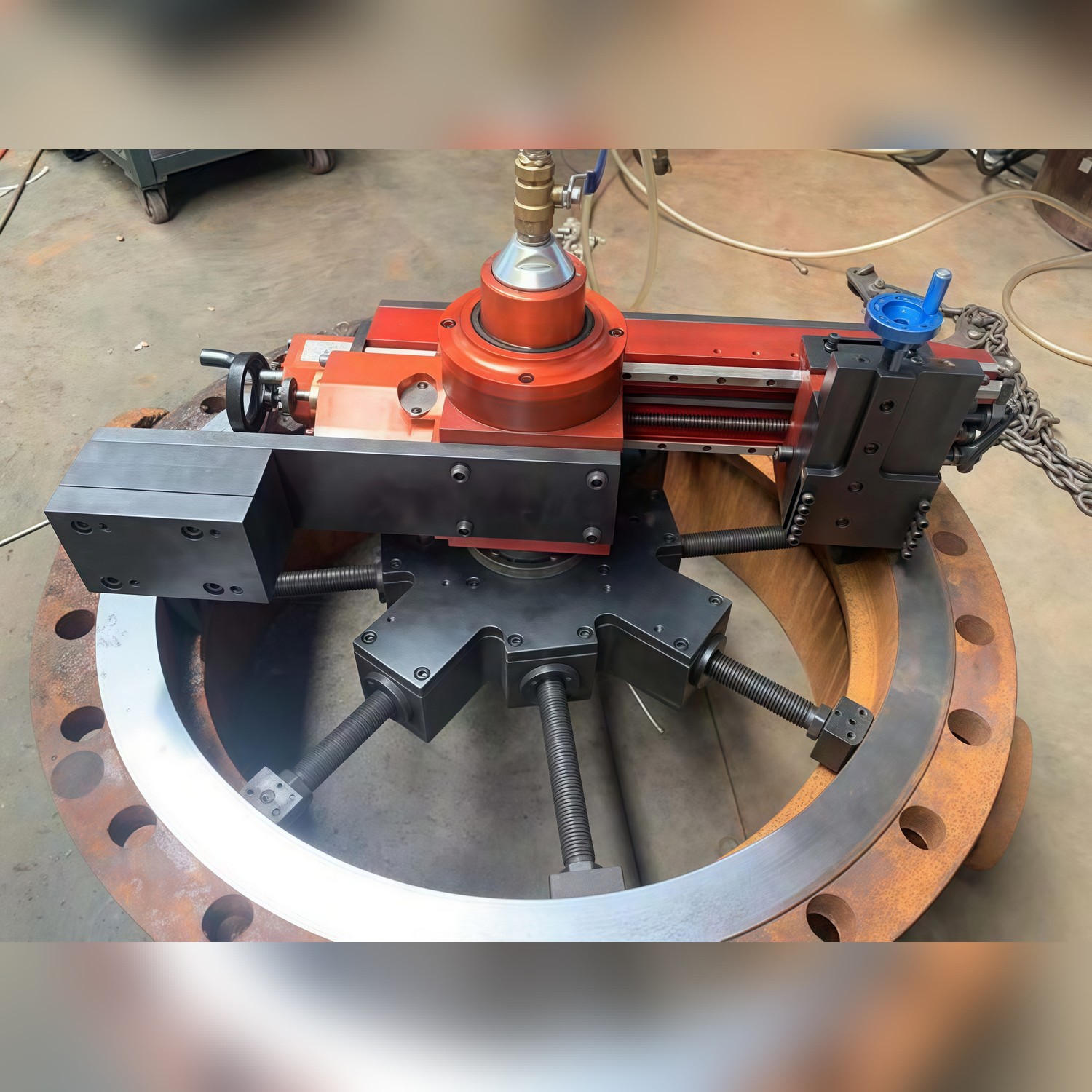

• Quick-set adjustable clamping jaws – Internal ID-mounting clamps set up quickly across the 145–813mm loading range, minimising setup time and manual handling on-site.
• Wide facing and mounting range – Covers 153–1000mm working range diameter and 145–813mm loading range diameter from a single machine, reducing the need for multiple facing units across a flange size range.

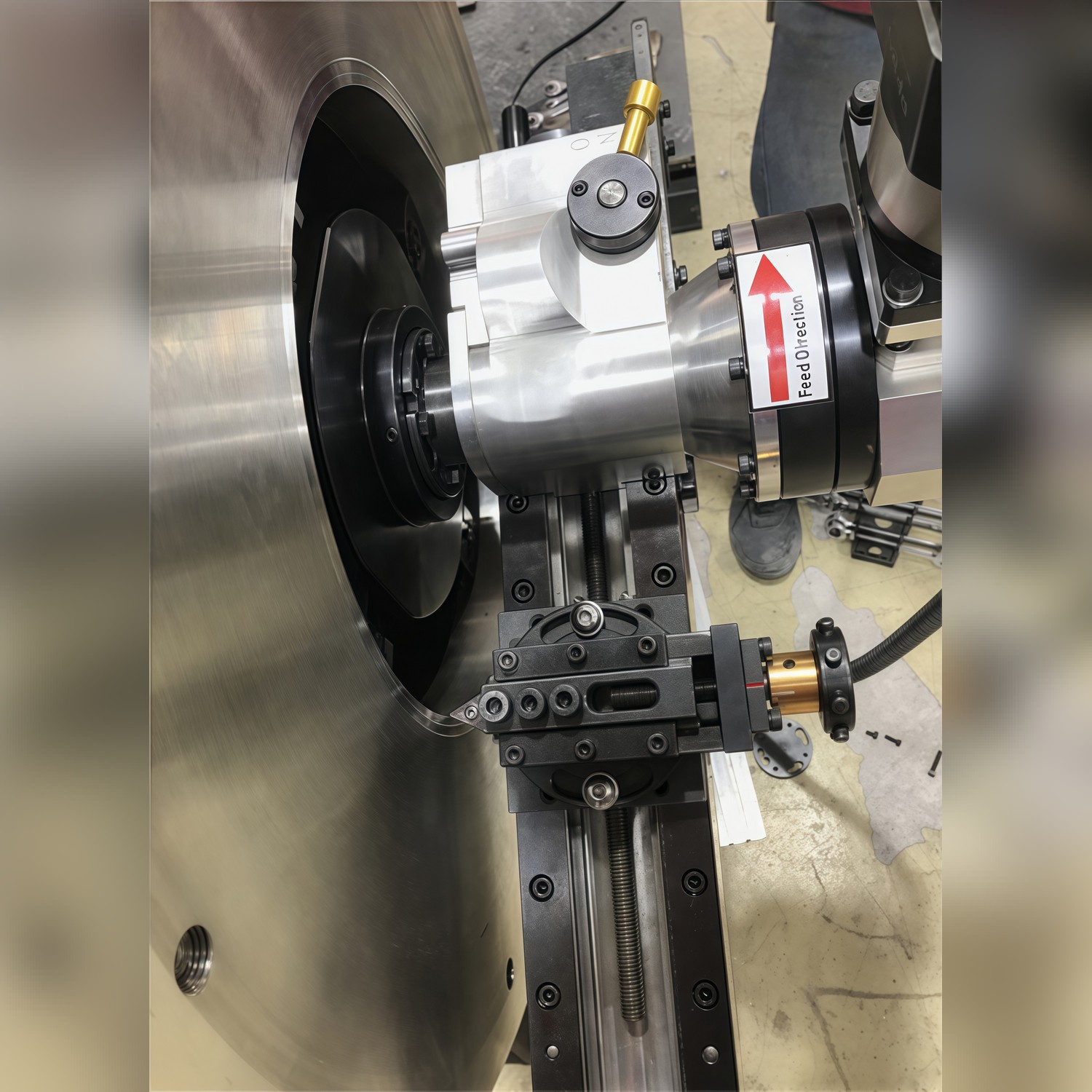

• Geared automatic tool post travel – 100mm stroke handles deep facing and boring passes without needing to reposition or re-clamp the machine mid-operation.
• Repeatable feed control – Separate 3-speed boring feed rates (0.05 / 0.10 / 0.20mm/rev) allow the operator to match feed rate to material and finish requirements.

Specifications

Tool Bit Specifications

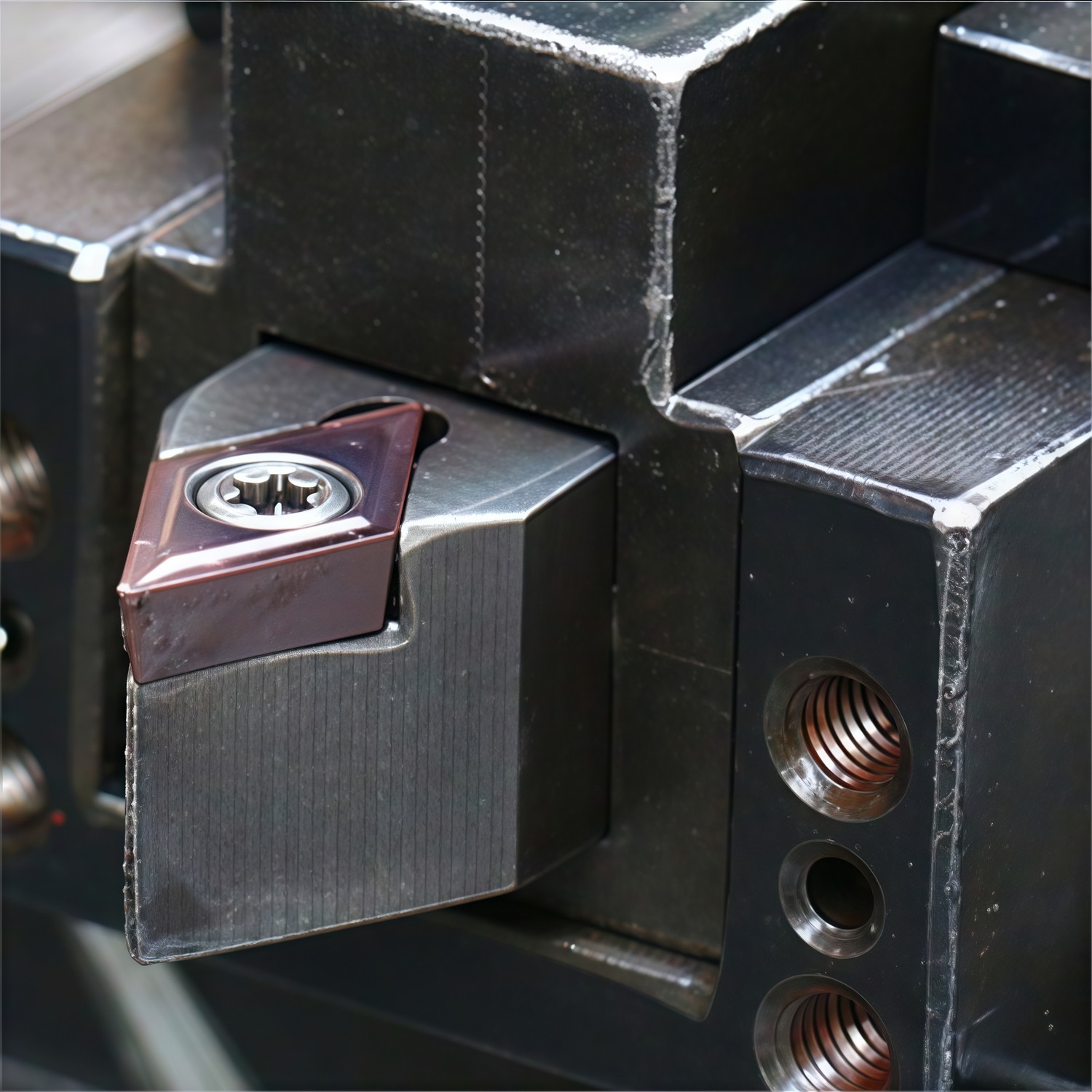

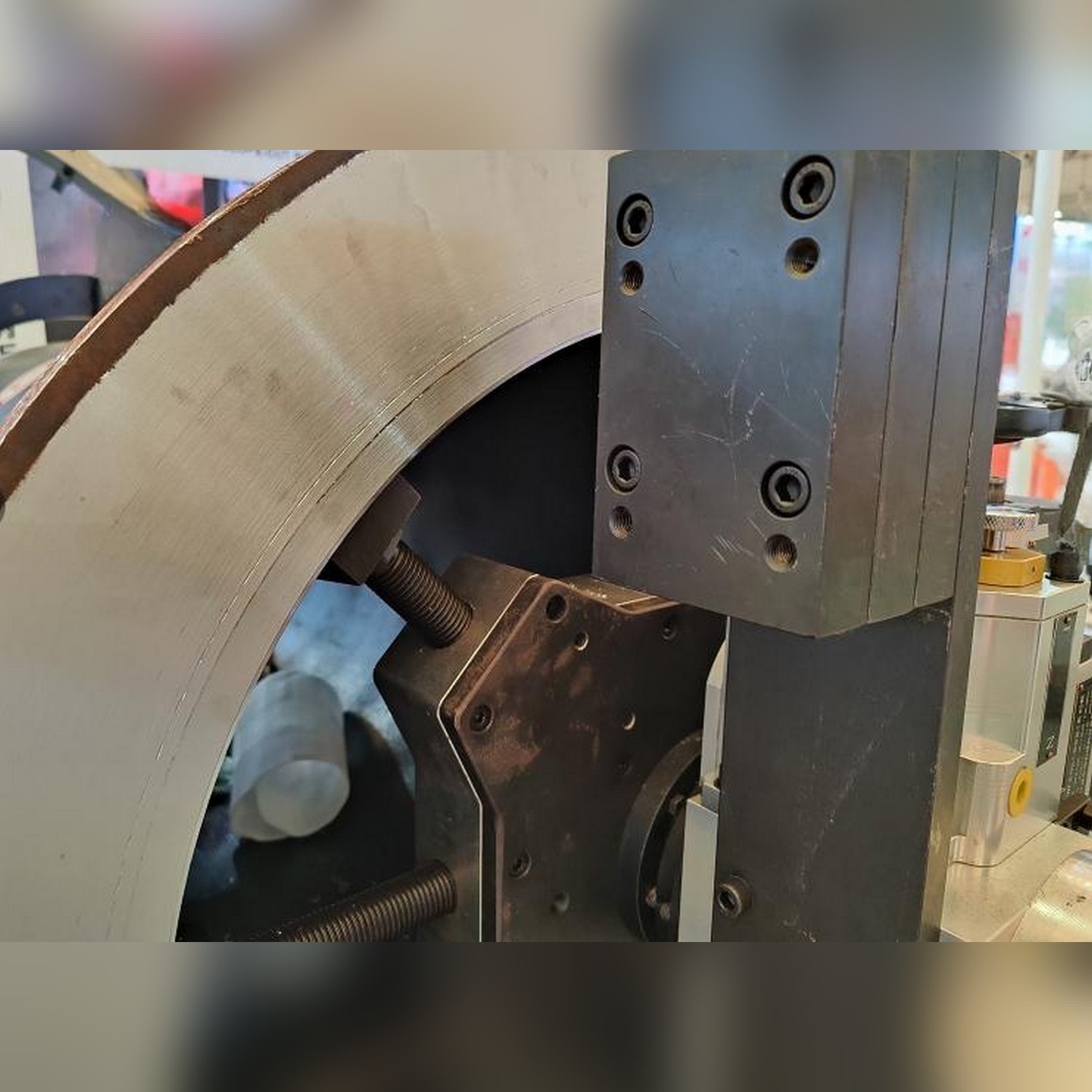

• Facing and grooving tool bits use HSS holders fitted with HSS-Co or carbide inserts, selected according to material and required finish
• Suitable for flat facing, seal groove machining, weld preparation, and counter boring
• Exact tool bit set supplied depends on order specification – confirm tooling inclusions with the supplier before listing goes live

Shipping & Installation

• Shipping dimensions: 1120 x 760 x 950 mm (112 x 76 x 95 cm)
• Shipping weight: approximately 280 kg
• Portable, ID-mounted design – no fixed installation required; suited to both workshop and on-site/field deployment

Warranty & Support

• 1-year standard warranty covering manufacturing defects
• Spare parts (tool bits, clamping components, seals) available through the supplier
• Pre-dispatch testing and commissioning support available
• After-sales technical and application support available for setup and troubleshooting
