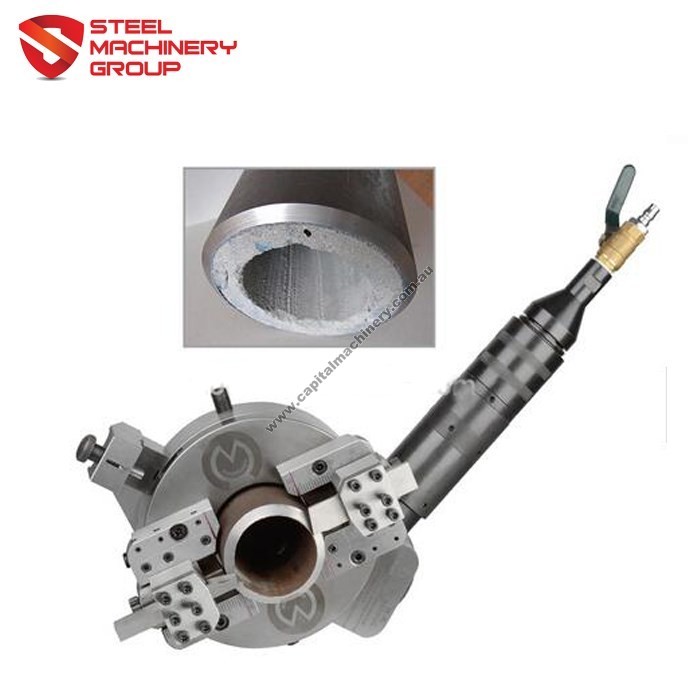

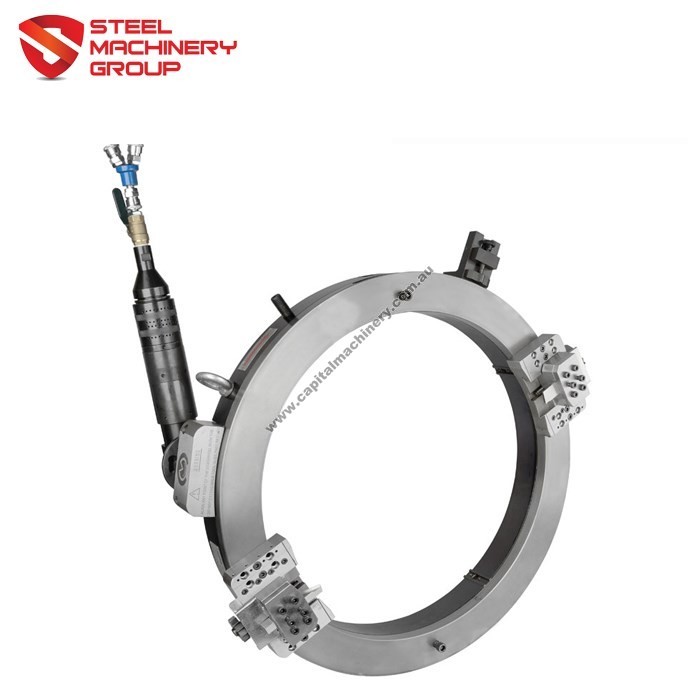

SMG Orbi-Edge Pneumatic Pipe Cutting and Beveling Machine
$5,287.00 Excl. GST
$5,815.70 Incl. GST
SMG Pipe Cutting and Beveling Machine are able to perform simultaneous cutting and beveling operations with ease. It features a lightweight structure for easier use and suitable for complicated work sites. Capital Machinery offers top-quality brands for cutting and beveling machinery. Our products are engineered to work at maximum performance and easy maintenance.
SMG Orbi-Edge Pneumatic Pipe Cutting and Beveling Machine
SMG Orbi-Edge Pneumatic Pipe Cutting and Beveling Machine
Description
SMG Pipe Cutting and Beveling Machine are able to perform simultaneous cutting and beveling operations with ease. It features a lightweight structure for easier use and suitable for complicated work sites. Capital Machinery offers top-quality brands for cutting and beveling machinery. Our products are engineered to work at maximum performance and easy maintenance.
Features
- Low axial & radial clearance, lightweight suitable in working at narrow & complicated work sites.
- Split frame design can be separated into two halves, making it easy to process pipe when the two ends are not open and accessible.
- The machine can cold cut and bevel simultaneously.
- Options of Electric, Pneumatic, Hydraulic and CNC operation.
- Auto feeding of cutting and beveling tooling with long life stable performance.
- Quiet operation without sparks or work hardening.
- Suitable for different pipe alloys and material such as Carbon steel, stainless steel, alloys etc.
- Efficient long life low maintenance design.
Includes:
- 2 x Cutters
- 2 x Beveling Tools
- Servicing Tools
- Operation manual
Specifications
Power Supply: 0.6-1.0 @1500-2000L/min
| Model No. | Working Range | Wall Thickness | Rotation Speed | Air Pressure | Air Consumption | |
| SMG-89OP | φ 25-89 | 3/4‘’-3‘’ | ≤35mm | 50 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-159OP | φ50-159 | 2‘’-5‘’ | ≤35mm | 21 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-168OP | φ50-168 | 2‘’-6‘’ | ≤35mm | 21 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-230OP | φ80-230 | 3‘’-8‘’ | ≤35mm | 20 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-275OP | φ125-275 | 5‘’-10‘’ | ≤35mm | 20 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-305OP | φ150-305 | 6‘’-10‘’ | ≤35mm | 18 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-325OP | φ168-325 | 6‘’-12‘’ | ≤35mm | 16 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-377OP | φ219-377 | 8‘’-14‘’ | ≤35mm | 13 r/min | 0.6~1.0MPa | 1500 L/min |
| SMG-426OP | φ273-426 | 10‘’-16‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-457OP | φ300-457 | 12‘’-18‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-508OP | φ355-508 | 14‘’-20‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-560OP | φ400-560 | 16‘’-22‘’ | ≤35mm | 12 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-610OP | φ457-610 | 18‘’-24‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-630OP | φ480-630 | 20‘’-24‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-660OP | φ508-660 | 20‘’-26‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-715OP | φ560-715 | 22‘’-28‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 1800 L/min |
| SMG-762OP | φ600-762 | 24‘’-30‘’ | ≤35mm | 11 r/min | 0.6~1.0MPa | 2000 L/min |
| SMG-830OP | φ660-813 | 26‘’-32‘’ | ≤35mm | 10 r/min | 0.6~1.0MPa | 2000 L/min |
| SMG-914OP | φ762-914 | 30‘’-36‘’ | ≤35mm | 10 r/min | 0.6~1.0MPa | 2000 L/min |
| SMG-1066OP | φ914-1066 | 36‘’-42‘’ | ≤35mm | 9 r/min | 0.6~1.0MPa | 2000 L/min |
| SMG-1230OP | φ1066-1230 | 42‘’-48‘’ | ≤35mm | 8 r/min | 0.6~1.0MPa | 2000 L/min |
SMG Orbi-Edge Pneumatic Pipe Cutting and Beveling Machine Setup
SMG 610-OCP Pneumatic Pipe Cold Cutting and Beveling Machine Video
- pipe beveling machine
- pneumatic beveler
- pneumatic beveling tool
- beveling machine
- pipe beveling tool
- 20 pipe beveling machine
- electric pipe beveling machine
- metal beveling machine
- pipe beveller
- pipe cutting and beveling machine
- pipe prepping machine
- pneumatic beveling machine
- portable pipe beveling machine
- ridgid pipe beveler
- steel beveling tool
- pipe cold cutting machines
- pipe cutting and beveling
- pipe beveler
- steel pipe beveling machine
- air beveling machine
- automatic pipe beveling machine
- best pipe beveling machine
- bevel pipe for welding
- beveled pipe coupons
- beveled pipe for sale
- beveling machine for sale
- beveling machine price
- cnc pipe beveling machine
- cutting and beveling machine
- electric beveling machine
- h&m pipe beveling machine
- hand held pipe beveler
- handheld pipe beveling machine
- hydraulic pipe beveling machine
- manual pipe beveling machine
- millhog pipe beveler
- pipe beveling band and crawler
- pipe beveling machine for sale
- pipe beveling machine manufacturers in india
- pipe beveling machine rental
- pipe cold cutting and beveling machine
- pipe cutting and beveling equipment
- pipe end beveling machine
- plasma pipe beveling machine
- plastic pipe beveling tool
- pneumatic pipe beveler
- pneumatic pipe beveling machine
- portable electric pipe beveling machine
- portable pipe beveler
- portable pipe cutting and beveling machine
- ridgid pipe beveling machine
- sawyer pipe beveling machine
- sheet metal beveling machine
- small pipe beveling machine
- stationary beveling machine
- steel beveling machine
- steelmax beveling machine
- torch pipe beveler
- tube beveling machine
Frequently Asked Questions
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
Tool shops and general resellers may offer a wide product range, but often lack the specialised knowledge to properly assess applications or provide ongoing technical support. An industrial machinery specialist ensures the right machine is selected and fully supported long after purchase. In most cases, buying directly from the importer or specialist also results in a lower purchase cost, as additional reseller margins are not added.
What after-sales support and warranty do you provide?
Industry leading after-sales support, Australia-wide.
Backed by over 30 years of industry experience, more than two decades in business, and a long history of satisfied customers Australia-wide, Capital Machinery Sales provides after-sales support you can count on, long after your machine is delivered, backed by our dedicated support team.
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
How quickly will I receive my machine?
Often, we can ship the same day if required, depending on stock availability, the time your order is placed and the available shipping options.
Specification
Additional information
| Weight | 33 kg |
|---|---|
| Dimensions | 64 × 42 × 50 cm |
