Name: Bomar Extend 800.620 Semi Automatic Horizontal Bandsaw
Brand: Bomar
SKU: BOM-EXT-02
Availability: InStock

Description

Click here for customer installation images ▼

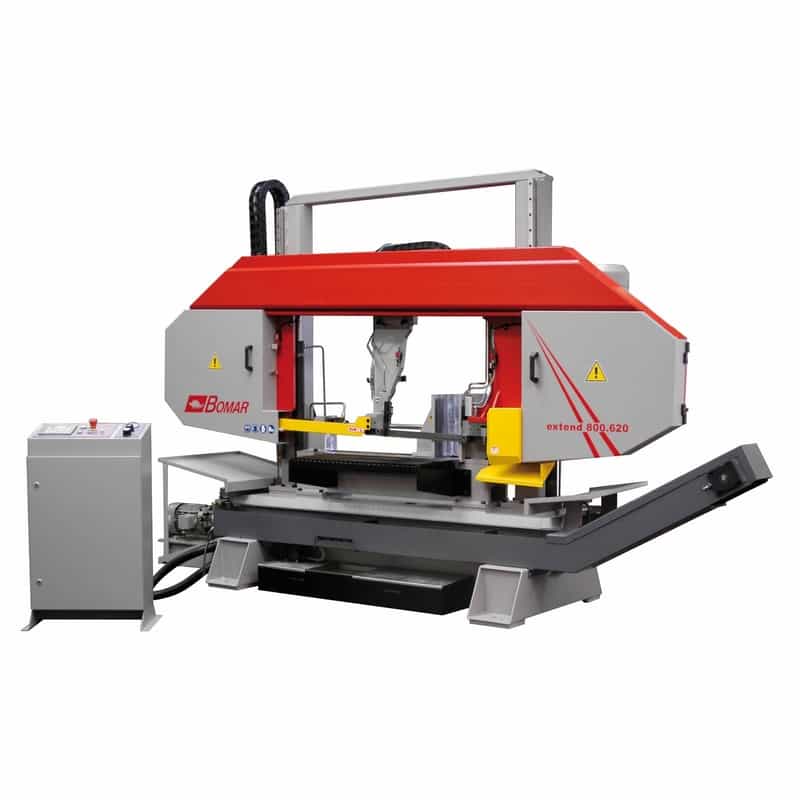

The heavy duty Bomar Extend 800.620 is a semi-automatic twin column bandsaw. On both columns, the saw frame is mounted to high-precision, play-free linear guides. These guides guarantee maximally smooth operation and cutting precision. Highly precise carbide saw band guides, with acute sensors for automatic adjustment of cutting pressure on both guide arms, guarantee precise saw cuts and the longest possible blade life.

Bomar Extend 800.620 Specifications

Manufacturer	Bomar
Machine Type	Bandsaws / Semi-Automatic Horizontal Bandsaw
Operation Type	Semi-Automatic, Twin column, Straight Cutting

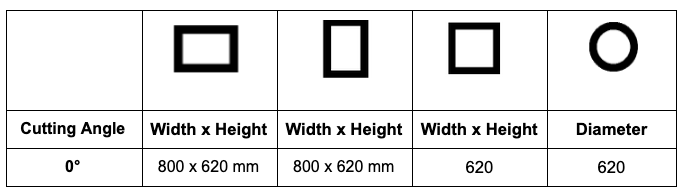

Max Capacity Cut Size	800
Material Type	Solids
Materials	Non ferrous, Ferrous, PVC
Blade Size	7300 x 1.3 x 41 or 54*
Dimensions	3500 x 1300 x 2500

Bomar Extend 800.620 Technical Details

Synchronization Powered shavings brush always runs synchronized to the saw band speed. Precise and stable On both columns, the saw frame is mounted to high-precision, play-free linear guides. These guides guarantee maximally smooth operation and cutting precision. Play-free The vice is guided on hardened, ground rails. The special design allows the slide rails to be readjusted at any time and the vice to be held play-free. Precision Large guide shoes made of vibration-damping cast material in combination with carbide slideways and low-wear guide rollers make for precise cuts. Full-lift cylinders Generously sized full-lift cylinders allow vice operation right from the control panel. Saw band tensioner Standard equipment includes a hydraulic band tension display, an electronic monitor for saw blade tension and saw band breakage, and more. AFDR Cutting feed and cutting pressure are set individually at the control panel. The selected cutting pressure is displayed on a manometer. ADFR – The highest precision. Faster cut. Less wear. The ADFR system regulates the interplay of the cutting pressure and the cutting feed automatically in real time. A sensor gives the current load on the saw band and regulates the cutting feed according to the shape of the material. For larger cross cuts to the material, the cutting channel lengthens and the saw band’s load increases. If the cutting feed in these ranges is not automatically adjusted, the saw band’s life drastically decreases or the cutting time significantly drops due to a lower feed. Cutting Capacity

Bomar Extend 800.620 Optional Features

Clamping devices
Cutting sizes
Shifting devices
Saw band height
Drive power
Feed systems
