ICARO C70 Rebar Cutter
The ICARO C70 Rebar Cutter is designed to perform efficient cutting for steel rod and rebar.
ICARO Rebar Cutting machinery is proudly manufactured in Italy using local European electronics and hardware, combined with superior but straightforward designs offering the highest quality results and reliability.
ICARO C70 Rebar Cutter
ICARO C70 Rebar Cutter
Description
The ICARO C70 Rebar Cutter is designed to perform efficient cutting for steel rod and rebar. ICARO Rebar Cutting machinery is proudly manufactured in Italy using local European electronics and hardware, combined with superior but straightforward designs offering the highest quality results and reliability.
ICARO C70 Rebar Cutter for Efficient Cutting
- Manufactured in Italy using local European components
- Built for high volume efficient cutting or steel rod and rebar
- Single or multiple bar cutting to full capacity
- Four interchangeable hardened steel blade edges
- Compact design for workshops and onsite use
- Rigid Cast alloy drive chassis
- Safety guarded with interlock systems
- Abides by CE standard European laws and global regulations ISO9001/2008
- Replacement blades and spare parts available in stock
Common Australian Bar Grades
- Grade 250 – 250MPA = 25.5 Kg/mm2
- Grade 300 – 300MPA = 30.6 Kg/mm2
- Grade 500 – 500MPA = 51.0 Kg/mm2
| MODEL | Motor Drive
kw |
Cutting Capacity | Weight
kg |
Machine
Dimensions cm |
|||||
| Bar Hardness
500MPa / 51kgf/mm² |
Bar Hardness
850MPa / 85kgf/mm² |
||||||||
| 1 x Ø | 2 x Ø | 3 x Ø | 1 x Ø | 2 x Ø | 3 x Ø | ||||
| C32 | 2.2 | 26 | 18 | 14 | 22 | 16 | 12 | 470 | 105x61x82 |
| C36 | 2.2 | 30 | 20 | 16 | 26 | 18 | 14 | 475 | 105x61x82 |
| C42 | 3 | 34 | 26 | 20 | 30 | 20 | 16 | 600 | 120x80x96 |
| C52 | 4 | 44 | 30 | 24 | 36 | 26 | 22 | 774 | 130x80x106 |
| C55 | 5.5 | 46 | 32 | 26 | 40 | 30 | 22 | 781 | 130x80x106 |
| C62 | 7.5 | 54 | 38 | 32 | 48 | 32 | 26 | 905 | 130x80x110 |
| C70 | 9.2 | 62 | 44 | 34 | 50 | 38 | 28 | 1,100 | 145x85x110 |
| C42 D | 34 | 26 | 20 | 30 | 20 | 16 | 630 | 120x80x100 | |
|
Technical Specification |
|
| Weight Kg | 1,100 |
| Measurements cm | 145x85x110 |
| Motor (50 Hz) KW/HP | 9, 2/12, 5 |
| Motor (60 Hz) KW/HP | CUSTOM |
| RPM (50hz) | 40 |
| Oil | 17 |
| General Equipment | |
| Standard | Optional |
| 2 x Toughened Shearing Blades | Adjustable screw locator |
| 4 x Heavy Duty Castor Wheels | Self-Lubricating Pump |
| Bar Feed Support Block | |
| Adjustable Prism Bar Support | |
| Helical Laminated Gearbox | |
| Motor Overload Protection | |
| Hex Key Set | |
| Grease Gun | |
Standard Equipment

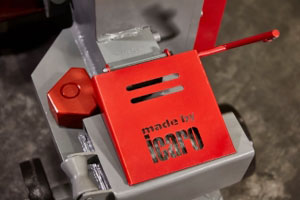

Interlocked Safety Guarding

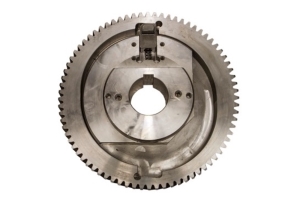

Helical Laminated Gearing
Foot pedal & Hand Operation
Toughened Shear Blades With 4 Edged

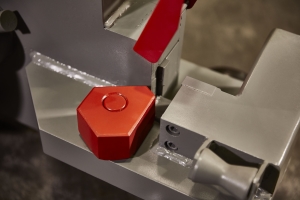

Adjustable Prism Bar Support
Cut Multiple Bars Together
ICARO Rebar Cutting Machine
See ICARO C70 High-Quality Rebar Cutting Machine In Action
Watch ICARO vs Reflex Rebar Cutting Machines: Which Should You Choose?
ICARO Machinery is renowned for its high-quality rebar cutters and benders, offering unmatched durability and precision for construction professionals. Designed to handle heavy-duty tasks, ICARO rebar cutters are the perfect solution for cutting and bending steel bars efficiently and safely. Whether you’re looking for an electric rebar cutter, hydraulic rebar cutter, or a combination rebar cutter and bender, ICARO Machinery ensures reliable performance, making it a trusted choice for projects of all sizes.
For those in search of versatile solutions, ICARO’s range includes everything from compact and portable rebar cutters to industrial-grade rebar cutting machines. These tools are engineered to adapt to various construction needs, whether you’re working on a small-scale project or managing large infrastructure developments. With features like fast-cutting capabilities, precision blades, and easy-to-use controls, ICARO rebar cutters help boost productivity on job sites while maintaining safety standards.
At Capital Machinery Sales, you’ll find a wide selection of ICARO rebar cutters and benders available for purchase. Whether you’re looking to buy a heavy-duty rebar bender cutter, a hydraulic rebar cutter, or a compact tool for tight spaces, Capital Machinery Sales has you covered. They also offer rebar cutting equipment tailored for specific needs, such as manual rebar cutters, automatic rebar cutters, and portable rebar cutters perfect for on-site use.
What sets ICARO Machinery apart is its commitment to quality and innovation. Their high-speed rebar cutters and advanced bar cutting tools are designed with cutting-edge technology to ensure precision and efficiency. Built to last, these machines can handle even the toughest construction environments with ease. Capital Machinery Sales ensures that you can access these premium tools right here in Australia, with delivery options for major cities like Melbourne, Sydney, and Brisbane.
If you’re searching for the best rebar cutting equipment to streamline your construction projects, look no further. From rebar rod cutters to 240V rebar cutters and rebar cutting services, Capital Machinery Sales is your trusted supplier of ICARO Machinery. Visit their store today to explore their full range of rebar cutters and benders, and discover why ICARO is a global leader in rebar cutting solutions.
- electric rebar cutter bender
- rebar cutter and bender for sale
- electric rebar cutter and bender
- rebar cutter electric
- pneumatic rebar cutter
- rebar bender cutter
- rebar cutter and bender
- rebar cutter harbor freight
- cordless rebar cutter
- hydraulic electric rebar cutter
- rebar cutter blades
- benner nawman rebar cutter
- rebar cutter
- rebar cutter drill bit
- rebar cutter bits
- relton rebar cutter
- rebar cutter rental
- hydraulic rebar cutter for sale
- rebar cutter made in italy
- electric rebar cutter near me
- rebar cutter how to use
- hydraulic rebar cutter portable
- rebar cutters electric hydraulic
- what is a rebar cutter
- manual rebar cutter
- rebar cutter nz
- rebar cutter parts
- rebar cutter australia
- portable rebar cutter
- automatic rebar cutter
- heavy duty rebar cutter
- rebar cutter hire
- rebar cutter melbourne
- rebar cutter sydney
- rebar cutter brisbane
- buy rebar cutter online
- best rebar cutter
- rebar cutting equipment
- rebar cutter rental australia
- compact rebar cutter
- rebar rod cutter
- rebar shear cutter
- 240v rebar cutter
- construction rebar cutter
- rebar cutter tool
- bar cutter machine
- rebar cutting service australia
- concrete rebar cutter
- rebar cutting tool australia
- steel bar cutter
- bar cutting tools
- rod cutter for rebar
- building rebar cutter
- rebar cutting machine hire
- small rebar cutter
- mini rebar cutter
- rebar cutter brands
- Icaro rebar cutter
- rebar cutting contractor
- jobsite rebar cutter
- trade rebar cutter
- rebar cutter supplier
- high speed rebar cutter
- buy used rebar cutter
- rebar cutter workshop tool
Icaro Blades Info

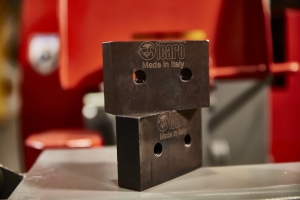

Replacement Shear Blade Dimensions (ICARO C70)
For replacement blades only – please confirm sizes before ordering.
- Fixed Blade (100 mm × 30 mm × 60 mm)
- Moving Blade: 100 mm × 30 mm × 80 mm
Important: Blade dimensions can vary between machines. Please check your existing blades or contact us for confirmation before purchase.
Frequently Asked Questions
Do you carry spare parts and tooling for these rebar bending machines ?
Why are you offering a 2 year warranty reinforcement bar benders when other suppliers only offer one year warranty?
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
What after-sales support and warranty do you provide?
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
How quickly will I receive my machine?
Specification
Additional information
| Weight | 990 kg |
|---|---|
| Dimensions | 150 × 90 × 160 cm |
| Types | |
| Motor size | |
| Kilowatt (kW) | |
| Net Weight | 1100 kg |
| Bar Size |
