Kingsland UK Multi 70 Iron Worker

   Kingsland Multi 70 Hydraulic IronWorker Manual

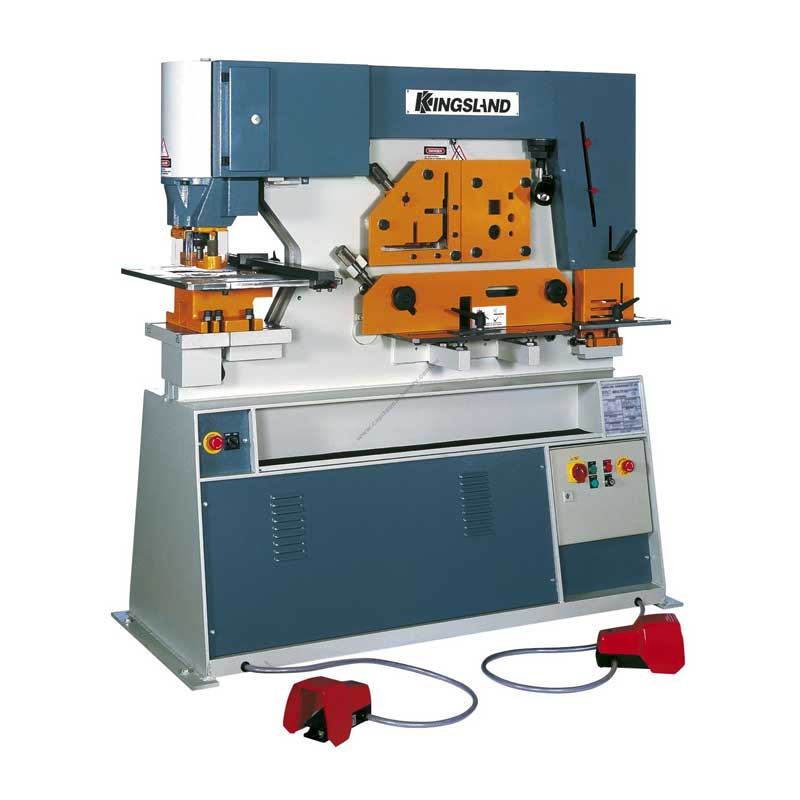

The KINGSLAND UK MULTI 70 machines (Kingsland UK Multi 70 Iron Worker) are in the Kingsland tradition of well engineered, robust steelworkers, built for long working life. These MULTI machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and with easily adjusted hold-downs at all five work stations to safely control the operations. Comprehensive safety guards are fitted as standard on all work stations.

Free standing on a suitable floor, they just require an electrical connection to be ready for work. For two operator utilisation, the hydraulic system is activated by two shielded foot controls, one operating the punch end cylinder, the other operating the shear end cylinder. The shear cylinder provides the power to the 3 shearing stations and the notch stations.

The system gives accurate power inching at all five work stations and allows the machine to stopped at any position giving safe and accurate tool setting and work positioning. Limit switches at both ends of the machine control stroke length at all stations. Centralised lubrication is metered by one-shot system, is only one feature of the low maintenance requirement.

The universal KINGSLAND MULTI machines are delivered with an extensive range of standard features:

• Large punch table with multi-purpose bolster
• Removable table block for overhang channel.
• Punch table, shear table a notch table standard equipment
• Power inching and adjustable strokes at punch & shear end
• Centralised pressure lubrication
• Wide variety of applications for large hole punching: bar bending, tube notching,…
• Mitre cut flanges of angle under the shear blade
• Work station guards standard fitment
• Two cylinder operation
• Overload relief on the hydraulic system
• Interchangeable bearings, seals and valves readily available in Australia.
• Machines with very low maintenance
• Punch adaptors
• Swing away punch stripper unit
• Easy change punch holder
• One low volt halogen lamp on a movable magnetic base
• Fine adjustment facility to the punch stroke
• Measuring scales in the notch table
• 1.0m long touch and cut ruled length stop
• Universal die bolster
• Heavy-duty support tables with guides at the shear station and notch station
• Heavy-duty punch table with guides and backstop
• Shear body blade with 4 cutting edges
• Section arm & body blade with 1 cutting edge
• Angle cutting arm & body blades with 4 cutting edges
• Rectangular notch bolster blades with 4 cuttings edges
• Service toolkit
• Work station guards
• Instructions, operating and maintenance manual.

TECHNICAL SPECIFICATIONS: Based on material strength of 450 N/mm².
