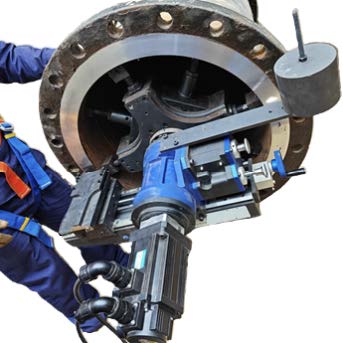

SMG F1000 Pneumatic Flange Facing Machine
$34,229.00 Excl. GST
$37,651.90 Incl. GST
The rigid and versatile SMG F1000 Pneumatic Flange Facing Machine delivers high-torque performance to quickly re-face flanges and repair sealing and bearing surfaces efficiently and cost- effectively
SMG F1000 Pneumatic Flange Facing Machine
SMG F1000 Pneumatic Flange Facing Machine
Description
The rigid and versatile SMG F1000 Pneumatic Flange Facing Machine delivers high-torque performance to quickly re-face flanges and repair sealing and bearing surfaces efficiently and cost- effectively
- Powered 360° tool post – for a wider range of machining operations
- Three speed continuous feed gearbox, for gramophone finish
- Quick set adjustable clamping jaws, minimize set up time
Feed Rates
| Facing Feed Rates | (3 off In/Out) | ||||
| Direction | Gear | inches/rev | mm/rev | Grooves per inches |
Grooves per mm
|
| Out | 1 | 0.005 | 0.139 | 183 | 720 |
| 2 | 0.009 | 0.217 | 117 | 460 | |
| 3 | 0.021 | 0.528 | 48 | 190 | |
| In | 1 | 0.006 | 0.165 | 154 | 610 |
| 2 | 0.01 | 0.258 | 98 | 390 | |
| 3 | 0.025 | 0.628 | 40 | 160 | |
| inches/rev | mm/rev | ||||
| Boring Feed Rates (3 off Up/Down) | 0.002 – 0.004 – 0.008” | 0.05 – 0.10 – 0.20 mm | |||
Technical Specification
| Imperial | Metric | |
| Facing Diameter: | ||
| Min Facing Diameter | 6 inches | 150 mm |
| Max Facing Diameter | 40 inches | 1000 mm |
| ID Mounting Diameter | ||
| Min I.D. Mount | 5.7 inches | 145 mm |
| Max I.D. Mount | 32 inches | 813 mm |
| Minimum Swing Diameter | 32 inches | 813 mm |
| Stroke | ||
| Tool Post Travel – (geared automatic) | 4 inches | 102 mm |
| R.P.M | Min:0 | Max:33 |
| Drive – Pneumatic @ 90 P.S.I (6 bar)
Servo motor system |
1.7 KW
1.5 KW |
2.2 HP
2.0 HP |
| Air Consumption / Supply Required | 64 S.C.F.M | 1.79 m³/min |
| Approximately Operational Weight | 385 lbs | 175 kg |
| Approximately Shipping Weight | 440lbs | 200 kg |
| Approximately Shipping Dimensions
Length x Width x Height |
32 x 21 x 20 inches |
820 x 530 x 500mm
|
- flange facer
- flange facing head
- flange facing tool
- flange facing lathe
- flange facing system
- flange facing machine
- flange facing service
- flange facing standard
- flange facing equipment
- flange facing operation
- flange refacing machine
- cnc flange facing machine
- pipe flange facing machine
- flange facing machine parts
- flange facing machine price
- flange facing machine types
- flange facing machine video
- flange facing machine market
- flange facing machine rental
- flange facing machine repair
- mirage flange facing machine
- flange facing machine for sale
- flange facing machine industry
- flange facing machine training
- portable flange facing machine
- flange facing machine suppliers
- hydraulic flange facing machine
- flange facing machine application
- flange facing machine maintenance
- flange facing operation procedure
- flange facing machine manufacturer
- flange facing machine specification
- portable flange facing machine supplier
Frequently Asked Questions
Should I purchase industrial machinery from a tool shop or reseller, or from an industrial machinery specialist?
Tool shops and general resellers may offer a wide product range, but often lack the specialised knowledge to properly assess applications or provide ongoing technical support. An industrial machinery specialist ensures the right machine is selected and fully supported long after purchase. In most cases, buying directly from the importer or specialist also results in a lower purchase cost, as additional reseller margins are not added.
What after-sales support and warranty do you provide?
Industry leading after-sales support, Australia-wide.
Backed by over 30 years of industry experience, more than two decades in business, and a long history of satisfied customers Australia-wide, Capital Machinery Sales provides after-sales support you can count on, long after your machine is delivered, backed by our dedicated support team.
- Application support: Whether your requirements are straightforward or highly specific, we work with you to ensure your machine is set up and performing for your exact application, and we are here to help as your needs evolve.
- Pre-dispatch testing: Every machine is fully checked and commissioned before it leaves us. It's a step that saves our customers countless issues down the track and sets your machine up for maximum uptime.
- Warranty: We don't just pass on the manufacturer's warranty. We offer our own comprehensive warranty that goes further, giving you greater coverage and peace of mind, with extended warranty options also available.
- Spare parts: Downtime costs you money, so minimising it is our priority. We keep a wide range of parts and consumables in stock, and if we don't have it on the shelf, we will track it down and get it to you as fast as possible.
- Remote support: Fast help via phone, email, or live video, with no site visit needed in most cases. We pride ourselves on some of the fastest response times in the industry, because we know that when you need help, you need it now.
- On-site service: Our engineers travel Australia-wide, with trusted contractors covering remote areas.
- In-house repairs: Send your machine back to us for expert servicing and overhaul.
How quickly will I receive my machine?
Often, we can ship the same day if required, depending on stock availability, the time your order is placed and the available shipping options.
Specification
Additional information
| Weight | 200 kg |
|---|---|
| Dimensions | 82 × 53 × 50 cm |
