Bomar ERGONOMIC 290.258 DGA CNC Automatic Bandsaw with Material Loading System


In stock

The Bomar ERGONOMIC 290.258 DGA CNC Automatic Bandsaw with the Material Loading System has the capability of loading stock steel bars, pipe and structural steel sections for fast labor saving processing. Once the material is loaded the machine can operate unattended for hours, simply load the material and set the program cycle lengths and quantities of material to be cut. The SIEMENS touch screen controller is user friendly to program and operate, angle cutting can be performed if required

Product ID: BOMAR-E-290-258-DGA-CNC Categories: , Tag: Brand:

Save as PDF


Description

Bomar ERGONOMIC 290.258 DGA CNC Automatic Bandsaw SLE Loading Magazine PDF   Bomar ERGONOMIC 290.258 DGA CNC Automatic Bandsaw SLE Loading Magazine

Bomar ERGONOMIC 290.258 DGA CNC Automatic Bandsaw with Material Loading System

Bomar ERGONOMIC 290.258 DGA CNC Automatic Bandsaw Full Video



Features

  • Machine can be operated in both manual and automatic modes
  • SIEMENS User Friendly Control System with 60 program memory (Store 60 Cutting Jobs)
  • Automatic angle mitre adjustment  Left -45° – Right +60° in 3 seconds with angle accuracy of  +/- 0,1°
  • Electronic adjustable variable blade speed control from 20 – 90 Meters Per Minute
  • Long Length 1500mm material feed system for rapid feeding of material from 5 – 12000mm
  • Self centering feed vice compensates for bent or uneven stock bar materials
  • Robust heavy-duty cast iron saw bow reduces cutting vibration
  • Carbide blade guides increasing cutting accuracy and blade life
  • Full stroke hydraulic vice clamping & hardened vice jaws
  • Unique blade cutting force relief valves fitted to to the blade guide arms
  • Electronic blade breakage detection
  • Recirculating Coolant System with washdown gun
  • Designed to CE standards and safety regulations

Bomar Ergonomic 290 258 Dga Cnc Automatic Bandsaw With Material Loading System Dimension

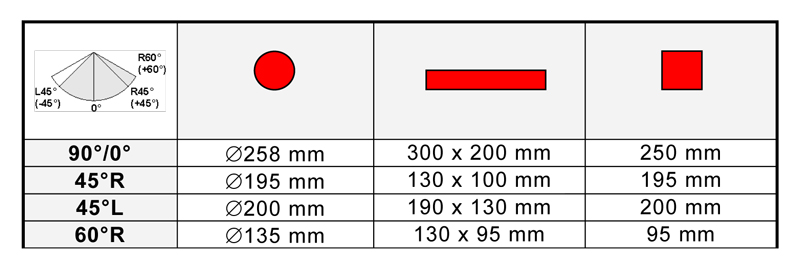

Cutting Capacity Bomar Ergonomic 290 258 Dga Cnc Automatic Bandsaw With Material Loading System Cutting Capacity
