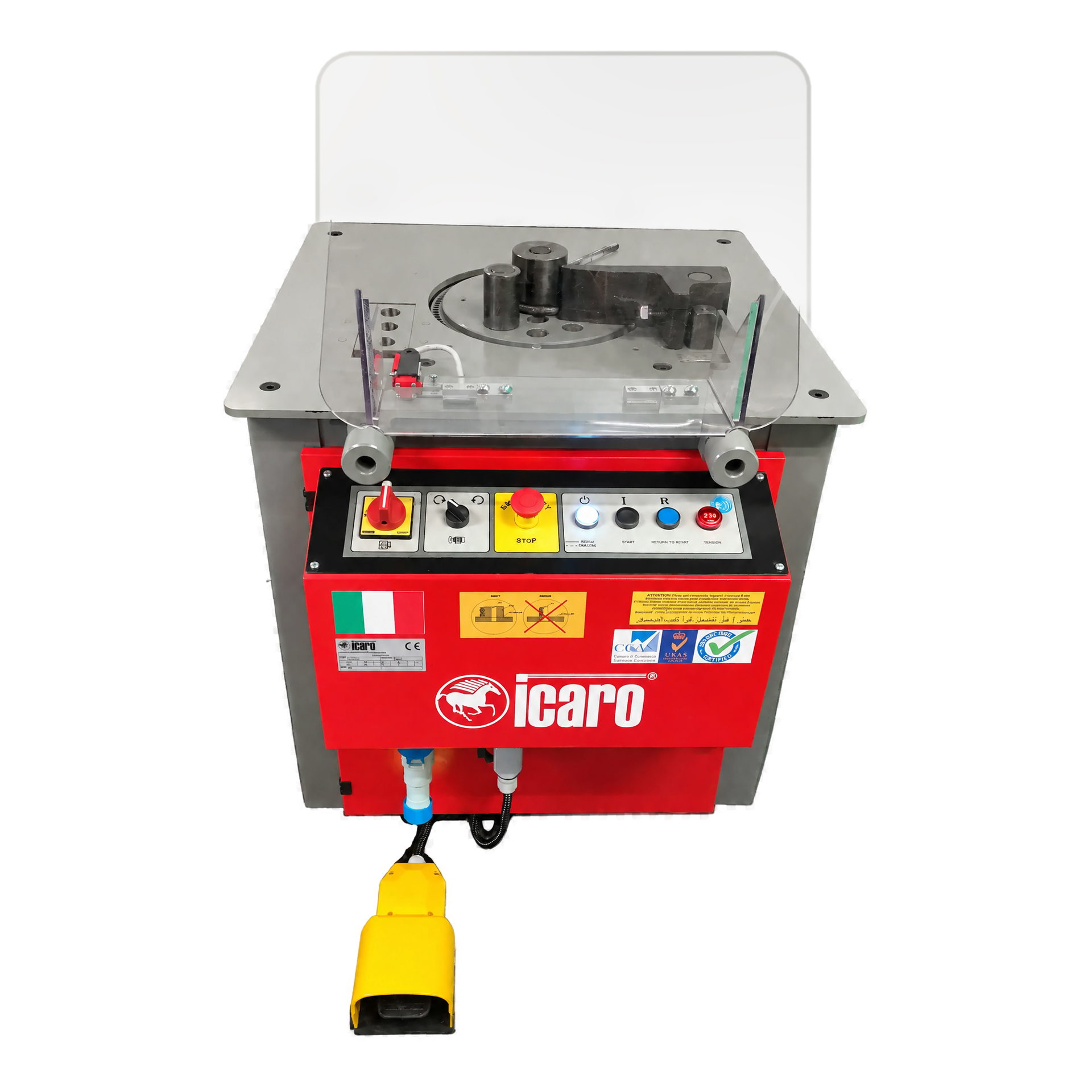

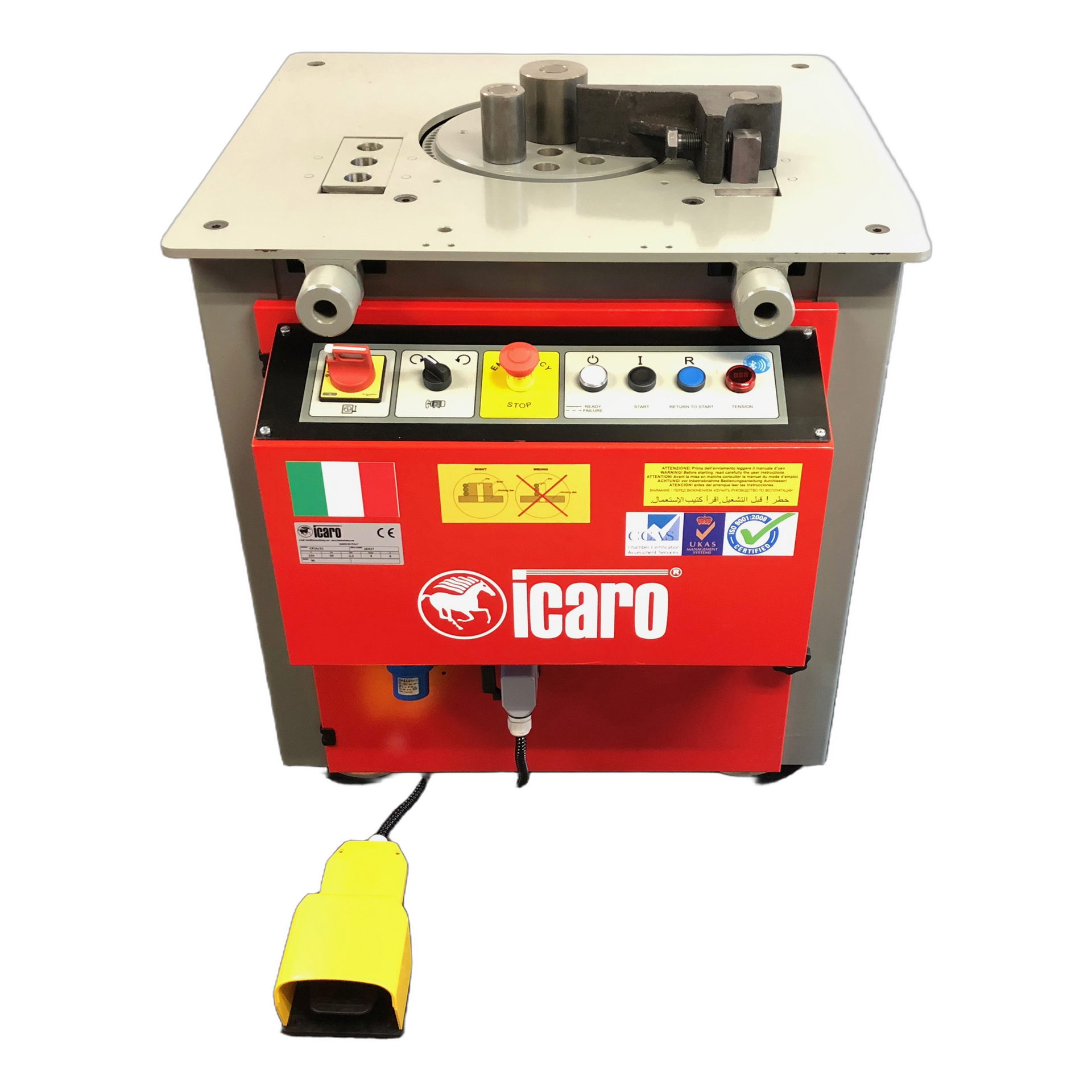

ICARO CP26/32 Combined Production Rebar Cutter And Bender

$12,982.20 Excl. GST $14,280.42 Incl. GST

10 in stock

For unmatched bending and cutting applications, the ICARO CP26/32 Combined Rebar Cutter And Bender Machine presents a great addition to your workshop. Allowing the operator cut and bend rebar on the same machine in one location.

Our Combined Rebar Cutter and Bending machines are guaranteed to produce efficient quality results.

Product ID: ICARO-CP-26-32-HP3 Categories: , Tags: , Brand:

Save as PDF

$12,982.20 Excl. GST $14,280.42 Incl. GST

Optional Add-on:

Description

Product Video Demo

For unmatched bending and cutting applications, the ICARO CP26/32 – Combined Rebar Cutter and Bender Machine presents a great addition to your workshop. Allowing the operator cut and bend rebar on the same machine in one location. Our Combined Rebar Cutter and Bending machines are guaranteed to produce quality results.

ICARO CP26/32 Combined Production Rebar Cutter And Bender Features

  • Manufactured in Italy using local European components
  • Bidirectional bending table for efficient bending in both directions.
  • Compact bar cutting station with adjustable bar support block and safety guard
  • User friendly design, fast and easy operation and control
  • Proprietary special purpose grease filled gearbox with laminated helical gearing
  • Multiple controller options available
  • All machines are bluetooth ready: allowing production diagnostics and equipment monitoring using the optional antenna module.
  • Compact design for workshops and onsite use
  • Safety guarded with interlock systems
  • Abides by CE standard European laws and global regulations ISO9001/2008
  • Replacement bending bushes and spare parts available in stock

Common Australian Bar Grades

  • Grade 250 – 250MPA = 25.5 Kg/mm2
  • Grade 300 – 300MPA = 30.6 Kg/mm2
  • Grade 500 – 500MPA = 51.0 Kg/mm2
MODEL Motor Drive Kw Cutting & Bending Capacity Weight Kg Machine Dimensions Cm
Bar Hardness 650MPA/65KGmm2    Bar Hardness 850MPA/85KGmm2
1 x Ø 2 x Ø 3 x Ø 1 x Ø 2 x Ø 3 x Ø
CP 24/28 1.85 Cut  20  14  10  18  10  6 280 68x72x83
Bend 24 16 12  22  14  10
CP 26/32 2.2 Cut 24 18 12  22 16  10 340 95x75x90
Bend  28 22 18  26  20  16
CP 30/35 3 Cut 26 20 16  22 18 14 450 85x110x85
Bend  30 24 18  28 22  16
CP 38/45 4 Cut 30  24 18 28   20  14 650 104x116x89
Bend  36 28 22 34   26 22
CP 50/54 5.5 Cut 40 28 18 34 26 15 1000 100x130x100
Bend 48 34 28 40 36 24

All the tests were carried out using iron bars coming from all over the world. The iron bars used are all followed the  standards: DIN488, BS4449/2005, BS4449/97, ASTM/A706/A706M-00, ASTM (A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness

Technical Specification

Weight Kg

340

Measurements cm

95 x 75 x 90

Motor (50 Hz) KW/HP

2.2/3

Motor (60 Hz) KW/HP

2.64 / 3.5

RPM (50hz)

9

Grease KG

5

Working Disc ϴ

320



General Equipment

Standard

Optional

Foot pedal control

5 Step bending angle controller

Compact bar cutting station

5 Step Digital Angle programmable controller

Bluetooth ready module

Bluetooth antenna module

2 x Bending angle setting pins

Single phase supply 240vac Inverter

6 x Bending bushes & Pins

Extender Arm for large radius bending

Squaring arm & stop

Stirrup Bending Attachment with length stop

C.E Safety guard & limit switch

Spiralling  forming attachment

Digital display voltage Indicator (60V-500V)

Linear length stop

4 x Cabinet castor wheels

Tool kit with hex keys



Standard Equipment



Standard Equipment Pins & Bushes Standard Equipment Pins & Bushes
Cabinet Base Wheel Set Bar Cutting Station
Foot Pedal Control Foot Pedal Control



BlueTooth ready module BlueTooth ready module
Supply voltage indicator (60V-500V) Supply voltage indicator (60V-500V)
C.E Front Protection C.E Front Protection



Optional Equipment



Spiralling forming attachment Spiralling forming attachment
Choice of optional controllers Choice of optional controllers
Linear Length Stop Linear Length Stop



Bluetooth Antenna Module Bluetooth Antenna Module
Stirrup bending attachment Stirrup bending attachment
Extender Arm for large radius bending Extender Arm for large radius bending



Controller Options



ICARO Standard Controller
  • Set bending angles by changing the limit switch striker pin
  • Bi-directional table rotation selector
  • Reference return switch Supply voltage Indicator
OPTIONAL - 5 Preset Bending Angle Controller
  • Set bending angle by changing the limit switch striker pin
  • Record 5 sequential bending angles
  • Bi-directional table rotation selector
  • Reference return switch Supply voltage Indicator
OPTIONAL - Programmable Digital Angle Control System
  • Set bending angles using digital keypad
  • Record 5 sequential bending angle programs
  • Select quantity / bending piece counter
  • Angular correction + / – Degrees
  • Programmable Bi-directional table rotation
  • Reference return switch
Https Www.capitalmachinery.com .au Media Icaro Machinery Icaro Combined Rebar Cutter And Bender Icaro Combined Rebar Cutter And Bender 002

ALL ICARO BENDERS ARE DELIVERED BLUETOOTH-READY: simply purchase an antenna, which is extremely easy to install, and download a free software designed for both Apple and Android.

Icaro Smart Phone Fault Monitoring
BlueTooth ready module
Icaro Smart Phone Fault Monitoring



Each bender is fitted with our extremely innovative technology for Bluetooth diagnostics, that will let you check the conditions of your machine at every moment.

Additional information

Additional information

Weight 320 kg
