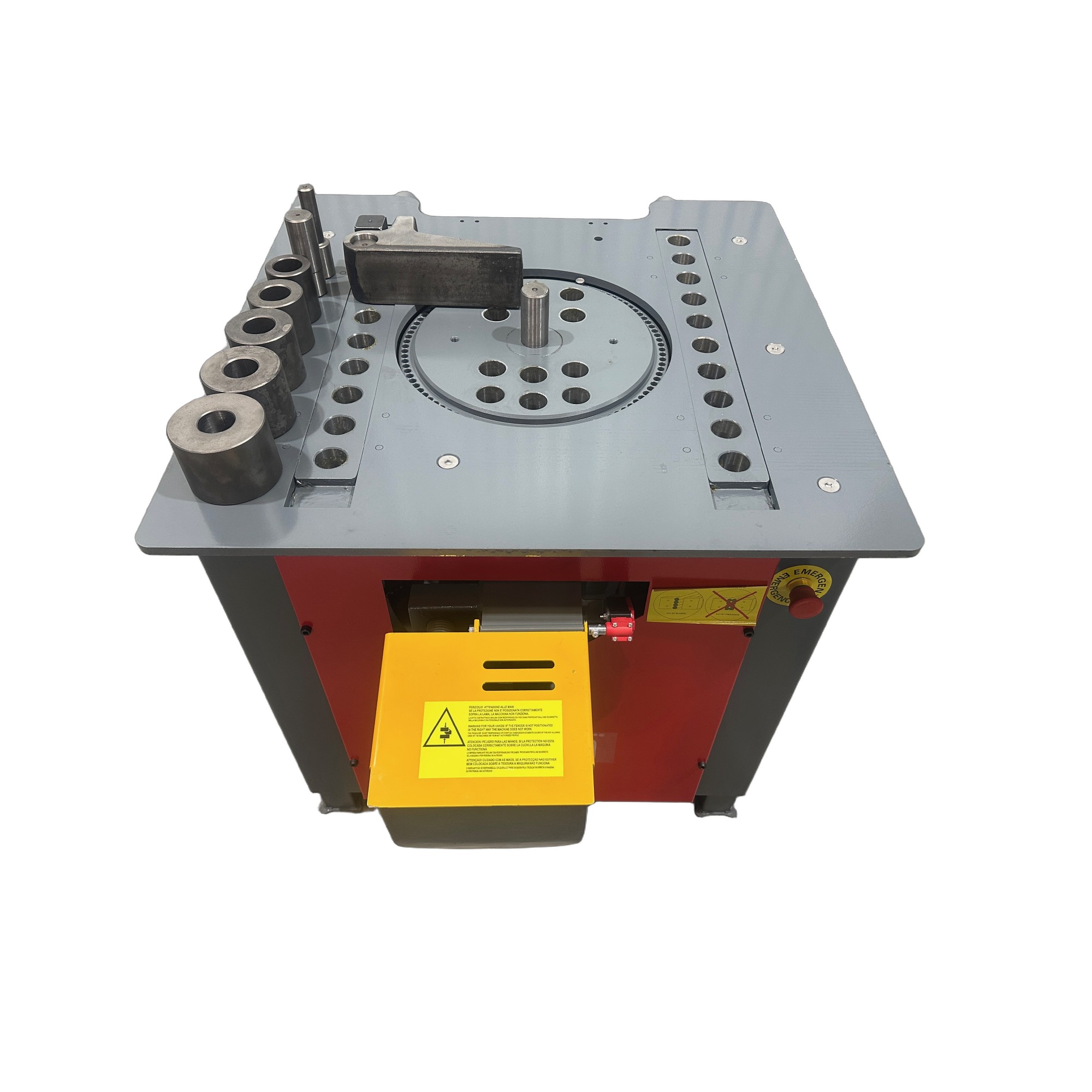

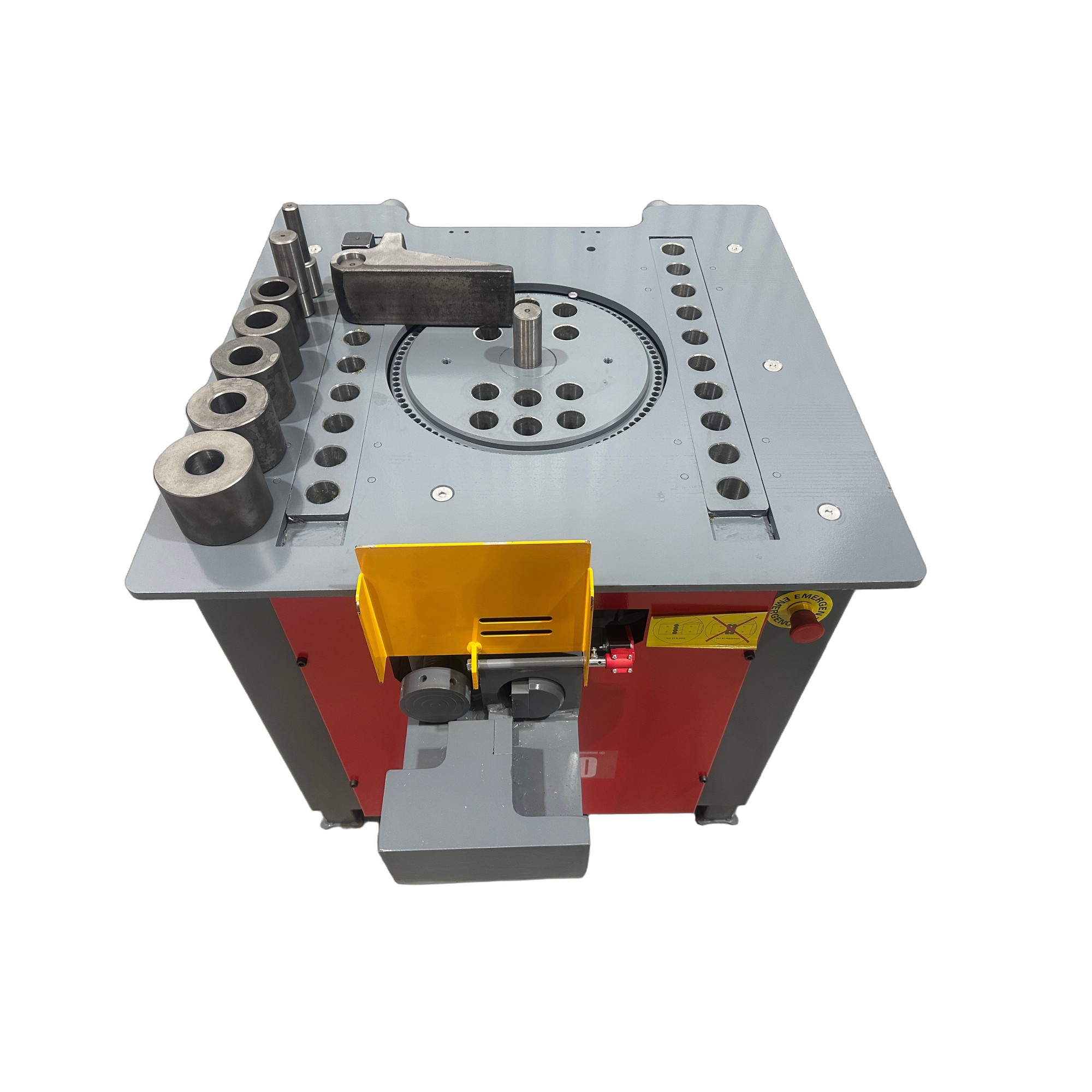

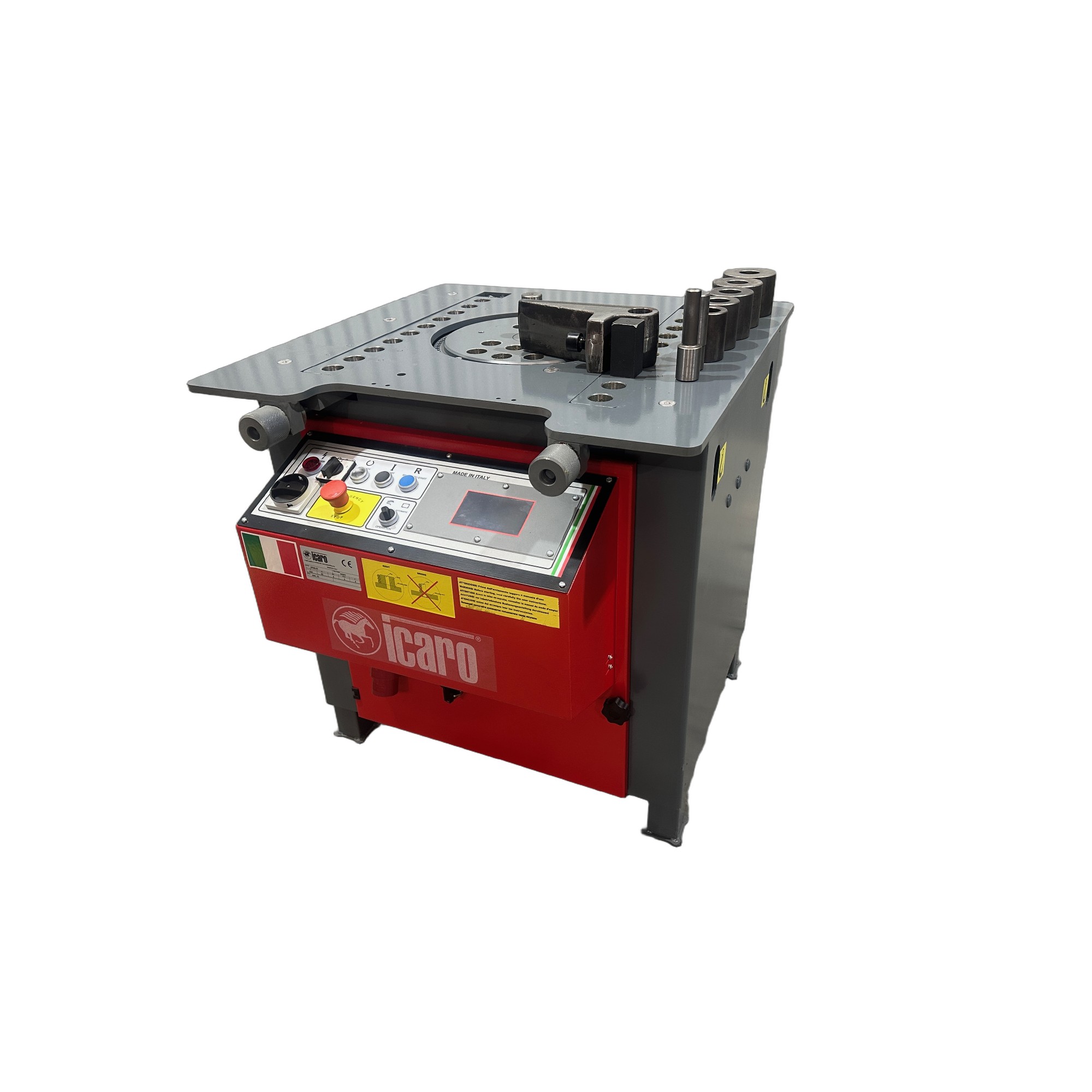

ICARO CP38/45 Combined Rebar Cutter And Bender With Digital Angle Controller
For unmatched bending and cutting applications, the ICARO CP38/45 Combined Rebar Cutter And Bender Machine present a great addition to your workshop. Allowing the operator cut and bend rebar on the same machine in one location.
Our Combined Rebar Cutter and Bending machines are guaranteed to produce efficient quality results.
ICARO CP38/45 Combined Rebar Cutter And Bender With Digital Angle Controller
ICARO CP38/45 Combined Rebar Cutter And Bender With Digital Angle Controller
Description
ICARO Maintenance / Operation Manual Bar Bending – Combined Machines
ICARO Digital Angle Controller Operation Manual (For ICARO Models 2025 and Newer)
For unmatched bending and cutting applications, the ICARO CP 38/45 – Combined Rebar Cutter and Bender Machine presents a great addition to your workshop. Allowing the operator to cut and bend rebar on the same machine in one location. Our Combined Rebar Cutter and Bending machines are guaranteed to produce quality results.
ICARO CP38/45 Combined Rebar Cutter And Bender Features
- Manufactured in Italy using local European components
- Bidirectional bending table for efficient bending in both directions.

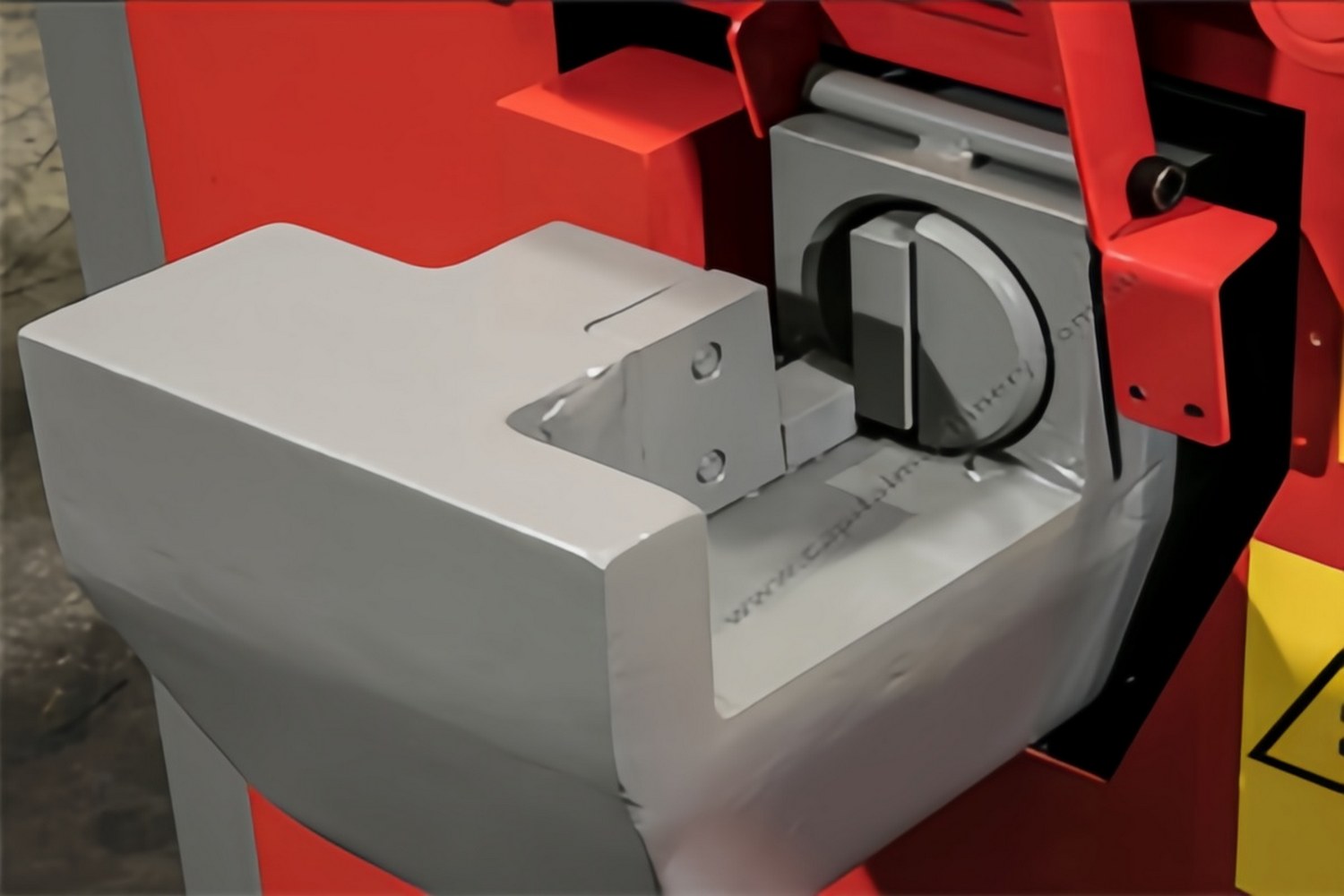

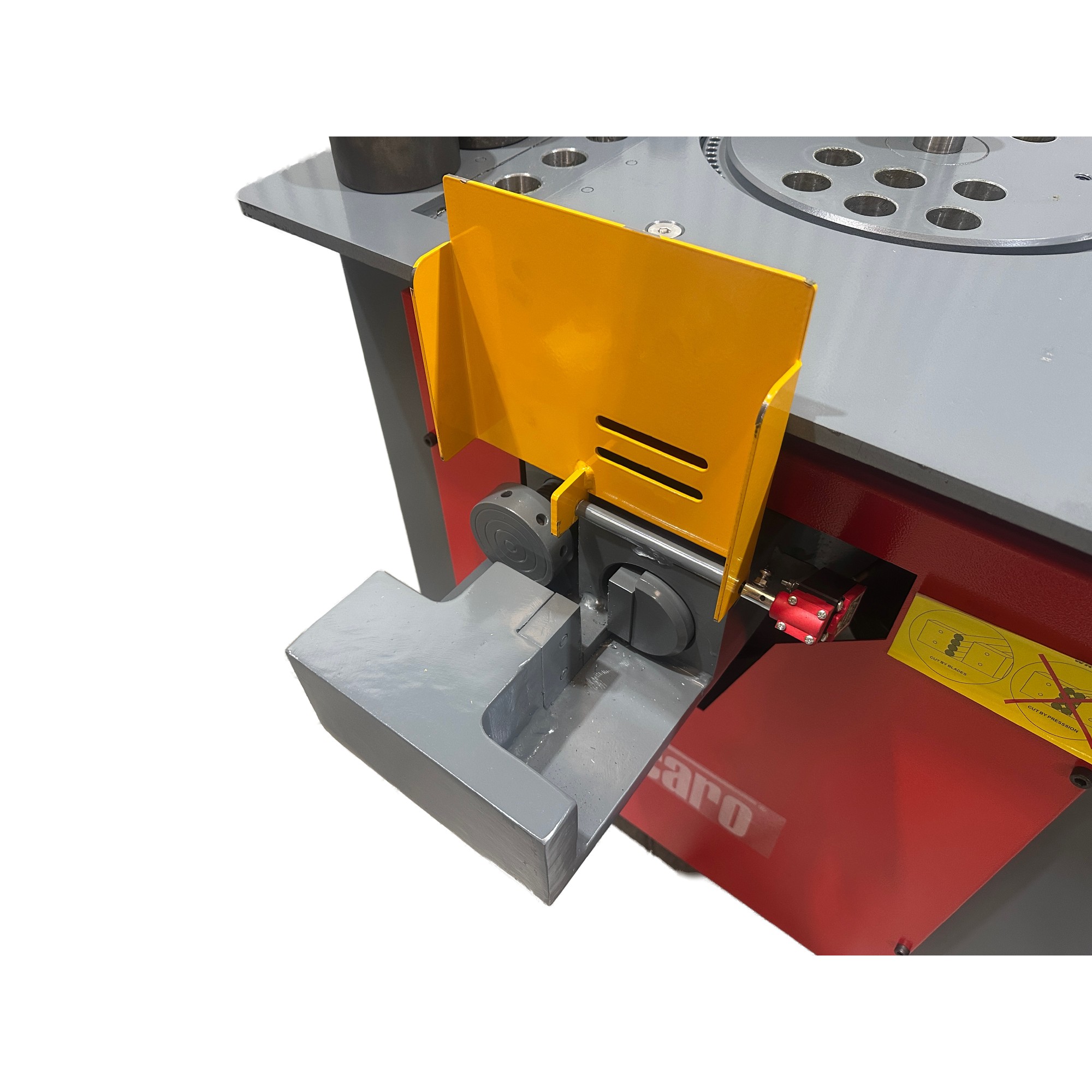

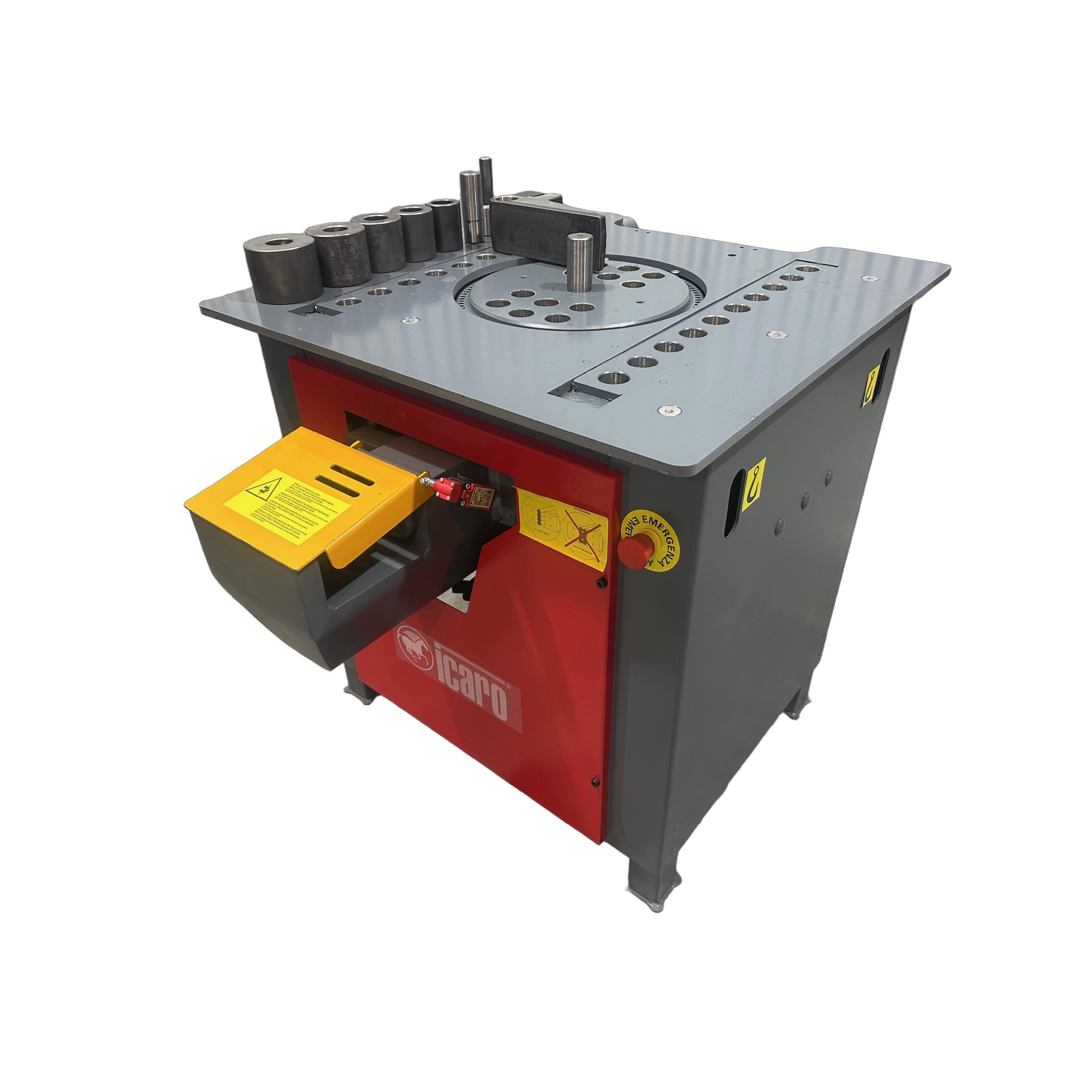

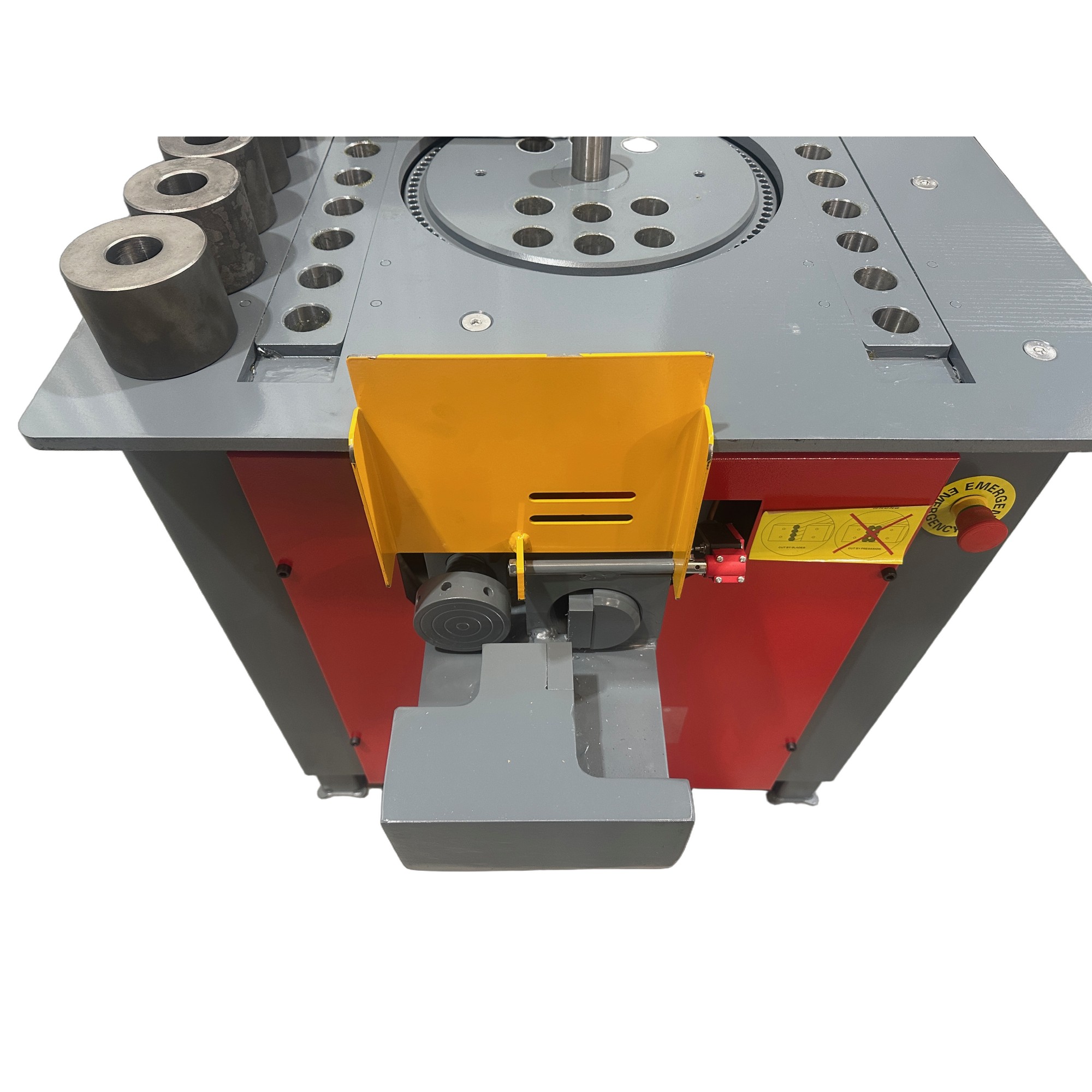

- Compact bar cutting station with adjustable bar support block and safety guard
- User friendly design, fast and easy operation and control
- Proprietary special purpose grease filled gearbox with laminated helical gearing
- Multiple controller options available
- All machines are bluetooth ready: allowing production diagnostics and equipment monitoring using the optional antenna module.
- Compact design for workshops and onsite use
- Safety guarded with interlock systems
- Abides by CE standard European laws and global regulations ISO9001/2008
- Replacement bending bushes and spare parts available in stock
Common Australian Bar Grades
- Grade 250 – 250MPA = 25.5 Kg/mm2
- Grade 300 – 300MPA = 30.6 Kg/mm2
- Grade 500 – 500MPA = 51.0 Kg/mm2
MODEL |
Motor DriveKw |
Cutting & Bending Capacity |
WeightKg |
Machine DimensionsCm |
||||||
|
Bar Hardness 500MPa / 51kgf/mm² |
Bar Hardness 850MPa / 85kgf/mm² |
|||||||||
| 1 x Ø | 2 x Ø | 3 x Ø | 1 x Ø | 2 x Ø | 3 x Ø | |||||
| CP 24/28 | 1.85 | Cut | 20 | 14 | 10 | 18 | 10 | 6 | 280 | 68x72x83 |
| Bend | 24 | 16 | 12 | 22 | 14 | 10 | ||||
| CP 26/32 | 2.2 | Cut | 24 | 18 | 12 | 22 | 16 | 10 | 340 | 95x75x90 |
| Bend | 28 | 22 | 18 | 26 | 20 | 16 | ||||
| CP 30/35 | 3 | Cut | 26 | 20 | 16 | 22 | 18 | 14 | 450 | 85x110x85 |
| Bend | 30 | 24 | 18 | 28 | 22 | 16 | ||||
| CP 38/45 | 4 | Cut | 34 | 24 | 18 | 28 | 20 | 14 | 650 | 104x116x89 |
| Bend | 38 | 28 | 22 | 34 | 26 | 22 | ||||
| CP 50/54 | 5.5 | Cut | 40 | 28 | 18 | 34 | 26 | 15 | 1000 | 100x130x100 |
| Bend | 48 | 34 | 28 | 40 | 36 | 24 | ||||
All the tests were carried out using iron bars coming from all over the world. The iron bars used are all followed the standards: DIN488, BS4449/2005, BS4449/97, ASTM/A706/A706M-00, ASTM (A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness
|
Technical Specification |
|
|
Weight Kg |
650 |
|
Measurements cm |
104 x 116 x 89 |
|
Motor (50 Hz) KW/HP |
4/5, 5 |
|
Motor (60 Hz) KW/HP |
4, 8/6, 5 |
|
RPM (50hz) |
6 |
|
Grease KG |
8 |
|
Working Disc ϴ |
380 |
|
General Equipment |
|
| Standard | Optional |

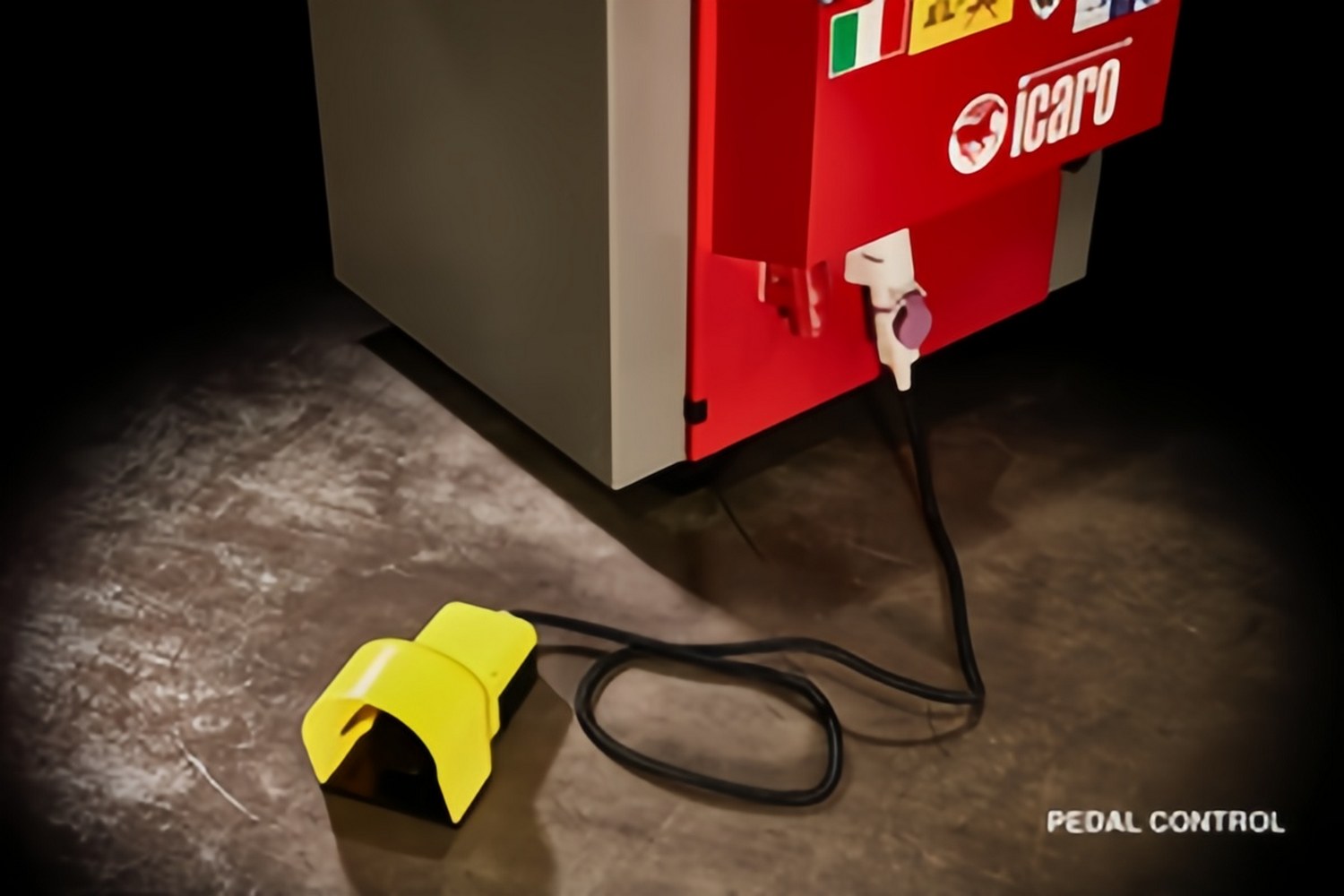

| Foot pedal control | Digital Angle programmable controller |
| Compact bar cutting station | Linear length stop |
| Bluetooth ready module | Bluetooth antenna module |
| 2 x Bending angle setting pins | Single phase supply 240vac Inverter |

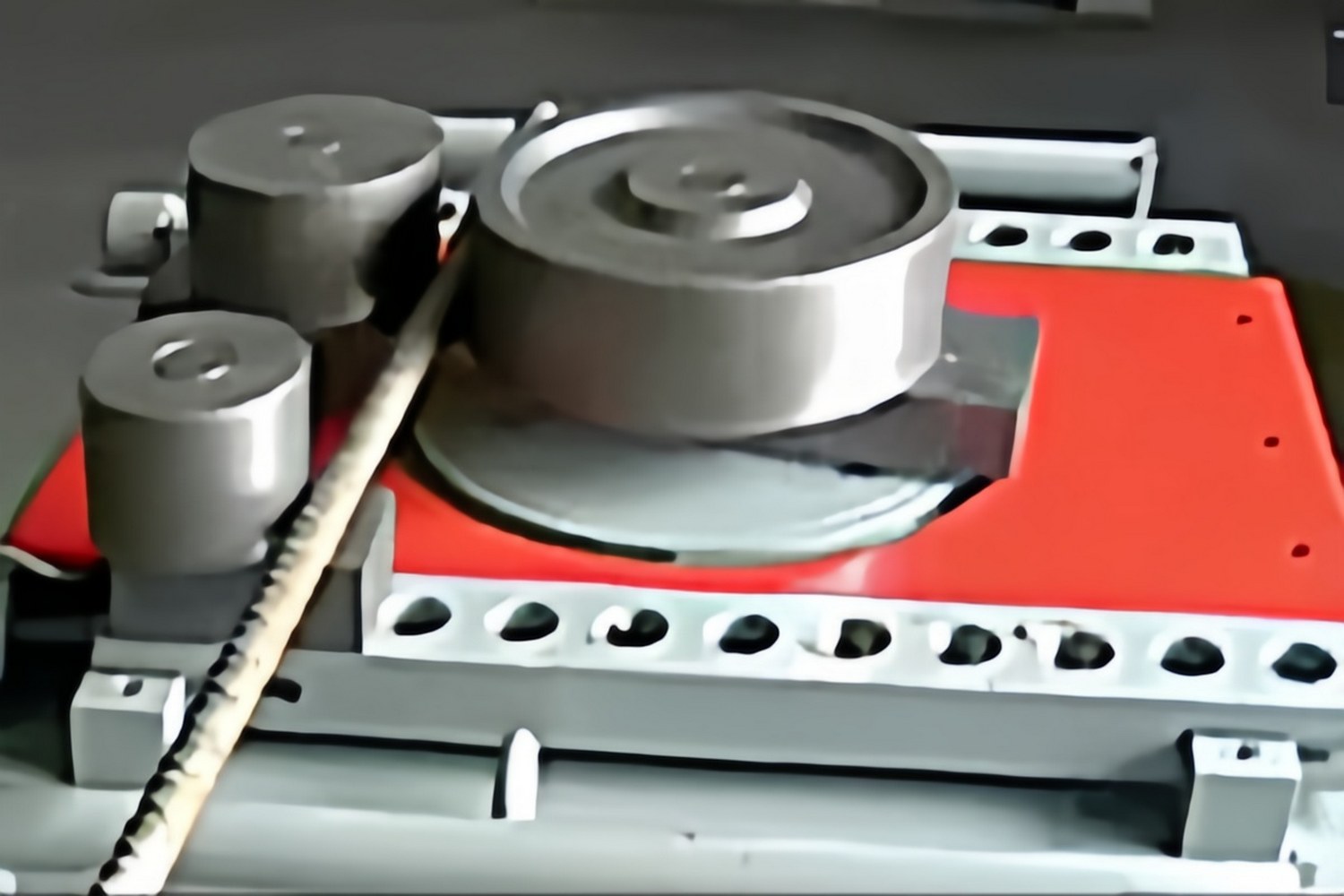

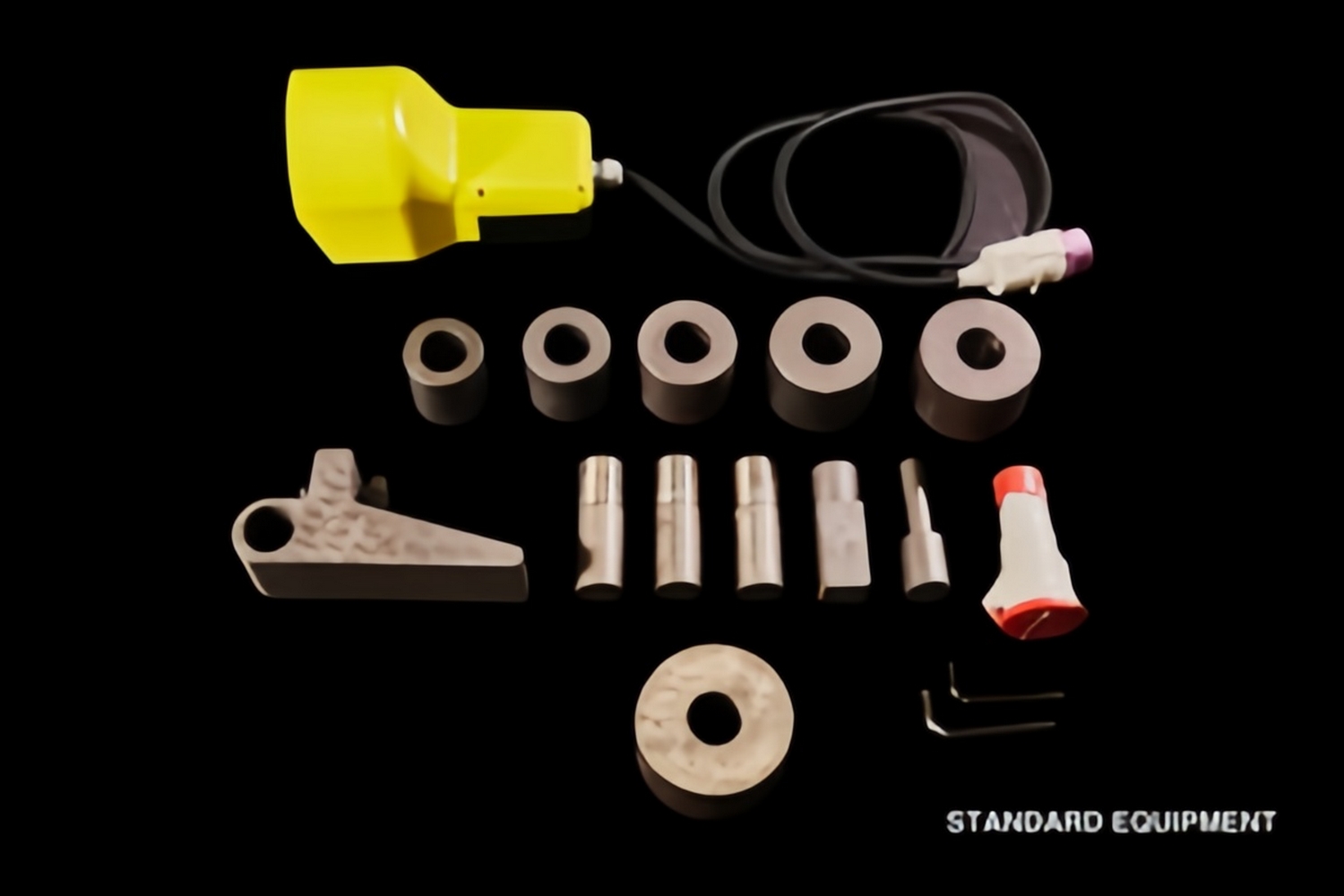

| 6 x Bending bushes & Pins | Extender Arm for large radius bending |

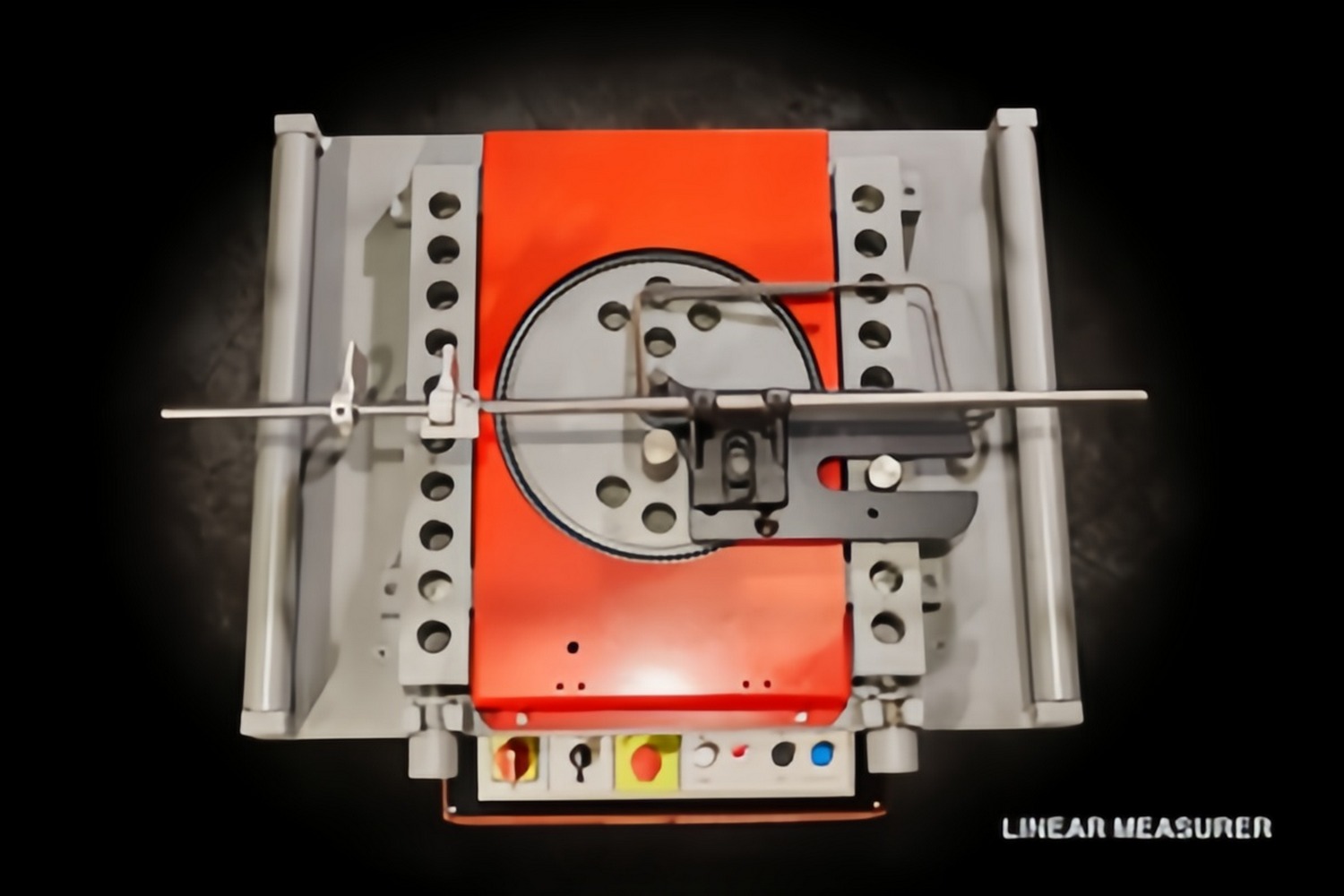

| Squaring arm & stop | Stirrup Bending Attachment with length stop |

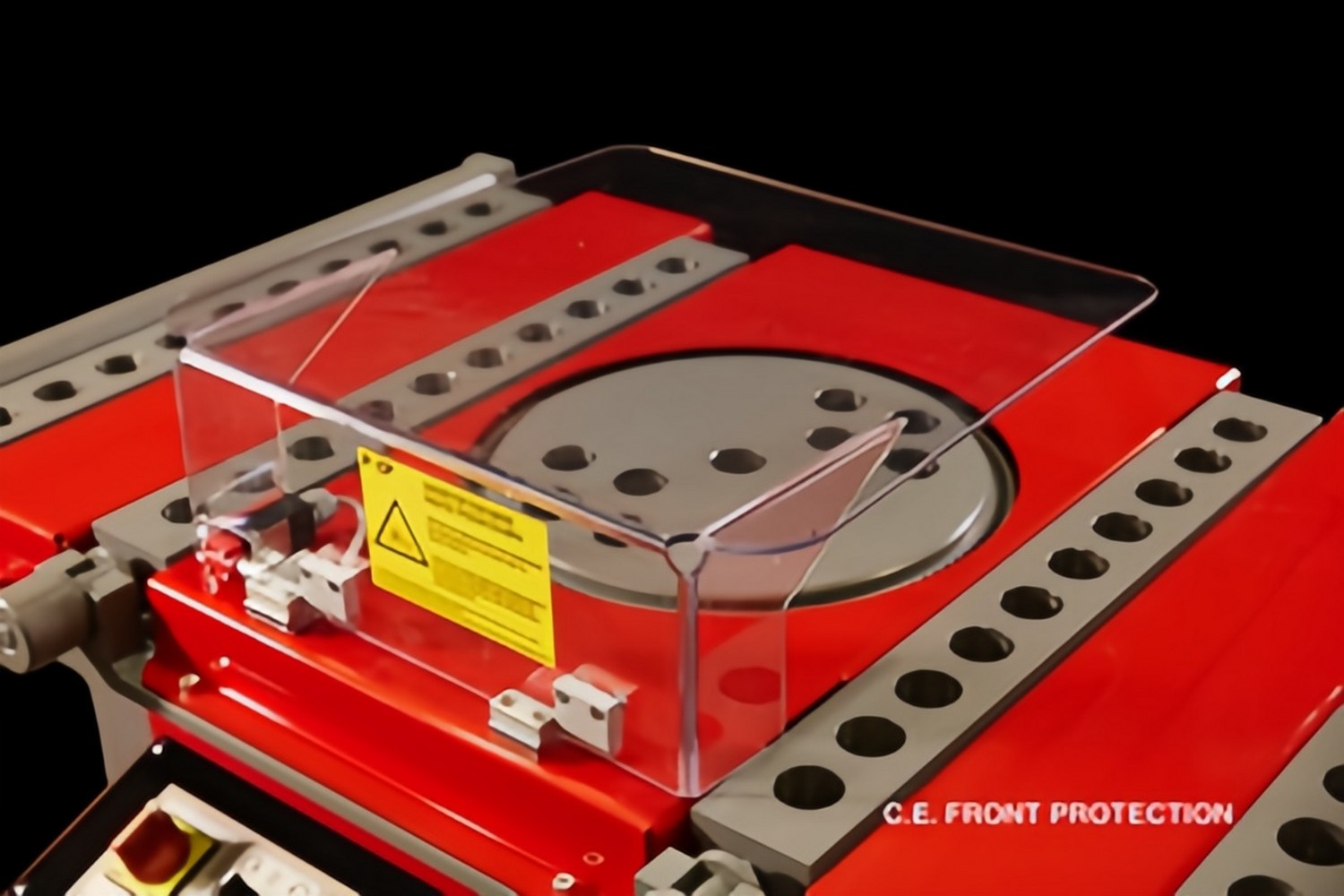

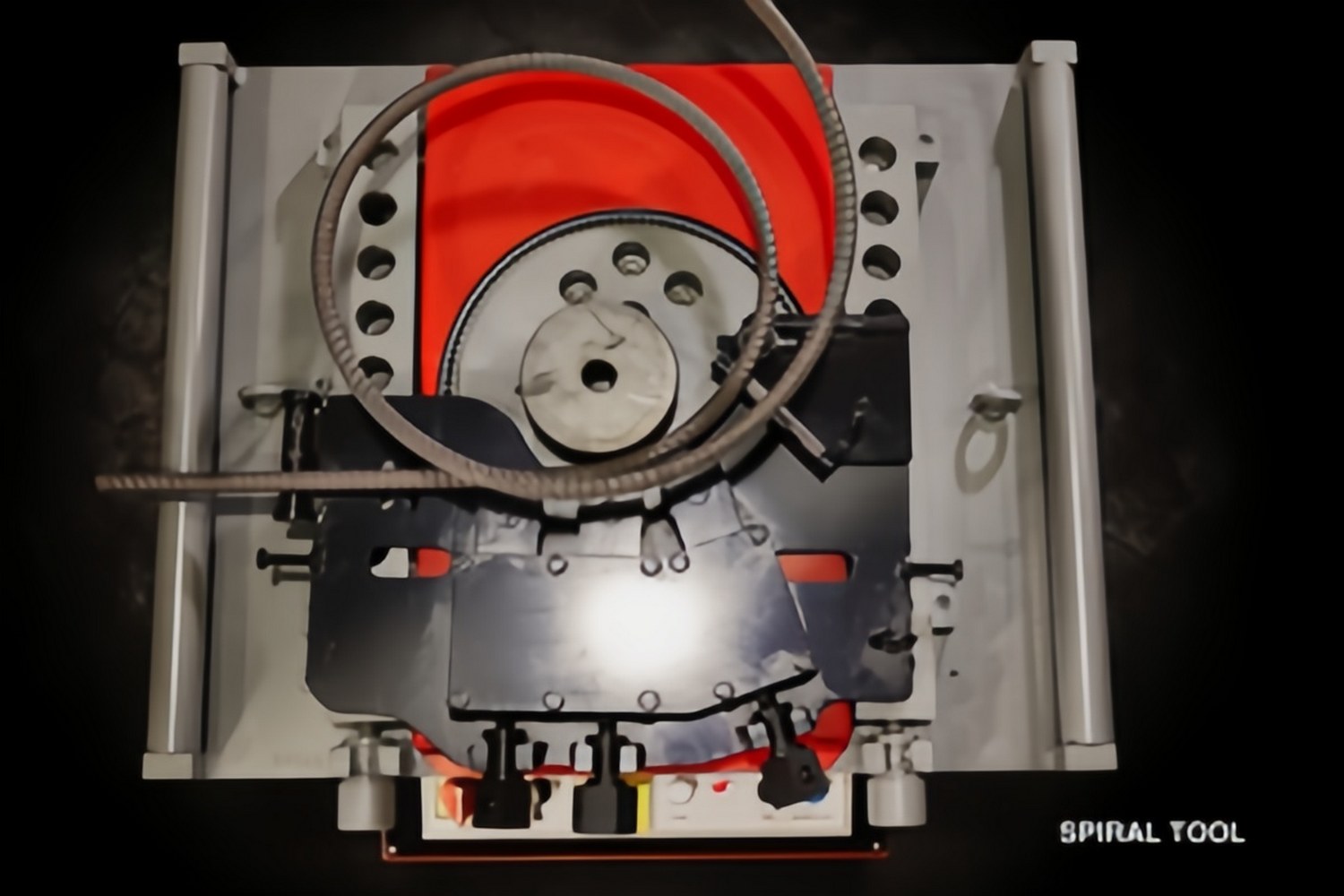

| C.E Safety guard & limit switch | Spiralling forming attachment |
| Digital display voltage Indicator (60V-500V) | |
Standard Equipment
Optional Equipment

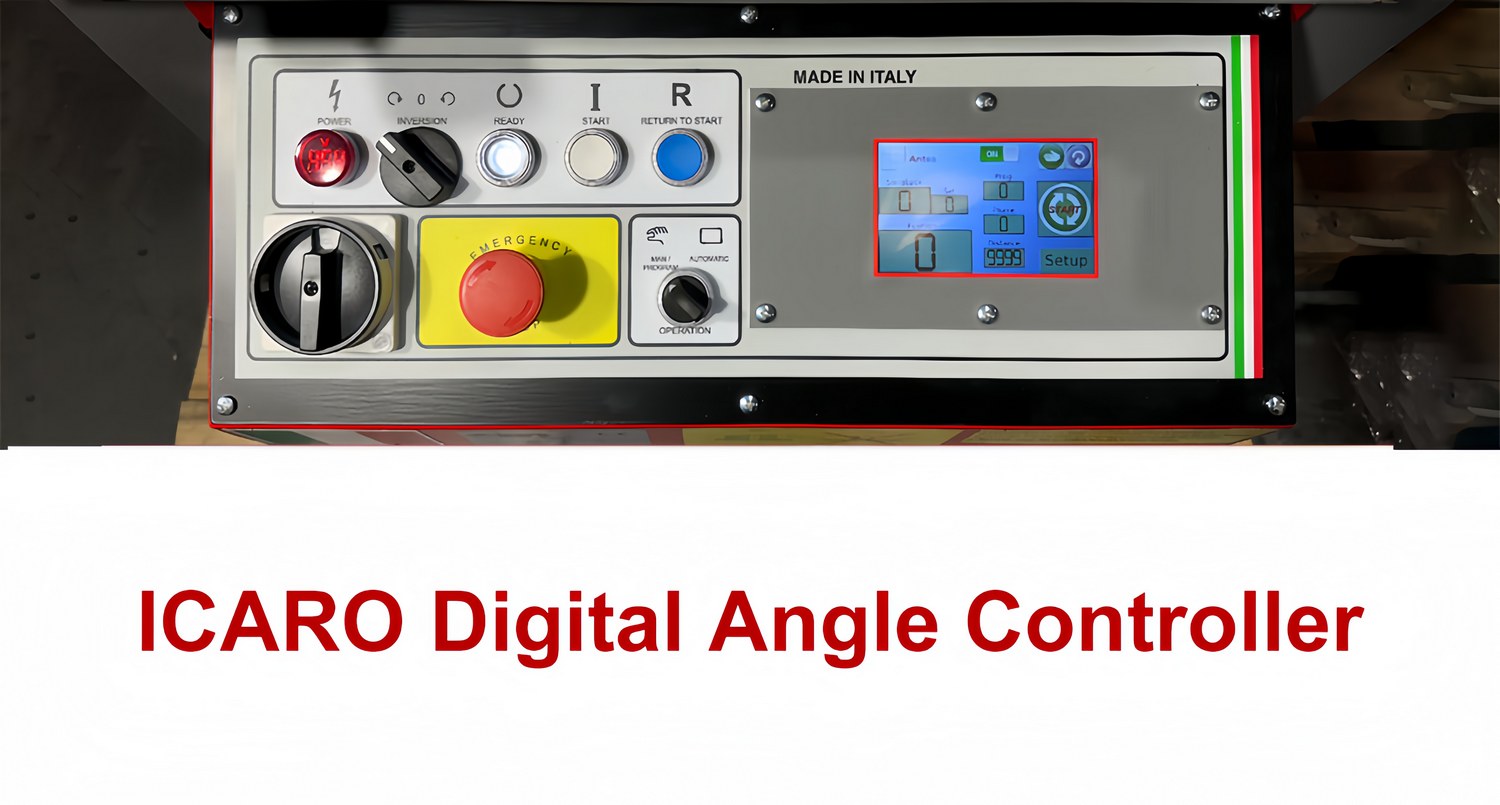

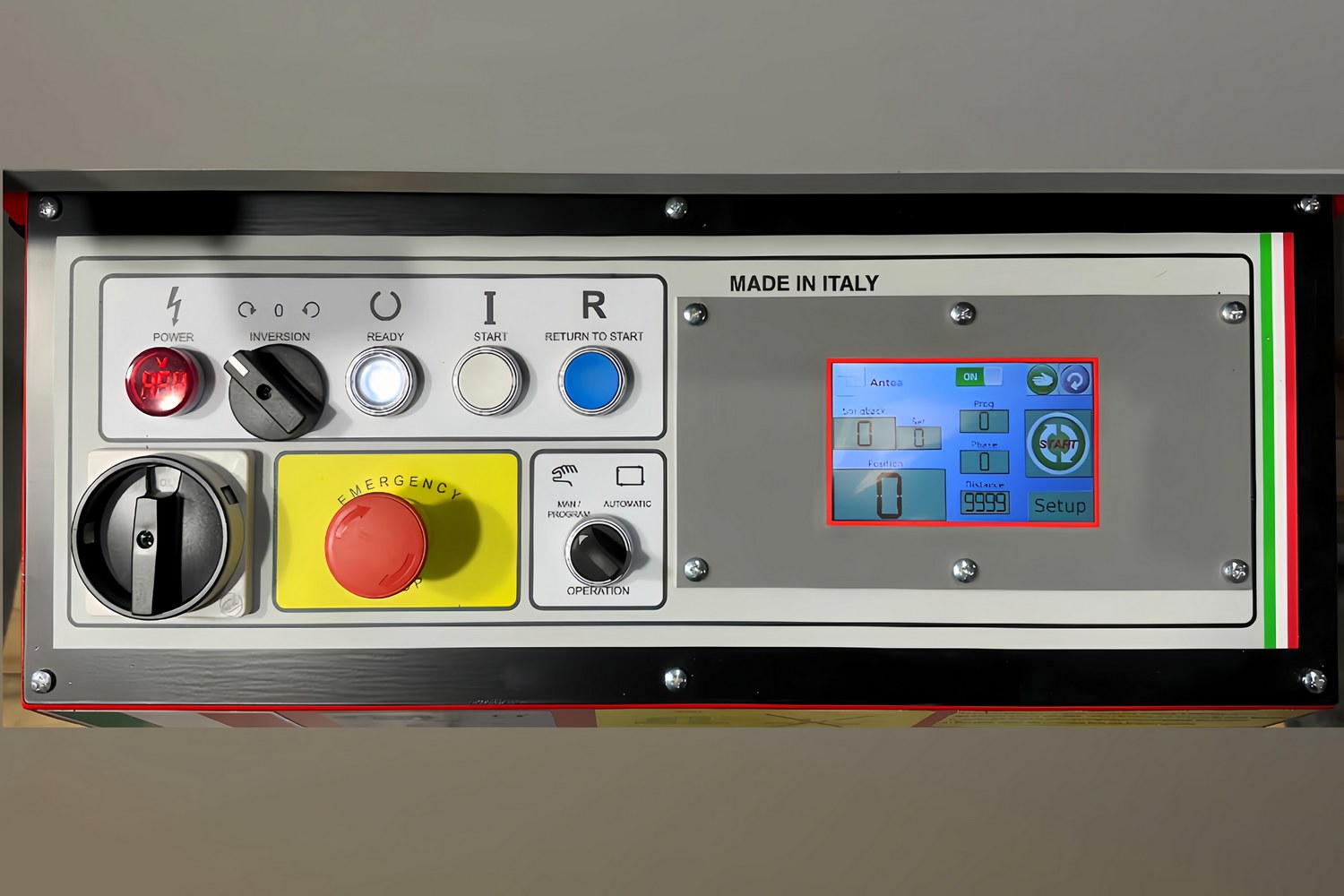

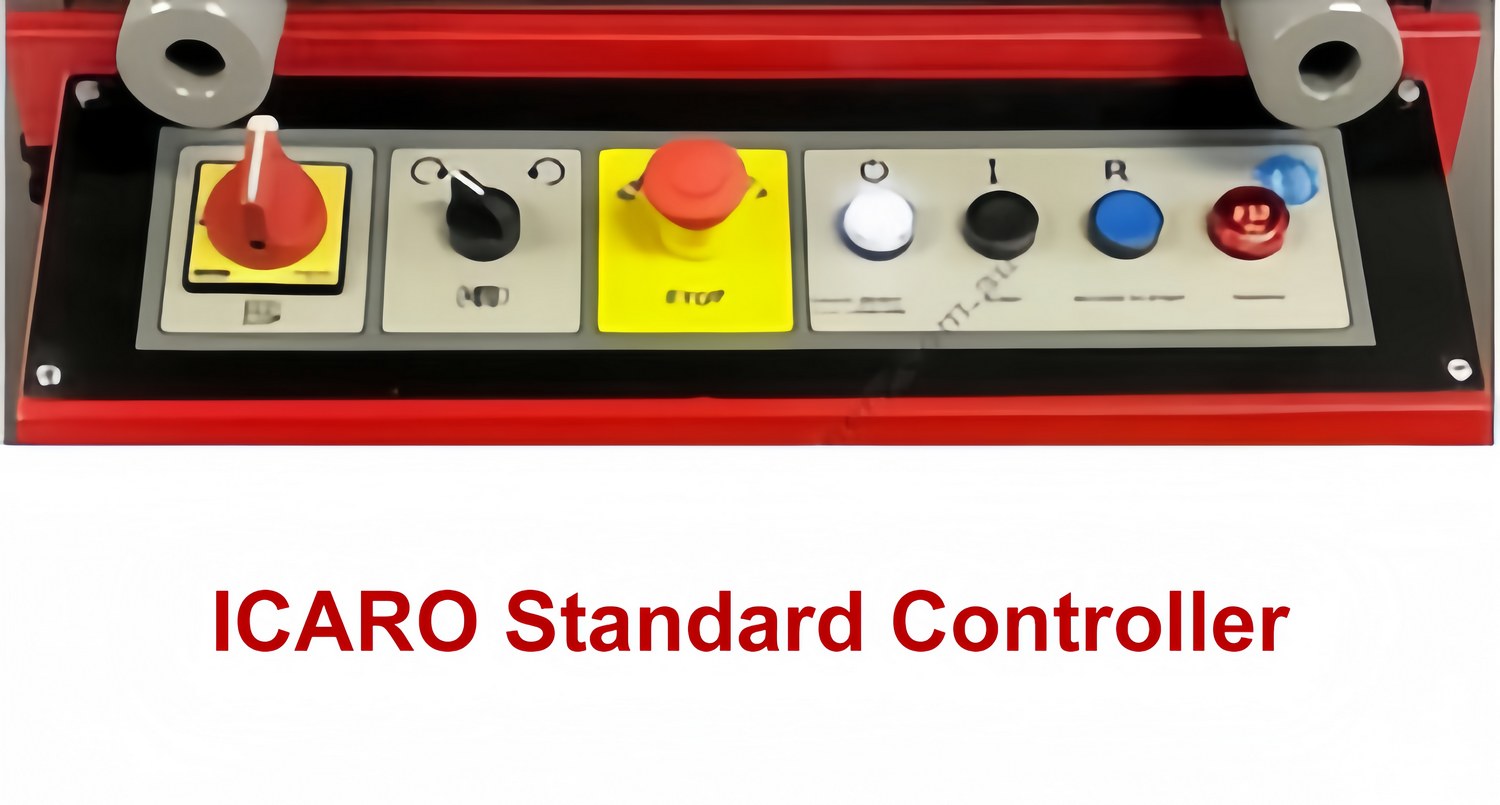

Controller Options
- Set bending angles by changing the limit switch striker pin
- Bi-directional table rotation selector
- Reference return switch Supply voltage Indicator
- Ability to change bending angles quickly from the operator’s keypad.
- Ability Input multiple bending angles steps
- Easily Adjust rebar bending angle correction as required i.e + 5 Degree’s
- Control rotary table bending direction Left or Right rotation
- Set part quantity using the incremental batch counter

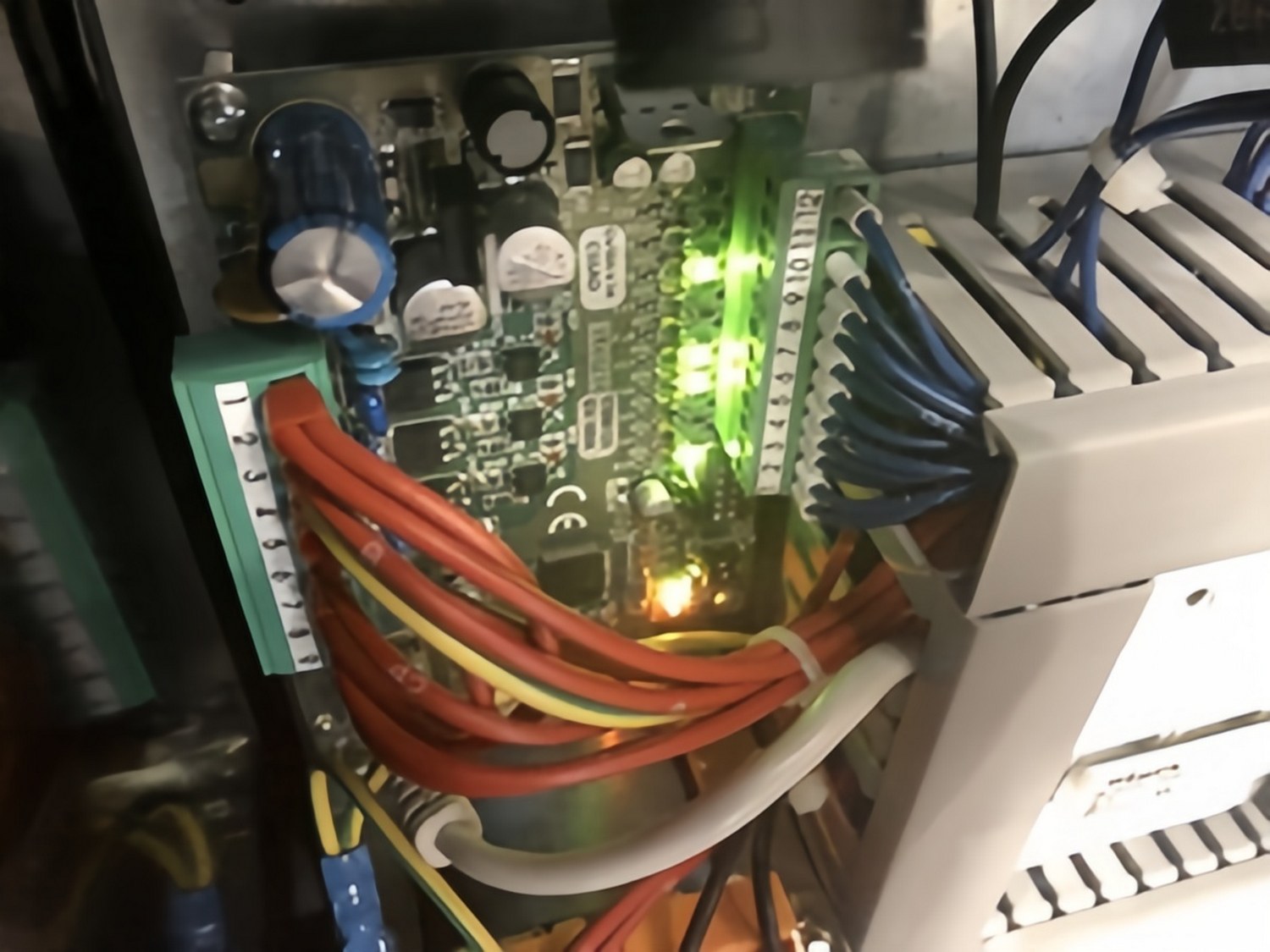

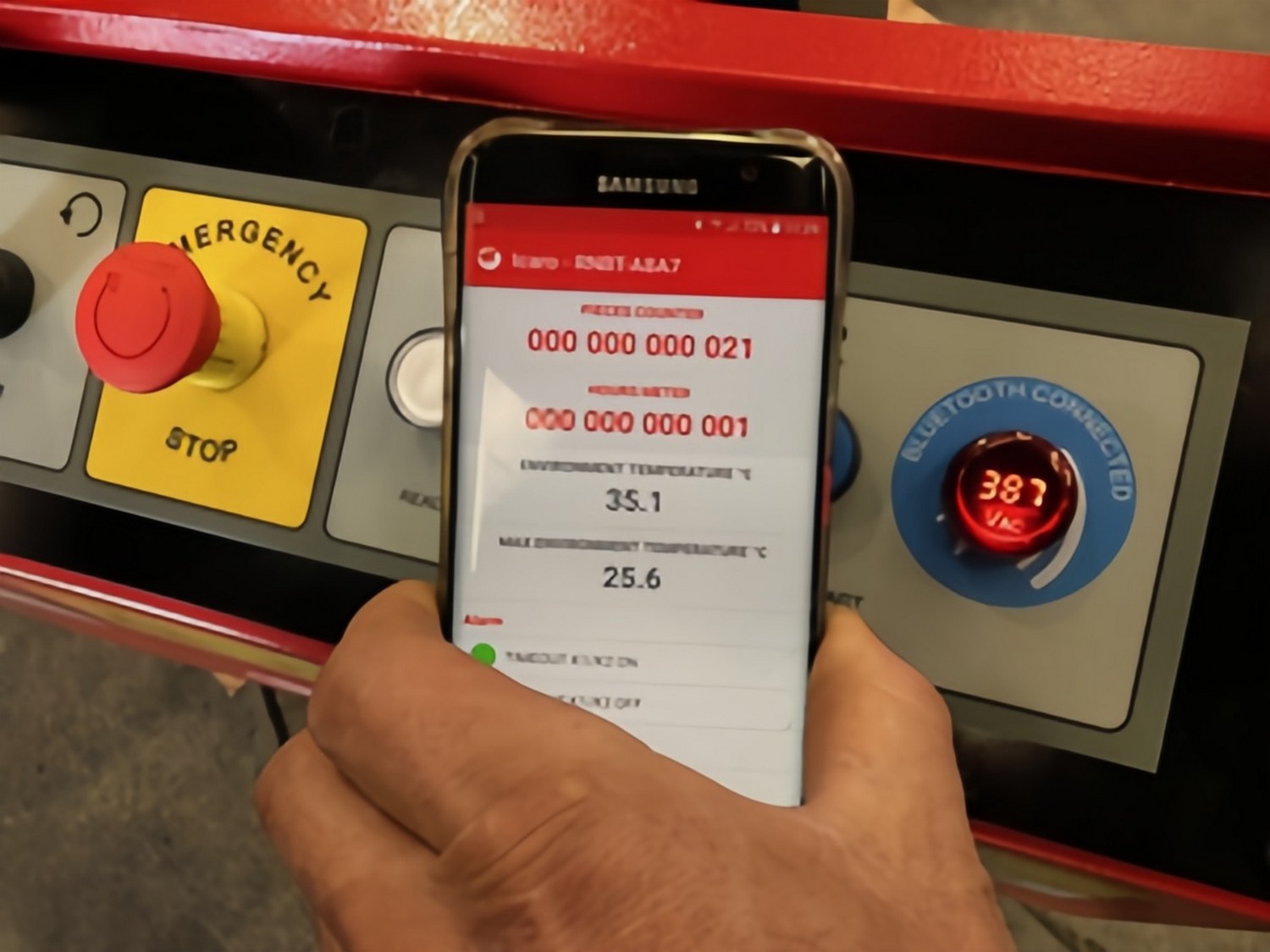

ALL ICARO BENDERS ARE BLUETOOTH-READY
Each bender includes built-in Bluetooth diagnostics for real-time machine condition monitoring. Simply install the optional antenna and download the free Apple or Android app.
Each bender is fitted with our extremely innovative technology for Bluetooth diagnostics, that will let you check the conditions of your machine at every moment.
ICARO Combined Rebar Cutter And Bender with Digital Angle Controller Demo
ICARO Rebar Cutter & Bender Machine – Set Up and Operation Guide
ICARO Machinery is renowned for its high-quality and durable rebar processing equipment, designed to meet the demands of construction professionals worldwide. From rebar bender cutter machines to heavy-duty rebar cutting and bending accessories, ICARO offers reliable solutions for every project. Whether you’re looking for electric rebar cutter and bender combos or hydraulic rebar bender cutter machines, ICARO ensures precision and efficiency in every tool. Capital Machinery Sales, a trusted supplier of construction equipment in Australia, proudly offers a wide range of ICARO machines and spare parts to meet your needs.
For those who require advanced rebar processing tools, ICARO's rebar bender cutter combos are an ideal choice. These machines combine bending and cutting functions in one compact unit, making them perfect for job sites and workshops alike. Capital Machinery Sales stocks a diverse selection of ICARO rebar bender cutter models, including portable, 240v, and industrial-grade machines. With options such as dual-function and multi-purpose rebar equipment, you can optimise your workflow and save time on demanding projects.
ICARO spare parts and accessories are essential for maintaining your machines and ensuring long-term performance. At Capital Machinery Sales, you’ll find original ICARO replacement parts, including bending machine components, rebar cutting accessories, and durable spare parts for heavy-duty applications. Their extensive inventory also includes ICARO rebar bending and cutting tools, making it easy to find the right accessory for your equipment. With high-quality ICARO parts, you can keep your machinery running smoothly and minimise downtime.
Construction professionals in Australia trust ICARO for its top-tier rebar processing equipment, and Capital Machinery Sales is proud to be a leading supplier of these exceptional tools. From rebar fabrication machines to compact stirrup benders and rebar combo machines, their store has everything you need for your next project. Whether you’re in Melbourne, Sydney, Brisbane, or anywhere else in the country, Capital Machinery Sales ensures fast delivery and excellent customer support for all ICARO products.
If you're searching for reliable, high-performance rebar processing machines and accessories, ICARO is the brand to trust. And with Capital Machinery Sales offering a full range of ICARO equipment and spare parts, you can rest assured that you’re getting the best tools for the job. Explore their store today to find the perfect ICARO machine for your needs, and take advantage of their expertise in construction equipment to enhance your efficiency and productivity.
- rebar cutter bender
- rebar benders
- rebar cutters
- cutter rebar
- rebar cutting
- pipe tube benders
- rebar bender
- rebar cutter
- rebar bending machine
- rebar cutting machine
- automatic rebar bending machine
- stirrup bending machine
- bar bending machine
- bar cutting machine
- rebar bending machine price
- rebar sale
- reo bar bender
- steel rebar bender
- manual rebar bender
- reo bender total tools
- stirrup bending machine
- flat bar bending machine
- rebar bending machine price
- spiral rebar bending machine
- steel bar bending machine australia
- small rebar bending machine australia
- stirrup rebar bending machine australia
- rebar threading machine
- rebar bending machine price
- portable rebar bender
- cnc rebar
- rebar bender portable
- rebar bender and cutter machine
- rebar bender
- rebar machines
- used rebar fabrication equipment for sale
- rebar bender for sale
- diamond rebar bender
- used rebar bender for sale
- used rebar equipment
- used rebar
- manual rebar bender
- rebar benders
- rebar bender
- rebar bending
- cutter rebar
- rebar cutting
- pipe tube benders
- portable rebar cutting machine
- electric rebar cutter
- rebar cutter
- rebar cutting tool
- bar cutter machine
- steel rod cutter
- steel bar cutting machine
- construction steel bars
- steel rebar cutting machine
- rebar bending equipment
- rebar bending machine
- reinforced concrete
- reinforcement steel
- manual rebar bending
- rebar bend
- steel bar bending
- structural steel bending
- structural steel reinforcement
- rebar cutter
- rebar cutters
- rebar cutter electric
- rebar cutter
- bar cutter machine
Icaro Blades Info
Replacement Shear Blade Dimensions (ICARO CP38/45)
For replacement blades only – please confirm sizes before ordering.
- Fixed Blade (58 mm × 20 mm × 58 mm)
- Moving Blade: 48/43 mm × 20 mm × 78 mm
Important: Blade dimensions can vary between machines. Please check your existing blades or contact us for confirmation before purchase.
